Product Description:

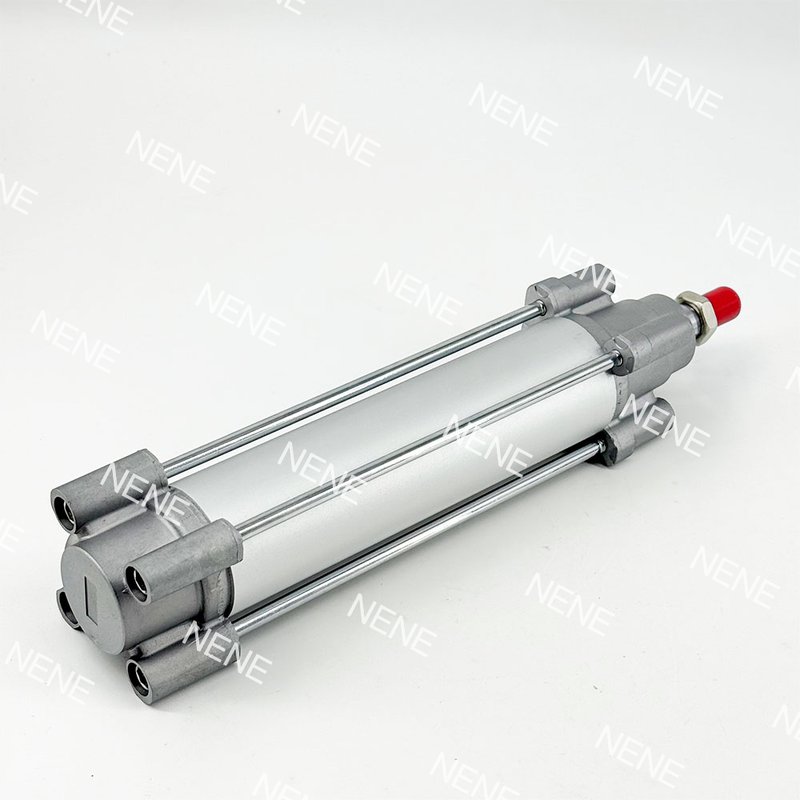

The RA/802063/M Series represents a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. Part of the esteemed ISOLine™ range, this double-acting cylinder features a 63mm bore diameter and comes in a broad array of stroke lengths, ranging from 25mm up to 1000mm. It is engineered to provide reliable and efficient linear motion suitable for a vast range of industrial automation needs.
Central to this cylinder's design is the innovative Adaptive Cushioning System (ACS). This smart technology automatically tailors cushioning performance based on varying load conditions. By removing the necessity for manual adjustments of the cushion screws and eliminating the requirement for specialized expertise, the ACS ensures smoother and safer operation. This advancement not only enhances operational safety but also helps reduce maintenance expenses while extending the cylinder's overall service lifespan.
Constructed with a sturdy round barrel and equipped with external tie rods, the RA/802063/M Series offers exceptional durability, making it well-suited for demanding and harsh industrial environments. Additionally, it includes a magnetic piston as a standard feature, allowing for straightforward position sensing when used with compatible reed or solid-state switches. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards guarantees easy interchangeability and global regulatory adherence.
Operating at a maximum pressure of 16 bar and capable of functioning within a temperature range from -10°C to +80°C, this cylinder is adaptable to a variety of challenging industrial applications. Its design ensures consistent smoothness and precision in performance, making it an ideal choice for tasks that demand reliability and accuracy.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying load conditions. This eliminates the need for manual adjustments, ensuring smooth and safe operation while minimizing noise and vibration during use.
ISO 15552 Compliance
This product complies with the ISO 15552 standard, along with VDMA 24562 and NFE 49-003-1 guidelines. Such adherence guarantees global interchangeability and facilitates easy integration into existing industrial systems.
Robust Construction
Featuring a round barrel design with external tie rods, the construction provides enhanced durability. This makes it well-suited for demanding and aggressive industrial environments.
Magnetic Piston
The standard magnetic piston allows for straightforward position sensing using reed or solid-state switches, such as those in the M/50 series. This simplifies monitoring and control in automation applications.
Wide Operating Pressure Range
Operating efficiently within a pressure range of 1 to 16 bar, this product accommodates a variety of applications, from light-duty to heavy-duty tasks, offering great versatility.
Versatile Stroke Selection
Available in an extensive range of stroke lengths, including both standard and non-standard options up to 1000mm, it provides flexibility to meet diverse application requirements.
Low Maintenance
Equipped with PUR seals that deliver low-friction operation and long service life, this product requires minimal maintenance. It is compatible with both lubricated and non-lubricated air systems.
Shock and Vibration Tested
The product has been tested according to EN 61373 standards, achieving Category 1, Class A + B certification, making it suitable for rail and transportation applications that demand high shock and vibration resistance.
High Force Output
At 6 bar pressure, the theoretical thrust values are 1870 N during outstroke and 1680 N during instroke. This provides sufficient power for demanding industrial uses.
Multiple Variants Available
A wide range of variants is offered, including options for different piston rod materials, special wipers, low friction seals, and extended piston rods, allowing customization to specific operational needs.
Technical Parameters:
| Operation |
Double Acting |
| Type |
Standard Cylinder |
| Piston Rod Thread |
M16 X 1.5 |
| Cylinder Bore |
63 Mm |
| Port Size |
G3/8 |
| Brand |
IMI Norgren |
Applications:
Industrial Automation
This sector encompasses general factory automation, including assembly lines and material handling equipment. It focuses on optimizing production processes to enhance efficiency and productivity.
Packaging Machinery
Packaging machinery involves operations such as product sorting, pushing, positioning, and conveying. These automated tasks help streamline packaging workflows and ensure accuracy.
Automotive Industry
In the automotive sector, key applications include component assembly, welding fixtures, production line automation, and testing equipment. These solutions support high-quality vehicle manufacturing.
Railway Applications
Railway equipment is rigorously tested for shock and vibration in accordance with EN 61373 standards, specifically Category 1, Class A + B. This ensures durability and reliability in rail vehicle environments.
Food & Beverage
The food and beverage industry utilizes systems compatible with filtered, lubricated, or non-lubricated compressed air. This adaptability supports hygienic and efficient processing operations.
Mechanical Engineering
Mechanical engineering covers machine building, special-purpose machinery, and general linear actuation, providing customized solutions to meet diverse industrial needs.
Material Handling
In logistics systems, material handling involves lifting, pushing, stopping, and transferring operations. Automation in this area enhances the movement and management of goods.
Electronics Manufacturing
Electronics manufacturing demands precision positioning and careful component handling, often within clean environments, to maintain product quality and consistency.
