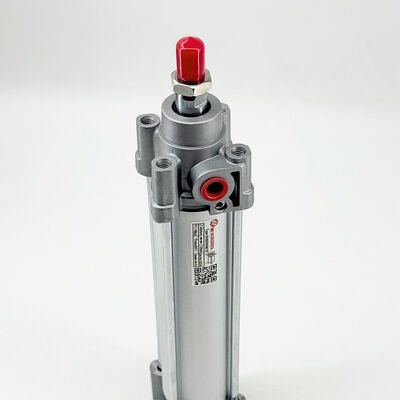

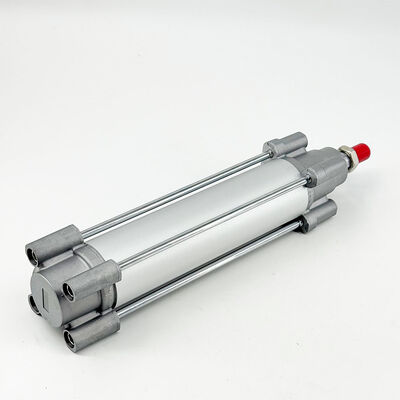

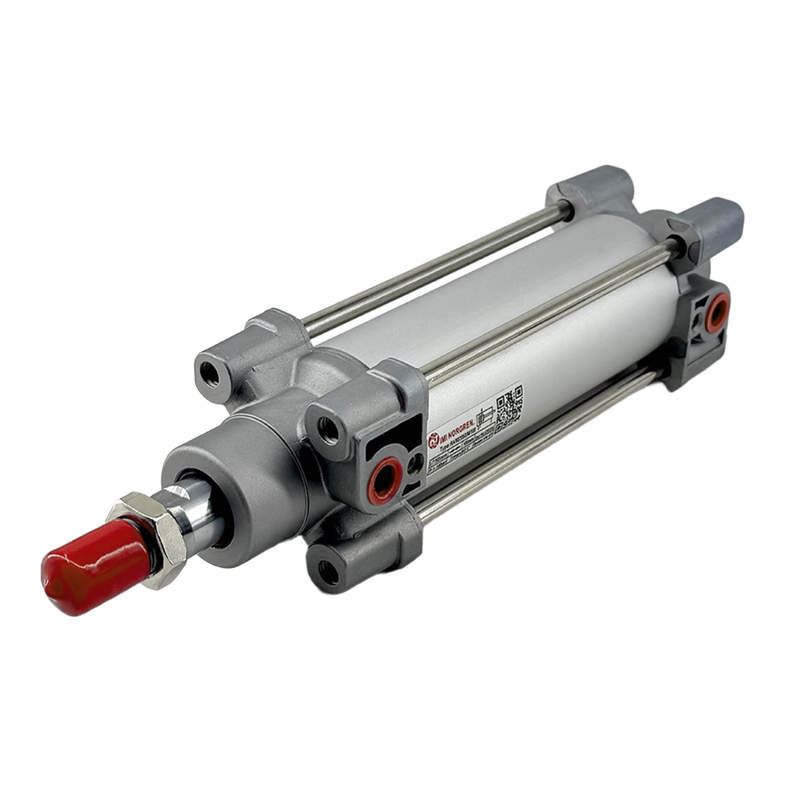

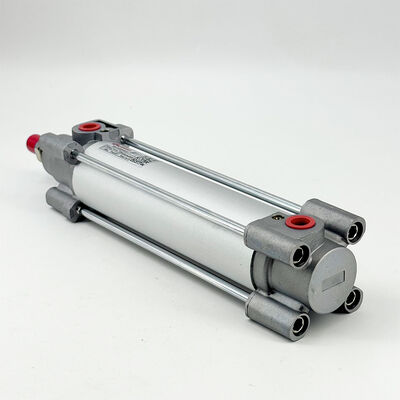

Extra Long Stroke Magnetic Tie Rod Pneumatic Cylinder RA/802032/M/300, IMI Norgren RA8000 ISO15552 32×300mm Double Acting

Product Description:

The IMI NORGREN RA Series represents a versatile and high-performance range of pneumatic cylinders designed specifically for contemporary industrial automation needs. This lineup includes both ISO standard profile cylinders and ultra-compact models, providing precise and repeatable linear motion suitable for a wide variety of pneumatic applications.

Constructed using premium industrial-grade materials and advanced sealing technologies, the RA Series guarantees stable and efficient operation. Its design minimizes friction and completely eliminates air leakage, enhancing reliability and longevity in demanding environments.

Fully compliant with international ISO standards, these cylinders offer great flexibility in installation and customization options. They are also compatible with various sensor configurations, making them an economical and durable solution for automated production systems worldwide.

Features:

The high-performance ACS adaptive adjustable cushioning system is designed to significantly reduce the impact noise generated during stroke movements. This advanced cushioning not only protects the cylinder and mechanical fixtures but also helps to extend the overall service life of the equipment.

It supports a wide operating pressure range, from 1 to 16 bar, making it suitable for medium and large bore applications. Additionally, there are multiple temperature variants available, ranging from -40°C for low-temperature environments to +150°C for high-temperature conditions, ensuring reliable performance even in the most demanding workshop settings.

The product features standard G thread air ports, which are compatible with global pneumatic pipeline accessories. It complies with RoHS standards, emphasizing its eco-friendly design, and is ideal for export in automated equipment systems worldwide.

Furthermore, it offers various installation accessories and thread configurations, including male and female piston rod threads. The multi-directional mounting capability allows for flexible installation, making it perfectly suited for spaces where installation options are limited.

Technical Parameters:

Applications:

In the automotive manufacturing sector, pneumatic systems play a crucial role in enhancing production efficiency. They are widely used in automated assembly lines, robotic clamping fixtures, and mechanisms for pushing and lifting at stamping and welding stations. These technologies help streamline operations and ensure precision throughout the manufacturing process.

The CNC and general machinery industries benefit greatly from pneumatic solutions as well. Applications include clamping in machining centers, ejection in injection molding processes, feeding mechanisms in stamping machines, and automated conveyor systems for jacking and positioning tasks. These uses contribute to improving accuracy and automation in various machining operations.

Within the electronics and semiconductor fields, pneumatic equipment is essential for the production and testing of delicate components. Pneumatics facilitate PCB manufacturing, precise positioning during chip testing, and the sorting and clamping of small components with high accuracy. This ensures that the intricate requirements of electronic assembly are consistently met.

The food and beverage packaging industry also utilizes pneumatic actuators to optimize its production lines. Common applications include operating filling machines, sealing cartons, clamping bottles securely, and conveying food materials. Pneumatic technology ensures efficient, hygienic, and reliable handling throughout the packaging process.

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a variety of industrial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and maintenance tips to ensure optimal operation of your pneumatic cylinder.

We provide comprehensive services including custom configuration, replacement parts sourcing, and performance optimization advice tailored to your specific needs. Our support covers all aspects of the piston pneumatic cylinder’s functionality, from air pressure requirements to mounting and alignment considerations.

To maximize the lifespan and efficiency of your pneumatic cylinder, regular inspection and proper lubrication are recommended. We offer detailed service manuals and technical documentation to help you maintain your equipment with ease.

In case of any technical issues or questions regarding the piston pneumatic cylinder, our support team is committed to providing prompt and effective solutions to minimize downtime and enhance productivity.

Packing and Shipping:

Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static foam and sealed in a plastic bag to prevent moisture and dust exposure. It is then placed in a custom-fitted cardboard box with additional padding to absorb shocks and vibrations.

For shipping, we use sturdy outer cartons that comply with international shipping standards. All packages are clearly labeled with product information, handling instructions, and shipping addresses to ensure safe and timely delivery. We offer multiple shipping options including standard, expedited, and freight services to meet your specific needs.

Before dispatch, each package undergoes a final quality inspection to verify that the product and all accessories are included and in perfect condition. Tracking information will be provided once the shipment is processed, allowing you to monitor your order until it arrives at your doorstep.
