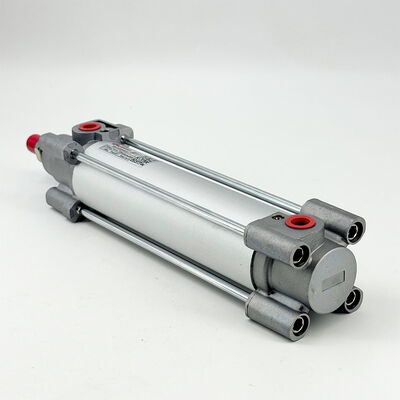

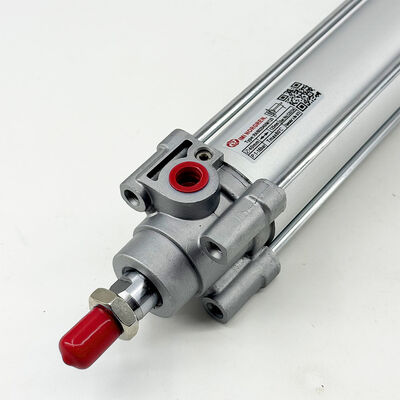

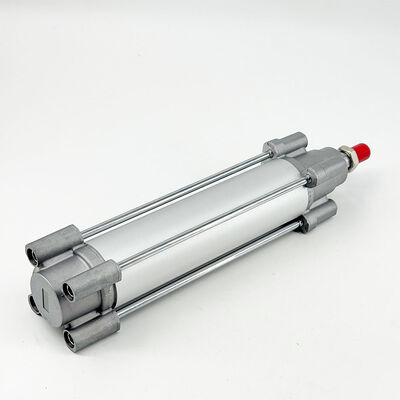

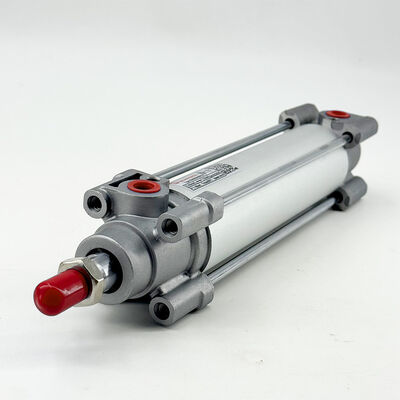

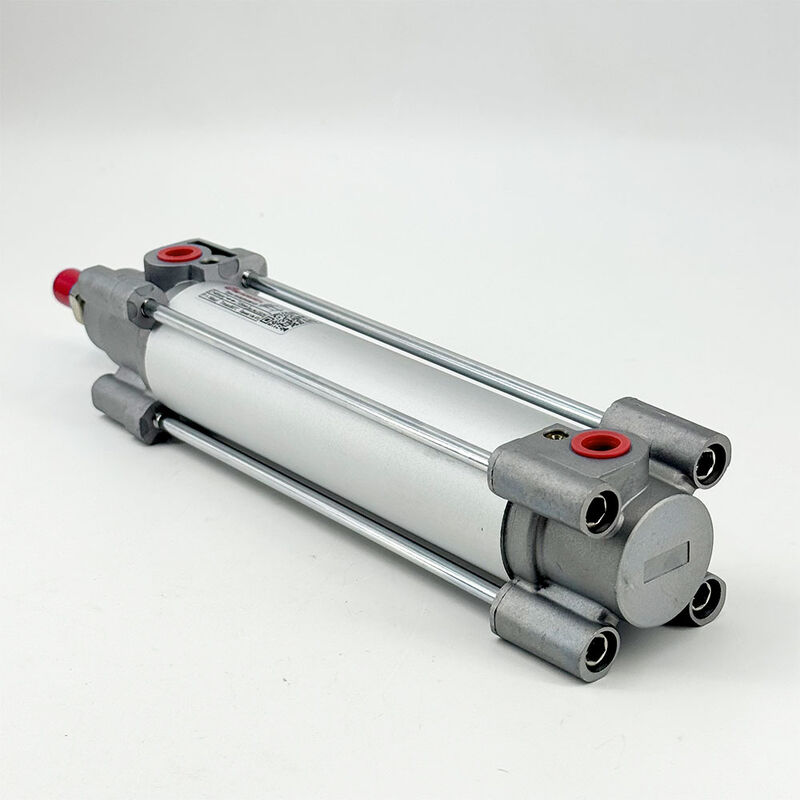

Product Description:
The IMI NORGREN RA Series represents a highly adaptable and efficient range of pneumatic cylinders designed specifically for contemporary industrial automation needs. This lineup includes both ISO standard profile cylinders and ultra-compact variants, providing accurate and repeatable linear motion suitable for a wide array of pneumatic applications.
Constructed with premium industrial-grade materials and incorporating advanced sealing technologies, the RA Series guarantees reliable performance with minimal friction and no air leakage. These features contribute to the stability and longevity of the cylinders, making them ideal for demanding industrial environments.
Fully compliant with international ISO standards, the RA Series offers flexible mounting options, customizable configurations, and compatibility with various sensors. This combination of attributes makes it a cost-efficient and robust actuator solution for automated production systems worldwide.
Features:
The high-performance ACS adaptive adjustable cushioning system efficiently minimizes stroke impact noise. This protection not only safeguards the cylinder and mechanical components but also significantly extends the overall lifespan of the equipment.
Designed to operate within a broad pressure range, this cushioning system supports pressures from 1 to 16 bar for medium and large bore sizes. Additionally, it offers a variety of temperature-resistant versions, ranging from -40°C for low-temperature conditions up to +150°C for high-temperature environments, making it ideal for demanding workshop settings.
The product features standard G thread air ports, ensuring compatibility with global pneumatic pipeline accessories. It complies with RoHS regulations, reflecting its eco-friendly design, and is well-suited for integration into export automation machinery.
To accommodate diverse installation requirements, multiple mounting accessories and thread options are available, including both male and female piston rod threads. The design allows for multi-directional mounting, making it adaptable to spaces with limited installation room.
Technical Parameters:
| Bore |
32 Mm |
| Stroke |
200 Mm |
| Operation |
Double-Acting |
| Standard |
ISO 15552 |
| Media |
Compressed Air |
| Piston Rod |
Stainless Steel |
Applications:
In the field of automotive manufacturing, advanced automation technologies are widely employed. These include automated assembly lines that streamline production processes, robotic clamping fixtures that enhance precision and repeatability, and specialized mechanisms for pushing and lifting at stamping and welding stations.
The CNC and general machinery sector utilizes a variety of automated solutions to improve efficiency. Examples include clamping systems designed for machining centers, ejection mechanisms for injection molds, feeding systems for stamping machines, as well as automated conveyor jacking and positioning devices that ensure smooth material handling.
The electronics and semiconductor industry relies on highly precise equipment to support manufacturing activities. Equipment used in PCB production, chip testing positioning systems, and sorting and clamping devices for small components all contribute to maintaining the high level of accuracy required in this field.
Within the food and beverage packaging industry, pneumatic actuators play a crucial role. They are commonly integrated into filling machines, carton sealing devices, bottle clamping mechanisms, and systems for conveying food materials, enhancing automation and productivity throughout the packaging process.
Support and Services:
Our Piston Pneumatic Cylinder product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, operation manuals, and maintenance instructions to help you get started quickly and maintain the cylinder effectively. Our technical support team is available to assist with troubleshooting, application advice, and customization options tailored to your specific needs. Additionally, we offer repair services and replacement parts to extend the life of your pneumatic cylinder. Whether you require guidance on selecting the right cylinder for your application or need assistance with system integration, our experts are here to support you every step of the way.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective foam sleeve to prevent scratches and damage. It is then placed inside a sturdy, custom-fitted cardboard box designed to minimize movement and absorb shocks.
For added safety, the boxed product is further secured within an outer shipping carton with cushioning materials such as bubble wrap or air pillows. This multi-layer packaging approach guarantees that the pneumatic cylinder reaches you in perfect working condition.
We offer reliable shipping options with tracking and insurance to provide peace of mind. Orders are processed promptly, and estimated delivery times vary based on the destination and selected shipping method. Please ensure the shipping address is complete and accurate to avoid delays.
