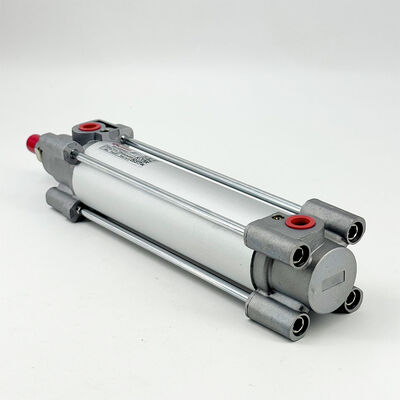

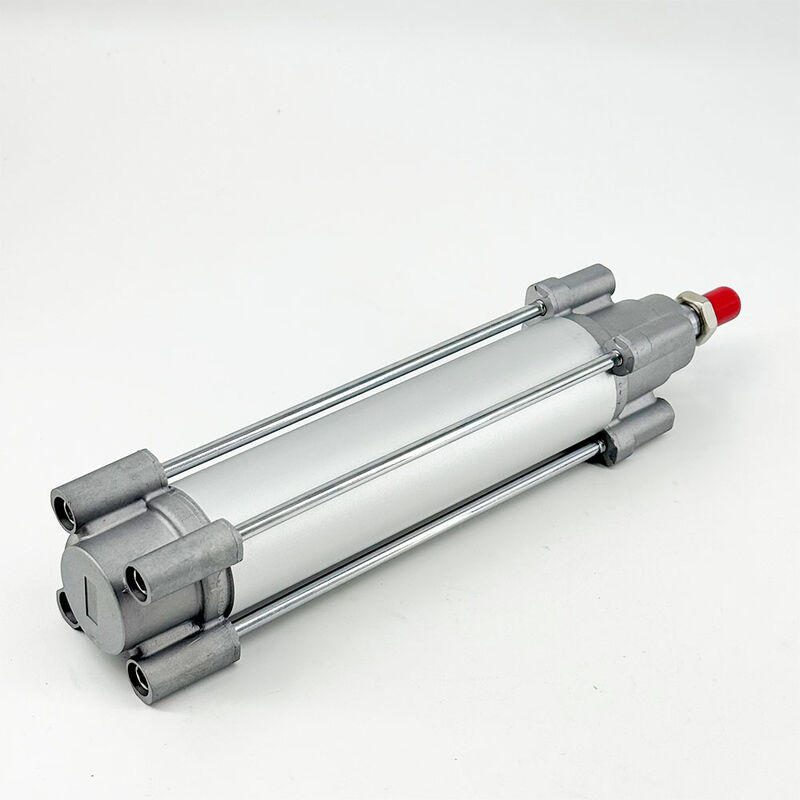

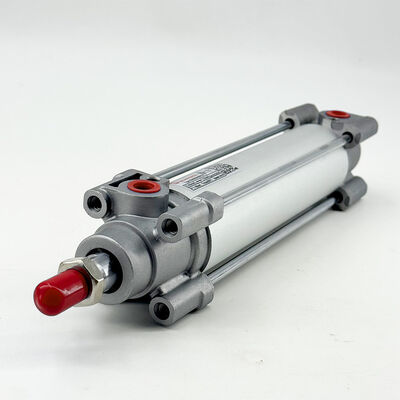

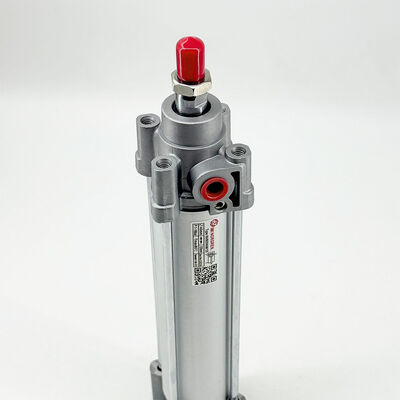

Product Description:
The IMI NORGREN RA Series offers a versatile and high-performance range of pneumatic cylinders designed to meet the demands of contemporary industrial automation. This lineup includes both ISO standard profile cylinders and ultra-compact models, providing precise and repeatable linear motion essential for various pneumatic applications.
Constructed with premium industrial-grade materials and advanced sealing technologies, the RA Series guarantees stable operation with minimal friction and absolutely no air leakage. These features contribute to enhanced reliability and efficiency in pneumatic systems.
Fully compliant with global ISO standards, the series allows for flexible installation options, customizable configurations, and compatibility with sensor devices. This makes the IMI NORGREN RA Series a cost-effective, durable, and adaptable actuator solution suitable for automated production environments worldwide.
Features:
The advanced ACS adaptive adjustable cushioning system delivers high performance by effectively minimizing stroke impact noise. This feature provides reliable protection for both the cylinder and mechanical fixtures, thereby extending the overall service life of the equipment.
Designed to operate within a wide pressure range from 1 to 16 bar, these cylinders are suitable for medium and large bore applications. Additionally, they offer a variety of temperature options, ranging from -40°C low temperature models to +150°C high temperature versions, making them ideal for use in demanding and harsh workshop environments.
Equipped with standard G thread air ports, these cylinders are compatible with global pneumatic pipeline accessories. They comply with RoHS standards, ensuring they are environmentally friendly and suitable for export in automation equipment markets worldwide.
To accommodate various installation requirements, the product features multiple installation accessories and thread options, including both male and female piston rod threads. Moreover, its multi-directional mounting capability allows for flexible installation even in spaces with limited room.
Technical Parameters:
| Standard |
ISO 15552 |
| Bore |
32 Mm |
| Stroke |
175 Mm |
| Operation |
Double-Acting |
| Piston Rod |
Stainless Steel |
| Media |
Compressed Air |
Applications:
In the automotive manufacturing sector, automation plays a crucial role in enhancing efficiency and precision. Automated assembly lines streamline the production process, while robotic clamping fixtures ensure secure handling of parts. Additionally, mechanisms such as stamping and welding station pushers and lifters contribute to the seamless operation of vehicle assembly.
The CNC and general machinery industries rely heavily on specialized equipment for various tasks. Machining center clamping systems provide stability during intricate operations. Injection mold ejection and stamping machine feeding mechanisms aid in maintaining continuous production flow. Furthermore, automated conveyor systems incorporate jacking and positioning functions to facilitate material movement.
Within the electronic and semiconductor fields, precision is paramount. Equipment used in PCB production, chip testing, and positioning caters to the demand for accuracy. Small component sorting and clamping devices are designed to handle delicate parts efficiently, ensuring high-quality outcomes in manufacturing processes.
The food and beverage packaging industry utilizes a variety of pneumatic actuators to optimize operations. Filling machines and carton sealing equipment benefit from bottle clamping devices, which stabilize containers during processing. Additionally, pneumatic actuators assist in the conveying of food materials, contributing to hygienic and efficient packaging lines.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please ensure you have the model number, specifications, and any relevant operational details ready to facilitate prompt assistance.
We offer comprehensive services including installation guidance, troubleshooting, maintenance advice, and repair support to maximize the lifespan and functionality of your pneumatic cylinder. Our team of experts is equipped to help you with system integration, performance optimization, and replacement parts selection.
Regular maintenance is recommended to prevent wear and tear, including checking for air leaks, lubricating moving parts, and inspecting seals and rods for damage. Proper installation and operation according to the provided manuals will ensure optimal performance and safety.
For any technical issues, please refer to the troubleshooting section of the product manual or consult our online resources for detailed guides and FAQs. We are committed to providing ongoing support to meet your operational needs and ensure your satisfaction with our Piston Pneumatic Cylinder product.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static foam and placed in a custom-fitted box to prevent movement and minimize the risk of damage. The packaging materials are chosen to be environmentally friendly while providing sturdy protection.
For shipping, we use reliable carriers that offer tracking and insurance options to guarantee safe delivery. Orders are processed promptly and dispatched within 1-2 business days. Whether shipping domestically or internationally, we ensure that your Piston Pneumatic Cylinder arrives on time and in excellent condition.
