Product Description:

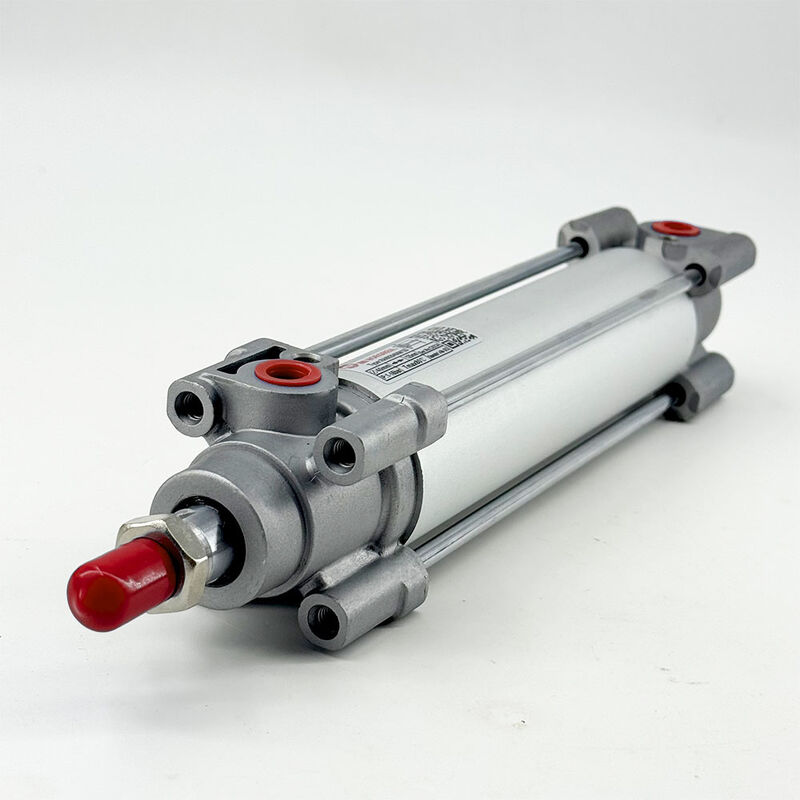

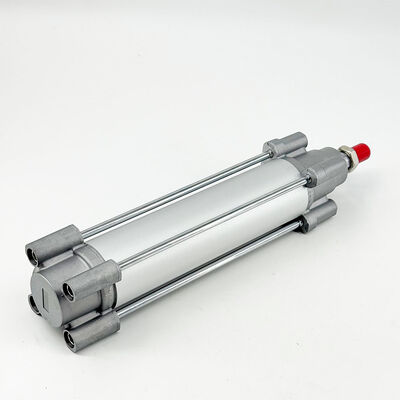

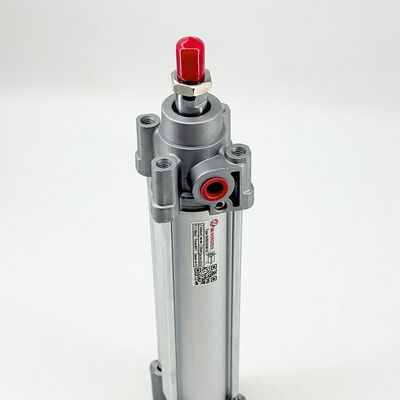

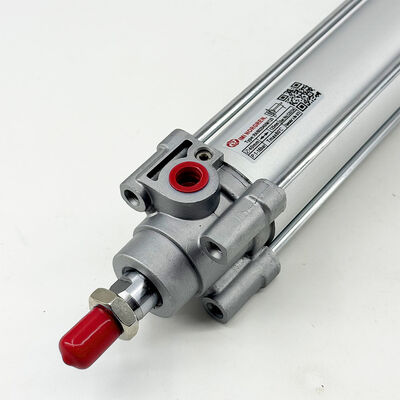

The IMI NORGREN RA Series presents a versatile and high-performance range of pneumatic cylinders designed specifically for modern industrial automation applications. This lineup includes both ISO standard profile cylinders and ultra-compact cylinders, making it suitable for a wide variety of pneumatic tasks that require accurate and repeatable linear motion.
Constructed with premium industrial-grade materials and advanced sealing technology, the RA Series guarantees stable and reliable operation. Its design emphasizes low friction and completely prevents air leakage, ensuring efficient pneumatic performance under diverse working conditions.
Meeting all international ISO standards, the RA Series offers great flexibility in installation and allows for customization to meet specific application requirements. Additionally, it supports sensor integration, making it an ideal, cost-effective, and long-lasting actuator solution for automated production systems around the world.
Features:
Featuring a high-performance ACS adaptive adjustable cushioning system, this product effectively minimizes stroke impact noise. It provides excellent protection for the cylinder and associated mechanical fixtures, thereby extending the overall operational lifespan.
The device supports a wide operating pressure range, from 1 to 16 bar, suitable for medium and large bore sizes. Additionally, it offers a variety of temperature options, including low-temperature versions capable of operating at -40°C and high-temperature models rated up to +150°C, making it ideal for use in demanding workshop environments.
Equipped with standard G thread air ports, it is compatible with global pneumatic pipeline accessories. The product meets RoHS compliance standards, ensuring it is eco-friendly and well-suited for export automation equipment.
To accommodate various installation requirements, multiple mounting accessories and thread options are available, including male and female piston rod threads. Its multi-directional mounting capability allows for flexible installation even in space-constrained settings.
Technical Parameters:
| Bore |
32 Mm |
| Stroke |
150 Mm |
| Standard |
ISO 15552 |
| Media |
Compressed Air |
| Operation |
Double-Acting |
| Piston Rod |
Stainless Steel |
Applications:
In the automotive manufacturing sector, various advanced technologies are employed to enhance production efficiency. Automated assembly lines streamline the manufacturing process, while robotic clamping fixtures ensure precision and consistency. Additionally, stamping and welding stations utilize specialized pushing and lifting mechanisms to handle components effectively.
The CNC and general machinery industry relies heavily on precise mechanical operations. Clamping systems are essential in machining centers to secure workpieces accurately. Injection molding processes benefit from reliable ejection mechanisms, and stamping machines use feeding systems to manage material flow. Furthermore, automated conveyors incorporate jacking and positioning devices for smooth and accurate transportation of parts.
Within the electronics and semiconductor industries, sophisticated equipment is vital for manufacturing delicate components. PCB production lines require precise positioning equipment to maintain quality. Chip testing involves accurate placement mechanisms, and sorting systems for small components demand high-precision clamping to avoid damage and ensure proper assembly.
The food and beverage packaging industry employs a variety of pneumatic actuators to facilitate efficient processing. Filling machines depend on these actuators for accurate dosing, while carton sealing equipment uses them to secure packaging effectively. Bottle clamping devices help stabilize containers during filling, and food material conveying systems leverage pneumatic technology to maintain smooth operation throughout the packaging line.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for high performance and durability in various industrial applications. For technical support, please refer to the product manual included with your purchase, which provides detailed installation guidelines, operating instructions, and maintenance tips.
If you experience any issues with the piston pneumatic cylinder, ensure that the operating pressure and environmental conditions comply with the specifications outlined in the manual. Regular maintenance, such as checking for air leaks and lubricating moving parts, will help extend the product’s lifespan.
We offer comprehensive services including troubleshooting advice, replacement parts, and repair services to ensure your pneumatic cylinder operates efficiently. Our technical support team is equipped to assist with application optimization and customization to meet your specific requirements.
For further assistance, please consult the FAQ section on our website, which addresses common questions and solutions related to piston pneumatic cylinders. We are committed to providing high-quality support to maximize the performance and reliability of your pneumatic equipment.
Packing and Shipping:
Our Piston Pneumatic Cylinders are carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-corrosive material and secured within a custom-fit foam insert to prevent movement and damage. The packaged product is then placed inside a sturdy, double-walled cardboard box for added durability.
For shipping, we use reliable carriers and provide tracking information to keep you updated on your order status. All shipments are handled with care to ensure the Piston Pneumatic Cylinder arrives safely and in perfect working condition. We also offer options for expedited shipping upon request.
