Product Description:

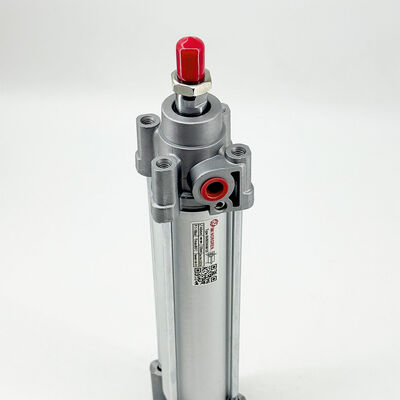

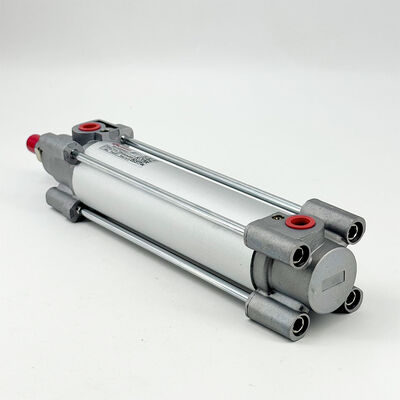

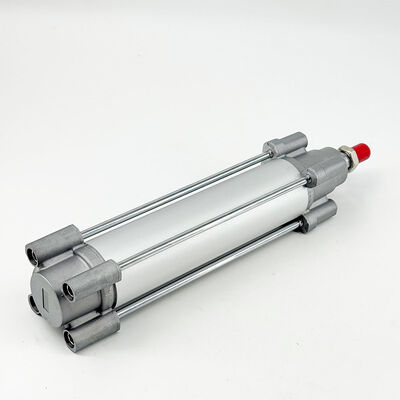

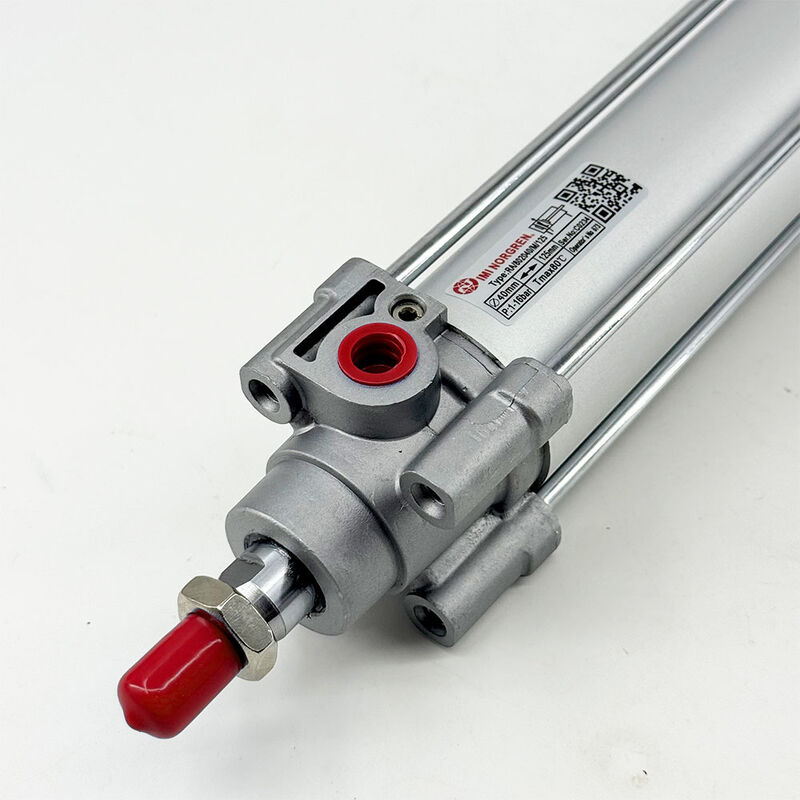

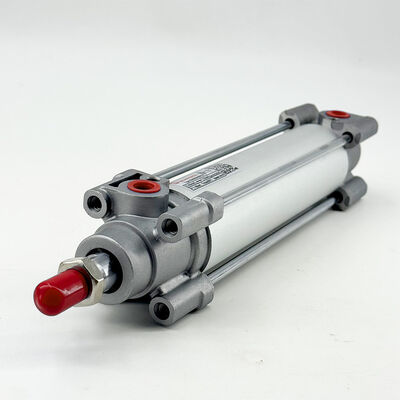

The IMI NORGREN RA Series represents a flexible and high-performance range of pneumatic cylinders designed to meet the demands of contemporary industrial automation. This collection includes both ISO standard profile cylinders and ultra-compact variants, providing accurate and consistent linear motion suitable for a wide variety of pneumatic applications.
Manufactured using top-quality industrial-grade materials combined with advanced sealing technology, the RA Series guarantees reliable operation with minimal friction and complete prevention of air leakage. This ensures long-lasting performance even in challenging industrial environments.
Compliant with international ISO standards, the RA Series offers versatile installation options, customizable features, and compatibility with various sensors. These attributes make it an economical yet robust actuator choice, ideal for automated production systems worldwide.
Features:
The high-performance ACS adaptive adjustable cushioning system is designed to significantly reduce stroke impact noise. This feature helps protect both the cylinder and mechanical fixtures, thereby extending the overall lifespan of the equipment.
It operates within a wide pressure range of 1 to 16 bar, suitable for medium and large bore cylinders. Additionally, it is available in various temperature configurations, ranging from -40°C for low-temperature environments to +150°C for high-temperature applications, making it ideal for demanding workshop conditions.
The standard G thread air ports are compatible with global pneumatic pipeline accessories, ensuring easy integration. Furthermore, the product complies with RoHS standards, is environmentally friendly, and is well-suited for export in automated equipment.
To accommodate different installation requirements, multiple accessories and thread options are offered, including both male and female piston rod threads. The design also supports multi-directional mounting, allowing it to fit into constrained installation spaces effectively.
Technical Parameters:
| Stroke |
100 Mm |
| Bore |
32 Mm |
| Media |
Compressed Air |
| Standard |
ISO 15552 |
| Piston Rod |
Stainless Steel |
| Operation |
Double-Acting |
Applications:
In the automotive manufacturing sector, automation plays a crucial role in enhancing production efficiency. Automated assembly lines are widely used, incorporating robotic clamping fixtures to ensure precise handling of components. Additionally, stamping and welding stations utilize pushing and lifting mechanisms to streamline vehicle assembly processes.
The CNC and general machinery industries rely heavily on advanced clamping and positioning systems. Machining centers employ clamping devices to secure workpieces during operations, while injection molding machines use ejection mechanisms to remove molded parts. Stamping machines incorporate automated feeding systems, and conveyor systems use jacking and positioning actuators to facilitate smooth material movement.
Within the electronics and semiconductor fields, precision is paramount. Equipment for printed circuit board (PCB) production incorporates specialized clamping and positioning solutions. Chip testing stations require accurate positioning systems, and the handling of small components depends on high-precision sorting and clamping mechanisms to maintain quality and efficiency.
The food and beverage packaging industry benefits from pneumatic actuators in various equipment. Filling machines, carton sealing devices, and bottle clamping systems all utilize these actuators to enhance operational reliability. Moreover, pneumatic actuators assist in the conveying of food materials, ensuring hygienic and efficient processing throughout the packaging line.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a wide range of industrial applications. For technical support, our team is available to assist with installation guidance, troubleshooting, maintenance tips, and performance optimization to ensure your pneumatic system operates smoothly.
We offer comprehensive services including product selection assistance, custom configuration advice, and replacement part sourcing. Our experts can help you understand the specifications and compatibility requirements to maximize the lifespan and functionality of your pneumatic cylinders.
Regular maintenance is recommended to prevent wear and tear, including checking for air leaks, inspecting seals, and ensuring proper lubrication. For any operational issues or technical inquiries, please refer to the product manual or consult our support resources for detailed information.
We are committed to providing ongoing support throughout the lifecycle of your Piston Pneumatic Cylinder to help you achieve optimal performance and minimize downtime in your applications.
Packing and Shipping:
All Piston Pneumatic Cylinders are carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in a protective plastic film to prevent dust and moisture exposure, then securely placed in a custom-fitted foam insert within a sturdy cardboard box. The packaging is designed to minimize movement and absorb shocks, reducing the risk of damage.
For shipping, we use reliable carriers that offer tracking and insurance options to guarantee safe and timely delivery. Depending on the destination, cylinders may be shipped via air, sea, or ground transportation. Special handling instructions are clearly marked on the package to ensure proper care throughout the shipping process.
Before dispatch, each product undergoes a thorough quality check to confirm functionality and adherence to specifications, ensuring that customers receive the highest quality Piston Pneumatic Cylinders.
