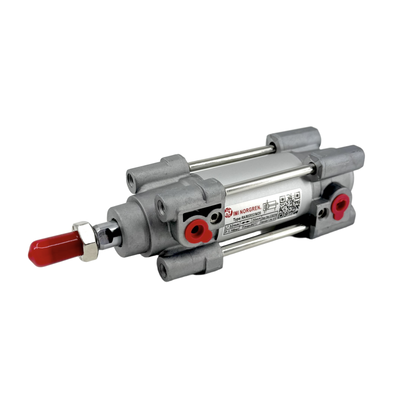

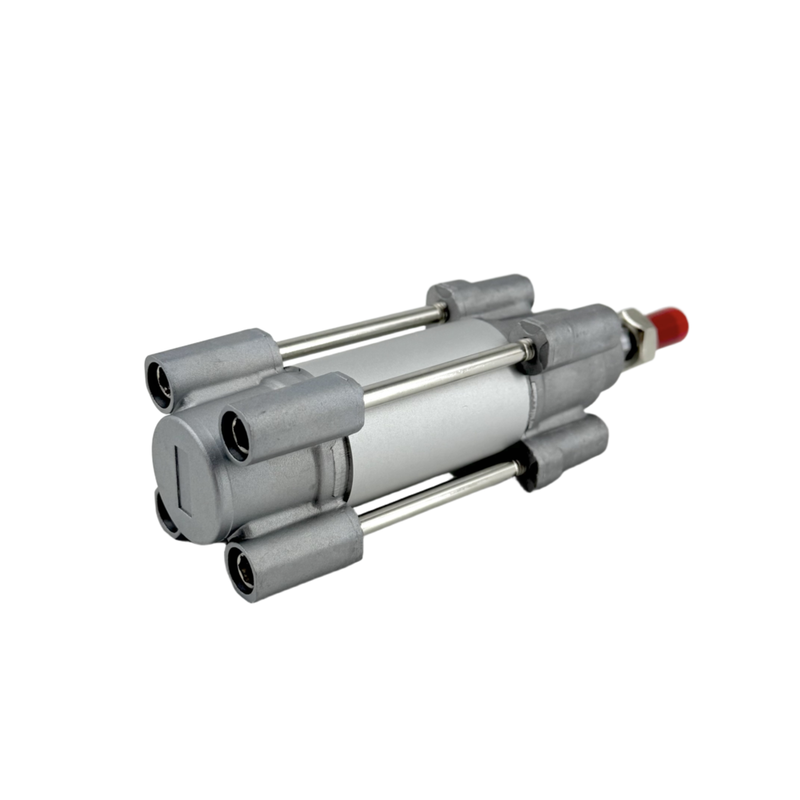

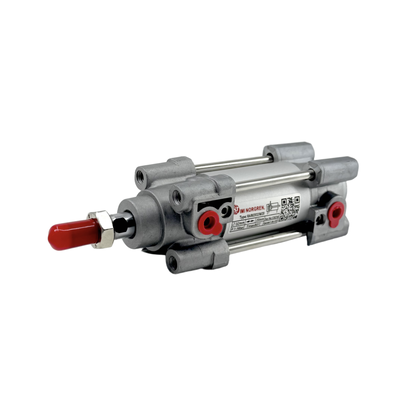

Product Description:
The IMI NORGREN RA Series represents a comprehensive range of high-performance pneumatic cylinders designed to meet the demands of contemporary industrial automation. This lineup includes both ISO standard profile cylinders and ultra-compact variants, providing reliable and precise linear motion suited for a wide array of pneumatic applications.
Constructed using top-quality industrial-grade materials along with advanced sealing technologies, the RA Series guarantees stable operation with minimal friction and completely airtight performance. These features contribute to enhanced durability and efficiency, ensuring consistent functionality over extended periods.
Fully compliant with international ISO standards, the RA Series offers great flexibility in installation and allows for customizable specifications based on specific application requirements. Additionally, its compatibility with various sensors makes it an ideal and cost-effective actuator solution for automated production systems worldwide.
Features:
The high-performance ACS adaptive adjustable cushioning system significantly diminishes stroke impact noise, providing effective protection for cylinders and mechanical fixtures. This advanced cushioning technology helps to extend the overall service life of your equipment by minimizing wear and tear.
Designed to operate within a broad pressure range of 1 to 16 bar, it is ideal for medium and large bore applications. Additionally, it offers a variety of temperature options, ranging from low-temperature versions that function at -40°C to high-temperature models capable of withstanding up to +150°C, making it suitable for demanding workshop environments.
The air ports feature standard G threads, ensuring compatibility with global pneumatic pipeline accessories. Compliant with RoHS standards, this product is environmentally friendly and well-suited for export in automation equipment, aligning with international regulations and sustainability goals.
To accommodate various installation requirements, this system comes with multiple mounting accessories and thread options, including male and female piston rod threads. Its design supports multi-directional mounting, making it adaptable to limited spaces and versatile for diverse industrial applications.
Technical Parameters:
| Bore |
32 Mm |
| Media |
Compressed Air |
| Operation |
Double-Acting |
| Piston Rod |
Stainless Steel |
| Stroke |
75 Mm |
| Standard |
ISO 15552 |
Applications:
The automotive manufacturing sector extensively utilizes automated assembly lines to enhance production efficiency. Key applications include robotic clamping fixtures that ensure precise holding of components, as well as mechanisms designed for pushing and lifting at stamping and welding stations.
In the field of CNC and general machinery, various automation technologies play a crucial role. These include clamping systems for machining centers, ejection mechanisms for injection molds, feeding solutions for stamping machines, and automated conveyors equipped with jacking and positioning functions to streamline operations.
The electronics and semiconductor industries rely on specialized equipment to maintain accuracy and productivity. Pneumatic actuators and other automation tools are used in PCB production apparatus, chip testing positioning systems, and the precise sorting and clamping of small components.
Food and beverage packaging processes benefit from advanced automation as well. Filling machines, carton sealing devices, bottle clamping units, and pneumatic actuators for conveying food materials all contribute to ensuring consistent quality and efficient workflow in this sector.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to provide reliable and efficient performance in a variety of industrial applications. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting tips, and maintenance recommendations to ensure optimal operation.
We recommend regular inspection of the cylinder for wear and tear, proper lubrication, and checking for any air leaks to maintain its longevity and performance. In case of any operational issues, our technical team is ready to help diagnose problems related to pressure fluctuations, piston seal integrity, and mounting alignment.
Additionally, we provide detailed product manuals and technical datasheets to assist with proper usage and compatibility. Replacement parts and repair services are available to minimize downtime and extend the service life of your pneumatic cylinder.
For customized solutions, our engineering support can assist with cylinder sizing, stroke length modifications, and integration into automated systems. We are committed to providing prompt and effective support to meet your pneumatic cylinder needs.
Packing and Shipping:
Our Piston Pneumatic Cylinders are carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-corrosion paper and securely placed in a custom-fitted foam insert within a sturdy cardboard box. The packaging is designed to prevent any movement or damage, safeguarding the product from shocks, moisture, and dust.
For shipping, we offer multiple options including air freight, sea freight, and courier services to meet your delivery timeline and budget requirements. All shipments are tracked and insured to provide peace of mind. We also provide clear labeling and documentation to facilitate smooth customs clearance and timely delivery to your location.
