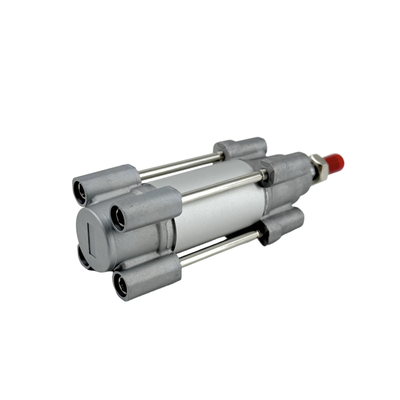

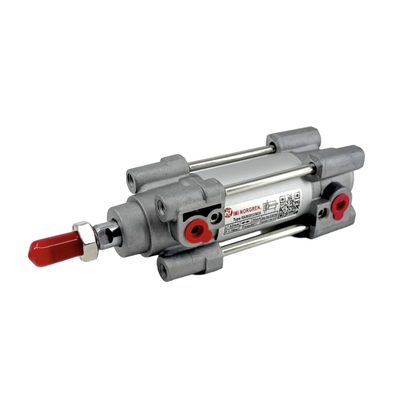

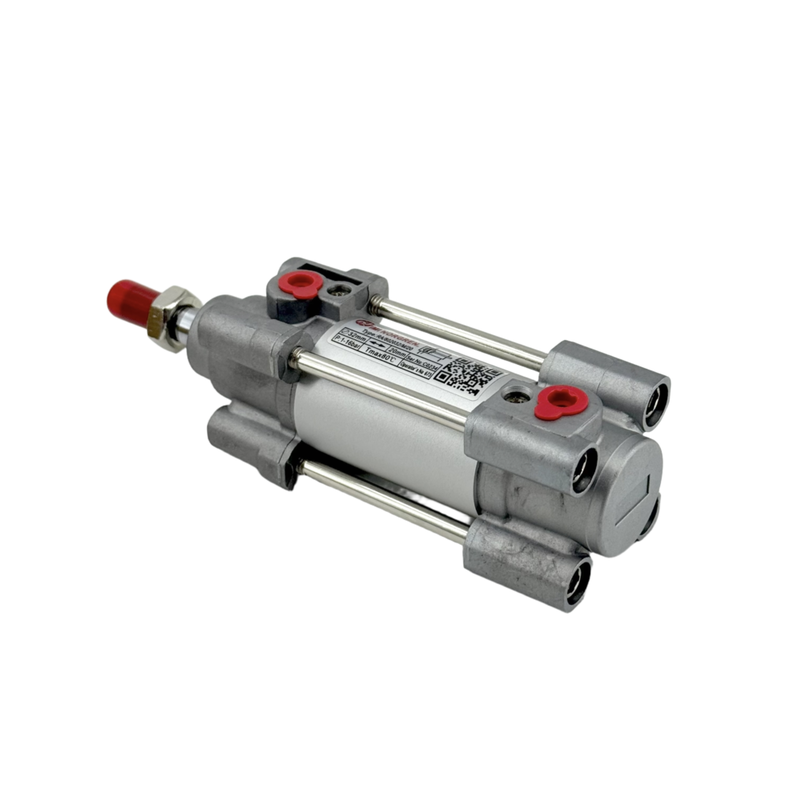

Product Description:
The IMI NORGREN RA Series represents a comprehensive range of high-performance pneumatic cylinders designed specifically for contemporary industrial automation applications. This lineup includes both ISO standard profile cylinders and ultra-compact models, offering precise and repeatable linear motion suitable for a wide variety of pneumatic tasks.
Constructed using top-quality industrial-grade materials combined with advanced sealing technologies, the RA Series guarantees reliable and stable operation. Its design minimizes friction and completely prevents air leakage, ensuring efficient and consistent performance in demanding environments.
Fully adhering to international ISO standards, the series provides great flexibility in installation options, customizable configurations, and compatibility with various sensors. This makes it an economical and durable actuator choice, ideal for automated production systems worldwide.
Features:
The high-performance ACS adaptive adjustable cushioning system is designed to effectively minimize stroke impact noise. This innovative cushioning protects the cylinder and mechanical fixtures, thereby extending the overall service life of the equipment.
It operates efficiently within a wide pressure range of 1 to 16 bar, suitable for medium and large bore sizes. Additionally, it offers a variety of temperature options, ranging from low temperature models capable of functioning at -40°C to high temperature versions that can withstand up to +150°C, making it ideal for harsh workshop environments.
The product features standard G thread air ports, ensuring compatibility with global pneumatic pipeline accessories. It adheres to RoHS standards, making it environmentally friendly and perfectly suited for export in automation equipment.
Moreover, the system includes multiple installation accessories and offers a variety of thread options, such as male and female piston rod threads. Its multi-directional mounting capability allows it to adapt easily to limited installation spaces.
Technical Parameters:
| Media |
Compressed Air |
| Piston Rod |
Stainless Steel |
| Standard |
ISO 15552 |
| Operation |
Double-Acting |
| Stroke |
50 Mm |
| Bore |
32 Mm |
Applications:
In the field of automotive manufacturing, automation plays a critical role in enhancing efficiency and precision. Automated assembly lines streamline the production process, while robotic clamping fixtures ensure secure handling of components. Additionally, stamping and welding stations utilize specialized pushing and lifting mechanisms to facilitate seamless operations.
The CNC and general machinery sector benefits greatly from advanced automation technologies as well. Machining centers employ precise clamping systems to hold workpieces firmly during operation. Injection molding machines utilize ejection processes to remove finished parts efficiently, and stamping machines are equipped with automated feeding mechanisms. Furthermore, automated conveyor systems incorporate jacking and positioning features to optimize material flow.
Automation is equally significant in the electronics and semiconductor industries. Equipment used for PCB production relies on precise positioning for enhanced accuracy. Chip testing operations require delicate handling and exact placement, while the sorting and clamping of small components demand high precision to maintain quality standards.
The food and beverage packaging industry also integrates pneumatic actuators extensively. Filling machines are designed to operate with high precision, while carton sealing equipment ensures secure packaging. Bottle clamping devices maintain consistent grip during processing, and pneumatic actuators assist in efficient conveying of food materials throughout the production line.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a wide range of industrial applications. To ensure optimal operation, regular maintenance and proper installation are essential. Follow the recommended guidelines for lubrication, pressure settings, and environmental conditions to maximize the cylinder's lifespan and functionality.
If you encounter any issues with the piston pneumatic cylinder, please refer to the troubleshooting section in the product manual. Common problems such as air leaks, unusual noises, or inconsistent movement can often be resolved by checking connections, seals, and alignment.
We offer comprehensive technical support services to assist you with product selection, installation, and maintenance. Our team of experts is available to provide guidance on system integration, customization options, and replacement parts to meet your specific needs.
For extended service and maintenance plans, we provide scheduled inspections and performance evaluations to help prevent unexpected downtime and ensure continuous operation. Our support services also include training sessions for your staff to enhance their knowledge and handling of pneumatic systems.
We are committed to delivering high-quality products and exceptional customer service. Please consult the product documentation for detailed specifications and safety instructions before use.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective plastic film to prevent scratches and then securely placed in a custom-fitted foam insert. This foam insert is designed to absorb shocks and vibrations, safeguarding the cylinder from any potential damage.
The foam-protected cylinder is then placed inside a sturdy, corrugated cardboard box that is labeled with product information and handling instructions. For bulk orders, multiple units are separated by additional foam dividers to avoid contact and ensure stability within the box.
All packages are sealed with tamper-evident tape and clearly marked with “Fragile” and “Handle with Care” labels to alert shipping personnel. We use reliable shipping carriers that provide tracking and insurance options to guarantee timely and secure delivery.
Upon receipt, customers are advised to inspect the packaging and product for any signs of damage and report any issues immediately to ensure prompt resolution.
