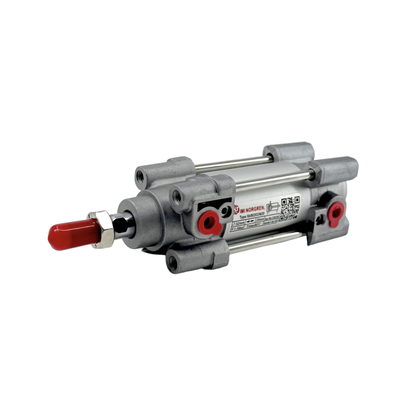

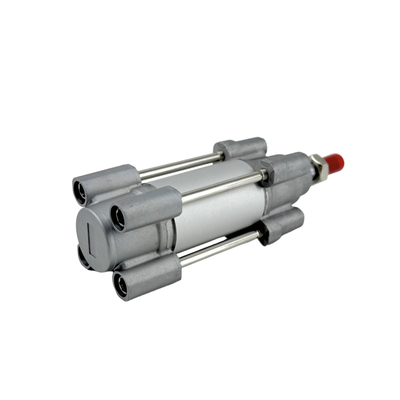

Product Description:
The IMI NORGREN RA Series represents a versatile and high-performance range of pneumatic cylinders designed specifically for modern industrial automation applications. This lineup includes both ISO standard profile cylinders and ultra-compact variants, providing precise and repeatable linear motion suitable for a wide variety of pneumatic tasks.
Utilizing premium industrial-grade materials combined with advanced sealing technology, the RA Series guarantees stable operation with minimal friction and absolute air-tightness. These features contribute to the cylinder's efficiency and longevity, ensuring reliable performance in demanding environments.
Fully conforming to international ISO standards, the RA Series offers flexible installation options, customizable specifications, and compatibility with various sensor types. This makes it an ideal, cost-effective actuator solution for automated production systems worldwide, delivering durability and adaptability to meet diverse industrial needs.
Features:
The high-performance ACS adaptive adjustable cushioning system is designed to effectively minimize stroke impact noise. This innovation not only protects the cylinder and mechanical fixtures but also significantly extends the overall service life of the equipment.
This cushioning system supports a wide operating pressure range, from 1 to 16 bar, making it suitable for medium and large bore cylinders. Additionally, it offers a variety of temperature options, including versions for extreme conditions, ranging from as low as -40°C to as high as +150°C, ideal for demanding workshop environments.
Equipped with standard G thread air ports, this system is compatible with global pneumatic pipeline accessories, ensuring easy integration. It also meets RoHS standards, emphasizing its eco-friendly design and making it an excellent choice for export in automated equipment industries.
Furthermore, it comes with multiple installation accessories and thread options, including both male and female piston rod threads. Its multi-directional mounting capability allows it to adapt to limited installation spaces, providing versatile and convenient installation solutions.
Technical Parameters:
| Piston Rod |
Stainless Steel |
| Stroke |
25 Mm |
| Standard |
ISO 15552 |
| Operation |
Double-Acting |
| Bore |
32 Mm |
| Media |
Compressed Air |
Applications:
In the automotive manufacturing sector, automation plays a critical role in enhancing efficiency and precision. This includes the use of automated assembly lines, robotic clamping fixtures, and specialized mechanisms designed for stamping and welding stations that facilitate pushing and lifting tasks.
The CNC and general machinery industries also benefit significantly from automation technologies. Applications include clamping in machining centers, ejecting injection molds, feeding stamping machines, as well as automated jacking and positioning systems used on conveyor lines to streamline production processes.
Within the electronics and semiconductor fields, automated equipment is vital for ensuring accuracy and reliability. Examples include machinery used for printed circuit board (PCB) production, precise chip testing and positioning devices, and systems for sorting and clamping small components with high precision.
In the food and beverage packaging industry, pneumatic actuators are commonly employed to improve the efficiency of various operations. Key applications feature filling machines, carton sealing equipment, bottle clamping mechanisms, and devices used for conveying food materials throughout the packaging line.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a wide range of industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting tips, and maintenance procedures to ensure optimal operation.
We offer detailed product documentation, including user manuals, specification sheets, and CAD drawings to help you integrate the cylinder seamlessly into your systems. Our technical team is equipped to support you with custom solutions tailored to your specific requirements.
Regular maintenance services and spare parts availability are ensured to maximize the lifespan and performance of the piston pneumatic cylinders. Additionally, we provide training sessions and workshops to help your staff understand the best practices for handling and operating the cylinders safely and effectively.
For any technical inquiries or service requests, please refer to the support section on our website where you can find FAQs, troubleshooting guides, and download the latest firmware and software updates related to the product.
Packing and Shipping:
The Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static foam and placed inside a sturdy, custom-fit cardboard box to prevent any movement or damage. The packaging is designed to safeguard the product from moisture, dust, and impact.
For shipping, we use reliable carriers with tracking options to guarantee timely and secure delivery. All packages are labeled clearly with handling instructions and product information. We also offer expedited shipping options to meet urgent customer needs.
Before dispatch, each Piston Pneumatic Cylinder undergoes a thorough quality check to ensure it meets all specifications and performance standards. Our commitment is to deliver the product in perfect condition, ready for immediate use.
