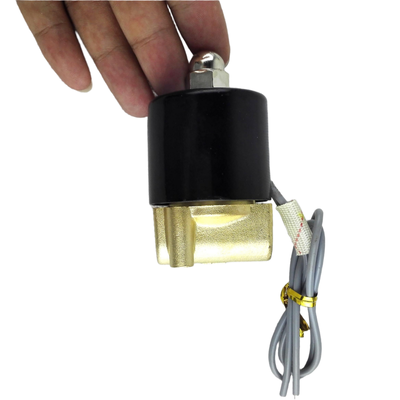

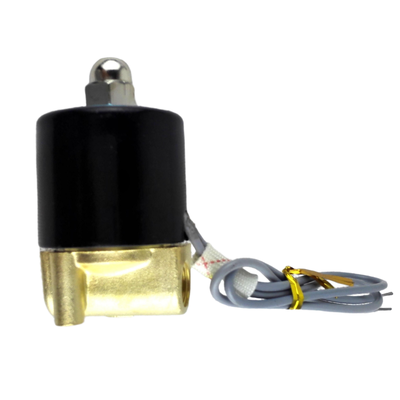

Product Description:
The 2W Series, which includes the 2W UD and 2W UW sub-series, represents a line of high-performance, direct-acting 2/2-way solenoid valves. These valves are specifically designed to provide reliable on/off control for various media such as water, air, oil, gas, and fuel. The UD series accommodates standard port sizes ranging from G3/8" to G1‑1/4", while the UW series is intended for high-flow applications with larger port sizes from G1‑1/4" up to G2".
Built with versatility in mind, the valves utilize a direct-acting diaphragm mechanism, enabling operation starting at zero pressure (0 bar). This design eliminates the necessity for a minimum differential pressure, ensuring quick response times and dependable performance, even in systems with low pressure or those that rely on gravity feed.
The 2W Series is available in both Normally Closed (NC) and Normally Open (NO) variants, allowing customization to suit specific application needs. The valve bodies come in forged brass for the 2W model and stainless steel for the 2S model. Additionally, a variety of seal materials including NBR (standard), EPDM, and FKM (Viton) are offered to handle different media types and temperature conditions.
Regarding power supply, the valves support standard voltages such as DC24V, AC110V, AC220V, and AC380V. Custom voltage options can also be provided upon request to meet unique operational requirements.
Features:
Zero Pressure Start
The direct-acting design allows for dependable operation starting at 0 bar pressure, making this product ideal for systems that are low-pressure or gravity-fed.
High Flow Capacity
It is offered with orifice sizes ranging from 16 mm to 50 mm (UW series), delivering Cv values between 4.8 and 48. This range ensures optimal performance across various system requirements.
Durable Construction
Constructed from either forged brass (2W) or precision-cast stainless steel (2S), the product boasts excellent resistance to corrosion and provides extended longevity.
Multiple Seal Options
Standard seals are made from NBR and are suitable for temperatures from -5°C up to +80°C. Additionally, EPDM and FKM (Viton) seals are available for applications demanding higher temperature resistance and enhanced chemical compatibility.
Flexible Configurations
The product comes in both Normally Closed (NC) and Normally Open (NO) configurations, allowing for flexibility to meet different operational needs.
Versatile Voltage Compatibility
It supports a variety of AC and DC voltages, including DC24V, AC110V, AC220V, and AC380V, with a tolerance of ±10%. This versatility ensures compatibility with diverse electrical systems.
Wide Port Size Range
Threaded connection sizes vary from G3/8" to G2", providing adaptability to a wide range of piping systems.
Wide Media Compatibility
The device is suitable for use with air, water, oil with viscosity up to 20 CST, as well as gas and fuel, making it a versatile choice for multiple applications.
Broad Temperature Range
It can reliably perform in media temperatures ranging from -5°C to +80°C, accommodating a broad spectrum of operating environments.
Compact and Robust Design
Featuring a small footprint and sturdy construction, the product is designed for easy installation and ensures a long service life.
Customizable Options
Special voltages and custom specifications can be accommodated upon request directly from the factory, allowing for tailored solutions to meet unique requirements.
Technical Parameters:
| Working Pressure |
0–0.5 MPa |
| Orifice Sizes |
16 mm, 20 mm, 25 mm, 35 mm, 40 mm, 50 mm |
| Valve Type |
Normally Closed, Normally Open |
| Voltage Tolerance |
±10% |
| Seal Material |
NBR, EPDM, or FKM (Viton) |
| Body Material |
Brass |
| Port Sizes |
G3/8", G1/2", G3/4", G1", G1-1/4", G1-1/2", G2" |
| Motion Pattern |
Direct-Acting |
| Working Medium |
Air, Water, Oil, Gas, Fuel (suitable for water valve, water valve, light oil valve applications) |
| Temperature |
-5°C to +80°C |
| Solenoid Valve Technical Specifications |
| Specification |

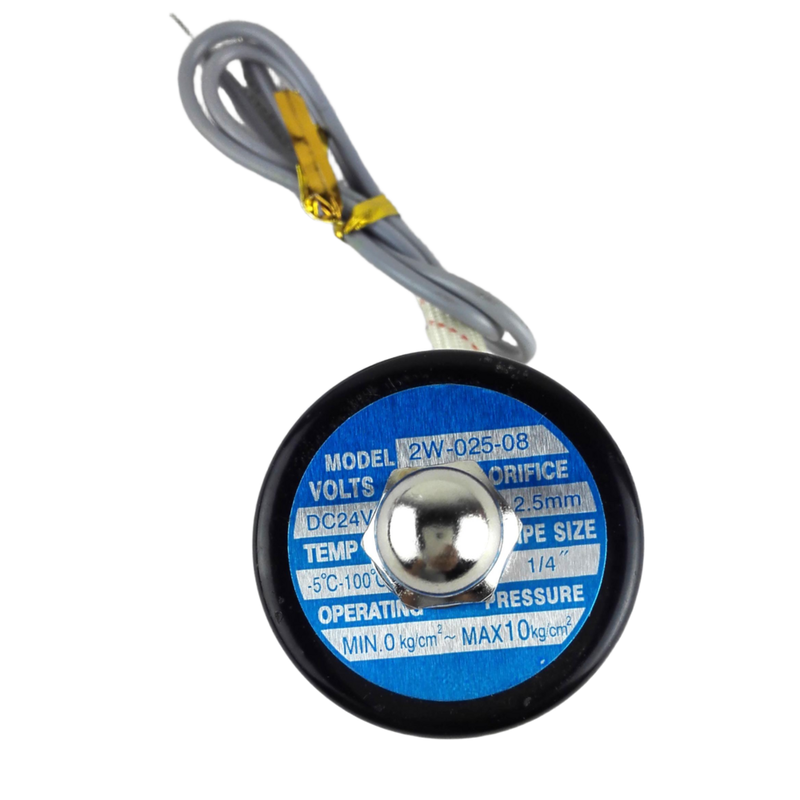

2W025-06 |
2W025-08 |
2W040-10 |
2WH012-06 |
2WH012-08 |
2WH020-10 |
| Working Medium |
Air, Water, Oil, Gas, Fuel |
| Motion Pattern |
Direct Drive Type |
| Type |
Normal Close Type; Normal Open Type |
| Aperture of Flow Rate (mm) |
2.5 |
4 |
1.2 |
2 |
| CV Value |
0.23 |
0.6 |
0.05 |
0.15 |
| Joint Pipe Bore |
G1/8" |
G1/4" |
G3/8" |
G1/8" |
G1/4" |
G3/8" |
| Operation Fluid Viscosity |
Below 20 CST |
| Working Pressure |
0~0.7MPa |
0~2.0MPa |
| Max. Pressure Resistance |
1.0MPa |
3.5MPa |
| Operating Temperature Range |
-5~+80℃ |
| Voltage Range |
±10% |
| Material of Body |
2W: Brass; 2S: Stainless Steel |
| Material of Oil Seal |
NBR, EPDM or VITON |
Applications:
The versatile 2W Series is designed to handle a broad spectrum of on/off control tasks across various industries. Its adaptability makes it an ideal choice for numerous applications requiring reliable fluid control.
In the field of water treatment and management, this series is extensively used in irrigation setups, water supply regulation, wastewater processing, and dosing equipment. Its precision and durability ensure efficient operation in these critical systems.
When it comes to industrial automation, the 2W Series effectively manages the flow of air, water, oil, and gas within pneumatic systems, manufacturing lines, and other process control environments. This capability helps maintain smooth and consistent production processes.
The HVAC and refrigeration sector benefits from its application in heating, ventilation, air conditioning systems, and cooling circuits. It provides dependable control essential for maintaining desired environmental conditions.
In agriculture and environmental applications, the 2W Series supports precision irrigation, spraying systems, and equipment designed for environmental protection. This contributes to better resource management and sustainability practices.
General fluid control is another area where this series excels, offering shut-off, emptying, and flow regulation for a variety of fluids such as water, air, gas, and light oil with viscosity up to 20 CST.
Fuel and gas systems also utilize the 2W Series for managing gas and fuel flow within combustion setups and burner applications, ensuring safety and efficiency in energy use.
Additionally, it plays a key role in industrial machinery by providing on/off control of fluids in packaging machines, compressors, and hydraulic systems, contributing to the smooth operation of complex equipment.
Lastly, its suitability for vacuum systems is highlighted by its zero-pressure start capability, making it ideal for low-pressure and vacuum-related applications.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to offer reliable and efficient performance in various industrial applications. To ensure optimal operation and longevity of the valve, we provide comprehensive technical support and services.
Technical support includes assistance with installation, configuration, and troubleshooting. Our experts are available to help you understand the specifications, compatibility, and operational parameters of the solenoid valve. We provide detailed manuals and documentation to guide you through the setup and maintenance processes.
In addition to technical guidance, we offer maintenance services to keep your pneumatic solenoid valve functioning at peak efficiency. Regular inspection, cleaning, and part replacement services are available to prevent downtime and extend the lifespan of the product.
For any performance issues or defects, we offer repair and replacement services in accordance with our warranty policy. Our team is committed to ensuring customer satisfaction by providing timely and effective solutions.
We also provide customized solutions and integration support for clients requiring specific configurations or applications. Our technical team collaborates closely with customers to tailor the pneumatic solenoid valve systems to meet unique operational needs.
By choosing our Pneumatic Solenoid Valve, you gain access to a robust support network dedicated to maximizing the value and reliability of your pneumatic systems.
Packing and Shipping:
Product Packaging and Shipping for Pneumatic Solenoid Valve

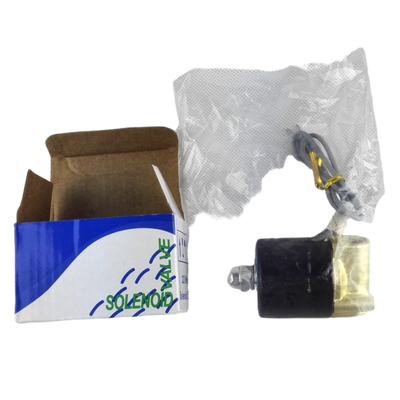

Each pneumatic solenoid valve is carefully packaged to ensure it arrives in perfect condition. The valve is first wrapped in anti-static bubble wrap to protect it from any potential damage during transit. It is then placed in a sturdy, custom-fitted cardboard box to prevent movement and impact.
For added protection, the box is filled with cushioning materials such as foam inserts or air pillows. The packaging is sealed securely with tamper-evident tape and labeled with handling instructions.
Shipping options include standard ground, expedited, and express delivery, depending on customer requirements. All shipments are tracked and insured to guarantee safe and timely delivery. For international orders, appropriate customs documentation is provided to ensure smooth clearance.
We recommend inspecting the package upon delivery and reporting any damage immediately to facilitate prompt resolution.
