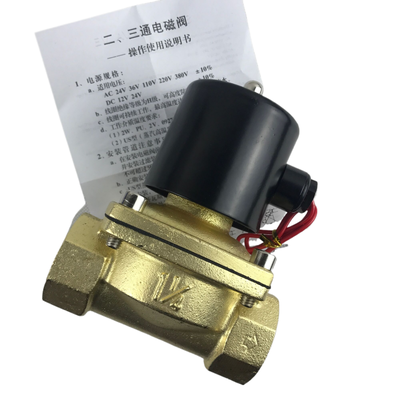

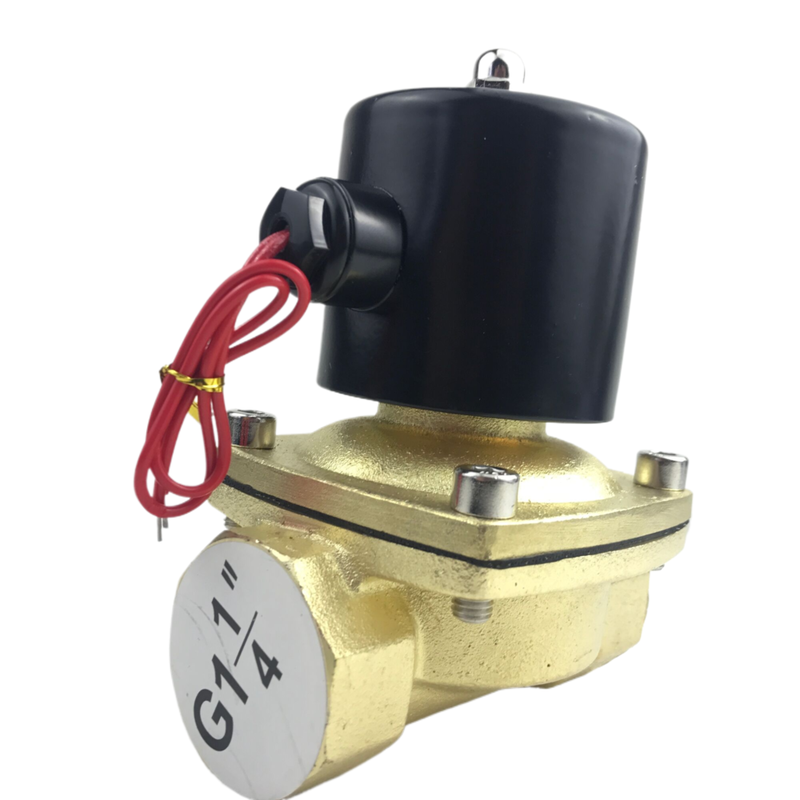

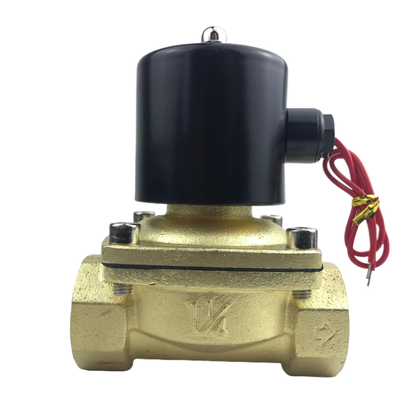

Product Description:
The 2W Series, which includes the 2W UD and 2W UW sub-series, is a high-performance, direct-acting 2/2-way solenoid valve. It is expertly designed to provide reliable on/off control for a variety of fluids such as water, air, oil, gas, and fuel. The UD sub-series caters to standard port sizes ranging from G3/8" up to G1‑1/4", while the UW sub-series is intended for larger ports ranging from G1‑1/4" to G2", making it suitable for high-flow applications.
This valve is engineered with versatility in mind, featuring a direct-acting diaphragm structure that enables operation starting from zero pressure (0 bar). This design removes the necessity for a minimum differential pressure, ensuring the valve responds immediately and performs reliably even in low-pressure or gravity-fed systems.
The 2W Series is available in both Normally Closed (NC) and Normally Open (NO) configurations, allowing customization according to specific system needs. The valve body can be constructed from forged brass (2W) or stainless steel (2S), while various seal materials are offered, including NBR as the standard, along with EPDM and FKM (Viton), to handle different media types and temperature ranges.
Additionally, the series supports standard voltage options such as DC24V, AC110V, AC220V, and AC380V. Custom voltages can also be provided upon request to fit unique operational requirements.
Features:
Zero Pressure Start
The direct-acting design allows the device to operate reliably starting from 0 bar pressure. This feature makes it ideal for use in low-pressure environments and gravity-fed systems.
High Flow Capacity
The UW series offers orifice sizes ranging from 16 mm to 50 mm, with Cv values between 4.8 and 48. This ensures that the system maintains efficient performance across a variety of flow requirements.
Durable Construction
Constructed using forged brass (2W) or precision-cast stainless steel (2S), these units provide excellent resistance to corrosion and offer long-lasting durability in demanding environments.
Multiple Seal Options
Standard models come equipped with NBR seals that operate effectively within a temperature range from -5°C to +80°C. For applications demanding higher temperature resistance or chemical compatibility, EPDM and FKM (Viton) seals are also available.
Flexible Configurations
The product is offered in both Normally Closed (NC) and Normally Open (NO) configurations, allowing it to meet diverse operational requirements.
Versatile Voltage Options
Compatible with multiple AC and DC voltages, including DC 24V, AC 110V, AC 220V, and AC 380V, with a tolerance of ±10%, the device can easily integrate into various electrical systems.
Wide Port Size Range
Threaded connection options span from G3/8" up to G2", offering versatility to accommodate different piping setups.
Wide Media Compatibility
This product is suitable for a range of media including air, water, oil (with viscosity up to 20 CST), as well as gas and fuel applications, ensuring broad usability.
Broad Temperature Range
It reliably operates in media temperatures ranging from -5°C to +80°C, making it adaptable to various environmental conditions.
Compact & Robust Design
Featuring a small footprint combined with rugged construction, the device is easy to install and built for a long service life.
Customizable Options
Upon request, special voltages and tailored specifications can be provided directly from the factory to meet unique application needs.
Technical Parameters:
| Port Sizes |
G3/8", G1/2", G3/4", G1", G1-1/4", G1-1/2", G2" |
| Orifice Sizes |
16 Mm, 20 Mm, 25 Mm, 35 Mm, 40 Mm, 50 Mm |
| Working Pressure |
0–0.5 MPa |
| Seal Material |
NBR, EPDM, Or FKM (Viton) |
| Working Medium |
Air, Water, Oil, Gas, Fuel |
| Motion Pattern |
Direct-Acting |
| Temperature |
-5°C To +80°C |
| Voltage Tolerance |
±10% |
| Valve Type |
Normally Closed, Normally Open |
| Body Material |
Brass |
| Solenoid Valve Technical Specifications |
| Model |
2W160-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
| 2S160-10 |
2S160-15 |
2S200-20 |
2S250-25 |
2S350-35 |
2S400-40 |
2S500-50 |
| Working Medium |
Air, Water, Oil, Gas ,Fuel |
| Motion Pattern |
Direct Drive Type |
| Type |
Normal Close Type；Normal Open Type |
| Aperture of Flow Rate/mm |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
| CV Value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
| Joint Pipe Bore |
G3/8" |
G1/2" |
G3/4" |
G1" |
G1¹/₄" |
G1¹/₂" |
G 2" |
| Operation Fluid Viscosity |
20 CST(Below) |
| Working-pressure |
Water:0～0.5MPa； Air:0～0.7MPa；Oil:0～0.5MPa；Gas:0～0.7MPa |
| Max. Pressure Resistance |
1.05MPa |
| Operating Temperature Range |
-5~+80℃ |
| Voltage Range |
±10% |
| Material of Body |
2W:Brass；2S:Stainless Steel |
| Material of Oil Seal |
NBR, EPDM or VITON |
Applications:
The versatile 2W Series is designed to meet the demands of a variety of on/off control applications across numerous industries. Its adaptability makes it an excellent choice for many different control systems.
In the field of Water Treatment and Management, the 2W Series is ideal for controlling irrigation systems, managing water supply, handling wastewater treatment, and operating dosing equipment efficiently.
For Industrial Automation, this series offers reliable control of air, water, oil, and gas within pneumatic systems, production lines, and overall process management, ensuring smooth and consistent operations.
The HVAC and Refrigeration sector benefits from the 2W Series through its application in heating, ventilation, air conditioning systems, as well as cooling circuits, contributing to optimized temperature regulation.
Agricultural and Environmental uses include precision irrigation, spraying systems, and various environmental protection devices, where accurate fluid control is crucial for performance and sustainability.
When it comes to General Fluid Control, this series offers effective solutions for shut-off, emptying, and flow control of water, air, gas, and light oil with viscosity up to 20 CST, catering to diverse fluid handling needs.
The Fuel and Gas Systems application involves controlling gases and fuels within combustion systems and burner units, enhancing safety and efficiency in energy utilization.
Industrial Machinery applications include on/off fluid control in packaging machines, compressors, and hydraulic systems, supporting varied industrial processes with precision.
Lastly, the 2W Series is also well-suited for Vacuum Systems, providing excellent performance in low-pressure and vacuum conditions thanks to its zero-pressure start capability.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, please ensure you have the product model number and specifications ready to facilitate a swift and accurate response.
We offer comprehensive services including installation guidance, troubleshooting assistance, maintenance tips, and replacement part information to maximize the lifespan and functionality of your solenoid valve.
Our technical support team is equipped to assist with system integration, electrical connections, and pneumatic compatibility to ensure optimal operation within your setup.
For detailed product manuals, wiring diagrams, and CAD files, please refer to our official documentation available on our website.
We recommend regular inspection and cleaning of the valve to prevent contamination and ensure consistent performance. In case of malfunction, check for common issues such as coil failure, blocked ports, or pressure inconsistencies.
Replacement parts and upgrade kits are available to keep your pneumatic solenoid valve operating at peak efficiency. Our support team can advise on the correct components and installation procedures.
We are committed to providing prompt and knowledgeable support to address any technical challenges and ensure your complete satisfaction with our Pneumatic Solenoid Valve product.
Packing and Shipping:
Product Packaging: The Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is placed in an anti-static bag to prevent moisture and dust ingress, then securely fitted into a custom foam insert to avoid movement and damage. The foam insert is housed within a sturdy corrugated cardboard box, which is labeled with product details, handling instructions, and barcodes for easy identification. For bulk orders, multiple units are packed in reinforced cartons with additional padding to safeguard against impact.
Shipping: We offer reliable shipping options to deliver the Pneumatic Solenoid Valve safely to your destination. All packages are shipped via trusted carriers with tracking services available. Shipping methods include standard ground, express air freight, and international shipping. Each shipment is accompanied by detailed documentation, including a packing list and invoice. We also provide insurance options to cover the product during transit for added peace of mind.
