Product Description:

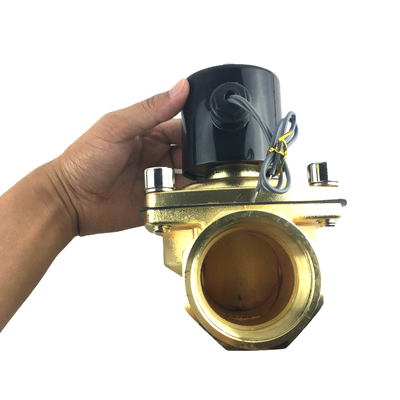

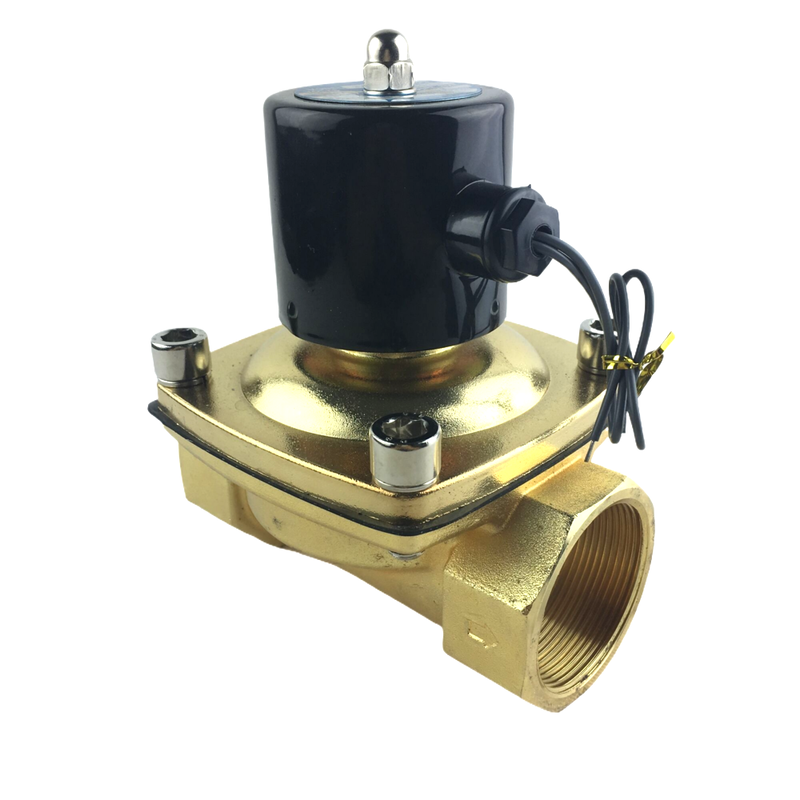

The 2W Series, which includes the 2W UD and 2W UW sub-series, is a high-performance, direct-acting 2/2-way solenoid valve designed to provide reliable on/off control for various fluids such as water, air, oil, gas, and fuel. The UD sub-series offers standard port sizes ranging from G3/8" to G1‑1/4", whereas the UW sub-series caters to larger port sizes from G1‑1/4" up to G2", making it ideal for high-flow applications.
Designed with versatility in mind, this valve incorporates a direct-acting diaphragm mechanism that enables it to operate efficiently from zero pressure (0 bar). This feature eliminates the necessity for a minimum differential pressure, ensuring the valve responds instantly and performs consistently even in systems with low pressure or those that rely on gravity feed.
The 2W Series is available in both Normally Closed (NC) and Normally Open (NO) configurations, allowing customization based on specific system needs. The valve body is manufactured from forged brass (2W) or stainless steel (2S), offering durability and compatibility with different environments. Additionally, seal materials such as NBR (standard), EPDM, and FKM (Viton) are offered to handle a variety of media types and temperature ranges. The valves support standard voltages including DC24V, AC110V, AC220V, and AC380V, with custom voltage options available upon request.
Features:
Zero Pressure Start
The direct-acting design ensures dependable operation starting from 0 bar pressure. This feature makes the product ideal for use in low-pressure and gravity-fed systems, providing reliable performance even at minimal pressure levels.
High Flow Capacity
The product is offered with orifice sizes ranging from 16 mm to 50 mm in the UW series. With Cv values spanning from 4.8 to 48, it guarantees optimal efficiency and performance for a variety of system requirements.
Durable Construction
Constructed from either forged brass (2W) or precision-cast stainless steel (2S), the product boasts excellent resistance to corrosion. This durable build assures a long service life even under demanding conditions.
Multiple Seal Options
The standard seals are made of NBR and suitable for temperatures between -5°C and +80°C. For applications requiring higher temperature resistance or enhanced chemical compatibility, EPDM and FKM (Viton) seals are also available.
Flexible Configurations
Users can choose between Normally Closed (NC) and Normally Open (NO) configurations, allowing the product to adapt to various control system needs.
Versatile Voltage Options
This product supports a range of AC and DC voltages including DC24V, AC110V, AC220V, and AC380V, accommodating a tolerance of ±10%. This versatility makes it suitable for diverse electrical environments.
Wide Port Size Range
Threaded connection sizes vary from G3/8" up to G2", enabling compatibility with many types of piping setups.
Wide Media Compatibility
Designed to handle various media, the product is compatible with air, water, oil (up to 20 CST), as well as gas and fuel applications, offering broad usability across sectors.
Broad Temperature Range
It can operate reliably within media temperature ranges from -5°C to +80°C, ensuring stable performance in diverse environmental conditions.
Compact & Robust Design
Featuring a compact size along with sturdy construction, the product is easy to install and built to provide an extended operational lifespan.
Customizable Options
Special voltages and other specifications can be customized upon factory request, allowing the product to meet unique application demands.
Technical Parameters:
| Voltage Tolerance |
±10% |
| Motion Pattern |
Direct-Acting |
| Temperature Range |
-5°C To +80°C |
| Seal Material |
NBR, EPDM, Or FKM (Viton) |
| Body Material |
Brass |
| Orifice Sizes |
16 mm, 20 mm, 25 mm, 35 mm, 40 mm, 50 mm |
| Working Pressure |
0–0.5 MPa |
| Working Medium |
Air, Water, Oil, Gas, Fuel |
| Valve Type |
Normally Closed, Normally Open |
| Port Sizes |
G3/8", G1/2", G3/4", G1", G1-1/4", G1-1/2", G2" |
| Solenoid Valve Technical Specifications |
| Model |
2W160-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
| 2S160-10 |
2S160-15 |
2S200-20 |
2S250-25 |
2S350-35 |
2S400-40 |
2S500-50 |
| Working Medium |
Air, Water, Oil, Gas ,Fuel |
| Motion Pattern |
Direct Drive Type |
| Type |
Normal Close Type；Normal Open Type |
| Aperture of Flow Rate/mm |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
| CV Value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
| Joint Pipe Bore |
G3/8" |
G1/2" |
G3/4" |
G1" |
G1¹/₄" |
G1¹/₂" |
G 2" |
| Operation Fluid Viscosity |
20 CST(Below) |
| Working-pressure |
Water:0～0.5MPa； Air:0～0.7MPa；Oil:0～0.5MPa；Gas:0～0.7MPa |
| Max. Pressure Resistance |
1.05MPa |
| Operating Temperature Range |
-5~+80℃ |
| Voltage Range |
±10% |
| Material of Body |
2W:Brass；2S:Stainless Steel |
| Material of Oil Seal |
NBR, EPDM or VITON |
Applications:
The versatile 2W Series is designed to cater to a broad spectrum of on/off control applications spanning various industries. Its flexibility ensures reliable performance in diverse settings, making it an ideal choice for many operational needs.
In the realm of water treatment and management, the 2W Series is extensively used in irrigation systems, water supply control, wastewater treatment, and dosing equipment. This enables efficient and precise handling of water resources.
For industrial automation, the series offers effective control over air, water, oil, and gas within pneumatic systems, production lines, and process control. This enhances the accuracy and efficiency of automated operations.
The product is also well-suited for HVAC and refrigeration applications, including heating, ventilation, air conditioning, and cooling circuits. It supports maintaining optimal environmental conditions through reliable fluid control.
In agricultural and environmental sectors, the 2W Series facilitates precision irrigation, spraying systems, and equipment dedicated to environmental protection, contributing to sustainable and efficient practices.
General fluid control tasks such as shut-off, emptying, and regulating the flow of water, air, gas, and light oil (with viscosity up to 20 CST) are efficiently managed by this series, highlighting its adaptability for various fluid management requirements.
Additionally, it plays a crucial role in fuel and gas systems by managing gas and fuel flow in combustion systems and burner applications, ensuring safe and efficient operation.
The 2W Series is equally effective in industrial machinery, providing on/off control of fluids within packaging machines, compressors, and hydraulic systems, thereby supporting reliable and continuous production processes.
Lastly, its zero-pressure start capability makes the series well-suited for vacuum systems, including low-pressure applications, where dependable performance is essential.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial applications. For optimal operation and longevity, we recommend following the installation, operation, and maintenance guidelines provided in the user manual.
If you encounter any issues with the Pneumatic Solenoid Valve, please ensure that the valve is installed correctly, the electrical connections are secure, and the operating conditions comply with the specified parameters. Common troubleshooting steps include checking for power supply continuity, verifying air pressure levels, and inspecting for any physical damage or blockages.
We offer comprehensive technical support to assist with product setup, troubleshooting, and maintenance. Our support team can provide detailed guidance on valve selection, system integration, and performance optimization to help you achieve the best results.
For maintenance, regularly inspect the valve for wear and tear, clean any debris from the valve components, and replace seals or other parts as necessary to prevent leaks and ensure smooth operation. Proper maintenance will extend the service life of your Pneumatic Solenoid Valve and minimize downtime.
In addition to technical support, we provide a range of services including product training, on-site assistance, and customized solutions tailored to your specific application needs. Our goal is to ensure that your pneumatic systems operate efficiently and reliably with our solenoid valves.
Packing and Shipping:
Product Packaging: Each Pneumatic Solenoid Valve is carefully packaged to ensure protection during transit. The valve is first wrapped in anti-static bubble wrap to prevent any damage from shocks or vibrations. It is then placed inside a sturdy, custom-sized cardboard box with additional cushioning materials to secure it firmly in place. The packaging includes a detailed product manual and a warranty card. All packaging materials are eco-friendly and recyclable.
Shipping: We offer reliable shipping options worldwide. Orders are processed within 1-2 business days after payment confirmation. The Pneumatic Solenoid Valve is shipped via trusted courier services with tracking information provided to the customer. Standard shipping typically takes 5-10 business days, while expedited shipping options are available for faster delivery. We ensure that all shipments comply with international shipping regulations and are insured for safe arrival.
