Product Description:

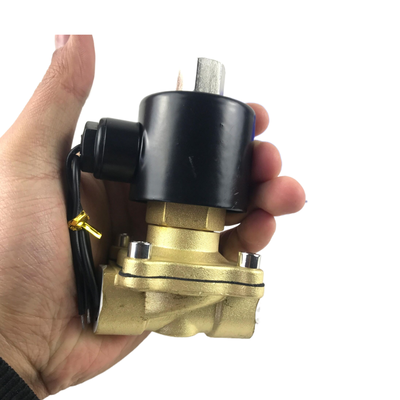

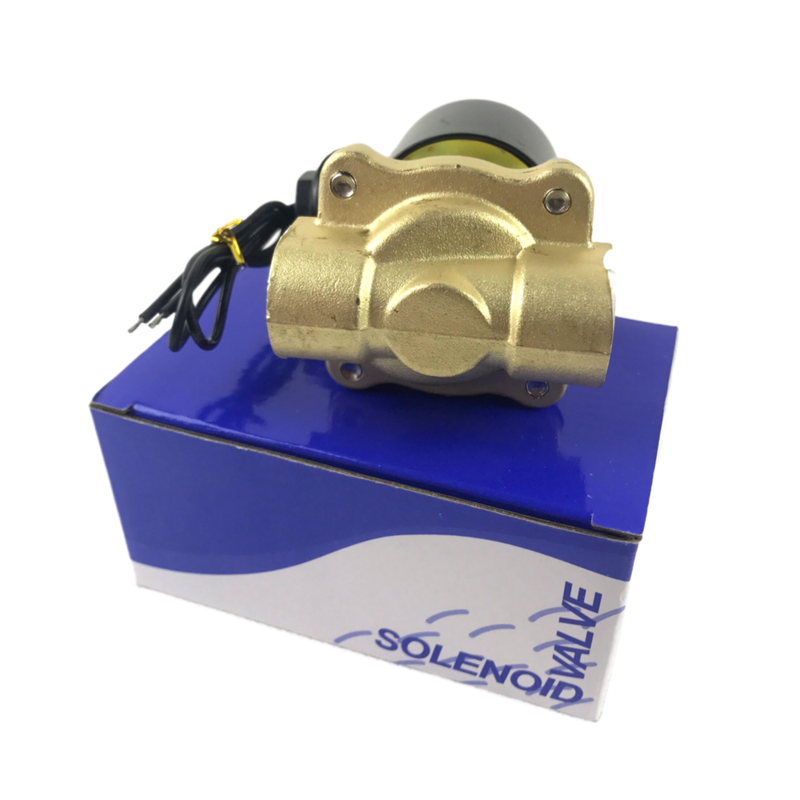

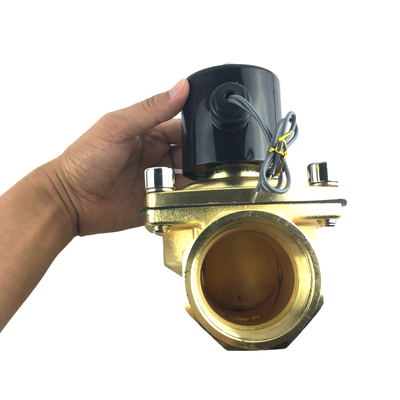

The 2W Series, which includes the 2W UD and 2W UW sub-series, is a high-performance, direct-acting 2/2-way solenoid valve. It is designed to provide reliable on/off control for various fluids such as water, air, oil, gas, and fuel. The UD sub-series covers standard port sizes ranging from G3/8" up to G1‑1/4", while the UW sub-series is intended for larger port sizes from G1‑1/4" to G2", making it ideal for high-flow applications.
This valve is engineered with versatility in mind, featuring a direct-acting diaphragm structure that enables it to operate starting from zero pressure (0 bar). This unique design eliminates the need for a minimum differential pressure, ensuring fast response times and dependable performance even in systems that operate under low pressure or are gravity-fed.
The 2W Series is available in both Normally Closed (NC) and Normally Open (NO) configurations, allowing customization to fit specific system demands. The valve body options include forged brass for the 2W version or stainless steel for the 2S variant. Additionally, various seal materials such as NBR (standard), EPDM, and FKM (Viton) are offered to handle different media and temperature conditions.
Standard electrical voltages supported by these valves include DC24V, AC110V, AC220V, and AC380V. Custom voltage options can also be provided upon request, giving further flexibility to accommodate diverse application requirements.
Features:
Zero Pressure Start
The direct-acting design allows the system to operate reliably starting from 0 bar pressure. This feature makes it ideal for applications involving low-pressure conditions or gravity-fed setups.
High Flow Capacity
The UW series offers a range of orifice sizes from 16 mm to 50 mm. With Cv values between 4.8 and 48, these models ensure efficient flow and optimal system performance.
Durable Construction
Constructed from forged brass (2W) or precision-cast stainless steel (2S), the product delivers excellent corrosion resistance and long-lasting durability under various operating conditions.
Multiple Seal Options
Standard seals are made from NBR, suitable for temperatures ranging from -5°C to +80°C. Additionally, EPDM and FKM (Viton) seals are available to handle higher temperatures and provide enhanced chemical compatibility.
Flexible Configurations
The product is available in both Normally Closed (NC) and Normally Open (NO) configurations, allowing it to fit a wide range of system requirements.
Versatile Voltage Options
Compatible with multiple power supplies, the product supports DC24V, AC110V, AC220V, and AC380V voltages, all with a tolerance of ±10%, providing adaptability for various electrical environments.
Wide Port Size Range
With threaded connections ranging from G3/8" to G2", the product can be integrated seamlessly into different piping systems.
Wide Media Compatibility
It is suitable for use with a variety of media including air, water, oil (up to 20 CST), as well as gas and fuel applications.
Broad Temperature Range
The product operates reliably across a media temperature range from -5°C to +80°C, covering most industrial needs.
Compact & Robust Design
Featuring a small footprint and rugged construction, the product is easy to install and built to deliver a long service life.
Customizable Options
Special voltage ratings and other specifications can be customized upon request directly from the factory to meet unique application demands.
Technical Parameters:
| Motion Pattern |
Direct-Acting |
| Body Material |
Brass |
| Valve Type |
Normally Closed, Normally Open |
| Port Sizes |
G3/8", G1/2", G3/4", G1", G1-1/4", G1-1/2", G2" |
| Working Medium |
Air, Water, Oil, Gas, Fuel |
| Orifice Sizes |
16 Mm, 20 Mm, 25 Mm, 35 Mm, 40 Mm, 50 Mm |
| Temperature |
-5°C To +80°C |
| Working Pressure |
0–0.5 MPa |
| Voltage Tolerance |
±10% |
| Seal Material |
NBR, EPDM, Or FKM (Viton) |
| Solenoid Valve Technical Specifications |
| Model |
2W160-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
| 2S160-10 |
2S160-15 |
2S200-20 |
2S250-25 |
2S350-35 |
2S400-40 |
2S500-50 |
| Working Medium |
Air, Water, Oil, Gas ,Fuel |
| Motion Pattern |
Direct Drive Type |
| Type |
Normal Close Type；Normal Open Type |
| Aperture of Flow Rate/mm |
16 |
16 |
20 |
25 |
35 |
40 |
50 |
| CV Value |
4.8 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
| Joint Pipe Bore |
G3/8" |
G1/2" |
G3/4" |
G1" |
G1¹/₄" |
G1¹/₂" |
G 2" |
| Operation Fluid Viscosity |
20 CST(Below) |
| Working-pressure |
Water:0～0.5MPa； Air:0～0.7MPa；Oil:0～0.5MPa；Gas:0～0.7MPa |
| Max. Pressure Resistance |
1.05MPa |
| Operating Temperature Range |
-5~+80℃ |
| Voltage Range |
±10% |
| Material of Body |
2W:Brass；2S:Stainless Steel |
| Material of Oil Seal |
NBR, EPDM or VITON |
Applications:
The highly adaptable 2W Series is designed to meet the demands of various on/off control applications across numerous industries.
In the field of Water Treatment and Management, it is ideal for use in irrigation systems, water supply regulation, wastewater treatment, and precise dosing equipment.
For Industrial Automation purposes, the 2W Series efficiently manages the control of air, water, oil, and gas within pneumatic systems, production lines, and process control environments.
The series also proves invaluable in HVAC and Refrigeration sectors, where it supports heating, ventilation, air conditioning systems, and cooling circuits with reliable control solutions.
In Agricultural and Environmental applications, it facilitates precision irrigation, spraying systems, and contributes to various environmental protection devices.
When it comes to General Fluid Control, the 2W Series is effective for shut-off, emptying, and flow regulation of water, air, gas, and light oils with viscosities up to 20 CST.
Fuel and Gas Systems benefit from its capability to control gas and fuel flow in combustion and burner applications safely and efficiently.
Moreover, the series is suited for Industrial Machinery, handling on/off fluid control in packaging machines, compressors, and hydraulic applications.
Finally, its zero-pressure start feature makes it well-suited for Vacuum Systems and other low-pressure applications, ensuring dependable performance even in challenging environments.
Support and Services:
Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including installation guides, operation manuals, and maintenance instructions to help users understand and utilize the product effectively.
Technical support is available to assist with product selection, troubleshooting, and application advice. Our team of experts is equipped to address any questions or concerns you may have regarding the valve’s operation, compatibility, and integration into your pneumatic systems.
We also offer repair and maintenance services to extend the lifespan of your pneumatic solenoid valves. Preventive maintenance programs and replacement parts are available to minimize downtime and maintain system efficiency.
In addition, training sessions and webinars can be arranged to provide hands-on knowledge and best practices for installation, operation, and maintenance of the pneumatic solenoid valves.
Our commitment is to deliver reliable and timely support to help you maximize the benefits of our pneumatic solenoid valve products in your applications.
Packing and Shipping:
Product Packaging:

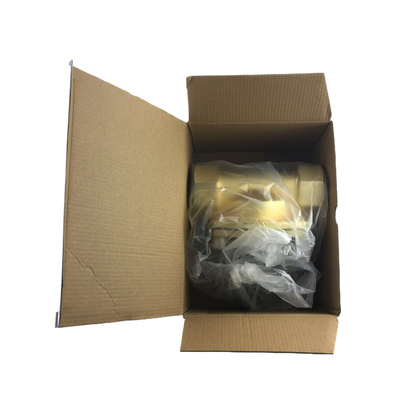

The Pneumatic Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. Each valve is individually wrapped in protective foam and sealed in an anti-static bag to prevent any damage during transit. The wrapped product is then placed inside a sturdy, custom-designed cardboard box with additional padding to absorb shocks. The packaging is clearly labeled with product details, handling instructions, and safety warnings to ensure proper care.
Shipping:
We offer reliable shipping options worldwide to deliver your Pneumatic Solenoid Valve promptly and safely. All orders are processed within 1-2 business days. Shipping methods include standard ground, expedited, and express delivery services. Each shipment is accompanied by tracking information so you can monitor your package in real-time. We also provide insurance options to protect your order against loss or damage during transportation.
