Product Description:

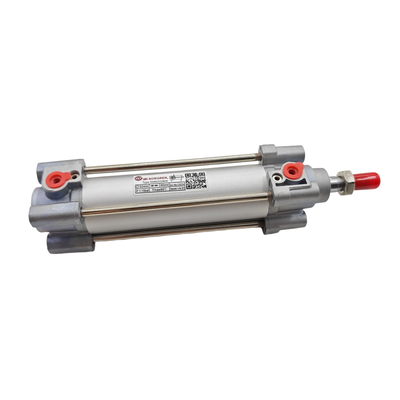

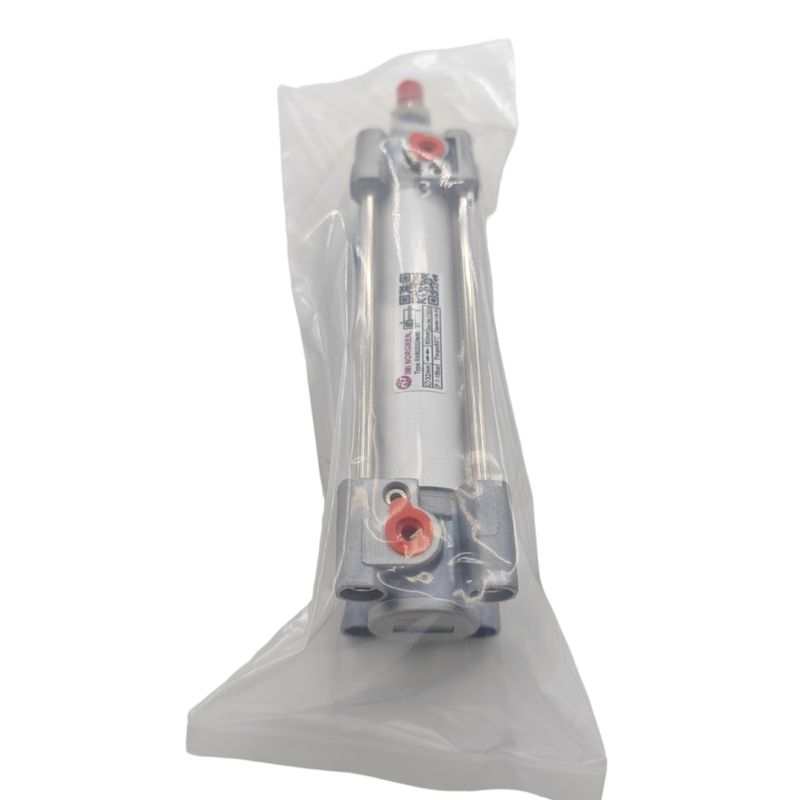

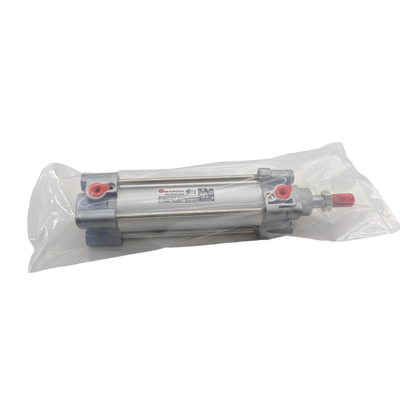

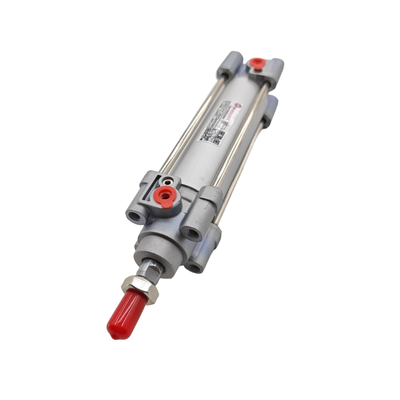

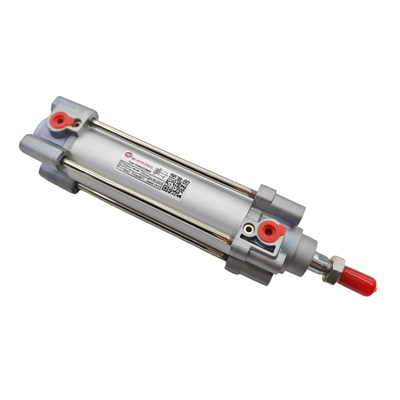

RA/802063/M Series Pneumatic Cylinder
The RA/802063/M Series represents a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. It is part of the esteemed ISOLine™ product range and features a 63mm bore diameter. This model is offered with a wide variety of stroke lengths, ranging from 25mm up to 1000mm, making it an ideal choice for applications requiring dependable and efficient linear motion within numerous industrial automation fields.
Central to the design of this cylinder is the cutting-edge Adaptive Cushioning System (ACS). This advanced mechanism intelligently adapts the cushioning performance according to varying load conditions, removing the necessity for manual adjustments or specialized expertise to set cushion screws. The benefits include enhanced operational smoothness, improved safety, lowered maintenance expenses, and an overall prolonged lifespan of the cylinder.
Constructed with a sturdy round barrel and reinforced by external tie rods, the RA/802063/M Series is engineered for exceptional durability and is well-suited for harsher environmental conditions. Additionally, the cylinder is equipped with a magnetic piston as a standard feature, allowing for straightforward position detection when paired with compatible reed or solid-state sensors. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards guarantees both interchangeability and adherence to global quality requirements.
Designed to operate at a maximum pressure of 16 bar and within a temperature spectrum spanning from -10°C to +80°C, this cylinder offers the versatility needed to perform demanding industrial tasks. Throughout its operation, it maintains smooth and precise motion, ensuring reliable performance in diverse working environments.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning according to varying loads. This feature eliminates the need for manual adjustments, ensuring smooth and safe operation. Additionally, it helps reduce noise and vibration during use.
ISO 15552 Compliance
This product is fully compliant with ISO 15552, VDMA 24562, and NFE 49-003-1 standards. Such compliance guarantees global interchangeability and facilitates easy integration into existing industrial systems.
Robust Construction
Featuring a round barrel design with external tie rods, the construction offers exceptional durability. This makes it ideally suited for demanding and aggressive industrial environments.
Magnetic Piston
Equipped with a standard magnetic piston, this product allows for easy position sensing using reed or solid-state switches, such as those from the M/50 series.
Wide Operating Pressure Range
The unit operates efficiently within a pressure range of 1 to 16 bar. This versatility makes it suitable for a broad spectrum of applications, from light-duty to heavy-duty tasks.
Versatile Stroke Selection
It is available in a variety of stroke lengths, covering both standard and non-standard options, with lengths reaching up to 1000 mm to meet diverse operational requirements.
Low Maintenance
The use of PUR seals ensures low friction and efficient operation, contributing to a long service life. These seals are compatible with both lubricated and non-lubricated air systems, reducing maintenance needs.
Shock and Vibration Tested
This product has been tested in accordance with EN 61373 Category 1, Class A + B standards. Such rigorous testing makes it ideal for applications in rail and transportation sectors.
High Force Output
At an operating pressure of 6 bar, the theoretical thrust output reaches 1870 N on the outstroke and 1680 N on the instroke. This provides ample power for demanding industrial applications.
Multiple Variants Available
A range of variants are offered, including options for different piston rod materials, special wipers, low friction seals, and extended piston rods, allowing customization to specific operational needs.
Technical Parameters:
| Operation |
Double Acting Standard |
| Cylinder Bore |
63 Mm |
| Brand |
IMI Norgren |
| Series |
RA/802000 |
| Type |
Standard Cylinder |
| Standard |
ISO 15552 |
Applications:
Industrial Automation
This area encompasses general factory automation including assembly lines and equipment used for material handling. It aims to enhance efficiency and streamline production processes.
Packaging Machinery
Packaging machinery involves operations such as product sorting, pushing, positioning, and conveying. These functions are critical to ensuring products are prepared and organized for shipment or further processing.
Automotive Industry
In the automotive sector, automation includes component assembly, welding fixtures, production line automation, and testing equipment. These technologies contribute to higher precision and faster production cycles.
Railway Applications
Equipment used in railway applications undergoes rigorous shock and vibration testing in accordance with EN 61373 standards, specifically Category 1, Class A + B, to ensure durability and reliability in rail vehicles.
Food & Beverage
The machinery designed for food and beverage industries is compatible with compressed air that may be filtered, lubricated, or non-lubricated, ensuring hygienic and safe operations.
Mechanical Engineering
This field covers machine building, special-purpose machinery, and general linear actuation, supporting diverse industrial applications with customized mechanical solutions.
Material Handling
Material handling solutions focus on lifting, pushing, stopping, and transferring operations within logistics systems to facilitate smooth movement and control of goods.
Electronics Manufacturing
Precision positioning and component handling are vital in electronics manufacturing, particularly within clean environments where contamination control is essential.
