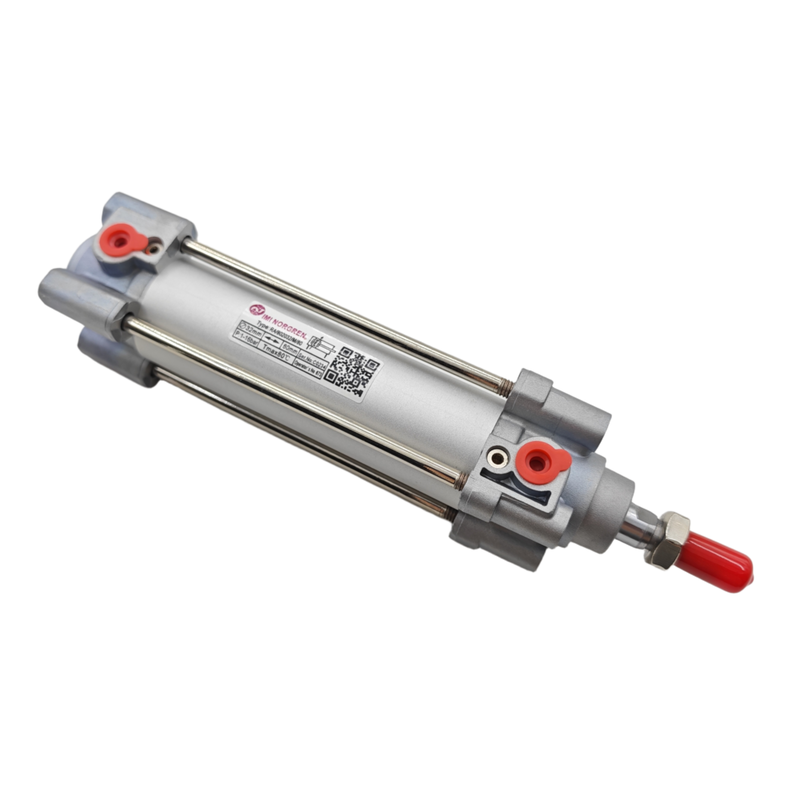

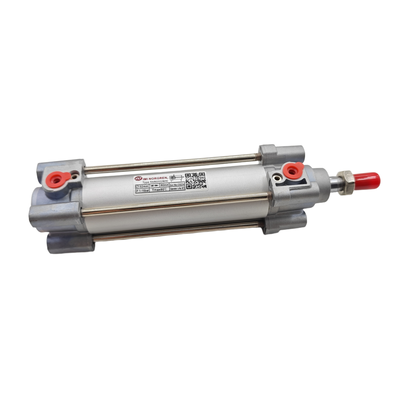

Norgren RA/802063/M/700 Pneumatic Cylinder 700mm Stainless Rod for Palletizing Systems

Product Description:

The RA/802063/M Series belongs to the high-performance ISOLine™ range and complies with the ISO 15552 standard for double-acting pneumatic cylinders. It features a bore diameter of 63mm and offers an extensive variety of stroke lengths, ranging from 25mm up to 1000mm. This design ensures dependable and efficient linear motion, making it ideal for a broad spectrum of industrial automation applications.

Central to this cylinder's functionality is the pioneering Adaptive Cushioning System (ACS). This smart mechanism automatically modifies cushioning settings to adapt to varying loads, eliminating the necessity for manual cushion screw adjustments or specialized expertise. As a result, users benefit from smoother and safer operations, minimized maintenance expenses, and a longer-lasting product lifespan.

Constructed with a sturdy round barrel and external tie rods, the RA/802063/M series delivers exceptional durability, making it well-suited for harsh operating environments. The cylinder is equipped with a magnetic piston as standard, allowing effortless position detection through compatible reed or solid-state switches. It adheres to ISO 15552, VDMA 24562, and NFE 49-003-1 standards, guaranteeing interchangeability and compliance worldwide.

Operating at a maximum pressure of 16 bar and capable of functioning within a temperature range from -10°C to +80°C, this cylinder is engineered to handle rigorous industrial demands while maintaining precise and smooth performance throughout its operation.

Features:

The Adaptive Cushioning System (ACS) automatically adjusts the cushioning to accommodate varying loads. This eliminates the need for manual adjustments, ensuring smooth and safe operation while significantly reducing noise and vibration during use.

This product adheres to the ISO 15552 standard as well as VDMA 24562 and NFE 49-003-1, facilitating global interchangeability. Its compliance makes integration into existing systems straightforward and seamless.

Featuring a round barrel design reinforced with external tie rods, the construction offers exceptional durability. It is engineered to withstand the demands of aggressive industrial environments, providing reliable performance over time.

Equipped with a standard magnetic piston, this product allows easy position sensing through the use of reed or solid-state switches, such as those from the M/50 series, enhancing monitoring and control capabilities.

Operating efficiently within a pressure range from 1 to 16 bar, this component is suitable for a diverse array of applications, ranging from light-duty tasks to those requiring heavy-duty performance.

The product is available in a broad spectrum of stroke lengths, including both standard and non-standard options, with lengths up to 1000 mm to meet various operational requirements.

Utilizing PUR seals, the product ensures low-friction operation and extends service life. It is compatible with both lubricated and non-lubricated air systems, minimizing maintenance needs.

Tested in accordance with EN 61373 Category 1, Class A + B standards, this product meets the rigorous demands of rail and transportation applications by effectively handling shock and vibration.

With a theoretical thrust of 1870 N (outstroke) and 1680 N (instroke) at 6 bar pressure, it delivers substantial power suitable for challenging tasks and demanding industrial uses.

The product offers compatibility with various options, including different piston rod materials, special wipers, low friction seals, and extended piston rods, providing flexibility to suit specific application needs.

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a wide range of industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting, maintenance tips, and repair services to ensure optimal operation of your pneumatic cylinder.

Our experienced technical team is available to help diagnose issues, recommend appropriate solutions, and provide detailed product information. We offer support for selecting the right cylinder specifications based on your application requirements, including bore size, stroke length, and mounting options.

To maximize the lifespan and efficiency of your piston pneumatic cylinder, we advise regular inspection and maintenance, including checking for air leaks, lubricating moving parts, and verifying alignment. Replacement parts and accessories are readily available to keep your equipment running smoothly.

Additionally, we provide training sessions and detailed product manuals to help your team better understand the operation and maintenance procedures. Our commitment is to ensure your pneumatic cylinders perform at their best, minimizing downtime and enhancing productivity.
