Product Description:
The RA/802063/M Series represents a high-performance double-acting pneumatic cylinder that adheres to the ISO 15552 standard. Part of the well-regarded ISOLine™ range, this cylinder features a 63mm bore diameter and offers a broad assortment of stroke lengths, ranging from 25mm up to 1000mm. It is engineered to provide dependable and efficient linear motion, making it ideal for a vast array of industrial automation applications.
Central to this cylinder’s design is the innovative Adaptive Cushioning System (ACS). This smart technology automatically fine-tunes cushioning to suit varying load conditions, thereby eliminating the requirement for manual adjustments of cushion screws or specialized expertise. This advancement leads to smoother and safer operation, decreases maintenance expenses, and significantly extends the cylinder’s service life.

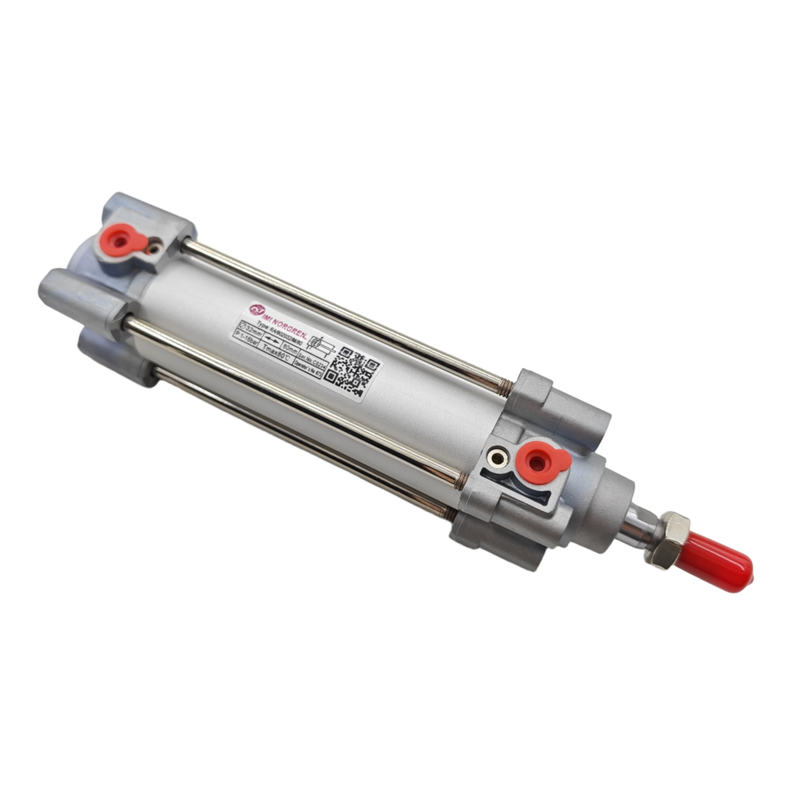

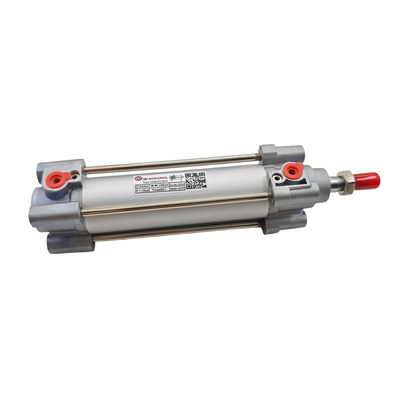

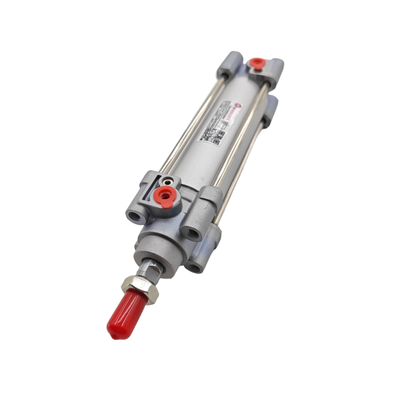

Constructed with a durable round barrel and external tie rods, the RA/802063/M Series is built to withstand harsh environments and provide exceptional durability. The cylinder is also equipped with a magnetic piston as standard, allowing for easy position sensing when used with compatible reed or solid-state switches. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards ensures interchangeability and global acceptance.
Designed to operate at a maximum pressure of 16 bar and within a temperature range from -10°C to +80°C, this cylinder delivers the versatility needed to tackle demanding industrial tasks. It consistently maintains smooth and precise motion performance, making it a reliable choice for varied industrial requirements.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying loads. This feature eliminates the need for manual adjustments, ensuring smooth and safe operation. Additionally, it significantly reduces noise and vibration during use.
ISO 15552 Compliance
This product complies with the ISO 15552 standard, as well as VDMA 24562 and NFE 49-003-1 standards. Such compliance guarantees global interchangeability and facilitates easy integration into existing systems worldwide.
Robust Construction
Featuring a round barrel design with external tie rods, the construction delivers exceptional durability. This robust build is suited for aggressive industrial environments where reliability is paramount.
Magnetic Piston
Equipped with a standard magnetic piston, the system supports easy position sensing through reed or solid-state switches, such as those in the M/50 series, enhancing monitoring and control capabilities.
Wide Operating Pressure Range
The unit operates within a broad pressure range from 1 to 16 bar. This wide range makes it suitable for a variety of applications, spanning from light-duty to heavy-duty tasks.
Versatile Stroke Selection
Offering a diverse selection of stroke lengths, this product is available in both standard and non-standard options, reaching up to 1000mm. This versatility allows customization to meet specific application requirements.
Low Maintenance
The use of PUR seals ensures efficient, low-friction operation and extends the product’s service life. Moreover, the system is compatible with both lubricated and non-lubricated air, reducing maintenance needs.
Shock and Vibration Tested
This product has been rigorously tested according to EN 61373 Category 1, Class A + B standards, making it ideal for rail and transportation applications where shock and vibration resistance are critical.
High Force Output
At a theoretical thrust of 6 bar, the unit delivers 1870 N on the outstroke and 1680 N on the instroke. This high force output provides ample power to handle demanding industrial tasks effectively.
Multiple Variants Available
Multiple variants of the product are available to suit specific needs. Options include different piston rod materials, specialized wipers, low friction seals, and extended piston rods to accommodate diverse application demands.
Technical Parameters:
| Standard |
ISO 15552 |
| Operation |
Double Acting Standard |
| Type |
Standard Cylinder |
| Brand |
IMI Norgren |
| Series |
RA/802000 |
| Cylinder Bore |
63 Mm |
Applications:
Industrial Automation
This sector covers general factory automation, including the operation of assembly lines and material handling equipment. It aims to improve efficiency and accuracy in manufacturing processes.
Packaging Machinery
In packaging machinery, tasks such as product sorting, pushing, positioning, and conveying are essential. These operations help streamline packaging workflows and maintain product quality.
Automotive Industry
The automotive sector utilizes automation for component assembly, welding fixtures, production line automation, and testing equipment. These technologies contribute to enhanced production speed and precision.
Railway Applications
Equipment used in railway applications undergoes rigorous shock and vibration testing according to EN 61373 Category 1, Class A + B standards, ensuring reliability and safety for rail vehicle components.
Food & Beverage
Devices used in the food and beverage industry are designed to operate efficiently with filtered, lubricated, or non-lubricated compressed air, meeting hygiene and operational requirements.
Mechanical Engineering
This area involves machine building, the creation of special-purpose machinery, and general linear actuation to support various industrial applications and custom solutions.
Material Handling
Material handling encompasses lifting, pushing, stopping, and transfer operations within logistics systems, facilitating smooth and effective movement of goods.
Electronics Manufacturing
For electronics manufacturing, precision positioning and component handling are critical, especially in cleanroom environments where contamination must be minimized.
Support and Services:
Our Piston Pneumatic Cylinder product comes with comprehensive technical support and services to ensure optimal performance and reliability. We provide detailed installation guides, operation manuals, and maintenance instructions to help you get the most out of your cylinder. Our technical support team is available to assist with troubleshooting, system integration, and customization requests. We also offer training sessions and workshops to enhance your understanding of pneumatic systems and cylinder applications. Additionally, spare parts and replacement components are readily available to minimize downtime. Our commitment is to deliver prompt and efficient service to support your operational needs.
Packing and Shipping:

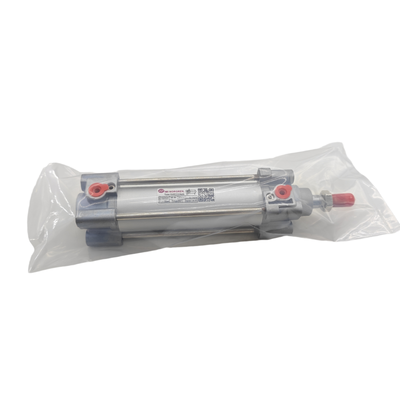

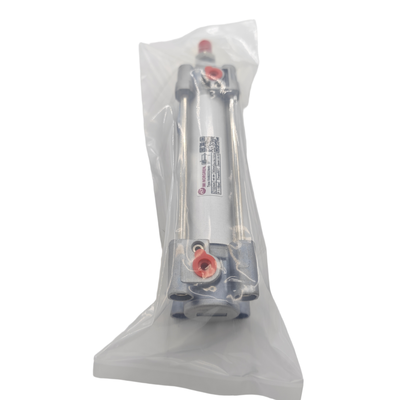

Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective foam sleeve to prevent scratches and dents. It is then placed inside a sturdy cardboard box with additional cushioning materials such as bubble wrap or packing peanuts to absorb shocks and vibrations.
