Product Description:

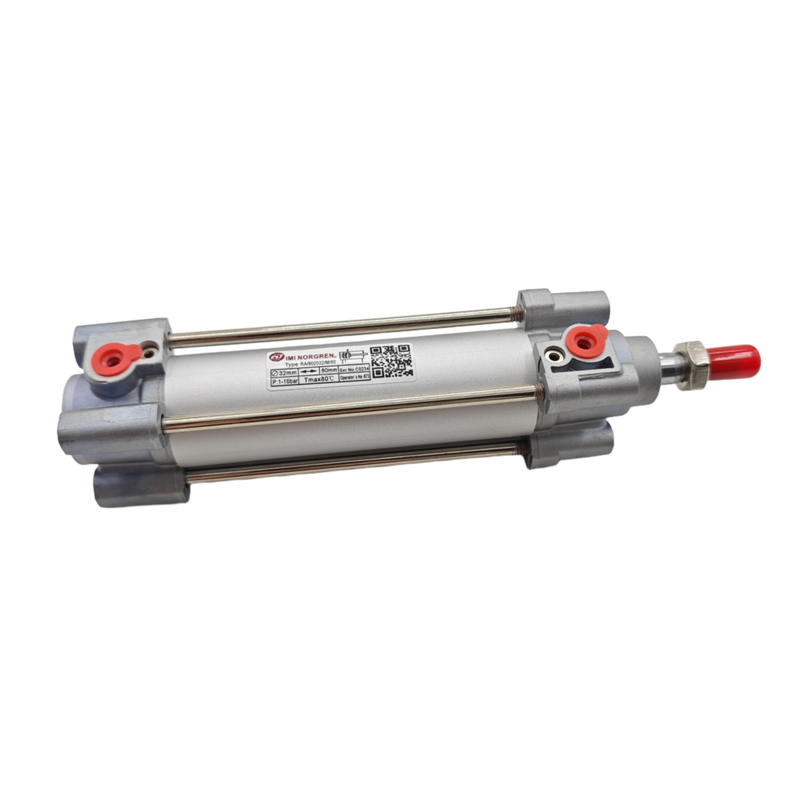

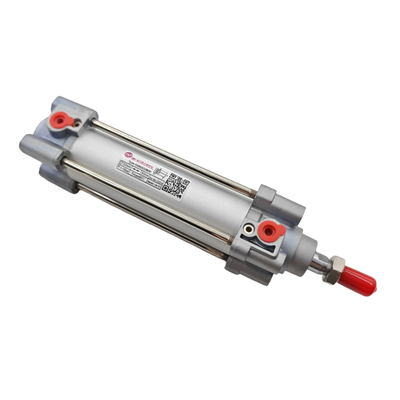

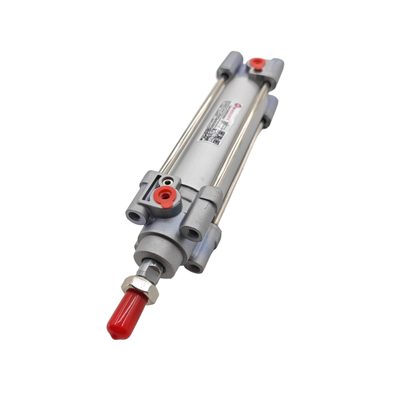

The RA/802063/M Series represents a high-performance pneumatic cylinder that complies with the ISO 15552 standard. It is part of the esteemed ISOLine™ product family and features a double-acting design. With a bore diameter of 63mm, this cylinder is available in a wide range of stroke lengths, spanning from 25mm up to 1000mm. It is engineered to provide dependable and efficient linear motion, ideal for numerous industrial automation uses.
Central to the design of this cylinder is the cutting-edge Adaptive Cushioning System (ACS). This smart technology automatically adjusts the cushioning based on varying load conditions, eliminating the need for manual adjustments of the cushion screws or specialized expertise. Consequently, users benefit from smoother and safer operation, lower maintenance expenses, and a longer overall service lifespan.
Constructed with a durable round barrel and reinforced by external tie rods, the RA/802063/M Series is built to withstand demanding and harsh environments. The inclusion of a magnetic piston as standard facilitates easy and accurate position sensing using compatible reed or solid-state switches. Additionally, it meets the requirements of ISO 15552, VDMA 24562, and NFE 49-003-1 standards, ensuring both interchangeability and worldwide compliance.
Operating at a maximum pressure of 16 bar and functioning effectively within a temperature range from -10°C to +80°C, this cylinder is versatile enough to tackle challenging industrial processes. It consistently delivers precise and smooth performance throughout its operational scope.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System automatically adjusts the cushioning based on the load variations. This eliminates the need for manual adjustments, ensuring a smooth and safe operation. In addition, it helps reduce noise and vibration during use.
ISO 15552 Compliance
This product complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, which guarantees global interchangeability. It can be easily integrated into existing systems without compatibility issues.
Robust Construction
Featuring a round barrel design with external tie rods, the construction offers exceptional durability. This makes it well-suited for use in aggressive and demanding industrial environments.
Magnetic Piston
Equipped with a standard magnetic piston, it allows for straightforward position sensing. It is compatible with reed or solid-state switches, such as those from the M/50 series.
Wide Operating Pressure Range
The product can operate efficiently within a pressure range from 1 to 16 bar. This wide range makes it suitable for various applications, spanning from light-duty to heavy-duty tasks.
Versatile Stroke Selection
Available in numerous standard and non-standard stroke lengths, the product can accommodate strokes up to 1000mm, providing great versatility to meet specific needs.
Low Maintenance
With PUR seals, the system ensures low-friction operation and offers a prolonged service life. It is compatible with both lubricated and non-lubricated air, reducing maintenance requirements.
Shock and Vibration Tested
The product has been rigorously tested according to EN 61373 Category 1, Class A + B standards, making it reliable for rail and transportation applications where shock and vibration resistance is critical.
High Force Output
At 6 bar, the theoretical thrust force is 1870 N on the outstroke and 1680 N on the instroke. This delivers sufficient power for demanding industrial applications.
Multiple Variants Available
There are various options available, including different piston rod materials, special wipers, low friction seals, and extended piston rods, allowing customization to fit specific application requirements.
Technical Parameters:
| Standard |
ISO 15552 |
| Brand |
IMI Norgren |
| Series |
RA/802000 |
| Cylinder Bore |
63 Mm |
| Type |
Standard Cylinder |
| Operation |
Double Acting Standard |
Applications:
Industrial Automation
This sector encompasses general factory automation, including the operation of assembly lines and material handling equipment. It plays a crucial role in enhancing manufacturing efficiency and productivity.
Packaging Machinery
Packaging machinery involves tasks such as product sorting, pushing, positioning, and conveying. These operations ensure that products are handled accurately and prepared for distribution smoothly.
Automotive Industry
The automotive sector focuses on component assembly, welding fixtures, automation of production lines, and the integration of testing equipment, all essential for producing reliable vehicles.
Railway Applications
Equipment designed for railway use undergoes rigorous shock and vibration testing according to the EN 61373 standard, specifically Category 1, Class A and B, ensuring durability and safety in rail vehicles.
Food & Beverage
Applications in the food and beverage industry require compatibility with filtered, lubricated, or non-lubricated compressed air, meeting hygiene and operational standards unique to this field.
Mechanical Engineering
This area includes machine building, creating special-purpose machinery, and providing general linear actuation solutions tailored to various industrial needs.
Material Handling
Material handling involves operations such as lifting, pushing, stopping, and transferring within logistics systems, facilitating efficient movement of goods and materials.
Electronics Manufacturing
Precision positioning and component handling in clean environments are vital for electronics manufacturing, ensuring high-quality assembly and product performance.
Support and Services:
Our Piston Pneumatic Cylinder product is supported by a dedicated technical support team ready to assist with installation, maintenance, and troubleshooting. We offer comprehensive services including product selection guidance, custom configuration advice, and performance optimization to ensure you achieve the best results for your application.
Technical documentation, including detailed specifications, user manuals, and installation guides, is available to help you understand the product features and proper usage. Our support team can also provide training sessions and on-site assistance to enhance your operational efficiency.
We are committed to providing timely maintenance and repair services to minimize downtime. Replacement parts and accessories are readily available to keep your pneumatic cylinders functioning reliably. For complex issues, our engineers are available to offer expert consultation and tailored solutions.
Regular updates and improvements to the product design and functionality are communicated through our support channels to ensure you benefit from the latest advancements in pneumatic technology.
Packing and Shipping:

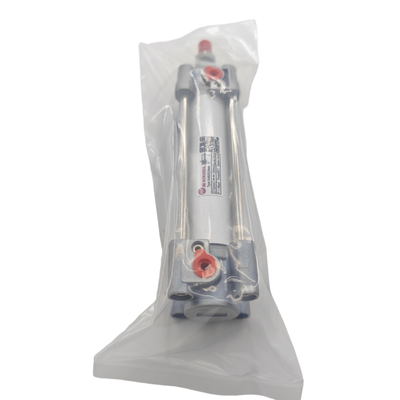

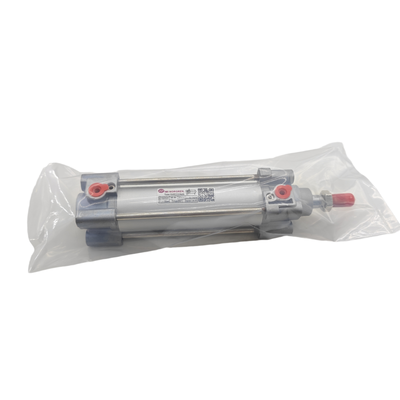

Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is securely wrapped in anti-static foam and placed inside a sturdy corrugated cardboard box. The packaging is designed to prevent any movement or damage, with additional cushioning materials used as needed to safeguard delicate components.
