Product Description:

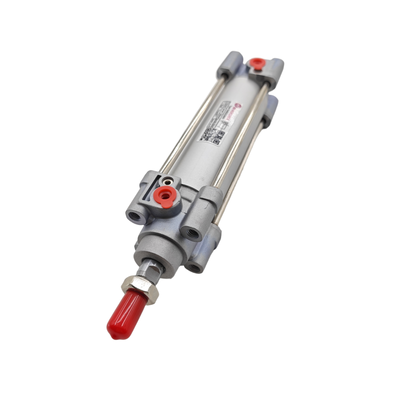

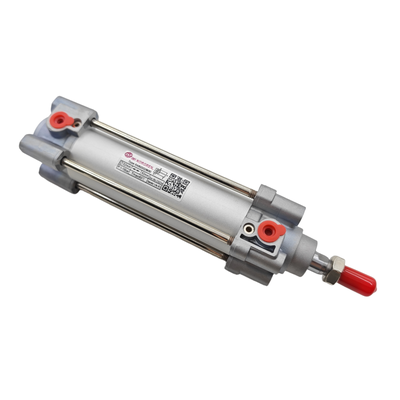

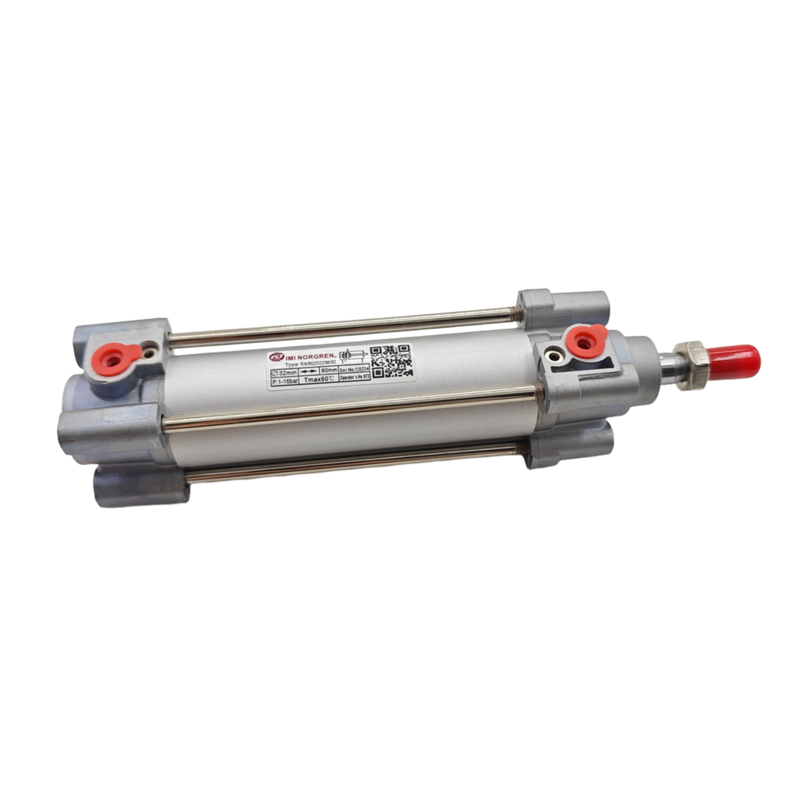

The RA/802063/M Series is a high-performance double-acting pneumatic cylinder that adheres to the ISO 15552 standard. It is part of the well-known ISOLine™ range and features a bore diameter of 63mm. This cylinder is available in an extensive range of stroke lengths, from 25mm up to 1000mm, making it suitable for a wide array of industrial automation applications that require reliable and efficient linear motion.
Central to the design of this cylinder is the innovative Adaptive Cushioning System (ACS). This smart technology automatically adjusts the cushioning performance in response to varying loads. As a result, it eliminates the need for manual adjustments of the cushion screw, as well as the requirement for specialized knowledge. This leads to smoother and safer operation, reduced maintenance expenses, and an overall longer service life.
Constructed with a sturdy round barrel and external tie rods, the RA/802063/M Series is built for enhanced durability, making it suitable for harsher industrial environments. The cylinder is equipped with a magnetic piston as standard, allowing for easy position detection when used with compatible reed or solid-state switches. Compliance with standards such as ISO 15552, VDMA 24562, and NFE 49-003-1 guarantees interchangeability and global compatibility.
Designed to operate under a maximum pressure of 16 bar and within a temperature range from -10°C to +80°C, this cylinder is adaptable enough to tackle challenging industrial tasks. Throughout its operation, it consistently delivers smooth and precise performance, making it a dependable choice for demanding automation processes.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments and ensures smooth and safe operation. Additionally, it effectively reduces noise and vibration during use.
ISO 15552 Compliance
This product complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards. Such compliance guarantees global interchangeability and simplifies integration into existing systems worldwide.
Robust Construction
Featuring a round barrel design with external tie rods, the construction offers superior durability, making it well-suited for aggressive industrial environments that demand resilience and longevity.
Magnetic Piston
The standard magnetic piston facilitates easy position sensing using reed or solid-state switches, such as those from the M/50 series. This feature enhances precision and control in various applications.
Wide Operating Pressure Range
Operating efficiently within a pressure range of 1 to 16 bar, this product is versatile enough to handle a broad spectrum of tasks, from light-duty to heavy-duty applications.
Versatile Stroke Selection
It is available in an extensive selection of both standard and non-standard stroke lengths, reaching up to 1000mm, thereby accommodating diverse application requirements.
Low Maintenance
The use of PUR seals ensures low-friction operation and extends the service life of the product. Moreover, it is compatible with both lubricated and non-lubricated air, minimizing upkeep needs.
Shock and Vibration Tested
Tested in accordance with EN 61373 Category 1, Class A + B standards, this product meets stringent requirements for rail and transportation applications, confirming its robustness under demanding conditions.
High Force Output
At 6 bar pressure, the theoretical thrust is 1870 N during outstroke and 1680 N during instroke. This high force output ensures reliable performance in demanding operational scenarios.
Multiple Variants Available
There is broad compatibility with various options including different piston rod materials, specialized wipers, low-friction seals, and extended piston rods, allowing customization to meet specific needs.
Technical Parameters:
| Series |
RA/802000 |
| Operation |
Double Acting Standard |
| Brand |
IMI Norgren |
| Standard |
ISO 15552 |
| Type |
Standard Cylinder |
| Cylinder Bore |
63 Mm |
Applications:
Industrial Automation
This sector encompasses general factory automation, including the operation of assembly lines and equipment for material handling. It focuses on enhancing productivity and streamlining manufacturing processes.
Packaging Machinery
In packaging applications, machinery is utilized for tasks such as product sorting, pushing, precise positioning, and conveying. These operations ensure efficient handling and packaging of products.
Automotive Industry
The automotive sector relies on various technologies for component assembly, welding fixtures, automation of production lines, and testing equipment. These tools contribute to high-quality vehicle manufacturing.
Railway Applications
Railway equipment is designed and tested to meet strict standards, including shock and vibration resistance according to EN 61373 Category 1, Class A + B. This ensures durability and safety in rail vehicle components.
Food & Beverage
Equipment used in the food and beverage industry is compatible with filtered, lubricated, or non-lubricated compressed air, maintaining hygiene and operational efficiency.
Mechanical Engineering
This field involves the construction of machines, development of special-purpose equipment, and implementation of general linear actuation systems to support various industrial needs.
Material Handling
Logistics and material handling systems perform critical operations such as lifting, pushing, stopping, and transferring materials, facilitating smooth workflow within warehouses and factories.
Electronics Manufacturing
Precision is paramount in electronics production, where equipment ensures accurate positioning and careful handling of components within cleanroom environments.
Support and Services:
Our Piston Pneumatic Cylinder is designed for reliable and efficient performance in various industrial applications. For technical support, please ensure that you have the product model number and specifications ready when seeking assistance. Our support team can help with installation guidance, troubleshooting tips, maintenance procedures, and replacement parts information.
To maximize the lifespan and performance of your piston pneumatic cylinder, regular maintenance is recommended. This includes checking for air leaks, inspecting seals and piston rods for wear, and ensuring that the cylinder is properly lubricated according to the manufacturer's guidelines.
In case of any operational issues, verify that the air supply pressure and flow meet the required specifications and that all connections are secure. If problems persist, consult the troubleshooting section of the product manual or contact our technical support for further assistance.
We also offer professional repair and refurbishment services to extend the service life of your pneumatic cylinder. Our team uses genuine replacement parts and follows strict quality control standards to ensure optimal performance.
For detailed product manuals, installation guides, and maintenance tips, please refer to the documentation provided with your piston pneumatic cylinder or visit our official website.
Packing and Shipping:

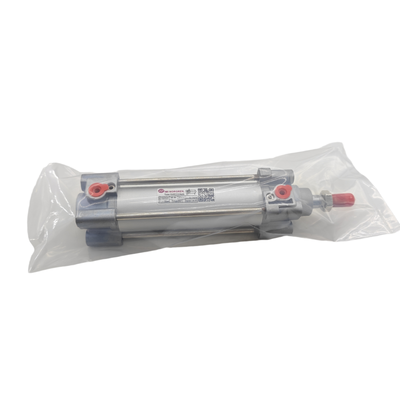

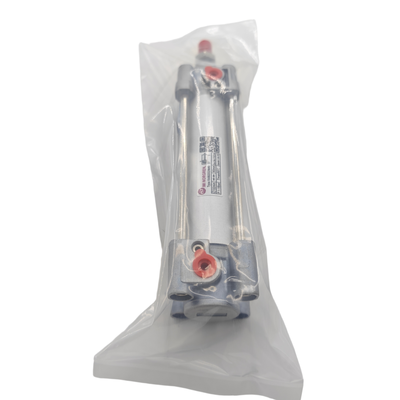

Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is wrapped in anti-static bubble wrap and placed inside a sturdy, custom-fitted cardboard box to prevent any movement or damage. Additional padding materials are used to secure the product within the box.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All packages are labeled clearly with handling instructions to ensure proper care. International shipments are handled with appropriate documentation and customs declarations to facilitate smooth clearance.
We prioritize customer satisfaction by providing secure packaging and dependable shipping services, ensuring that your Piston Pneumatic Cylinder arrives in perfect condition and ready for use.
