Product Description:

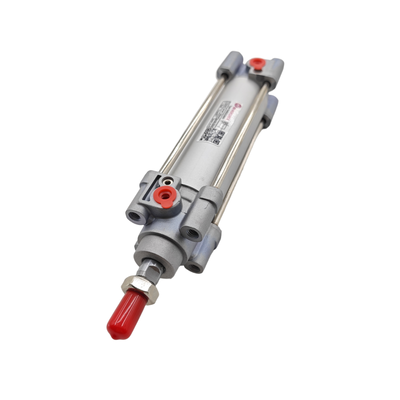

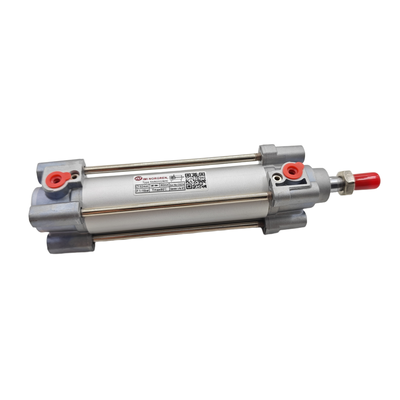

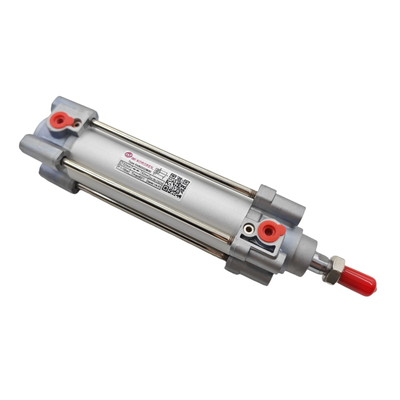

The RA/802063/M Series represents a high-performance double-acting pneumatic cylinder compliant with the ISO 15552 standard, and is part of the prestigious ISOLine™ product family. It features a bore diameter of 63mm and offers a wide range of stroke lengths spanning from 25mm up to 1000mm. This design ensures dependable and efficient linear motion suitable for diverse industrial automation needs.
Central to this cylinder’s functionality is the cutting-edge Adaptive Cushioning System (ACS). This smart mechanism dynamically adjusts cushioning to match varying load conditions, removing the necessity for manual cushion screw tuning or specialist expertise. As a result, users benefit from smoother and safer operations, lower maintenance expenses, and an extended lifecycle for the equipment.
Constructed with a sturdy round barrel and secured by external tie rods, the RA/802063/M Series delivers exceptional durability, making it well-suited for harsh and demanding environments. Additionally, the cylinder includes a magnetic piston as a standard feature, facilitating effortless position detection when paired with compatible reed or solid-state sensors. This model adheres to the ISO 15552, VDMA 24562, and NFE 49-003-1 standards, guaranteeing interchangeability and compliance on a global scale.
Capable of withstanding a maximum operating pressure of 16 bar and functioning reliably within a temperature range from -10°C to +80°C, this pneumatic cylinder is engineered to perform smoothly and precisely under challenging industrial conditions.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts the cushioning based on varying loads. This feature eliminates the need for manual adjustments and guarantees smooth and safe operation, while also minimizing noise and vibration levels.
ISO 15552 Compliance
This product complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards. Such adherence ensures global interchangeability and facilitates easy integration into existing systems worldwide.
Robust Construction
Featuring a round barrel design with external tie rods, this construction offers exceptional durability, making it well-suited for tough and aggressive industrial environments.
Magnetic Piston
The standard magnetic piston enables simple and accurate position sensing using reed or solid-state switches, such as those from the M/50 series.
Wide Operating Pressure Range
Designed to operate efficiently within a pressure range of 1 to 16 bar, this system is adaptable for various applications, from light-duty to heavy-duty tasks.
Versatile Stroke Selection
It is available in an extensive range of both standard and custom stroke lengths, extending up to 1000 mm, to meet diverse operational requirements.
Low Maintenance
Equipped with PUR seals, the system ensures low-friction performance and an extended service life. It is compatible with both lubricated and non-lubricated air, reducing maintenance demands.
Shock and Vibration Tested
The system has been rigorously tested to comply with EN 61373 Category 1, Class A + B standards, making it ideal for rail and transportation applications.
High Force Output
At a theoretical pressure of 6 bar, the thrust output reaches 1870 N on the outstroke and 1680 N on the instroke, providing substantial power for demanding industrial uses.
Multiple Variants Available
This product supports various options, including different piston rod materials, specialized wipers, low-friction seals, and extended piston rods to suit specific needs.
Technical Parameters:
| Standard |
ISO 15552 |
| Brand |
IMI Norgren |
| Type |
Standard Cylinder |
| Operation |
Double Acting Standard |
| Cylinder Bore |
63 mm |
| Series |
RA/802000 |
Applications:
Industrial automation encompasses a wide range of applications, including general factory automation, assembly lines, and equipment used for material handling. These systems are designed to improve efficiency and streamline production processes.
In the packaging industry, machinery is employed to perform tasks such as product sorting, pushing, precise positioning, and conveying. These operations ensure that products are handled accurately and efficiently throughout the packaging process.
The automotive sector utilizes automation in various forms, including component assembly, welding fixtures, production line automation, and testing equipment. These technologies contribute to higher productivity and consistent quality in vehicle manufacturing.
Railway applications require equipment that meets rigorous standards. Devices are shock and vibration tested according to EN 61373 Category 1, Class A + B, ensuring durability and reliability in rail vehicle environments.
The food and beverage industry demands equipment compatible with filtered, lubricated, or non-lubricated compressed air. This specification helps maintain cleanliness and hygiene during processing and packaging.
Mechanical engineering involves the design and construction of machines, including special-purpose machinery and systems for general linear actuation. These solutions support a wide array of industrial functions.
Material handling systems play a crucial role in logistics by managing lifting, pushing, stopping, and transfer operations efficiently. These processes help optimize the movement and storage of goods.
In electronics manufacturing, precision is essential. Automated systems facilitate accurate positioning and component handling within clean environments, ensuring high standards of quality and reliability.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a variety of industrial automation applications. For technical support, please ensure that you have the model number, specifications, and operating conditions of your cylinder ready to facilitate prompt assistance.
We offer comprehensive services including installation guidance, troubleshooting, maintenance tips, and repair support to help maximize the lifespan and efficiency of your pneumatic cylinder. Our technical team is equipped to assist with system integration, custom configurations, and performance optimization.
To ensure optimal operation, regular inspection and maintenance are recommended. This includes checking for air leaks, verifying alignment, lubricating moving parts as specified, and replacing worn components promptly.
For any product-related inquiries or service requests, please refer to the product manual for detailed instructions and troubleshooting steps. Our support resources are designed to help you resolve common issues quickly and keep your pneumatic cylinder operating smoothly.
Packing and Shipping:

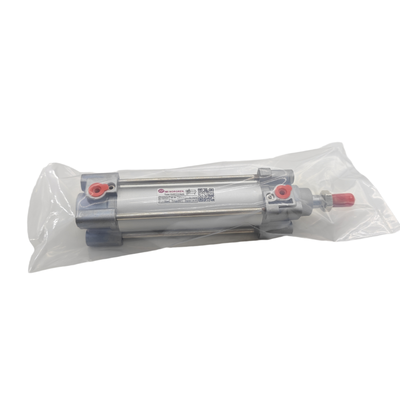

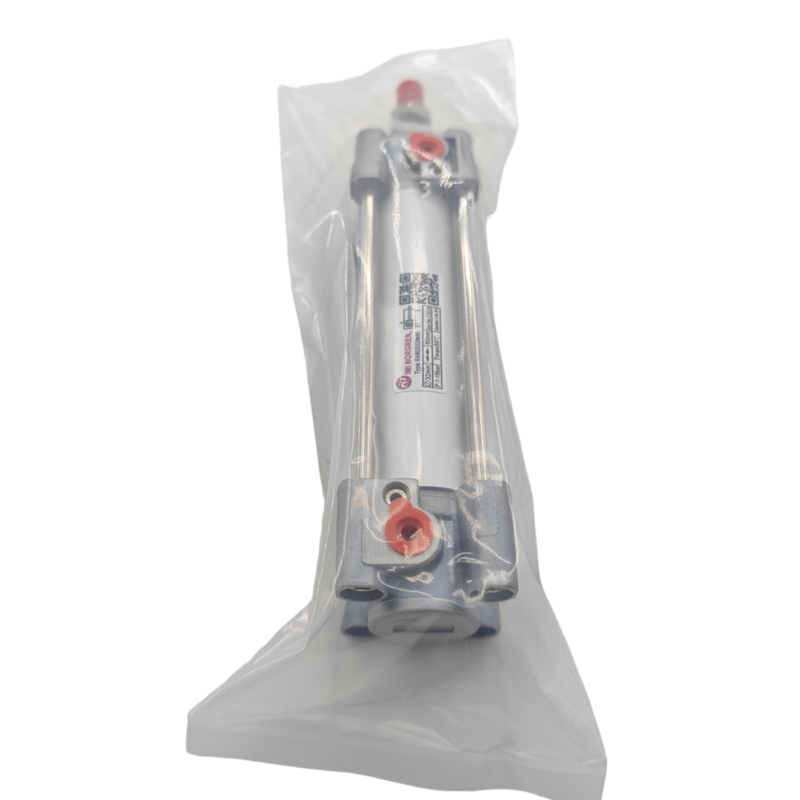

Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static foam and sealed in a plastic bag to prevent moisture and dust exposure. It is then placed in a custom-fitted corrugated cardboard box with additional padding materials to absorb shocks and vibrations.
For bulk orders, multiple units are securely packed in reinforced cartons, separated by dividers to avoid contact and potential damage. All packages are clearly labeled with product information, handling instructions, and shipping details.
We use reliable shipping partners to guarantee timely delivery and provide tracking information for all shipments. Special care is taken to comply with international shipping regulations to ensure your Piston Pneumatic Cylinder arrives safely at your doorstep.
