Product Description:
The 2W160-15 Series represents a collection of high-performance 2/2-way normally closed solenoid valves, built upon the reliable and well-established 2W platform. These valves are engineered for dependable on/off control of various media including water, air, gas, and light oil. The series comprises four unique variants designed to cater to different application needs.

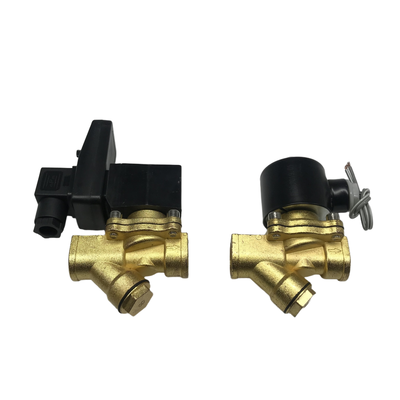

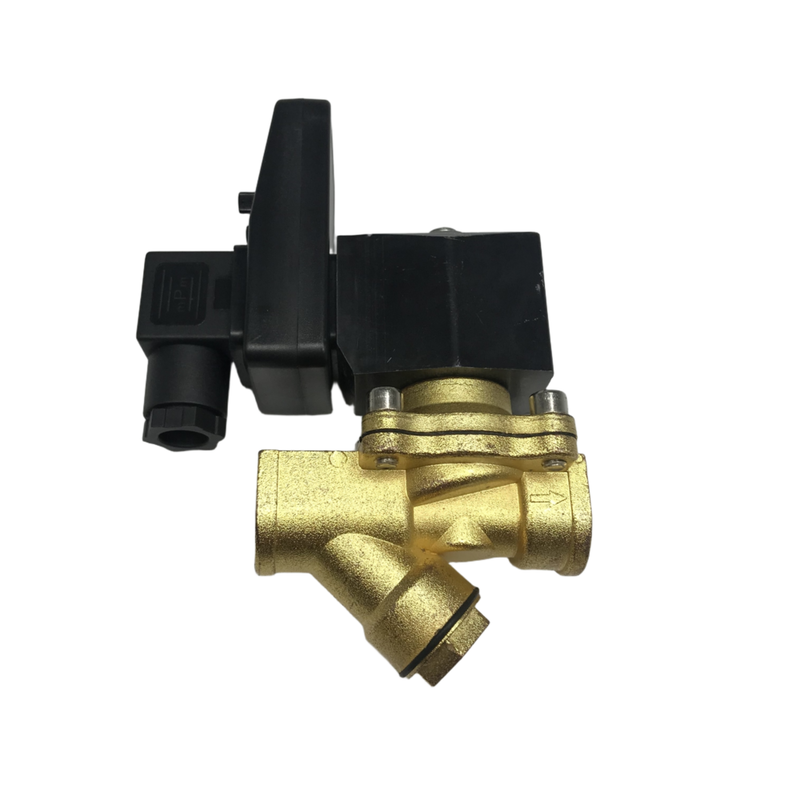

The first variant comes equipped with a filter element and functions as an electronic drain valve. This type is especially suited for the automatic removal of condensate and contaminants in compressed air and fluid systems, ensuring efficient operation and maintenance.
The second variant also includes a filter element but is designed as a water valve. It is ideal for managing clean water flow in systems such as irrigation, water treatment, and plumbing, offering precise and reliable control.

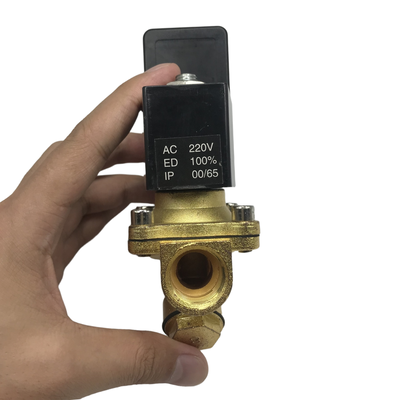

The third variant features a square coil that provides an IP65 rating for environmental protection. This makes it perfect for use in challenging industrial environments and outdoor installations where durability and resistance to dust and water are critical.
Lastly, the fourth variant utilizes a round coil, offering a standard, cost-effective solution aimed at general-purpose fluid control applications. This version prioritizes simplicity and efficiency for everyday use.
All variants share a direct-acting diaphragm design, which allows them to operate effectively even at zero pressure (0 bar). This ensures reliable performance in low-pressure or gravity-fed systems. The valve bodies are forged from brass and include NBR seals as standard; however, alternative seal materials such as EPDM and FKM are available to accommodate specific media types and temperature ranges.
With a 16 mm orifice and a Cv value of 4.8, the valves provide excellent flow capacity. Additionally, they come with standard voltage options including AC220V, AC110V, DC24V, and DC12V, making them compatible with most existing control systems.
Features:
Zero Pressure Start
All variants are equipped with a direct-acting diaphragm design, allowing for reliable operation starting from 0 bar. This eliminates the need for a minimum differential pressure to activate the system.
Filter Element Protection (Drain & Water Variants)
An integrated filter element, recommended to be ≥80 mesh, effectively removes debris and contaminants. This protection helps safeguard internal components and extends the overall service life of the product.
Durable Brass Construction
The body is forged from brass, offering excellent corrosion resistance and long-lasting durability. This robust construction ensures dependable performance over time.
Normally Closed Design
Each variant remains closed when de-energized. The system actuates and opens only once power is applied, providing secure operational control.
High Flow Capacity
Featuring a 16 mm orifice with a Cv value of 4.8, all variants guarantee efficient flow performance suitable for a variety of applications.
Versatile Voltage Options
The product supports multiple voltage supplies, including AC220V, AC110V, DC24V, DC12V, and AC380V, with a tolerance of ±10%, ensuring compatibility with diverse power sources.
Multiple Seal Options
Standard seals are made of NBR and operate within a temperature range of -5°C to +80°C. For specialized needs, EPDM and FKM (Viton) seal options are also available.
Wide Media Compatibility
This product is suitable for use with water, air, gas, and light oil fluids, where the viscosity does not exceed 20 CST, making it highly versatile for various industrial media.
Square Coil (IP65)
The square coil design provides superior protection against moisture, dust, and harsh environments, meeting the IP65 standard for reliable operation under challenging conditions.
Round Coil (Standard)
The standard round coil offers a cost-effective solution with easy interchangeability. It is compatible with DIN43650A connectors, simplifying integration.
Electronic Drain Function (Drain Variant)
The drain variant includes an automatic condensate removal system, ideal for compressed air and fluid systems to maintain optimal performance without manual intervention.
Compact & Robust Design
With a small footprint and rugged construction, this product allows for easy installation while ensuring a long service life under demanding conditions.
Customizable
Special voltages and specifications can be provided upon request to meet unique application requirements.
Technical Parameters:
| Orifice Size |
16 Mm |
| Pressure Range |
0–0.7 MPa |
| Valve Type |
2/2-way Normally Closed |
| Seal Material |
NBR (standard); EPDM, FKM (optional) |
| Port Size |
G1/2" |
| Body Material |
Brass |
| Medium |
Water, Air, Gas, Light Oil |
| Voltage Options |
AC220V, AC110V, DC24V, DC12V |
Applications:
The 2W160-15 series is perfectly designed to accommodate a diverse array of fluid control applications across industrial, commercial, and agricultural sectors. Its versatile functionality makes it an ideal choice for various operational needs, ensuring effective and reliable performance.
One notable variant is the electronic drain model equipped with a filter element, which excels in the automatic removal of condensate and contaminants. This feature is especially beneficial in compressed air systems, dryers, and filters, where maintaining system cleanliness and dependability is crucial.
The water valve version, also fitted with a filter element, offers reliable and debris-free on/off control. This makes it suitable for irrigation systems, water treatment facilities, plumbing networks, and reverse osmosis equipment, where protection against sediment buildup is vital to smooth operation.
For applications exposed to outdoor conditions or harsh environments, the square coil variant provides IP65 waterproof protection. This robust design is well-suited for demanding scenarios such as agricultural spraying, marine systems, and HVAC units mounted on buildings, ensuring long-lasting durability under challenging conditions.
Alternatively, the round coil model presents a cost-effective and general-purpose option intended for indoor applications. It is widely used in pneumatic control systems, process automation, heating and cooling loops, as well as various types of industrial machinery, balancing affordability with dependable functionality.
All four variants in the 2W160-15 series offer reliable, zero-pressure-start operation for mediums including water, air, gas, and light oils with viscosities up to 20 CST. This range supports manufacturers across industries such as food processing, chemical handling, and facility management by providing consistent efficiency and robustness.
