Product Description:
The 2W160-15 Series represents a high-performance range of 2/2-way normally closed solenoid valves, built upon the reliable and well-established 2W platform. These valves are engineered to provide dependable on/off control for various fluids including water, air, gas, and light oil. The series comprises four unique variants, each designed to cater to specific application needs.

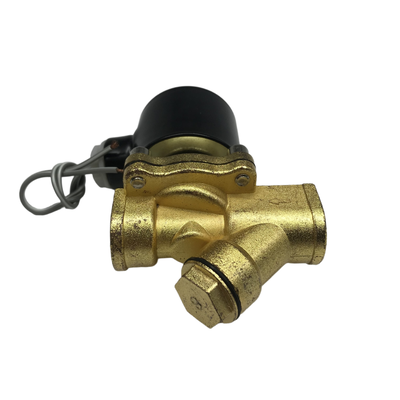

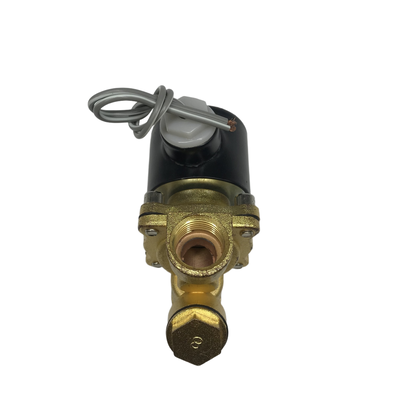

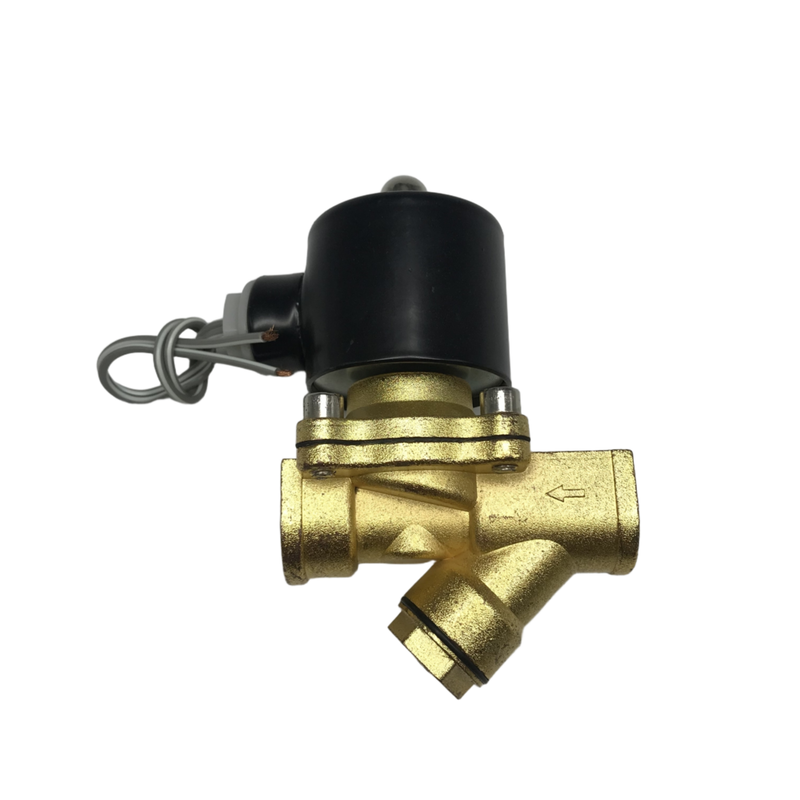

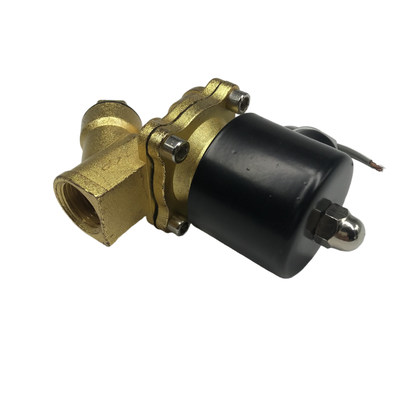

One variant features a filter element combined with an electronic drain valve, making it ideal for the automatic removal of condensate and contaminants from compressed air and fluid systems. Another variant includes a filter element designed specifically as a water valve, perfectly suited for clean water control tasks in irrigation, treatment, and plumbing applications.
For industrial and outdoor environments requiring robust protection, the series offers a version equipped with a square coil that provides IP65 environmental resistance. Meanwhile, the round coil variant serves as a standard, cost-effective solution suitable for general-purpose fluid control.
All models in the 2W160-15 Series utilize a direct-acting diaphragm design, allowing them to operate efficiently from zero pressure (0 bar). This ensures reliable functionality even in low-pressure or gravity-fed systems. The valve bodies are made from forged brass and come standard with NBR seals. For applications with special media or temperature demands, optional seal materials such as EPDM and FKM are available.
With a 16 mm orifice and a Cv value of 4.8, these valves provide effective flow capacity. Additionally, they support a variety of standard voltage options including AC220V, AC110V, DC24V, and DC12V, ensuring broad compatibility with most control systems.
Features:
Zero Pressure Start
Each variant is designed with a direct-acting diaphragm, allowing for dependable operation starting from 0 bar. This design removes the need for a minimum differential pressure to function effectively.
Filter Element Protection (Drain & Water Variants)
The integrated filter element, recommended to be 80 mesh or finer, efficiently filters out debris and contaminants. This feature safeguards the internal parts and helps prolong the product’s service life.
Durable Brass Construction
Crafted from forged brass, the body offers outstanding resistance to corrosion and ensures robust durability, supporting reliable long-term use.
Normally Closed Design
All product variants maintain a closed state when de-energized, and they open only when electrical power is applied, ensuring safety and control.
High Flow Capacity
Featuring a 16 mm orifice and a Cv value of 4.8, these products guarantee efficient flow performance across all models.
Versatile Voltage Options
The devices support a wide range of voltages, including AC220V, AC110V, DC24V, DC12V, and AC380V with a ±10% tolerance, enhancing their adaptability in various applications.
Multiple Seal Options
Standard NBR seals accommodate temperatures from -5°C to +80°C. For specialized needs, EPDM and FKM (Viton) seals are also available.
Wide Media Compatibility
These products are suitable for use with water, air, gas, and light oils with viscosity up to 20 CST, making them highly versatile.
Square Coil (IP65)
The square coil variant provides excellent protection against moisture, dust, and harsh environmental factors, meeting IP65 standards.
Round Coil (Standard)
This standard round coil offers a cost-efficient solution with easy interchangeability and compatibility with DIN43650A connectors.
Electronic Drain Function (Drain Variant)
Equipped with an automatic condensate removal system, this function efficiently manages condensate in compressed air and fluid systems.
Compact & Robust Design
The design boasts a small footprint combined with rugged construction, facilitating easy installation and ensuring a long service life.
Customizable
Special voltages and tailored specifications can be provided upon request to meet specific requirements.
Technical Parameters:
| Seal Material |
NBR (standard); EPDM, FKM (optional) |
| Valve Type |
2/2-way Normally Closed |
| Pressure Range |
0–0.7 MPa |
| Port Size |
G1/2" |
| Orifice Size |
16 mm |
| Body Material |
Brass |
| Voltage Options |
AC220V, AC110V, DC24V, DC12V |
| Medium |
Water, Air, Gas, Light Oil |
Applications:
The 2W160-15 series is perfectly designed to cater to a broad spectrum of fluid control needs across industrial, commercial, and agricultural sectors. Its versatility allows it to be effectively used in various applications requiring precise and reliable fluid management.
One variant, the electronic drain model equipped with a filter element, excels in the automatic removal of condensate and contaminants within compressed air systems, dryers, and filtration units. This feature plays a critical role in maintaining system cleanliness and enhancing overall operational reliability.
Another version, the water valve with an integrated filter element, ensures trustworthy on/off control free from debris. This makes it ideal for irrigation systems, water treatment facilities, plumbing installations, and reverse osmosis devices where safeguarding against sediment buildup is vital.
For challenging outdoor conditions, the square coil variant provides IP65 waterproof protection. This robust construction makes it well-suited for demanding environments such as agricultural spraying applications, marine systems, and HVAC units mounted on buildings.
In contrast, the round coil variant offers a cost-efficient and general-purpose solution primarily intended for indoor use. Typical applications include pneumatic controls, process automation, heating and cooling circuits, and operation within various types of industrial machinery.
Regardless of the variant chosen, the 2W160-15 series consistently delivers reliable performance with a zero-pressure start feature suitable for controlling water, air, gas, and light oils with viscosities up to 20 CST. This capability satisfies the rigorous demands found in manufacturing, food processing, chemical handling, and facility management by providing durable and efficient fluid control.
