Product Description:

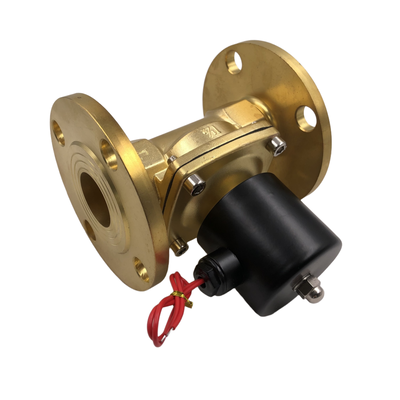

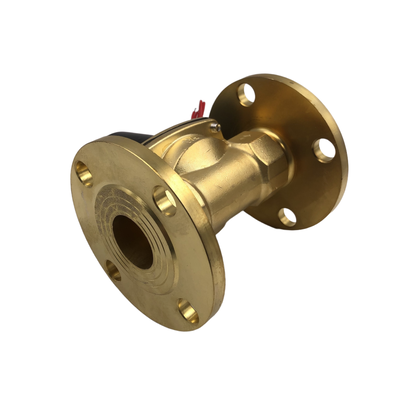

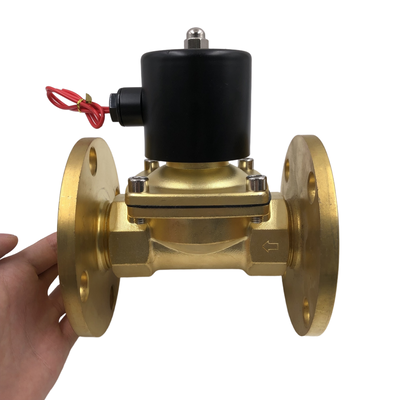

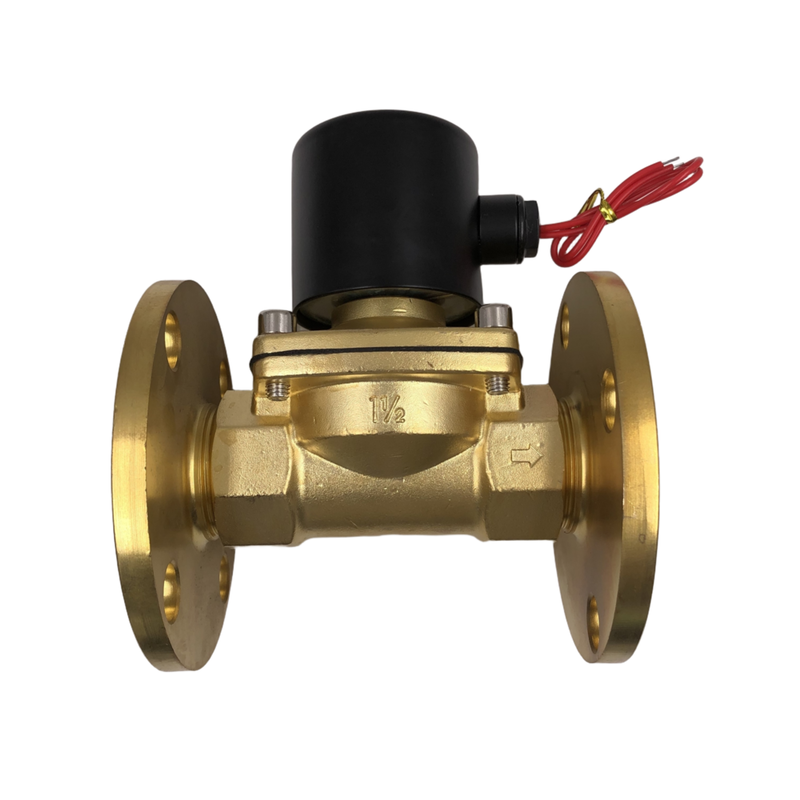

The 2W Series, which includes the 2W UD and 2W UW sub-series, represents a high-performance, direct-acting 2/2-way solenoid valve. It is specifically designed to provide reliable on/off control for various media including water, air, oil, gas, and fuel. The UD sub-series accommodates standard port sizes ranging from G3/8" to G1‑1/4", whereas the UW sub-series is intended for larger flow applications with port sizes from G1‑1/4" up to G2".
Built with versatility in mind, these valves utilize a direct-acting diaphragm mechanism that enables operation starting from zero pressure (0 bar). This design feature removes the necessity for a minimum differential pressure, ensuring immediate responsiveness and consistent performance even under low-pressure or gravity-fed conditions.
The 2W Series valves are available in both Normally Closed (NC) and Normally Open (NO) versions, allowing them to be customized according to specific system needs. The valve bodies come in either forged brass (2W) or stainless steel (2S), and a variety of seal materials are offered to suit different media and temperature requirements, including standard NBR, EPDM, and FKM (Viton).
Additionally, these valves support a range of standard operating voltages such as DC24V, AC110V, AC220V, and AC380V. Custom voltage options can also be provided upon request, making the 2W Series a flexible and adaptable choice for a wide array of applications.
Features:
Zero Pressure Start
The direct-acting design allows the device to operate reliably starting from 0 bar pressure. This feature makes it ideal for use in low-pressure environments and gravity-fed systems.
High Flow Capacity
Offered with orifice sizes ranging from 16 mm to 50 mm in the UW series, this product delivers Cv values between 4.8 and 48. Such specifications guarantee efficient performance across various system requirements.
Durable Construction
Manufactured either from forged brass (2W) or precision-cast stainless steel (2S), the device ensures excellent resistance to corrosion and provides extended longevity.
Multiple Seal Options
The standard seals are made from NBR, suitable for temperature ranges from -5°C to +80°C. Additionally, EPDM and FKM (Viton) seals are available for applications that require higher temperature tolerance or specific chemical compatibility.
Flexible Configurations
This product comes in both Normally Closed (NC) and Normally Open (NO) configurations, offering versatility to meet different control needs.
Versatile Voltage Options
It supports a variety of AC and DC voltages, including DC 24V, AC 110V, AC 220V, and AC 380V, with a tolerance of ±10%, accommodating a wide range of electrical systems.
Wide Port Size Range
With threaded connections available from G3/8" up to G2", it can easily fit into various piping setups.
Wide Media Compatibility
The device is suitable for use with different media such as air, water, oils with viscosity up to 20 CST, as well as gas and fuel applications.
Broad Temperature Range
It operates reliably within media temperatures ranging from -5°C to +80°C, ensuring consistent performance under diverse conditions.
Compact & Robust Design
Its small and sturdy design allows for easy installation and guarantees a long service life.
Customizable Options
Customers can request special voltages and other custom specifications directly from the factory to tailor the product to their specific needs.
Technical Parameters:
| Body Material |
Brass |
| Medium |
Air, Water, Oil, Gas |
| Protection Class |
IP65 |
| Seal Material |
NBR, EPDM Or VITON |
| Motion Pattern |
Direct Drive Type |
| Valve Type |
Normal Close Type；Normal Open Type |
Applications:
The versatile 2W Series is designed to meet the demands of various on/off control applications across numerous industries. Its adaptability makes it an ideal choice for different operational environments.
In the field of Water Treatment & Management, the 2W Series is utilized in irrigation systems, water supply regulation, wastewater processing, and dosing apparatus. This ensures efficient and reliable control in managing water resources.
For Industrial Automation, it plays a critical role in controlling air, water, oil, and gas within pneumatic systems, production lines, and process control setups. This enhances precision and operational efficiency in industrial environments.
The HVAC & Refrigeration sector benefits from the 2W Series for managing heating, ventilation, air conditioning systems, and cooling circuits. Its robust performance contributes to maintaining optimal environmental conditions.
In Agriculture and Environmental applications, the series supports precision irrigation, spraying mechanisms, and equipment focused on environmental protection. This enables sustainable and effective management practices.
General Fluid Control is another domain where the 2W Series excels, offering shut-off, emptying, and flow regulation for mediums such as water, air, gas, and light oil with a viscosity up to 20 CST.
The Fuel & Gas Systems utilize the 2W Series for managing gas and fuel in combustion systems and burner applications, ensuring safety and performance in energy-related processes.
Within Industrial Machinery, this series provides reliable on/off fluid control in packaging machines, compressors, and hydraulic systems, supporting smooth and consistent machine operations.
Lastly, the 2W Series is well-suited for Vacuum Systems, including low-pressure and vacuum applications, thanks to its capability to start operation at zero pressure, adding to its versatility and functionality.
Support and Services:
Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced engineers and technicians are available to assist with product selection, installation guidance, troubleshooting, and maintenance advice.
We provide detailed product documentation including datasheets, installation manuals, and operation guides to help you understand the features and specifications of the valve. For complex applications, personalized consultation is available to tailor solutions that meet your specific pneumatic control requirements.
Technical support is offered throughout the product lifecycle, including assistance with system integration, diagnostics, and repair procedures. We also provide training sessions and workshops to enhance your team’s proficiency in handling and maintaining pneumatic solenoid valves.
Additionally, our after-sales service includes warranty support, replacement parts availability, and upgrade options to ensure your pneumatic systems remain efficient and reliable over time.
We are committed to delivering prompt and effective support to minimize downtime and maximize the productivity of your pneumatic control systems.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during transit. Each valve is individually sealed in an anti-static bag to prevent moisture and dust contamination. The sealed valve is then placed inside a custom-fitted foam insert to minimize movement and absorb shocks. Multiple units are arranged securely within a sturdy, corrugated cardboard box, which is clearly labeled with product information, handling instructions, and safety warnings. Additional cushioning materials are used as needed to fill any empty spaces and provide extra protection.
Shipping:
We offer reliable shipping options to ensure timely and safe delivery of your Pneumatic Solenoid Valve orders. Products are shipped via trusted carriers with tracking information provided for every shipment. Depending on the destination, shipping methods include standard ground shipping, expedited shipping, and international freight services. All shipments are handled with care, and insurance options are available to cover the value of the goods in transit. For large orders, special freight arrangements can be made to accommodate bulk or palletized shipments.
