Product Description:

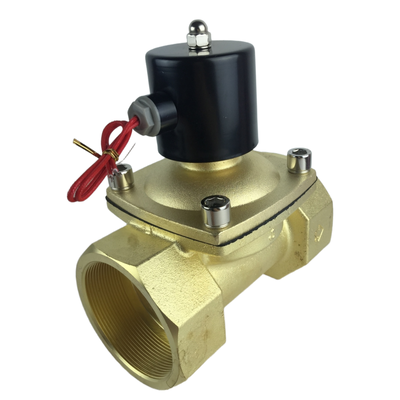

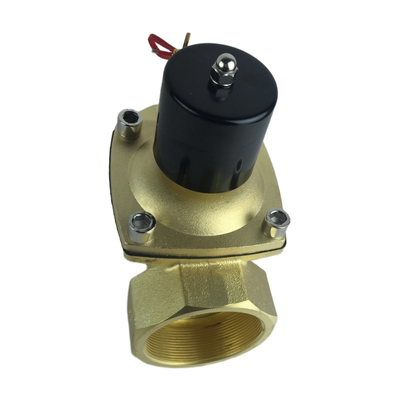

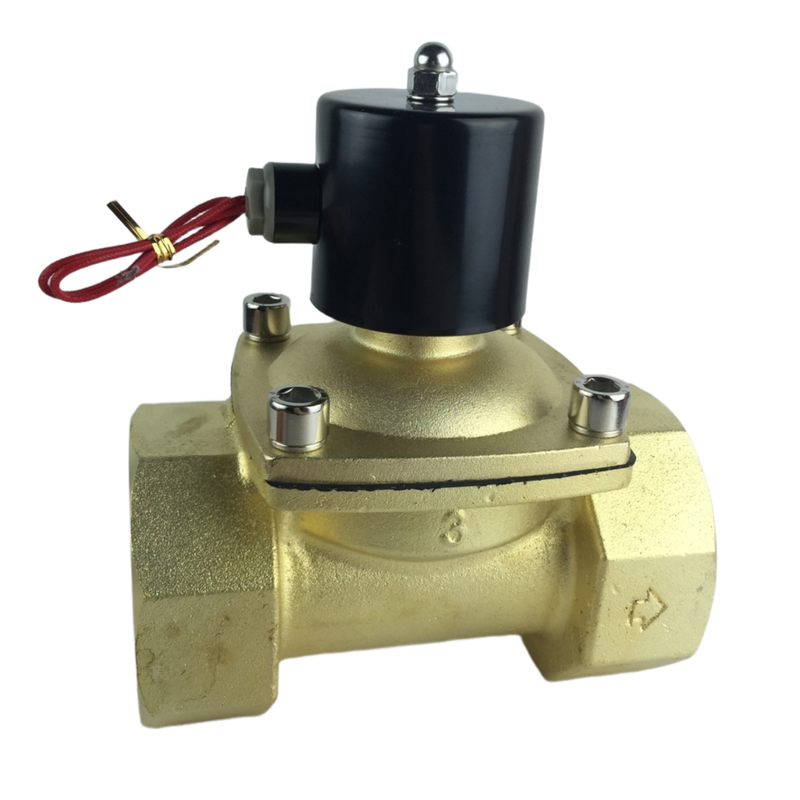

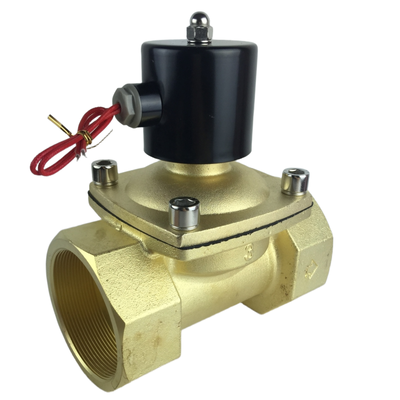

The 2W Series, which includes the 2W UD and 2W UW sub-series, is a high-performance, direct-acting 2/2-way solenoid valve designed for dependable on/off control of various media such as water, air, oil, gas, and fuel. The UD sub-series offers standard port sizes ranging from G3/8" to G1‑1/4", while the UW sub-series is designed for larger ports, spanning from G1‑1/4" to G2", to support high-flow applications.
Built with versatility in mind, this valve utilizes a direct-acting diaphragm mechanism that permits operation starting at zero pressure (0 bar). This design eliminates the necessity for a minimum differential pressure, ensuring instant responsiveness and consistent performance even in low-pressure environments or gravity-fed systems.
The 2W Series is available in both Normally Closed (NC) and Normally Open (NO) configurations, allowing customization to suit specific system demands. The valve body is manufactured from forged brass in the 2W variant or stainless steel in the 2S variant. It also offers multiple seal options, including standard NBR, EPDM, and FKM (Viton), to handle a wide range of media types and temperature conditions.
Standard operating voltages include DC24V, AC110V, AC220V, and AC380V. Additionally, custom voltage options can be provided upon request to further align with particular application requirements.
Features:
Zero Pressure Start
The direct-acting design allows the system to operate reliably starting from 0 bar pressure. This feature makes it particularly suitable for low-pressure and gravity-fed systems, ensuring seamless performance even under minimal pressure conditions.
High Flow Capacity
Our product range includes orifice sizes from 16 mm up to 50 mm in the UW series. With Cv values spanning from 4.8 to 48, these valves guarantee efficient flow control and excellent system performance across various applications.
Durable Construction
Constructed from either forged brass (2W) or precision-cast stainless steel (2S), these components offer outstanding corrosion resistance and enhanced durability, ensuring a long operational lifespan in demanding environments.
Multiple Seal Options
Standard seals made of NBR support operation within temperatures ranging from -5°C to +80°C. For applications requiring higher temperature resistance or specific chemical compatibility, EPDM and FKM (Viton) seal variants are also available.
Flexible Configurations
The product is offered in both Normally Closed (NC) and Normally Open (NO) configurations to meet diverse operational requirements and facilitate easy integration into existing systems.
Versatile Voltage Options
These valves support a wide array of AC and DC voltages, including DC24V, AC110V, AC220V, and AC380V, with a tolerance of ±10%, providing flexible power compatibility for various setups.
Wide Port Size Range
The threaded connections range from G3/8" up to G2", accommodating different piping system sizes and making installation straightforward across multiple applications.
Wide Media Compatibility
Designed to handle a variety of media types such as air, water, oil with viscosities up to 20 CST, as well as gas and fuel, these valves are versatile and suitable for many industrial uses.
Broad Temperature Range
They operate reliably within media temperatures extending from -5°C to +80°C, ensuring stable performance in diverse thermal conditions.
Compact & Robust Design
Featuring a compact size and rugged construction, the valves are easy to install and built to endure long-term use without compromising reliability or efficiency.
Customizable Options
For specialized needs, custom voltages and specifications can be provided upon factory request, allowing for tailored solutions that fit unique application demands.
Technical Parameters:
| Medium |
Air, Water, Oil, Gas |
| Body Material |
Brass |
| Protection Class |
IP65 |
| Motion Pattern |
Direct Drive Type |
| Seal Material |
NBR, EPDM Or VITON |
| Valve Type |
Normal Close Type；Normal Open Type |
Applications:
The versatile 2W Series is designed to handle a broad spectrum of on/off control needs, making it an ideal choice for various industries.
In the field of water treatment and management, this series is perfectly suited for applications such as irrigation systems, water supply regulation, wastewater treatment, and dosing equipment.
Industrial automation benefits greatly from the 2W Series, where it manages the control of air, water, oil, and gas within pneumatic systems, production lines, and process control environments.
When it comes to HVAC and refrigeration, the 2W Series efficiently supports heating, ventilation, air conditioning systems, and cooling circuits to ensure optimal performance.
In the agricultural and environmental sectors, this series provides precise control for irrigation, spraying systems, and various environmental protection devices.
For general fluid control, the 2W Series is capable of handling shut-off, emptying, and flow regulation of water, air, gas, and light oil with viscosity up to 20 CST.
Fuel and gas systems also leverage the 2W Series to control gas and fuel in combustion systems and burner applications effectively.
Within industrial machinery, these products deliver reliable on/off fluid control for packaging machines, compressors, and hydraulic systems.
Finally, the 2W Series is suitable for vacuum systems and low-pressure applications, thanks to its zero-pressure start capability that ensures seamless operation.
Support and Services:
Our Pneumatic Solenoid Valves are designed for reliable and efficient control of air flow in various industrial applications. To ensure optimal performance, please follow the recommended installation and maintenance guidelines provided in the product manual.
If you encounter any issues with your Pneumatic Solenoid Valve, check for common problems such as power supply interruptions, coil damage, or blockages in the valve body. Regular inspection and cleaning can prevent many operational issues.
We offer comprehensive technical support to assist you with troubleshooting, installation advice, and maintenance procedures. Our support team is equipped to provide guidance on valve selection, system integration, and performance optimization.
For detailed service and repair information, please refer to the warranty and service policy included with your product. Our authorized service centers are available to perform repairs and replacements as needed to ensure your system operates smoothly.
To maximize the lifespan and reliability of your Pneumatic Solenoid Valve, always use compatible components and operate the valve within the specified pressure and temperature ranges. Proper handling and storage are also critical to maintaining valve integrity.
We are committed to delivering high-quality products and support to help you achieve success in your pneumatic applications. Please consult the technical documentation for further details on product specifications and operational guidelines.
Packing and Shipping:
Product Packaging and Shipping
The Pneumatic Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. Each valve is securely placed in a protective foam insert and enclosed within a sturdy cardboard box to prevent any damage during transit. The packaging materials are designed to safeguard the product from moisture, dust, and mechanical impact.
For shipping, we use reliable courier services that offer tracking and timely delivery. Depending on the destination and order size, products may be shipped via air, sea, or ground transportation. All shipments include proper labeling and documentation to facilitate smooth customs clearance and delivery.
We also offer customized packaging solutions for bulk orders or special requirements. Please contact our sales team for more information on tailored packaging and shipping options.
