Product Description:

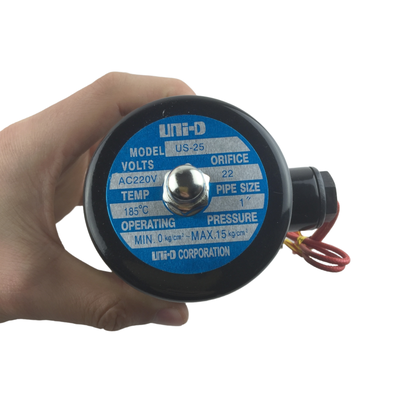

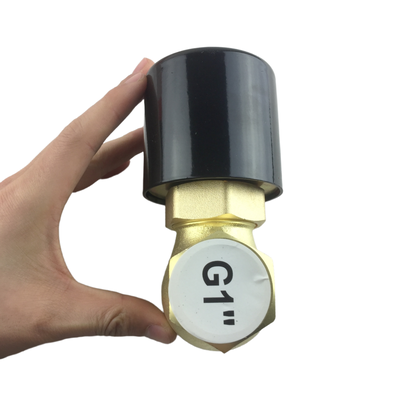

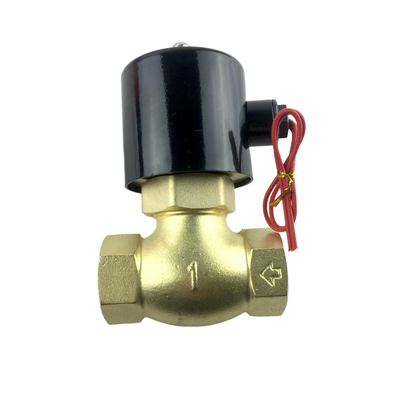

2L Series High-Performance Solenoid Valve
The 2L Series is a piston pilot-operated, 2-way normally closed solenoid valve designed for high-performance operation. It is specifically crafted to handle steam and hot water applications, ensuring optimal functionality in these demanding conditions.
This valve is constructed from a robust brass body and incorporates PTFE seal material, which provides excellent resistance against elevated temperatures and corrosive substances. Such durable materials enhance the valve's longevity and reliability in harsh environments.
Engineered to perform reliably under challenging conditions, the 2L Series operates within a pressure range of 0.1 to 1.5 MPa. It is capable of managing media temperatures from -20°C up to +185°C when equipped with PTFE seals. The valve comes in various port sizes ranging from 1/2" to 2" and orifice sizes between 17mm and 50mm, accommodating a broad spectrum of flow requirements.
Additionally, the 2L Series offers multiple coil voltage options, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC. It is CE certified, emphasizing its compliance with relevant safety and quality standards. This combination of features makes the 2L Series a versatile, reliable, and safe choice for fluid control in industrial steam systems.
Features:
The piston pilot operated design guarantees dependable switching performance, even when subjected to high-pressure and high-temperature environments. This feature ensures consistent operation under demanding conditions.
Constructed with PTFE seal material, the valve offers outstanding chemical resistance coupled with high-temperature durability, supporting temperatures up to +185°C. This makes it ideal for use in chemically aggressive and high-temperature settings.
Featuring a durable brass body, the valve boasts a robust construction that ensures a long service life, especially within challenging industrial environments. Its sturdy build enhances reliability and reduces maintenance needs.
This product operates effectively across a broad pressure range from 0.1 to 1.5 MPa, making it suitable for various system pressures encountered in different applications. This versatility ensures adaptable performance according to operational demands.
Available in multiple port sizes ranging from 1/2" to 2" and orifice sizes between 17mm and 50mm, the valve accommodates diverse flow requirements. This variety allows for precise customization to match specific system needs.
The valve supports versatile voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), facilitating effortless integration into existing electrical systems. This flexibility simplifies installation and application.
It operates reliably over a wide temperature range, supporting media temperatures from -20°C to +185°C when using PTFE seals, and from -10°C to +150°C with FKM seals. Such adaptability ensures optimal performance across varied thermal conditions.
Designed with a normally closed function, the valve remains closed when de-energized, providing a fail-safe operation mode that enhances system safety. This feature is critical in preventing unintended flow during power loss.
Additionally, this valve is CE certified, confirming it meets international safety and quality standards. This certification assures users of its compliance and reliability in global markets.
Technical Parameters:
| Valve Type |
2/2 Way, Normally Closed (NC) |
| Operation |
Piston Pilot Operated |
| Pressure Range |
0.1 – 1.5 MPa |
| Temperature |
-20°C To +185°C |
| Body Material |
Brass |
| Certification |
CE |
| Medium |
Hot Water, Steam, Air, Oil |
| Seal Material |
PTFE (standard) / FKM (optional) |
| 2L Series |
2L-10 |
2L-15 |
2L-20 |
2L-25 |
2L-35 |
2L-40 |
2L-50 |
| US Series |
US-10 |
US-15 |
US-20 |
US-25 |
US-35 |
US-40 |
US-50 |
| Orifice Size |
17 |
17 |
17 |
22 |
30 |
30 |
50 |
| Port Size |
3/8" |
1/2'' |
3/4'' |
1'' |
1-1/4'' |
1-1/2'' |
2'' |
| Medium |
Hot Water, Steam |
| Action |
Direct Acting, Servo Pilot Operated |
| Function |
2 Way, Normally Closed |
| Body Material |
Brass, Stainless Steel |
| Seal Material |
PTFE |
| Pressure Range |
0.1 to 1.5 MPa |
| Temp. Range |
PTFE: -20 to +185°C, FKM: -10 to +150°C |
| Coil Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
Applications:
The versatile 2L Series is perfectly suited for a broad spectrum of industrial applications involving steam and hot water control. Its adaptability makes it a preferred choice in various sectors, ensuring efficient management of thermal fluids.
Commonly, the 2L Series is utilized within steam lines for process heating and sterilization equipment, especially in the food and pharmaceutical industries. It also plays a critical role in boiler systems, hot water circulation circuits, and industrial washing machines, highlighting its widespread industrial use.
Constructed with a durable brass body and featuring a PTFE seal, this valve is well-equipped to handle other high-temperature fluids along with mildly corrosive media. This makes it an excellent option for chemical processing plants, textile machinery, and rubber vulcanization equipment.
Thanks to its reliable piston pilot operated design combined with a wide pressure and temperature range, the 2L Series offers consistent and dependable on/off control. It meets the demanding requirements found in thermal fluid systems across manufacturing, processing, and facility management industries.
Support and Services:
Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experts is available to assist with installation guidance, troubleshooting, and maintenance advice to help you achieve efficient and reliable operation.
We provide detailed product documentation, including user manuals, wiring diagrams, and technical specifications, to facilitate seamless integration into your pneumatic systems. Additionally, we offer training sessions and workshops to help your technical staff understand the functionality and best practices for operating the solenoid valves.
For any technical issues or performance concerns, our support team is ready to provide prompt solutions, including remote diagnostics and on-site assistance if required. We also offer repair and replacement services to minimize downtime and maintain system productivity.
Regular updates and upgrades to our Pneumatic Solenoid Valve product line are communicated to customers to keep you informed about the latest features and improvements. We are committed to delivering high-quality products and exceptional support to meet your pneumatic control needs.
Packing and Shipping:
Product Packaging and Shipping for Pneumatic Solenoid Valve
Each pneumatic solenoid valve is carefully packaged to ensure safe delivery and optimal protection during transportation. The valve is first wrapped in anti-static bubble wrap to prevent any damage from impacts or static electricity. It is then placed inside a custom-fitted cardboard box that provides additional cushioning and stability.
For bulk orders, multiple individually boxed valves are securely arranged within a larger carton, with dividers or foam inserts used to prevent movement and collisions between items. All packaging materials are selected to be environmentally friendly and recyclable wherever possible.
Shipping options include air freight, sea freight, and express courier services, depending on the destination and urgency. Each shipment is accompanied by detailed documentation, including a packing list, certificate of conformity, and user manual to facilitate smooth customs clearance and installation.
We take every precaution to ensure that your pneumatic solenoid valves arrive on time and in perfect working condition, ready for immediate use in your applications.
