Product Description:

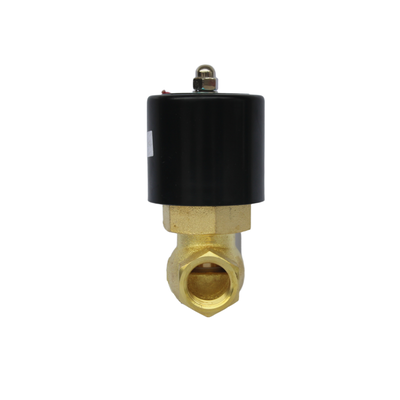

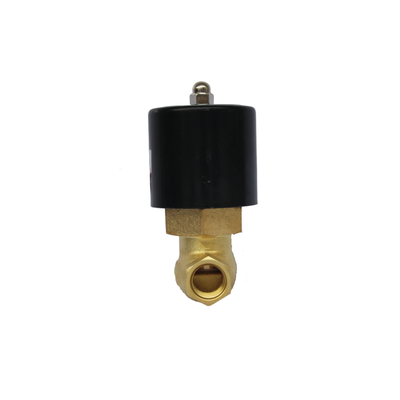

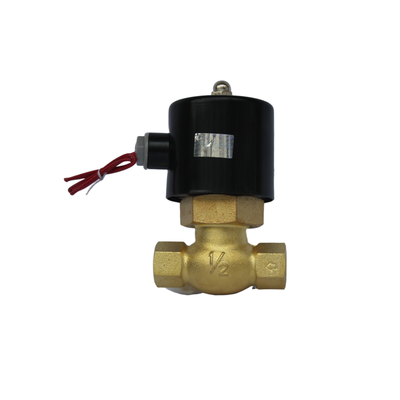

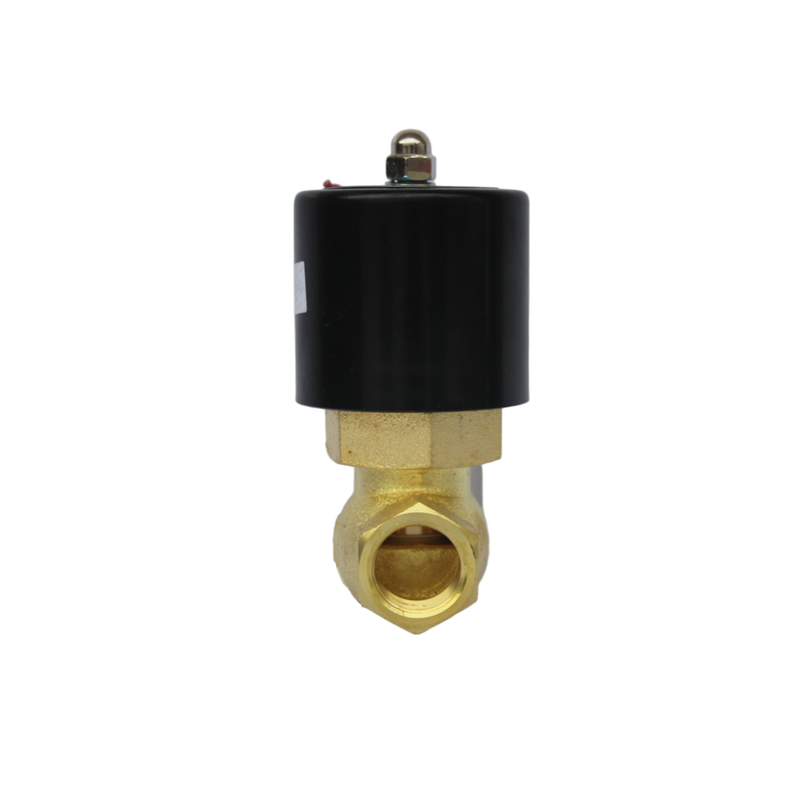

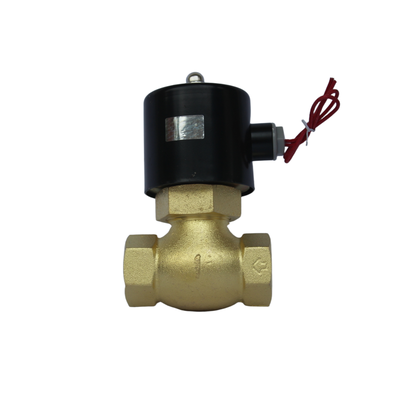

The 2L Series is a high-performance, piston pilot operated, 2-way normally closed solenoid valve that is specially designed for steam and hot water applications. Its robust construction features a durable brass body combined with PTFE seal material, ensuring excellent resistance to high temperatures and corrosive substances.
Engineered for dependable operation in harsh conditions, the 2L Series functions within a pressure range of 0.1 to 1.5 MPa. It can handle media temperatures from -20°C up to +185°C when equipped with PTFE seals. This makes the valve ideal for various industrial settings where temperature and pressure variations are common.
The valve is offered in a variety of port sizes ranging from 1/2" to 2" and orifice sizes spanning 17mm to 50mm. Such options allow it to meet diverse flow demands efficiently. Additionally, the 2L Series supports multiple coil voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC, providing flexibility for different electrical configurations.
Certified with CE standards, the 2L Series guarantees safe, reliable, and versatile fluid control solutions for industrial steam systems, ensuring optimal performance and longevity in challenging environments.
Features:
The piston pilot operated design guarantees dependable switching performance even in environments with high pressure and elevated temperatures. This innovative mechanism ensures consistent and reliable operation under challenging conditions.
Constructed with PTFE seal material, the valve offers outstanding chemical resistance and exceptional durability at high temperatures, enduring conditions up to +185°C. This makes it suitable for a wide range of demanding applications.
Featuring a sturdy brass body, the valve provides a robust structure that supports long-lasting service life, particularly in tough industrial settings. Its durable construction helps maintain performance over extended periods.
Designed to operate within a broad pressure range from 0.1 to 1.5 MPa, the valve is adaptable to various system requirements, ensuring reliable functionality across different pressure levels.
It is available in multiple port sizes, ranging from 1/2" to 2", and orifice diameters from 17mm to 50mm. This variety allows it to accommodate diverse flow demands efficiently.
The valve supports versatile voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), facilitating easy integration into various electrical systems.
With a wide temperature range capability, it can handle media temperatures between -20°C and +185°C when using PTFE seals, and -10°C to +150°C with FKM seals, making it suitable for numerous thermal conditions.
In a normally closed configuration, the valve remains closed when not energized, providing a fail-safe operation to enhance system safety.
This valve is CE certified, meeting rigorous international safety and quality standards to ensure reliable and compliant performance.
Technical Parameters:
| Medium |
Hot Water, Steam, Air, Oil |
| Pressure Range |
0.1 – 1.5 MPa |
| Operation |
Piston Pilot Operated |
| Body Material |
Brass |
| Temperature |
-20°C To +185°C |
| Seal Material |
PTFE (standard) / FKM (optional) |
| Valve Type |
2/2 Way, Normally Closed (NC) |
| Certification |
CE |
| 2L Series |
2L-10 |
2L-15 |
2L-20 |
2L-25 |
2L-35 |
2L-40 |
2L-50 |
| US Series |
US-10 |
US-15 |
US-20 |
US-25 |
US-35 |
US-40 |
US-50 |
| Orifice Size |
17 |
17 |
17 |
22 |
30 |
30 |
50 |
| Port Size |
3/8" |
1/2'' |
3/4'' |
1'' |
1-1/4'' |
1-1/2'' |
2'' |
| Medium |
Hot Water, Steam |
| Action |
Direct Acting, Servo Pilot Operated |
| Function |
2 Way, Normally Closed |
| Body Material |
Brass, Stainless Steel |
| Seal Material |
PTFE |
| Pressure Range |
0.1 to 1.5 MPa |
| Temp. Range |
PTFE: -20 to +185°C, FKM: -10 to +150°C |
| Coil Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
Applications:
The versatile 2L Series is perfectly suited for a diverse array of industrial applications involving steam and hot water control. Its adaptability makes it a popular choice in various systems, including steam lines used for process heating and sterilization equipment within the food and pharmaceutical industries.
In addition to these uses, the 2L Series valve is commonly integrated into boiler systems, hot water circulation circuits, and industrial washing machines. Its construction, featuring a PTFE seal combined with brass materials, allows it to effectively manage other high-temperature fluids as well as mildly corrosive substances.
This durability extends its application into sectors such as chemical processing, textile machinery, and rubber vulcanization equipment. Thanks to its reliable piston pilot operated design, the 2L Series can handle a broad range of pressures and temperatures, ensuring consistent on/off control even in demanding thermal fluid systems.
Overall, the 2L Series valve stands out as a dependable component across manufacturing, processing, and facility management industries, delivering performance and longevity in critical fluid control tasks.
