Product Description:
2.1 Valve Structure & Operation
This valve is a 2/2 normally closed model featuring an integrated built-in pilot and a springless integrated diaphragm design. It is specifically designed as a right-angle pulse valve tailored exclusively for dust collector cleaning applications.
The valve boasts ultra-fast opening and closing performance, delivering high-pressure pulse airflow to ensure efficient bag cleaning. Its installation is versatile, allowing mounting at any angle. The valve comes with standard threaded ports, while clamp fittings are available as optional accessories.
2.2 Operating Pressure & Medium
The valve operates within a differential pressure range of 0.35 to 8.5 bar and can withstand burst pressures up to 10 bar. It is compatible with clean compressed air and inert gases.
For optimal performance, the air source must be filtered with a precision filter of at least 40 microns to maintain cleanliness and prevent contamination.
2.3 Temperature Range
The valve is suitable for ambient temperatures from -20℃ up to +85℃. The medium air temperature it can handle ranges from -40℃ to +85℃, with an optional upgrade to withstand temperatures up to 120℃ by using an FKM fluororubber diaphragm.
Additionally, a customized low-temperature version is available that operates effectively down to -40℃.
2.4 Construction Materials
The valve body is constructed from die-cast aluminum alloy, making it lightweight and resistant to rust. Its standard diaphragm is made from TPE thermoplastic elastomer, with the option to upgrade to FKM fluororubber for enhanced high-temperature resistance.
Internal components such as springs and armatures are crafted from 304 stainless steel. The coil housing features epoxy encapsulation and achieves a Class F insulation rating, with IP65 protection against dust and water.
Standard seals are manufactured from NBR, with an available upgrade to FKM seals to suit environments that involve high temperatures or oil contamination.

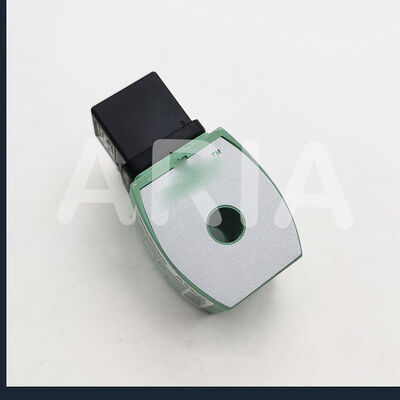

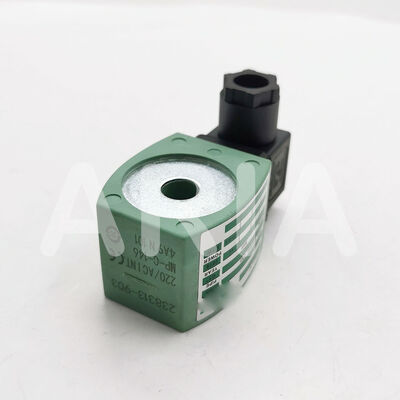

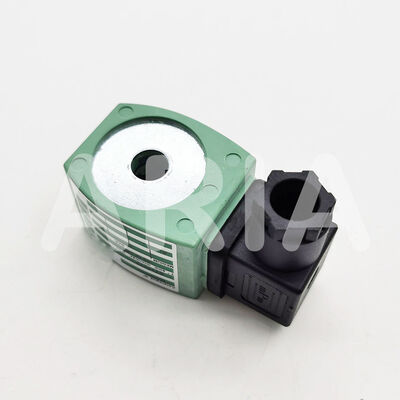

2.5 General Coil Parameters
The valve's coil supports standard voltages of DC 24V and AC 220V at 50Hz. Optional voltages include AC 24V, 110V, and 230V, providing flexibility for various power supply requirements.
Power consumption ranges from 8.1W to 10.1W, reflecting low-energy usage. The coil insulation is rated Class F, ensuring reliable thermal protection.
Explosion-proof NFG models are compatible with the WSNF explosion-proof solenoid head and boast an IP67 rating for maximum protection against dust and moisture.
2.6 Universal Performance Advantages
Featuring a springless integrated diaphragm, this valve is capable of millions of service cycles, offering an exceptionally long service life.
Its high-energy pulse injection technology significantly enhances cleaning efficiency while reducing compressed air consumption by approximately 15%.
The valve includes a built-in silencer structure that ensures low noise operation and prevents dust from entering the valve cavity, maintaining internal cleanliness.
It has achieved multiple certifications, including CE, UL, CSA, and RoHS. Explosion-proof variants meet ATEX standards, ensuring compliance with rigorous safety and quality requirements.
Technical Parameters:
|
Mounting Type
|
Panel Mount
|
|
Valve Actuation
|
Solenoid
|
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Operating Temperature
|
-10℃ ~ +60℃
|
|
Application
|
Multi-Industry
|
|
Rated Compressor
|
25MPa
|
|
Operating Pressure
|
0.15 To 0.8 MPa (21 To 114 Psi)
|
|
Peak Pressure
|
450 Bar
|
|
Caliber
|
1/2
|
|
Installation Method
|
Plate And Tube Installation
|
Applications:
The ASCO Series 353 pulse solenoid valve is a highly reliable and efficient solution designed for a variety of industrial applications. Known for its robust construction and precision performance, this valve is ideal for scenarios requiring accurate control of fluid or gas flow. Its explosion-proof pulse valve design ensures safety and durability in hazardous environments, making it suitable for industries such as chemical processing, oil and gas, and mining. The right angle pulse valve configuration allows for compact installation, saving valuable space in control panels and machinery setups.
ASCO solenoid valves are CE certified, guaranteeing compliance with stringent quality and safety standards. With a peak pressure capacity of 450 Bar and an operating pressure range of 0.15 to 0.8 MPa (21 to 114 Psi), these valves are engineered to handle demanding pressure conditions with ease. The solenoid valve actuation provides fast and precise response times, essential for automated systems in manufacturing plants, water treatment facilities, and pneumatic control systems.
Thanks to the panel mount design, installation and maintenance of the ASCO Series 353 pulse solenoid valve are straightforward, facilitating seamless integration into existing equipment. Industries that require pulse jet cleaning mechanisms, such as dust collectors and filter systems, will find this valve especially beneficial. Its explosion-proof feature is critical for applications in environments with flammable gases or dust, ensuring operational safety without compromising performance.
With a minimum order quantity of just 1 unit and a supply ability of 5000 pieces per month, ASCO accommodates both small-scale projects and large industrial demands. Delivery is prompt, with a lead time of 1-7 work days after payment. Customers can negotiate prices to suit their budgetary requirements, and payment terms are flexible, including T/T, Western Union, and Paypal options.
Each ASCO solenoid valve comes packaged securely in cartons or as per client specifications, protecting the product during transit. A warranty of 1 year further provides peace of mind regarding product quality and reliability. Whether you need a series 353 pulse solenoid valve for dust collector pulse jet cleaning, an explosion-proof pulse valve for hazardous zones, or a right angle pulse valve for compact system integration, ASCO delivers unmatched performance and service.
Packing and Shipping:
The ASCO Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is securely placed in a custom-fitted protective casing to prevent damage during transit. The packaging materials are chosen to provide cushioning and protection against moisture, dust, and impact.
For shipping, the ASCO Solenoid Valve is packed in sturdy, labeled cartons that comply with international shipping standards. We offer various shipping options including standard, expedited, and freight services to accommodate different customer needs. Tracking information is provided for all shipments to ensure timely and transparent delivery.
Special handling instructions are included for sensitive or high-value solenoid valves to maintain product integrity throughout the shipping process. Our logistics team coordinates with trusted carriers to guarantee the safe and prompt arrival of your ASCO Solenoid Valve order.
