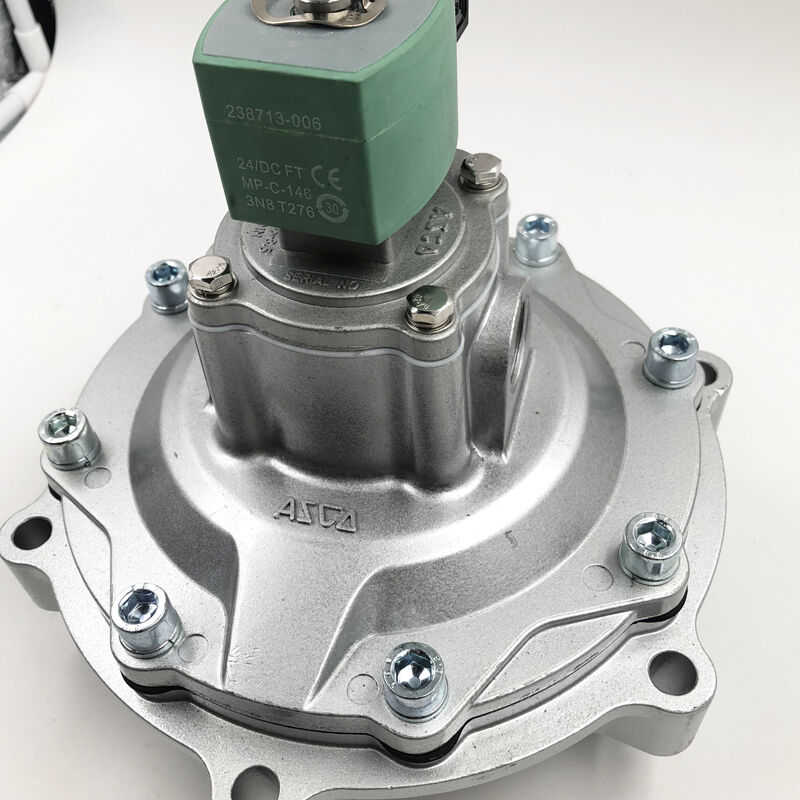

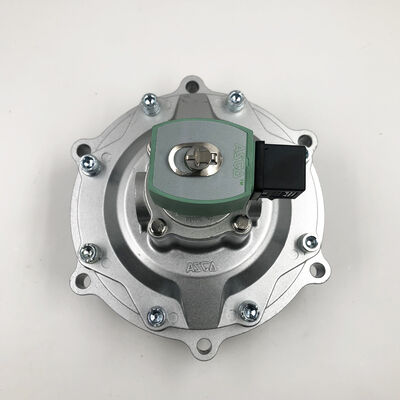

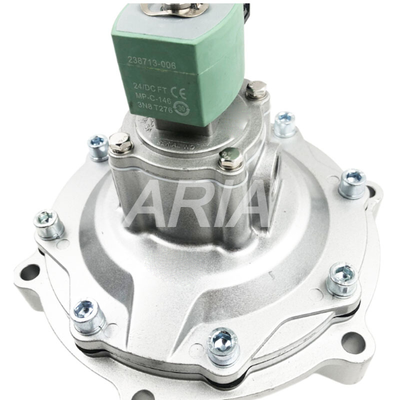

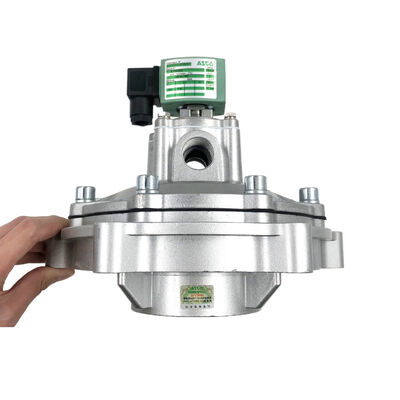

SCXR353G235 3.5INCH Output Surge Sufficient To Drive 4 Adapters ASCO Pulse Jet Valve With Solenoid Valve Actuation Engineered For Dust Removal

The valve features a 2/2 normally closed design with an integrated built-in pilot and a springless integrated diaphragm. It is styled as a right-angle pulse valve, specifically engineered for dust collector cleaning applications. The valve delivers ultra-fast opening and closing performance, producing high-pressure pulse airflow that significantly enhances bag cleaning efficiency.

Installation is flexible, as the valve can be mounted at any angle. It comes with standard threaded ports, and clamp fittings are available as optional accessories to suit various installation requirements.

The valve operates within a differential pressure range of 0.35 to 8.5 bar and can withstand burst pressures up to 10 bar. It is suitable for use with clean compressed air or inert gases, ensuring reliable performance across different systems.

To maintain optimal operation, the air source should be filtered with a precision filter of at least 40μm to prevent contamination and ensure longevity.

This valve is designed to function effectively across a broad temperature spectrum. It can operate in ambient temperatures ranging from -20℃ to +85℃. The medium air temperature range is from -40℃ up to +85℃, with an optional extension to 120℃ if equipped with an FKM fluororubber diaphragm.

For applications requiring extremely low temperatures, a custom version is available that performs reliably down to -40℃.

The valve body is crafted from die-cast aluminum alloy, ensuring it is lightweight while also resistant to rust. The standard diaphragm material is TPE (thermoplastic elastomer), with an FKM fluororubber option available for environments demanding high-temperature resistance.

Springs and armatures are made from 304 stainless steel, providing durability and corrosion resistance. The coil housing features epoxy encapsulation, Class F insulation, and carries an IP65 rating for dustproof and waterproof protection. Standard seals are made from NBR, with an upgrade to FKM seals available to withstand high temperatures and exposure to oil.

The valve supports a range of standard voltages including DC 24V and AC 220V at 50Hz. Additional options such as AC 24V, 110V, and 230V are also available to accommodate different electrical requirements. Power consumption is kept low, ranging from 8.1W to 10.1W.

The coil insulation is rated Class F, ensuring durability and safety during operation. Explosion-proof NFG models are compatible with WSNF explosion-proof solenoid heads, offering an IP67 rating for enhanced protection in hazardous environments.

With a springless integrated diaphragm, the valve is designed to achieve millions of service cycles, resulting in an exceptionally long service life. The high-energy pulse injection mechanism increases cleaning efficiency while reducing compressed air consumption by 15%, making it both cost-effective and environmentally friendly.

The built-in silencer structure minimizes noise levels during operation and prevents dust from entering the valve cavity, ensuring cleaner function and less maintenance. The valve is certified under CE, UL, CSA, and RoHS standards. Additionally, explosion-proof variants carry ATEX certification, confirming their suitability for use in potentially explosive atmospheres.
