Product Description:
2.1 Valve Structure & Operation

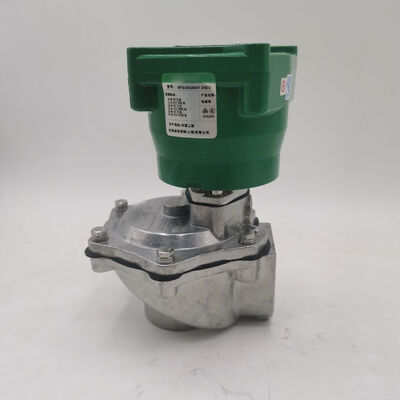

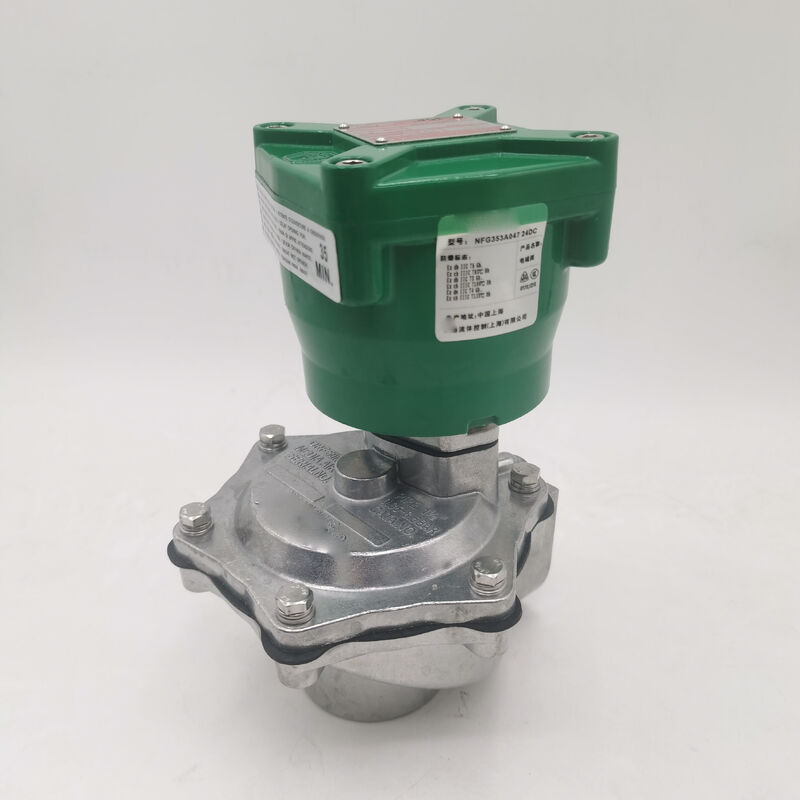

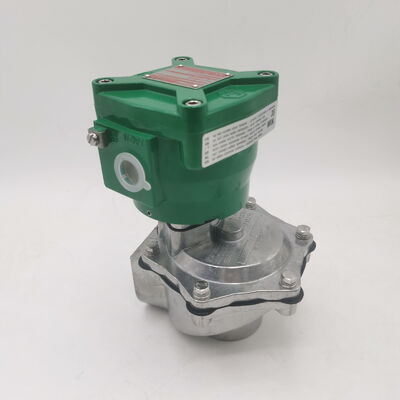

The valve is a 2/2 normally closed type featuring an integrated built-in pilot and a springless diaphragm design. It is configured as a right-angle pulse valve, specifically designed for dust collector cleaning applications.
The valve offers ultra-fast response times and delivers high-pressure pulse airflow, which enhances the efficiency of bag cleaning processes. Installation is versatile, as the valve can be mounted at any angle. It comes with standard threaded ports, with optional clamp fittings available for flexible connection options.
2.2 Operating Pressure & Medium
The valve operates effectively within a differential pressure range of 0.35 to 8.5 bar, with a maximum burst pressure rated at 10 bar. It is suitable for use with clean compressed air or inert gases. To ensure optimal performance and longevity, an air source filtration with a precision of 40 micrometers or higher is required.
2.3 Temperature Range
The valve is designed to operate within an ambient temperature range from -20℃ to +85℃. The medium air temperature can vary from -40℃ up to +85℃, with an optional rating up to 120℃ when equipped with an FKM fluororubber diaphragm. Additionally, a custom low-temperature version is available for applications requiring operation as low as -40℃.
2.4 Construction Materials
Constructed from die-cast aluminum alloy, the valve body is both lightweight and resistant to rust. The standard diaphragm material is TPE (thermoplastic elastomer), with an FKM fluororubber option available for enhanced high-temperature resistance. Springs and the armature are made from 304 stainless steel, ensuring durability.
The coil housing is epoxy encapsulated with Class F insulation and rated IP65 for dustproof and waterproof protection. Standard seals utilize NBR, while the FKM upgrade is an option for environments exposed to high temperatures or oil contamination.
2.5 General Coil Parameters
Standard coil voltages include DC 24V and AC 220V/50Hz, with optional voltages of AC 24V, 110V, and 230V available to suit various needs. The coils consume between 8.1W and 10.1W, highlighting their low energy consumption.

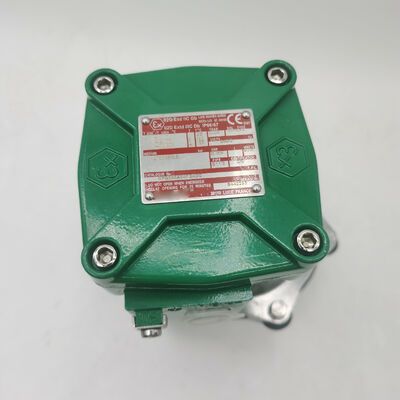

Insulation is classified as Class F. Explosion-proof NFG models are compatible with the WSNF explosion-proof solenoid head and feature an IP67 rating for enhanced protection.
2.6 Universal Performance Advantages
The valve’s springless integrated diaphragm design supports millions of service cycles, contributing to an exceptionally long service life. Its high-energy pulse injection technology increases cleaning efficiency while reducing compressed air consumption by approximately 15%.
A built-in silencer ensures low noise operation and prevents dust ingress into the valve cavity, enhancing both performance and lifespan. The valve meets multiple certifications including CE, UL, CSA, and RoHS. Explosion-proof variants hold ATEX certification, supporting safe use in hazardous environments.
Technical Parameters:
|
Operating Pressure
|
0.15 To 0.8 MPa (21 To 114 Psi)
|
|
Warranty
|
1 Year
|
|
Operating Temperature
|
-10℃ ~ +60℃
|
|
Enclosure Rating
|
IP67
|
|
Peak Pressure
|
450 Bar
|
|
Output Surge
|
Sufficient To Drive 4 Adapters
|
|
Function
|
3/2 NC
|
|
Valve Actuation
|
Solenoid
|
|
Media
|
Cryo Fluid
|
|
Rated Compressor
|
25MPa
|
Applications:
The ASCO pulse jet valve, specifically the Integral pilot pulse valve from the SCG353G series, is an essential component widely used in various industrial applications due to its reliable performance and robust design. With CE certification, this ASCO solenoid valve guarantees superior quality and safety standards, making it an ideal choice for critical operations requiring precise control of cryogenic fluids. Its panel mount installation and 3/2 NC function provide versatile mounting options and efficient operation in systems where controlling fluid flow is crucial.
This valve is particularly well-suited for industries dealing with cryogenic media, owing to its capability to operate within a temperature range of -10℃ to +60℃. The IP67 enclosure rating ensures excellent protection against dust and water ingress, allowing the valve to function reliably even in harsh environmental conditions. This makes the ASCO pulse jet valve an excellent fit for outdoor applications or environments prone to moisture and contaminants.
The SCG353G series Integral pilot pulse valve is commonly applied in pulse jet cleaning systems, where rapid, controlled bursts of compressed air are necessary to clean filters and dust collectors. Its precise 3/2 normally closed function helps in maintaining system efficiency and prolonging equipment life by ensuring timely and accurate pulse actuation. The valve’s ability to handle cryo fluids also expands its use in specialized cooling and refrigeration systems within industrial plants.
Packaging of the ASCO solenoid valve is done in cartons or as per client requirements, ensuring safe and secure delivery. With a supply ability of 5000 pieces per month and a delivery time of just 1-7 workdays after payment, customers benefit from prompt availability and fast turnaround times. Payment terms are flexible, accepting T/T, Western Union, and Paypal, facilitating easy transactions worldwide. The minimum order quantity is just one unit, making it accessible for both small-scale projects and large industrial procurements.
In summary, the ASCO pulse jet valve Integral pilot pulse valve SCG353G series is widely used in filtration systems, refrigeration, cryogenic applications, and other scenarios requiring reliable solenoid control of fluids at varying temperatures. Its robust design, quick delivery, and flexible purchasing options make it a preferred solution for engineers and procurement specialists looking for high-performance solenoid valves.
Packing and Shipping:
The ASCO Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is securely placed in a protective box with cushioning materials to prevent damage during transit. The packaging is clearly labeled with product details and handling instructions.
For shipping, ASCO Solenoid Valves are dispatched via reliable carriers with tracking options available. We offer various shipping methods to meet your delivery requirements, including standard, expedited, and overnight services. All shipments comply with international shipping regulations and include necessary documentation for smooth customs clearance.
Upon receiving your ASCO Solenoid Valve, please inspect the package for any visible damage and verify the contents against your order. Contact customer service immediately if there are any discrepancies or issues with the shipment.
