Product Description:
2.1 Valve Structure & Operation

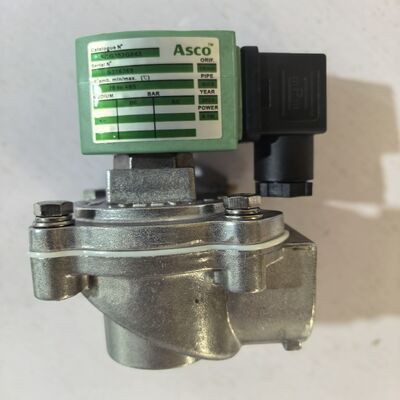

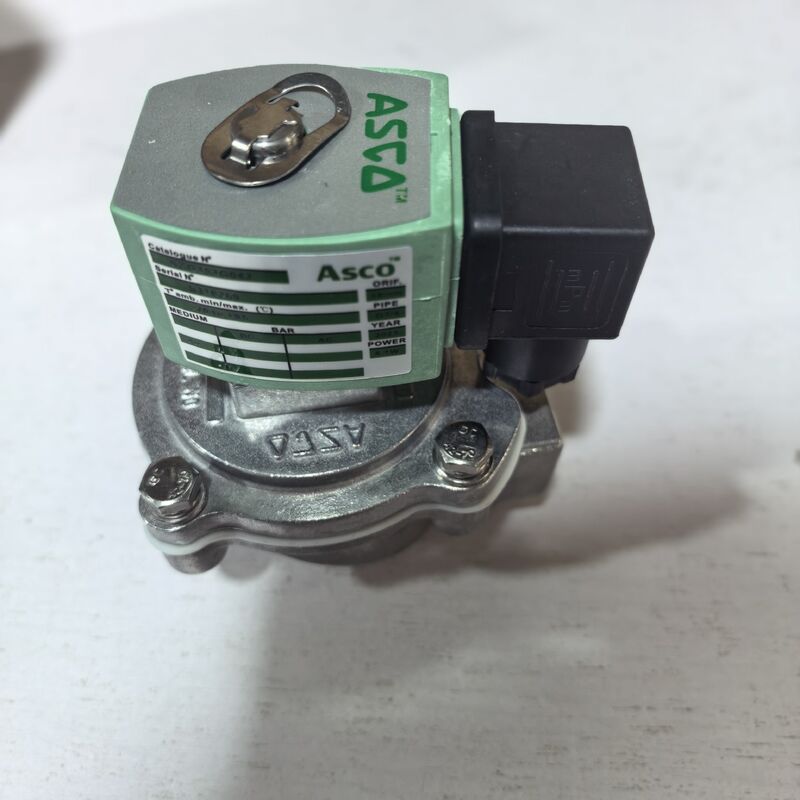

The valve features a 2/2 normally closed configuration with an integrated built-in pilot and a springless integrated diaphragm. It is designed as a right-angle pulse valve specifically for dust collector cleaning applications.
Offering ultra-fast response times, the valve provides high-pressure pulse airflow that enhances the cleaning efficiency of filter bags. Its installation is highly versatile, allowing mounting at any angle. The valve comes with standard threaded ports, with optional clamp fittings available.
2.2 Operating Pressure & Medium
The valve operates effectively within a differential pressure range of 0.35 to 8.5 bar, with a maximum burst pressure of 10 bar. It is suitable for use with clean compressed air or inert gases.
To ensure optimal performance, the air source must be filtered using a precision filter rated at 40 microns or finer.
2.3 Temperature Range
The valve can function in ambient temperatures ranging from -20℃ to +85℃. The medium air temperature range is from -40℃ to +85℃, with an optional version capable of handling temperatures up to 120℃ when fitted with an FKM fluororubber diaphragm.
Additionally, a custom low-temperature version is available, which can operate reliably at temperatures as low as -40℃.
2.4 Construction Materials
The valve body is constructed from a die-cast aluminum alloy, offering a lightweight and rust-resistant structure. The standard diaphragm is made of TPE thermoplastic elastomer, with an optional FKM fluororubber diaphragm available for enhanced high-temperature resistance.
Springs and the armature are crafted from 304 stainless steel to ensure durability. The coil housing is epoxy encapsulated, featuring Class F insulation and an IP65 rating for dustproof and waterproof protection.
The standard seals are made from NBR, with an FKM upgrade option suitable for environments involving high temperatures and oil contamination.
2.5 General Coil Parameters
The valve is compatible with several standard voltages, including DC 24V and AC 220V/50Hz. Optional voltage versions include AC 24V, 110V, and 230V.
Power consumption ranges between 8.1W and 10.1W, ensuring low energy usage. The coils are insulated to Class F standards.
Explosion-proof NFG models are available, designed to work with the WSNF explosion-proof solenoid head, providing an IP67 rating for enhanced protection.
2.6 Universal Performance Advantages
The springless integrated diaphragm design allows the valve to achieve millions of service cycles, contributing to an ultra-long operational lifespan.
Its high-energy pulse injection technology significantly improves cleaning efficiency while reducing compressed air consumption by approximately 15%.
A built-in silencer structure minimizes operational noise and prevents dust from entering the valve cavity, enhancing reliability.
The valve is certified to meet CE, UL, CSA, and RoHS standards. Explosion-proof variants hold ATEX certification, ensuring safety in hazardous environments.
Technical Parameters:
|
Warranty
|
1 Year
|
|
Peak Pressure
|
450 Bar
|
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Output Surge
|
Sufficient To Drive 4 Adapters
|
|
Enclosure Rating
|
IP67
|
|
Application
|
Multi-Industry
|
|
Valve Actuation
|
Solenoid
|
|
Function
|
3/2 NC
|
|
Operating Temperature
|
-10℃ ~ +60℃
|
|
Rated Compressor
|
25MPa
|
Applications:
The ASCO solenoid valve, including the renowned Series 353 pulse solenoid valve and ASCO pulse jet valve, is designed for versatile applications across multiple industries. Engineered with precision and certified with CE standards, these valves ensure reliable performance in demanding environments. Their compatibility with various media, including cryo fluids, makes them ideal for specialized applications requiring high durability and precision control.
One of the primary application occasions for the ASCO pulse jet valve is in industrial automation and process control systems. The Series 353 pulse solenoid valve excels in controlling the flow of gases and liquids with high accuracy, making it indispensable in manufacturing plants, chemical processing, and fluid handling systems. Its ability to operate under different voltages such as 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC provides flexibility to integrate seamlessly into existing setups.
Another common scenario for deploying the ASCO solenoid valve is in pneumatic systems that require pulse jet cleaning. The ASCO pulse jet valve is frequently used in dust collectors and baghouse filters to deliver precise bursts of compressed air, maintaining optimal filtration efficiency and prolonging equipment life. The valve’s plate and tube installation method simplifies integration and maintenance, reducing downtime and operational costs.
In cryogenic applications, the Series 353 pulse solenoid valve's compatibility with cryo fluids is particularly beneficial. It ensures safe and efficient control in low-temperature environments, such as in medical equipment, food preservation, and scientific research facilities. The valve’s robust construction and 1-year warranty provide customers with confidence in long-term performance and reliability.
From a commercial perspective, the ASCO solenoid valve is offered with a minimum order quantity of just one unit, allowing for easy procurement. Pricing is subject to negotiation, catering to both small-scale buyers and large enterprises. Packaging can be customized according to client requirements, typically shipped in cartons to ensure safe delivery. With a supply capacity of 5000 pieces per month and a delivery time of 1-7 workdays after payment, ASCO guarantees prompt fulfillment of orders.
Payment terms for the ASCO solenoid valve are flexible, including T/T, Western Union, and Paypal, accommodating various customer preferences. Overall, the ASCO pulse jet valve and Series 353 pulse solenoid valve are trusted solutions for industries demanding precise fluid control, rapid response, and dependable operation in diverse application occasions and scenarios.
Packing and Shipping:
Each ASCO Solenoid Valve is carefully packaged to ensure protection during transit. The valve is securely placed in a custom-fitted protective casing, designed to prevent any damage from shocks or vibrations.
The packaging includes anti-static materials and moisture-resistant barriers to maintain product integrity in various environmental conditions.
All units are labeled with product specifications, serial numbers, and handling instructions for easy identification and safe handling.
For shipping, ASCO Solenoid Valves are packed in sturdy outer cartons that comply with international shipping standards, suitable for air, sea, or land transport.
Additional packaging options, such as palletizing and shrink-wrapping, are available upon request to accommodate bulk orders and ensure stability during shipment.
Each shipment is accompanied by detailed documentation, including packing lists and certificates of compliance to facilitate smooth customs clearance and delivery.
