Product Description:
2.1 Valve Structure & Operation
The valve is designed as a 2/2 normally closed type, featuring an integrated built-in pilot and a springless integrated diaphragm. This configuration ensures reliable and efficient operation.

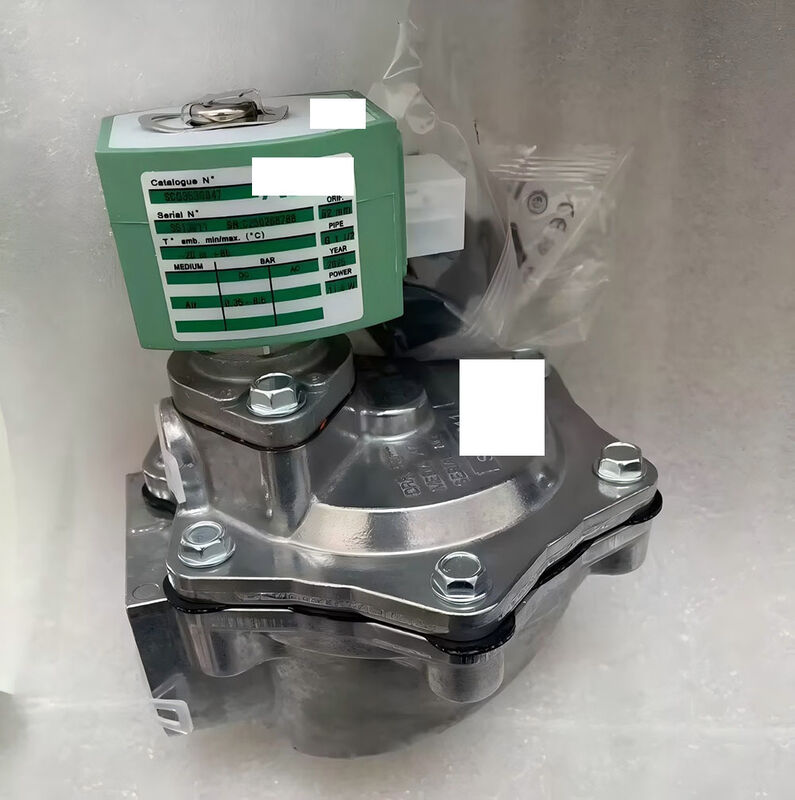

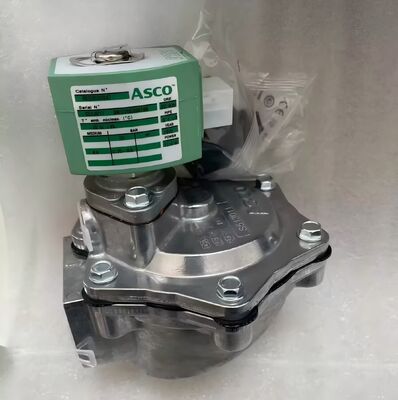

Its style is a right-angle pulse valve, specifically tailored for dust collector cleaning applications. The valve demonstrates ultra-fast response times and delivers high-pressure pulse airflow, which significantly enhances the cleaning efficiency of filter bags.
Installation is highly flexible, allowing mounting at any angle. It comes equipped with standard threaded ports, while clamp fittings are available as optional accessories.
2.2 Operating Pressure & Medium
The valve operates effectively within a differential pressure range of 0.35 to 8.5 bar, and it can withstand burst pressures up to 10 bar. It is compatible with clean compressed air and inert gases.
To ensure optimal performance, the air source must be filtered with a precision filter rated at 40 microns or finer.
2.3 Temperature Range
The ambient operating temperature spans from -20℃ to +85℃, while the medium air temperature range is from -40℃ up to +85℃. For higher temperature applications, up to 120℃, an optional FKM fluororubber diaphragm is available.
There is also a custom low-temperature version capable of functioning down to -40℃, catering to specialized requirements.
2.4 Construction Materials
The valve body is crafted from die-cast aluminum alloy, making it both lightweight and resistant to rust. The standard diaphragm is made of TPE thermoplastic elastomer, with an optional FKM fluororubber version available for enhanced high-temperature resistance.
Components such as springs and the armature are constructed from 304 stainless steel, ensuring durability. The coil housing is epoxy-encapsulated, utilizes Class F insulation, and offers IP65-rated dustproof and waterproof protection.
Standard seals are made of NBR, but an upgrade to FKM seals is offered for environments with high temperatures or oil contamination.
2.5 General Coil Parameters
Voltages commonly available include DC 24V and AC 220V/50Hz, with optional configurations for AC 24V, 110V, and 230V. Power consumption ranges from 8.1W to 10.1W, reflecting low energy use.
The insulation class is rated as Class F. For hazardous environments, explosion-proof NFG models are compatible with WSNF explosion-proof solenoid heads and have an IP67 ingress protection rating.
2.6 Universal Performance Advantages
The valve features a springless integrated diaphragm design, enabling it to endure millions of service cycles and offering an exceptionally long service life.
Its high-energy pulse injection system significantly boosts cleaning efficiency while reducing compressed air consumption by approximately 15%. Additionally, a built-in silencer reduces operational noise and prevents dust intrusion inside the valve cavity.
The product holds certifications including CE, UL, CSA, and RoHS, and explosion-proof variants carry ATEX certification, ensuring compliance with international safety standards.
Technical Parameters:
|
Installation Method
|
Plate And Tube Installation
|
|
Warranty
|
1 Year
|
|
Function
|
3/2 NC
|
|
Peak Pressure
|
450 Bar
|
|
Operating Pressure
|
0.15 To 0.8 MPa (21 To 114 Psi)
|
|
Rated Compressor
|
25 MPa
|
|
Voltages
|
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
|
|
Operating Temperature
|
-10℃ ~ +60℃
|
|
Caliber
|
1/2
|
|
Media
|
Cryo Fluid
|
Applications:
The ASCO Solenoid Valve, a high-quality component certified with CE, is designed to meet various industrial application needs with exceptional reliability and performance. This Series 353 pulse solenoid valve is widely recognized for its efficiency, particularly in controlling dust collector pulse valve systems. Its 2/2 normally closed solenoid valve design ensures precise and dependable operation, making it an ideal choice for automated control in pneumatic systems.
One of the primary application occasions for the ASCO Solenoid Valve is in dust collection systems used in manufacturing plants, cement factories, and chemical processing units. The valve’s rated compressor pressure of 25MPa and caliber of 1/2 make it perfectly suited to regulate high-pressure air pulses that clean dust collectors, enhancing air quality and operational efficiency. The valve’s ability to operate within a temperature range of -10℃ to +60℃ allows it to function reliably in various environmental conditions, from cold warehouses to warm industrial settings.
In addition to dust collector pulse valve applications, the ASCO Series 353 pulse solenoid valve is extensively used in fluid control systems, automated machinery, and panel-mounted pneumatic controls. Its panel mount mounting type facilitates easy installation and maintenance in control panels and equipment. With a supply ability of 5000 pieces per month, customers can conveniently order quantities starting from a minimum of 1 unit, with packaging tailored to client requirements, whether in cartons or customized packaging.
The product is offered with flexible payment terms including T/T, Western Union, and PayPal, and delivery is prompt, typically within 1-7 workdays after payment confirmation. Furthermore, ASCO provides a 1-year warranty, underscoring its commitment to quality and customer satisfaction. Pricing is negotiable, allowing buyers to discuss terms that best suit their purchasing needs.
Overall, the ASCO 2/2 normally closed solenoid valve from the Series 353 pulse solenoid valve lineup is an excellent solution for industries requiring robust, efficient, and precise solenoid valves, particularly for dust collector pulse valve applications. Its certification, reliable performance, convenient installation, and comprehensive after-sales support make it a trusted choice for modern industrial automation.
Packing and Shipping:
The ASCO Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped and placed in a sturdy, corrugated cardboard box to prevent damage from shocks and vibrations. Protective inserts or foam padding are used to secure the product in place, minimizing movement within the packaging.
For shipping, the packaged solenoid valves are labeled clearly with product information and handling instructions. We use reliable shipping carriers to deliver the products safely and promptly to the customer’s specified location. Tracking information is provided to monitor the shipment status from dispatch to delivery.
Special packaging options are available upon request for bulk orders or international shipments to comply with specific regulations and ensure product integrity throughout the shipping process.
