Product Description:

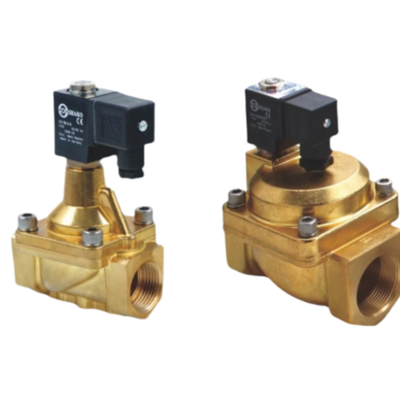

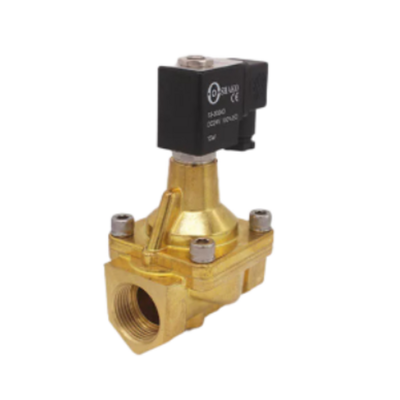

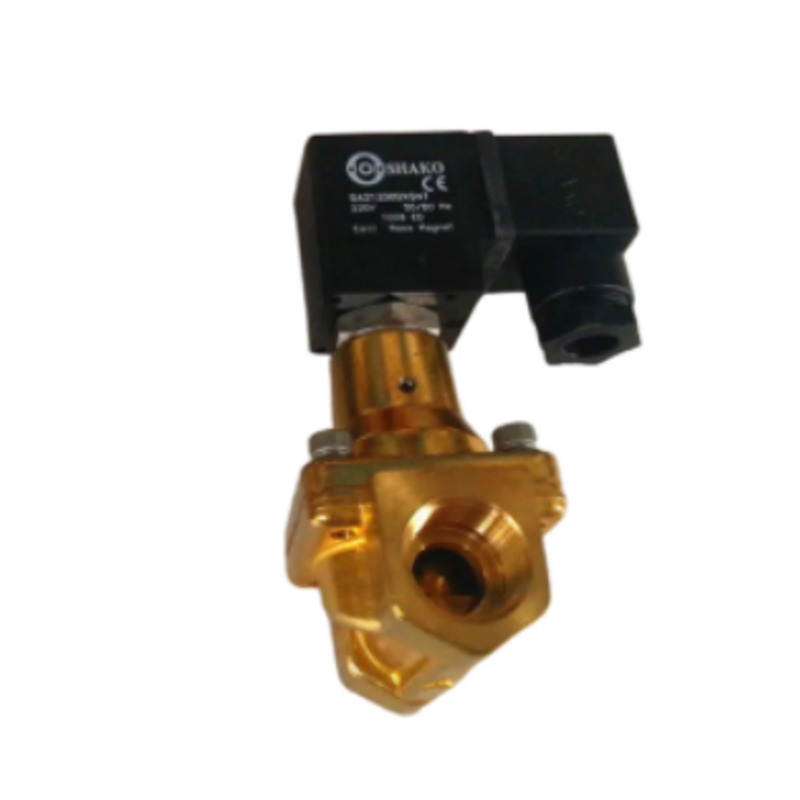

The PU225S Series is a 2/2-way normally closed solenoid valve featuring a piston pilot-operated mechanism and a durable brass construction. It is specifically designed to provide dependable ON/OFF control for steam, hot water, compressed air, and other high-temperature fluids.
Built with a sturdy brass body and equipped with PTFE sealing material, this valve ensures outstanding leak-tight performance and exceptional durability, even in demanding steam applications up to temperatures of +185°C. Its piston pilot-operated design requires a minimum differential pressure of 0.05 MPa (0.5 Bar) to function effectively, making it an ideal choice for medium to large diameter piping systems.
The PU225S Series is available in port sizes ranging from 3/8" to 1", with orifice sizes of 13mm and 25mm. This configuration provides superior flow capacity along with a long service life, suitable for continuous-duty industrial environments. Manufactured in Ningbo, China, and bearing CE certification, this valve is recognized globally for its quality and reliability across various industries.
Features:
Piston Pilot Operated Design
The valve features a piston pilot operated design, utilizing pressure-assisted operation to guarantee reliable switching performance. It requires a minimum differential pressure of just 0.05 MPa (0.5 Bar) to function effectively.
2/2 Way Normally Closed Function
Equipped with a spring-return mechanism, this valve remains closed when de-energized. This fail-safe design ensures safety by preventing unintended fluid flow during power loss or system shutdowns.

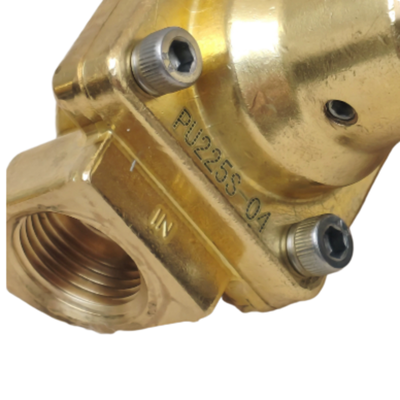

Durable Brass Body Construction
Crafted from forged brass, the valve body offers excellent corrosion resistance and robust structural integrity, ensuring long-lasting service even in demanding environments.
PTFE Seal Material for High Temperature
The high-quality PTFE seals are capable of withstanding media temperatures up to +185°C, providing superior leak-tight performance specifically suited for steam applications.
Wide Operating Pressure and Temperature Range
This valve supports an operating pressure range from 0.05 to 1.0 MPa (0.5–10 Bar), meeting a variety of system requirements. It is also compatible with media temperatures ranging from -10°C up to +185°C, making it suitable for both steam and hot water uses.
Multiple Voltage and Port Size Options
To accommodate diverse control systems, the valve is available in several voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). Additionally, it offers flexibility in installation with port sizes of 3/8", 1/2", 3/4", and 1" female threaded connections.
Certification and Production Capacity
The valve meets CE certification standards, ensuring compliance with international safety and quality regulations. Backed by a high production capacity of 200,000 units per month, it reliably supports bulk order demands.
Technical Parameters:
| Valve Type |
2/2 Way, Normally Closed |
| Body Material |
Brass |
| Operation Mode |
Piston Pilot Operated |
| Seal Material |
PTFE |
| Media Compatibility |
Steam, Hot Water, Compressed Air |
| Standard |
220VAC, 110VAC, 24VDC |
| Orifice Size |
13mm |
| Port Size |
3/8'', 1/2'', 3/4'', 1'' |
| PU225S Series |
PU225S-03 |
PU225S-04 |
PU225S-06 |
PU225S-08 |
| Orifice Size |
13mm |
25mm |
| Port Size |
3/8" |
1/2" |
3/4" |
1" |
| Medium |
Compressed Air, Hot Water, Steam |
| Action |
Piston Pilot Operated |
| NC/NO |
2 Way, Normally Closed |
| Body Material |
Brass |
| Seal Material |
PTFE |
| Pressure Range |
0.5 to 10 bar |
| Temp. Range |
-10 to +185℃ |
| Voltages |
220VAC, 110VAC, 24VDC, the other voltage is optional |
Applications:
Steam Systems
Steam systems encompass a wide range of applications including steam distribution lines, steam tracing, sterilization equipment, and process heating. These systems are critical in ensuring efficient and controlled steam delivery for various industrial operations.
Industrial Heating
Industrial heating solutions involve the use of boiler steam supplies, heat exchangers, and advanced thermal processing equipment. These components work together to provide reliable heating for diverse manufacturing and production processes.
Hot Water Systems
Hot water systems play a vital role in HVAC and building services by managing hot water circulation and control. Effective regulation of hot water ensures optimal comfort and operational efficiency within industrial and commercial facilities.
Compressed Air Systems
Compressed air systems are essential for pneumatic control lines and support industrial automation. They facilitate precise control and operation of machinery, contributing to streamlined manufacturing workflows.
Food & Beverage Processing
In the food and beverage industry, steam control is crucial for processes such as cooking, pasteurization, and sterilization. Proper management of steam ensures product safety and quality throughout production.
Textile Industry
The textile sector relies on steam supply for operations like drying, setting, and finishing machines. Steam plays a key role in achieving desired fabric properties and production efficiency.
Chemical Processing
Chemical plants utilize high-temperature fluid and gas control systems to maintain safety and process integrity. Effective management of these systems supports complex chemical manufacturing requirements.
Pharmaceutical Industry
The pharmaceutical industry demands sterile steam and precise control of high-temperature media to ensure compliance with strict hygiene and quality standards. These systems are integral to the production of safe and effective pharmaceutical products.
Support and Services:
Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, user manuals, and troubleshooting documentation to assist with proper setup and maintenance.
Our technical support team is available to help diagnose and resolve any issues related to the valve’s operation, including electrical connections, pneumatic compatibility, and control systems integration. We offer expert advice on selecting the right valve specifications for your application needs.
Additionally, we provide repair and replacement services to minimize downtime and maintain system efficiency. Regular maintenance programs and calibration services are also available to extend the product’s lifespan and ensure consistent performance.
For customized solutions, our engineering team can collaborate with you to tailor the pneumatic solenoid valve to meet specific requirements, including special materials, pressure ratings, and response times.
We are committed to delivering reliable and responsive support throughout the lifecycle of your pneumatic solenoid valve, helping you achieve seamless and efficient pneumatic control in your operations.
Packing and Shipping:
Product Packaging and Shipping
The Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and maintain product integrity during transit. Each valve is individually wrapped in protective anti-static material and placed in a sturdy, custom-fit box to prevent movement and damage.
For added protection, the boxes are cushioned with foam inserts or bubble wrap. Multiple units are packed in reinforced cartons, clearly labeled with product details, handling instructions, and shipping information.
We offer various shipping options to meet your needs, including standard ground, expedited, and international shipping. All shipments are tracked, and customers receive a tracking number to monitor the delivery status.
Special care is taken when handling the Pneumatic Solenoid Valve to avoid exposure to moisture, dust, and impacts. Our packaging complies with industry standards to guarantee the product arrives in perfect working condition.
