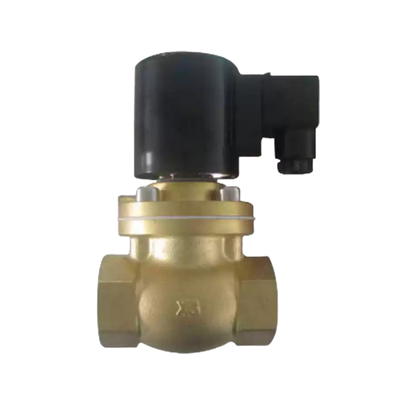

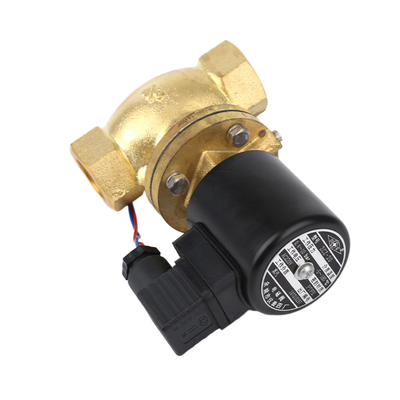

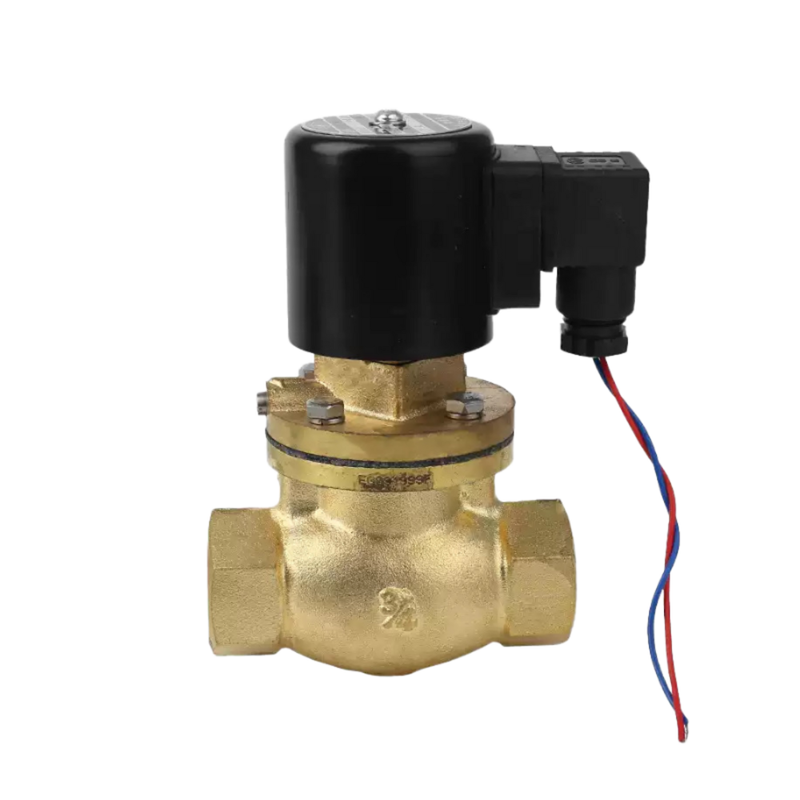

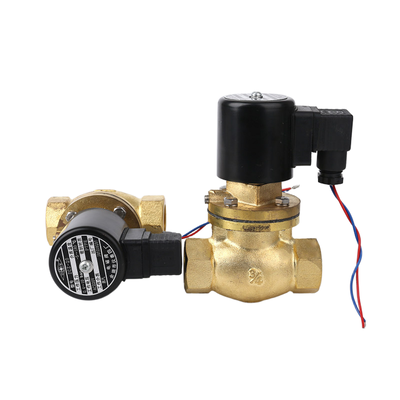

Piston Pilot Operated Pneumatic Solenoid Valve Brass Body Port Size 1/2″ To 2″ Engineered For Air Control In Automation

The piston pilot operated design utilizes pressure-assisted operation to guarantee dependable switching performance. This mechanism functions effectively with a minimum differential pressure of just 0.03 MPa (0.3 Bar), ensuring smooth and reliable valve actuation under various conditions.

Featuring a 2/2 way normally closed function, the valve incorporates a spring-return mechanism that keeps it securely closed when de-energized. This design provides fail-safe operation, making it suitable for safety-critical applications.

Customers can choose between two robust body material options — durable brass or corrosion-resistant stainless steel. These selections allow the valve to be tailored to meet specific application demands and environmental conditions.

The use of high-performance sealing materials such as PTFE and FKM ensures superior leak-tight performance. These seals are particularly effective for steam services and applications involving high-temperature media, contributing to the valve’s longevity and reliability.

This valve supports a wide operating pressure range from 0.3 to 10 Bar, accommodating a broad spectrum of system requirements. Its large orifice sizes, ranging from 12mm to 50mm, provide exceptional flow capacity with Cv values between 4.5 and 48.0, enabling maximum throughput.

Port size options are flexible, available from 3/8″ up to 2″, facilitating seamless integration into diverse piping systems. Additionally, multiple voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz) are offered to match various control system specifications.

The valve is CE certified, ensuring compliance with stringent international safety and quality standards. For applications where a fail-open configuration is necessary, the 26326AB Series provides a normally open option.

Backed by a high production capacity of 200,000 units per month, the manufacturer guarantees a reliable supply chain for bulk orders, meeting the demands of large-scale projects efficiently.

Steam systems encompass various components such as steam distribution lines, steam tracing, sterilization equipment, and process heating. These elements work together to ensure efficient steam delivery and utilization across different applications.

Industrial heating involves the management of boiler steam supply, the use of heat exchangers, and thermal processing equipment. These systems are essential for maintaining optimal temperatures required in manufacturing and processing operations.

Hot water systems focus on circulating and controlling hot water within HVAC systems and building services. Proper regulation of hot water flow contributes to energy efficiency and consistent climate control.

Oil systems deal with the control of light oil and other petroleum-based fluids used in various industrial applications. Effective management of these fluids is critical for maintaining operational safety and efficiency.

In the food and beverage sector, steam control is crucial for processes such as cooking, pasteurization, and sterilization. These processes rely on precise steam management to ensure product quality and safety.

The textile industry utilizes steam supply for drying, setting, and finishing machines. Steam plays a vital role in enhancing fabric quality and finishing efficiency.

Chemical plants require high-temperature fluid and gas control to maintain the integrity of various processes. Steam and other media are used to achieve the necessary conditions for chemical reactions and production.

Within the pharmaceutical industry, sterile steam and high-temperature media control are essential for manufacturing processes. These controls help ensure that products meet stringent safety and quality standards.
