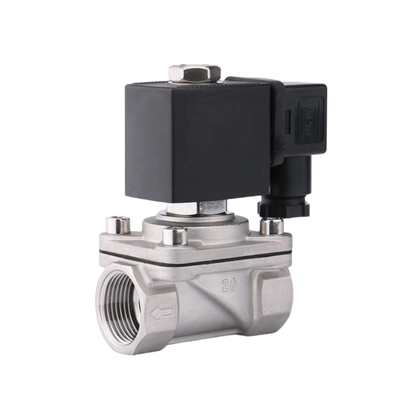

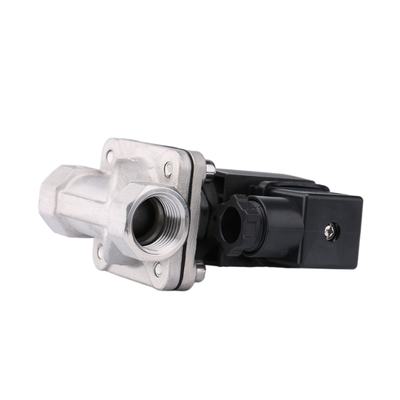

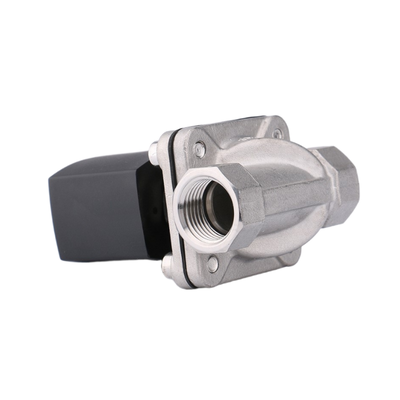

24VAC Pneumatic Solenoid Valve Featuring Direct Lifting Piston Operation CE Certified Ideal for Precision Control Systems

Product Description:

The 1619CA series is a 2/2-way normally closed solenoid valve featuring a direct lifting piston mechanism. It is specifically designed to provide dependable ON/OFF control for steam, hot water, oil, and other fluids operating at high temperatures. This valve ensures precise and reliable operation in various industrial applications where temperature and pressure demands are critical.

Constructed with a sturdy stainless steel body and equipped with PTFE/FKM seals, the valve guarantees exceptional resistance to leaks and durability, even under harsh steam conditions. Its direct lifting piston design allows the valve to function efficiently throughout the entire pressure range of 0 to 10 Bar, eliminating the need for a minimum differential pressure to operate effectively.

The 1619CA series is available in a variety of port sizes, from 3/8″ to 2″, and orifice sizes ranging between 12mm and 50mm. This range supports superior flow capacities, with Cv values reaching up to 48.0, making it suitable for diverse system requirements. Additionally, the valve offers both threaded and flanged connection options, providing flexible integration possibilities for different piping configurations.

Manufactured in Ningbo, China, and holding CE certification, this solenoid valve has earned a reputation for high quality and reliability. It is trusted by industries around the world to deliver consistent performance and longevity in demanding environments.

Features:

The direct lifting piston design guarantees dependable operation starting from zero differential pressure (0 Bar) throughout the entire range of use. This ensures consistent valve performance under varying pressure conditions.

Featuring a 2/2 way normally closed configuration, the valve incorporates a spring-return mechanism that keeps it securely closed when not energized. This fail-safe design enhances safety by preventing unintended flow.

Constructed with a stainless steel body, the valve offers outstanding durability and excellent resistance to corrosion. Its robust structure supports long-term reliability even in harsh or demanding environments.

The sealing system utilizes high-quality PTFE and FKM materials, which provide superior leak-tightness. These seals are particularly effective for steam applications and high-temperature media, maintaining performance under challenging conditions.

With an operating pressure range extending from 0 up to 10 Bar, the valve can accommodate various system requirements. This flexibility makes it suitable for a wide array of industrial applications.

The valve supports high flow rates thanks to its large orifice sizes ranging from 12mm to 50mm. Correspondingly, it delivers impressive Cv values between 4.5 and 48.0, ensuring maximum throughput efficiency.

It is available in port sizes from 3/8″ to 2″, with both threaded and flanged connection options. This variety facilitates easy integration into different pipeline systems and configurations.

Multiple voltage options are offered, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). This versatility allows compatibility with diverse control systems across various industries.

The valve is CE certified, demonstrating compliance with international safety and quality standards. This certification assures users of its reliable and safe operation.

Backed by a high production capacity of 200,000 units per month, the manufacturer ensures a consistent and dependable supply, making it ideal for meeting bulk order demands.

Technical Parameters:

Applications:

Steam systems play a crucial role in various industrial applications. They include steam distribution lines, steam tracing, sterilization equipment, and process heating, all essential for efficient operation and temperature control.

In the realm of industrial heating, components such as boiler steam supplies, heat exchangers, and thermal processing equipment form the backbone of many manufacturing processes, ensuring consistent and reliable heat delivery.

Hot water systems are vital for HVAC and building services, focusing on hot water circulation and control. These systems maintain comfortable environments and support various operational needs within facilities.

Oil systems manage light oil and other petroleum-based fluids in industrial settings. Precise control of these fluids is necessary for smooth operation and safety in numerous applications.

The food and beverage industry relies on steam control for cooking, pasteurization, and sterilization processes. Proper steam management ensures product quality and safety standards are met effectively.

In the textile industry, steam is supplied for critical processes such as drying, setting, and finishing machines. This enables the production of high-quality textiles with desired material properties.

Chemical processing plants require advanced control of high-temperature fluids and gases. Managing these elements accurately is essential for process efficiency and safety in chemical manufacturing.

The pharmaceutical industry demands sterile steam and high-temperature media control to maintain strict hygiene standards. These controls are vital for manufacturing safe and effective pharmaceutical products.

Support and Services:

Our Pneumatic Solenoid Valve product is supported by a dedicated technical team committed to ensuring optimal performance and customer satisfaction. We provide comprehensive installation guidance, troubleshooting assistance, and maintenance recommendations to help you achieve reliable operation in your pneumatic systems.

For technical support, our specialists are available to assist with product selection, system integration, and any operational inquiries. We also offer detailed product documentation, including datasheets, wiring diagrams, and user manuals to facilitate proper usage and enhance your understanding of the valve's features and capabilities.

In addition to technical support, we offer a range of services such as custom configuration, performance testing, and repair services to extend the life and efficiency of your pneumatic solenoid valves. Our team is committed to delivering timely and effective solutions to minimize downtime and maximize productivity.

We recommend regular maintenance checks and adherence to the specified operating conditions to ensure long-term reliability. Should you require replacement parts or upgrades, our support services include guidance on compatible components and installation procedures.

Your satisfaction and operational success are our priorities. Please refer to the available resources and support channels to make the most of your Pneumatic Solenoid Valve product.

Packing and Shipping:

Product Packaging and Shipping for Pneumatic Solenoid Valve

Each pneumatic solenoid valve is carefully packaged to ensure maximum protection during transportation. The valve is first wrapped in anti-static bubble wrap to prevent any damage from impact and to protect sensitive components from static electricity. It is then placed inside a sturdy, corrugated cardboard box with additional cushioning materials such as foam inserts or air pillows to minimize movement within the box.

The packaging is clearly labeled with product information, handling instructions, and shipping details. For bulk orders, individual valves are packed in smaller boxes and then consolidated into a larger carton to optimize shipping efficiency and safety.

We offer multiple shipping options to meet customer needs, including standard ground shipping, expedited air freight, and international shipping services. All shipments are tracked and insured to ensure timely and secure delivery. Our logistics partners handle the transportation with care, ensuring that the pneumatic solenoid valves arrive at the destination in perfect working condition.
