Product Description:

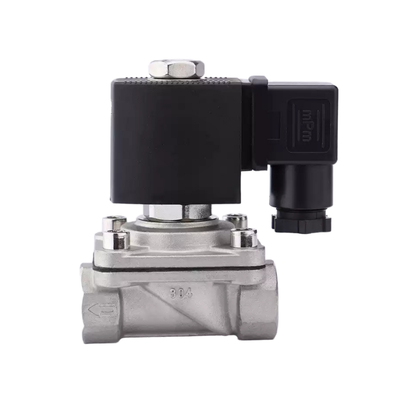

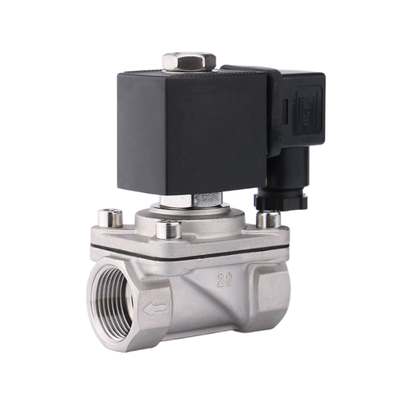

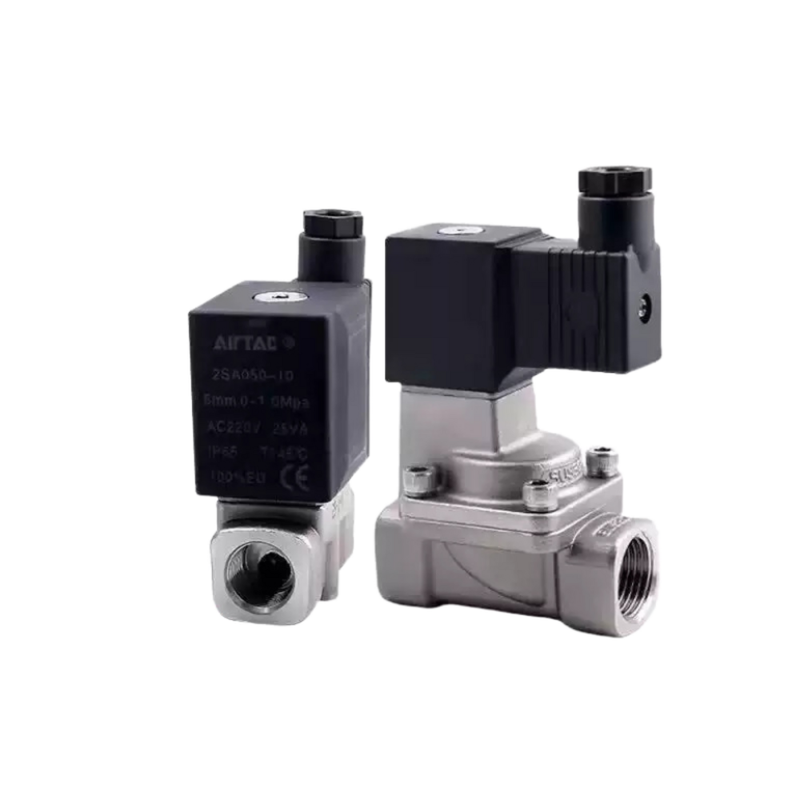

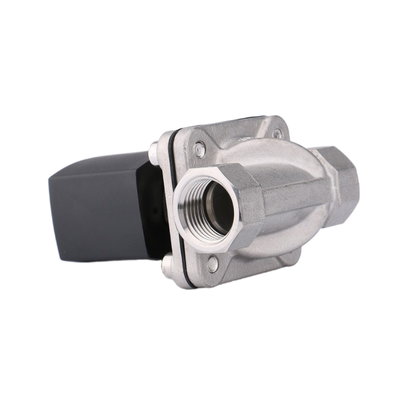

The 1619CA Series is a 2/2-way normally closed solenoid valve featuring a direct lifting piston design. It is specifically engineered to provide dependable ON/OFF control for steam, hot water, oil, and various other high-temperature fluids.
Constructed with a sturdy stainless steel body alongside PTFE and FKM sealing materials, this valve ensures outstanding leak-tightness and long-lasting durability, even in challenging steam environments. The direct lifting piston mechanism guarantees consistent performance across a full pressure spectrum ranging from 0 to 10 Bar, eliminating the need for a minimum differential pressure.
The 1619CA Series is available in port sizes from 3/8″ to 2″ and features orifice sizes between 12mm and 50mm, delivering excellent flow capacity with Cv values reaching up to 48.0. It offers versatility with both threaded and flanged connection options, allowing for easy integration into various systems.
Proudly manufactured in Ningbo, China, and bearing the CE certification, this solenoid valve is widely trusted across multiple industries worldwide for its superior quality and reliable performance.
Features:
The direct lifting piston design guarantees dependable operation starting from zero differential pressure (0 Bar) throughout the entire range of use.
Featuring a 2/2 way normally closed function, the valve employs a spring-return mechanism that keeps it securely closed when not energized, ensuring fail-safe performance.
Constructed with a robust stainless steel body, the valve offers outstanding resistance to corrosion along with strong structural integrity, making it suitable for demanding and long-lasting applications.
Equipped with high-quality PTFE and FKM seal materials, the valve ensures exceptional leak-tight sealing, ideal for steam applications and environments involving high-temperature media.
The valve is designed to operate within a wide pressure range of 0 to 10 Bar, accommodating various system requirements with ease.
With large orifice sizes ranging from 12mm to 50mm, the valve provides high flow capacity, delivering Cv values between 4.5 and 48.0 to support maximum throughput.
Available in port sizes from 3/8″ up to 2″, the valve can be integrated flexibly into systems using either threaded or flanged connections.
Offering multiple voltage options, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), the valve caters to a variety of control system requirements.
The product is CE certified, confirming compliance with international safety and quality standards.
Supported by a high production capacity of 200,000 units per month, the supply reliability for large volume orders is well assured.
Technical Parameters:
| Model No. |
1619CA; 2WS2 |
| Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Pressure Range |
0 To 10 Bar |
| Function |
2 Way, Normally Closed |
| Certification |
CE |
| Medium |
Steam, Hot Water, Oil |
| Body Material |
Stainless Steel |
| Operation |
Direct Lifting Piston |
| Model Specification Table |
| Size |
Bore Diameter |
Cv Value
m³/h |
Maximum Working Pressure |
Model
(Voltage: 220V) |
| Air, Gas |
Water, Hot Water |
Light Oil |
| AC |
DC |
AC |
DC |
AC |
DC |
| 3/8" |
12 |
1.86 |
10 |
8 |
10 |
8 |
10 |
8 |
2WS2-12-32X |
| 1/2" |
15 |
2.4 |
10 |
8 |
10 |
8 |
10 |
8 |
2WS2-15-42X |
| 3/4" |
20 |
6.3 |
10 |
8 |
10 |
8 |
10 |
8 |
2WS2-20-52X |
| 1" |
25 |
8.3 |
10 |
8 |
10 |
8 |
10 |
8 |
2WS2-25-62X |
| 11/4" |
32 |
19.4 |
10 |
8 |
10 |
8 |
10 |
8 |
2WS2-32-72X |
| 11/2" |
40 |
22.4 |
10 |
8 |
10 |
8 |
10 |
8 |
2WS2-40-82X |
| 2" |
50 |
34.8 |
10 |
8 |
10 |
8 |
10 |
8 |
2WS2-50-92X |
Applications:
Steam Systems
Steam systems encompass a variety of components including steam distribution lines, steam tracing, sterilization equipment, and process heating solutions. These systems are essential for ensuring efficient and reliable steam delivery across various industrial applications.
Industrial Heating
Industrial heating involves the supply of boiler steam, operation of heat exchangers, and management of thermal processing equipment. These elements work together to provide precise temperature control required in many manufacturing processes.
Hot Water Systems
Hot water systems focus on the circulation and control of hot water within HVAC setups and building services. Effective management of these systems ensures comfort and operational efficiency in both commercial and industrial environments.
Oil Systems
Oil systems handle the regulation of light oil and other petroleum-based fluids within industrial applications. Proper control of these fluids is critical for maintaining safety and performance in various machinery and processing units.
Food & Beverage Processing
In the food and beverage sector, steam control is vital for processes such as cooking, pasteurization, and sterilization. These processes rely on accurate steam management to ensure product quality and safety standards are met.
Textile Industry
The textile industry utilizes steam supply systems for drying, setting, and finishing machines. This steam application is crucial for achieving the desired fabric characteristics and production efficiency.
Chemical Processing
Chemical processing plants require high-temperature fluid and gas controls to facilitate various reactions and operations. Effective regulation in these systems is necessary for maintaining process integrity and safety.
Pharmaceutical Industry
Within the pharmaceutical industry, sterile steam and high-temperature media control are essential for maintaining cleanliness and ensuring the efficacy of production processes. These controls support compliance with stringent regulatory standards.
