CE Certified Light Oil Valve Featuring Direct Lifting Piston Operation Designed for and Precise Control in Industrial Applications

Product Description:

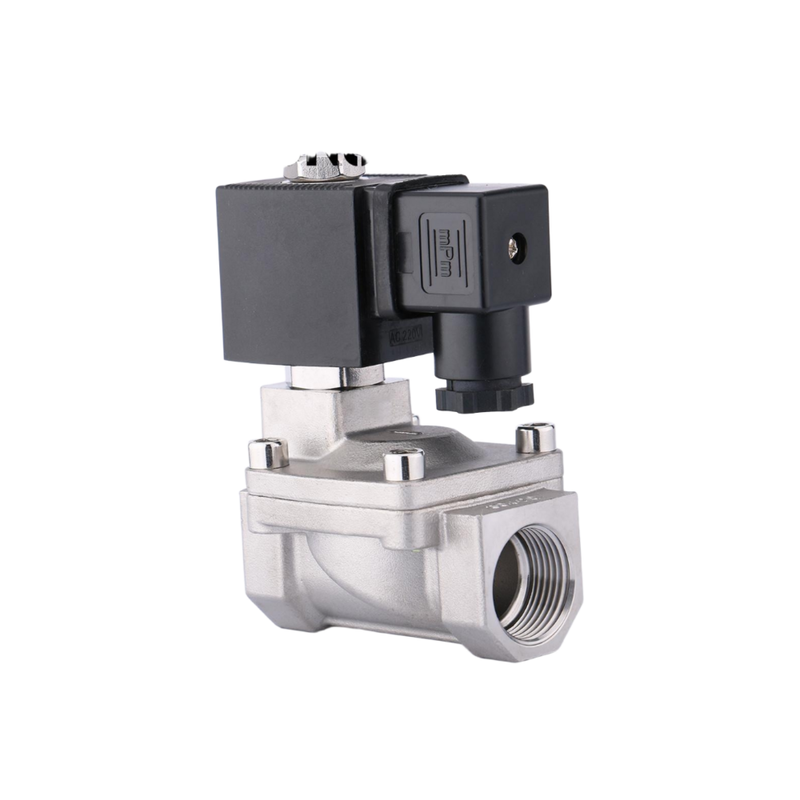

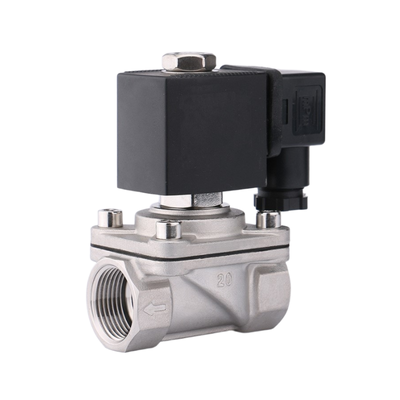

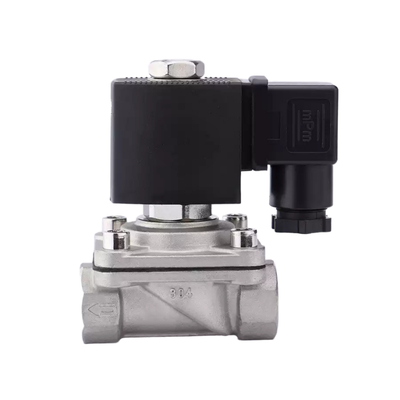

The 1619CA Series is a 2/2-way normally closed solenoid valve featuring a direct lifting piston design. It is specifically engineered to provide dependable ON/OFF control for steam, hot water, oil, and various other high-temperature fluids. This valve is ideal for applications that require precise and reliable fluid management under challenging conditions.

Constructed with a durable stainless steel body and equipped with PTFE/FKM seal materials, the valve ensures outstanding leak-tight performance and long-lasting durability, even in rigorous steam environments. Its direct lifting piston mechanism guarantees consistent operation throughout the entire pressure range from 0 to 10 Bar, eliminating the need for any minimum differential pressure to function effectively.

The 1619CA Series offers a wide variety of configurations with port sizes available from 3/8″ up to 2″ and orifice sizes ranging between 12mm and 50mm. These specifications provide superior flow capacity, achieving Cv values as high as 48.0. Additionally, both threaded and flanged connection options are offered to accommodate flexible integration into different piping systems.

Manufactured in Ningbo, China, and holding CE certification, this valve is recognized and trusted globally across industries for its high quality and reliable performance. The 1619CA Series continues to be a preferred choice for applications demanding robust and efficient solenoid valve solutions.

Features:

The direct lifting piston design guarantees dependable operation starting from zero differential pressure (0 Bar) throughout the entire functional range. This ensures consistent performance regardless of pressure variations in the system.

Featuring a 2/2 way normally closed configuration, the valve utilizes a spring-return mechanism that keeps it securely closed when not energized. This fail-safe design enhances safety by preventing unintended flow in case of power loss.

Constructed with a robust stainless steel body, the valve offers outstanding resistance to corrosion and maintains structural strength. This durability makes it suitable for long-term use in harsh and demanding environments.

Equipped with high-quality PTFE and FKM seal materials, the valve provides excellent leak-tight performance. These seals are particularly effective for applications involving steam and high-temperature media, ensuring reliable sealing under challenging conditions.

The valve supports a wide operating pressure range from 0 to 10 Bar, making it adaptable to a variety of system requirements and applications.

With large orifice sizes ranging from 12mm to 50mm, it delivers high flow capacity characterized by Cv values between 4.5 and 48.0. This feature allows for maximum throughput and efficiency in fluid control.

Port sizes are available from 3/8" up to 2", complete with both threaded and flanged connection options. This versatility facilitates easy integration into diverse piping systems.

Multiple voltage versions are offered, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). This wide range ensures compatibility with various control systems and power supplies.

The valve meets CE certification standards, demonstrating conformity with international safety and quality requirements.

Supported by a high production capacity of 200,000 units per month, the manufacturer can reliably fulfill large-volume orders without delay.

Technical Parameters:

Applications:

Support and Services:

Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient control of air flow in various pneumatic systems. For optimal performance and longevity, proper installation, operation, and maintenance are essential.

Installation should be performed by qualified personnel following the provided guidelines to ensure correct electrical connections and air supply compatibility. Avoid exposure to excessive moisture, dust, or corrosive environments to prevent damage.

Regular maintenance includes checking for air leaks, ensuring the valve coils are functioning correctly, and inspecting the valve body for any signs of wear or damage. Clean the valve components as recommended to maintain smooth operation.

If you experience any issues such as valve failure to operate, unusual noises, or air leakage, consult the troubleshooting section of the user manual. Common solutions include verifying electrical supply, checking for clogged or dirty components, and ensuring proper installation.

For technical support, product updates, or replacement parts, refer to the product documentation. Our support team is ready to assist with any questions regarding installation, operation, or maintenance to ensure your pneumatic solenoid valve performs at its best.

Packing and Shipping:

Product Packaging and Shipping

The Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually sealed in an anti-static bag and cushioned with foam inserts to prevent damage from shocks and vibrations. The packaged products are then placed in sturdy, corrugated cardboard boxes which are labeled with product information, handling instructions, and shipping details.

For bulk orders, multiple units are securely arranged in larger cartons with additional padding to avoid movement inside the box. All packaging materials are chosen to be environmentally friendly and recyclable.

Shipping is carried out through trusted courier partners with options for air, sea, or land transport depending on the destination and customer requirements. Tracking information is provided to ensure timely delivery and to keep customers informed throughout the shipping process.

Special care is taken for international shipments to comply with customs regulations and to minimize delays. Our logistics team works closely with customers to customize packaging and shipping methods to best suit their needs.
