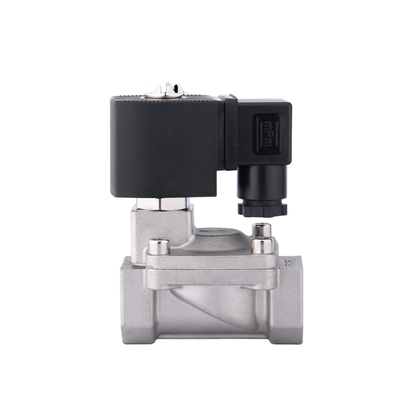

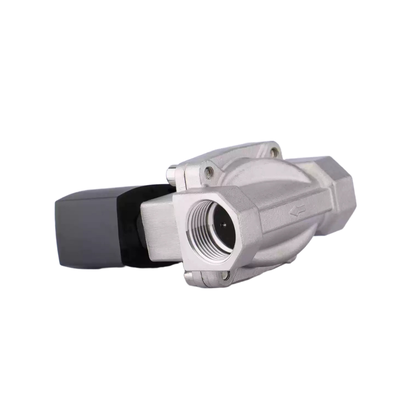

24VAC Pneumatic Solenoid Valve Normally Closed 2WS2 Engineered for Pneumatic Automation and Precise Fluid Control

Product Description:

The Series 1619CA is a 2/2-way normally closed solenoid valve featuring a direct lifting piston design. It is specifically engineered to provide dependable ON/OFF control for steam, hot water, oil, and various other high-temperature fluids. This makes it an ideal choice for applications requiring precise and reliable fluid management under extreme conditions.

Constructed with a durable stainless steel body complemented by PTFE and FKM sealing materials, this valve ensures excellent leak-tight performance and long-lasting durability, even in harsh steam environments. The direct lifting piston mechanism guarantees consistent operation throughout the entire pressure range, from 0 to 10 Bar, without the need for a minimum differential pressure to function correctly.

Offering flexibility in installation, the 1619CA series comes with port sizes ranging from 3/8″ to 2″ and orifice sizes between 12mm and 50mm. This design delivers superior flow capacity, with Cv values reaching up to 48.0. Additionally, both threaded and flanged connection options are available to suit various system integration requirements.

Manufactured in Ningbo, China, and certified with CE standards, this valve is recognized globally for its high quality and reliability. Industries worldwide place their trust in the 1619CA series for effective control of high-temperature fluids in demanding applications.

Features:

The direct lifting piston design guarantees dependable operation starting from zero differential pressure (0 Bar) throughout the entire working range. This ensures that the valve performs reliably under various pressure conditions.

Featuring a 2/2 way normally closed function, the valve utilizes a spring-return mechanism to keep it securely closed when not energized. This design provides a fail-safe operation, enhancing system safety.

Constructed with a robust stainless steel body, the valve offers outstanding corrosion resistance and maintains structural strength. This makes it suitable for long-term use even in demanding and harsh environments.

The seals are made from high-quality PTFE and FKM materials, which ensure excellent leak-tightness. These seals are particularly effective in applications involving steam and high-temperature media, delivering superior performance.

The valve supports a wide operating pressure range, from 0 up to 10 Bar, making it versatile for various system requirements. Its large orifice sizes, ranging between 12mm and 50mm, provide high flow capacity with Cv values from 4.5 to 48.0, allowing for maximum throughput.

It is available in a broad selection of port sizes, from 3/8″ to 2″, and features both threaded and flanged connection options. This flexibility facilitates easy integration into diverse piping systems.

Multiple voltage configurations are offered, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), to accommodate a variety of control systems and operational needs.

The valve meets CE certification requirements, ensuring compliance with international safety and quality standards. Additionally, with a monthly production capacity of 200,000 units, the supply can reliably support large-scale orders.

Technical Parameters:

Applications:

Steam systems play a crucial role in various industrial applications, encompassing steam distribution lines, steam tracing, sterilization equipment, and process heating. These systems ensure efficient heat transfer and maintain the necessary temperature conditions for diverse operations.

In the realm of industrial heating, boilers supply steam which is then used in heat exchangers and thermal processing equipment. This setup supports a wide range of manufacturing processes by providing consistent and controlled heat.

Hot water systems are integral to HVAC and building services, where the circulation and regulation of hot water facilitate comfortable indoor environments and optimized energy use.

Oil systems, involving light oil and other petroleum-based fluids, are essential for controlling fluid flow in numerous industrial contexts. These systems ensure the proper handling and management of oils for various operational needs.

Within the food and beverage industry, steam control is vital for cooking, pasteurization, and sterilization processes. Precise steam management helps maintain product quality and safety standards.

The textile sector relies heavily on steam supply for drying, setting, and finishing machinery. Efficient steam utilization in these processes enhances fabric quality and production efficiency.

Chemical processing plants require high-temperature fluid and gas control systems to manage complex reactions and ensure safety. Steam and other media are carefully regulated to sustain optimal operating conditions.

Lastly, the pharmaceutical industry depends on sterile steam and high-temperature media control to maintain stringent sanitation standards during production. These systems support the integrity and safety of pharmaceutical products.

Support and Services:

Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We offer detailed product documentation, including installation guides, operation manuals, and maintenance instructions to assist you in the proper use and upkeep of the valve.

Our technical support team is available to provide expert advice on product selection, system integration, troubleshooting, and customization to meet your specific application requirements. We also offer training sessions and webinars to help users understand the features and functionalities of the pneumatic solenoid valve.

In addition, we provide repair and maintenance services to extend the lifespan of your valve and minimize downtime. Replacement parts and accessories are readily available to ensure seamless operation and quick resolution of any issues.

We are committed to continuous product improvement and innovation, incorporating customer feedback to enhance reliability, efficiency, and ease of use. Our goal is to deliver high-quality pneumatic solenoid valve solutions supported by responsive and knowledgeable service throughout the product lifecycle.

Packing and Shipping:

Product Packaging:

The Pneumatic Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is placed inside an anti-static plastic bag to protect against moisture and dust. The bagged valve is then securely fitted into a custom-cut foam insert within a sturdy cardboard box to prevent movement during transit. The outer packaging box is labeled clearly with product details, handling instructions, and barcodes for easy identification.

Shipping:

We offer reliable shipping options to deliver the Pneumatic Solenoid Valve safely and promptly. Standard shipping includes tracking and insurance to safeguard your order. For urgent needs, expedited shipping options are available. All packages are handled with care to prevent damage during transportation. International shipments comply with all customs regulations and include necessary documentation to ensure smooth delivery.
