Product Description:

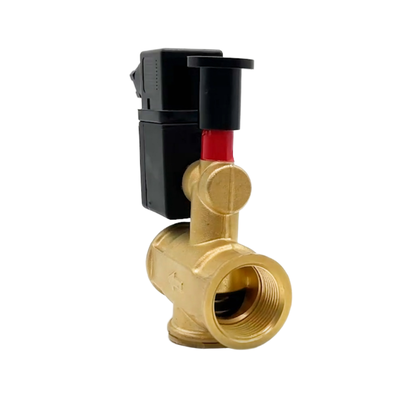

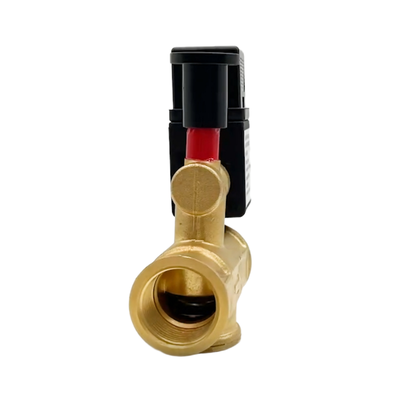

The 13EA Series is a two-way, normally open solenoid valve that features a manual reset mechanism. It is specifically designed for safety shut-off purposes within gas systems, ensuring secure control over gas flow in critical situations.
This valve is compatible with a variety of gases including natural gas, methane, LPG, and carbon monoxide, making it highly versatile. It is particularly suited for integration with gas detection devices, safety thermostats, and emergency shutdown systems to enhance overall safety measures.
One of the key safety features of the 13EA Series is its manual reset function. The valve can only be reopened manually after it has been closed, and only when electrical power is not applied. This design helps prevent accidental or automatic reopening, providing an important safeguard in gas installations.
Constructed from a robust brass body, the valve is available with either NBR or FKM seals to ensure durable, leak-tight performance. It comes in port sizes of 1/2", 3/4", and 1", offering a flow capacity with Cv values reaching up to 13.0, catering to various installation demands.
Manufactured in Ningbo, China, the 13EA Series is recognized for its high quality and dependable performance, making it a trusted choice for safety applications in the gas industry.
Features:
The valve features a normally open function, meaning it stays open when de-energized, allowing gas to flow during regular operation. This ensures continuous gas supply under normal conditions without requiring electrical power.
It is designed with a manual reset operation, which requires manual intervention to reset the valve. This reset can only be performed when the valve is electrically de-energized, providing an added layer of safety by preventing automatic restart after a trip event.
The safety shut-off design makes this valve ideal for integration with gas detectors, safety thermostats, and emergency signaling systems. This feature enhances overall system safety by ensuring prompt shut-off in hazardous situations.
Constructed from durable brass, the valve body offers excellent resistance to corrosion and maintains structural integrity over extended use. This robust construction contributes to the valve's longevity and reliability in various environments.
To accommodate different gas media, the valve is available with multiple seal options, including NBR and FKM seals. This flexibility allows for compatibility with a wide range of gases, ensuring secure and leak-free operation.
The valve supports a broad range of port sizes, including 1/2", 3/4", and 1" connections. This variety facilitates flexible integration into various system configurations, catering to different installation requirements.
Multiple voltage options are available for this valve, such as 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC. This wide selection allows it to be easily incorporated into diverse control systems, making it adaptable to different power supply standards.
Designed to operate reliably across a wide ambient temperature range from -15°C to +60°C, the valve ensures consistent performance in varying environmental conditions, making it suitable for both indoor and outdoor applications.
Backed by a strong production capacity of 500,000 units annually and 10,000 units monthly, this valve guarantees a stable supply for large-scale orders, supporting high-demand projects with consistent availability.
Technical Parameters:
| Working Pressure |
500 Mbar |
| Voltage |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Body Material |
Brass |
| Function |
2 Way Normally Open |
| Seal Material |
NBR, FKM |
| Port Size |
1/2'', 3/4'', 1'' |
| Working Medium |
Methane, Natural Gas, LPG, Carbon Monoxide |
| Orifice Size |
15mm, 20mm, 25mm |
| Model No |
Port Size |
Orifice Size |
CV |
Working Pressure |
Body |
Seal |
Function |
| 13EAB15K04 |
1/2" |
15mm |
5 |
0 to 500 mbar |
Brass |
NBR,FKM |
2 Way NO |
| 13EAB20K06 |
3/4" |
20mm |
7.5 |
| 13EAB25K25 |
1" |
25mm |
13 |
Applications:
Gas Detection Systems
Emergency shut-off mechanisms are activated by gas detectors designed to sense methane, liquefied petroleum gas (LPG), carbon monoxide, and other similar gases. These detection systems play a crucial role in preventing hazardous situations by promptly cutting off the gas supply when dangerous levels are detected.
Safety Thermostats
Safety thermostats are integrated into gas systems to automatically trigger a shut-off when overheating occurs. This integration ensures that the gas supply is cut off to prevent potential fires or explosions caused by excessive temperatures.
Natural Gas Pipelines
In residential, commercial, and industrial gas distribution networks, safety isolation and shut-off features are essential. These functions help contain gas flow and prevent leaks or accidents within natural gas pipelines.
LPG Systems
Liquefied petroleum gas installations are equipped with emergency shut-off systems designed to quickly halt gas flow in the event of a leak or other dangerous condition, enhancing overall safety.
Industrial Burners
Safety shut-off mechanisms are implemented in gas-fired burners and heating equipment used in industrial settings. These systems are vital for preventing accidents caused by irregular gas supply or equipment malfunction.
Boiler Systems
Emergency gas shut-off systems are integrated into boiler safety arrangements to ensure immediate cessation of gas supply during unsafe operating conditions, thereby protecting both equipment and personnel.
Gas Metering Stations
Gas metering and regulation skids incorporate safety isolation features that allow for secure shutdowns and prevent the spread of gas leaks, maintaining the integrity of the distribution system.
