Product Description:

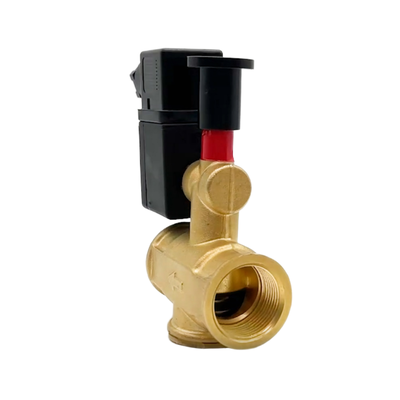

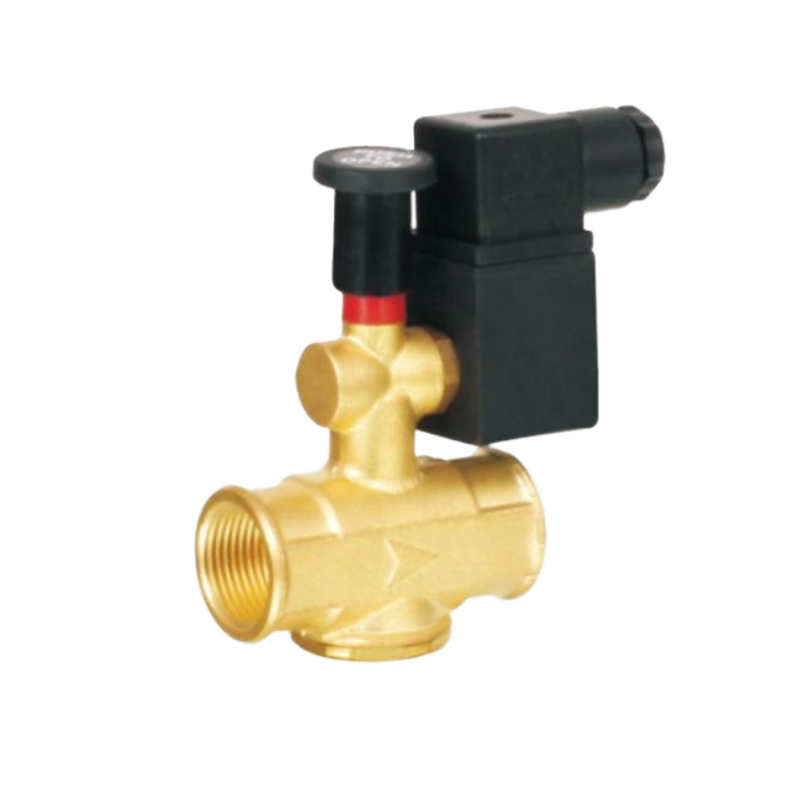

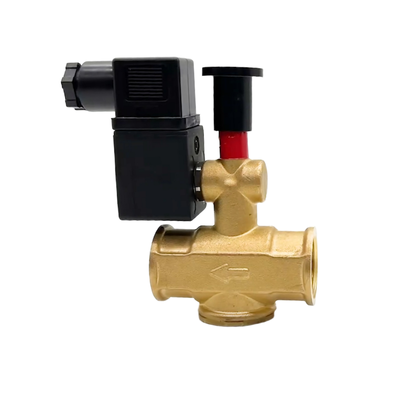

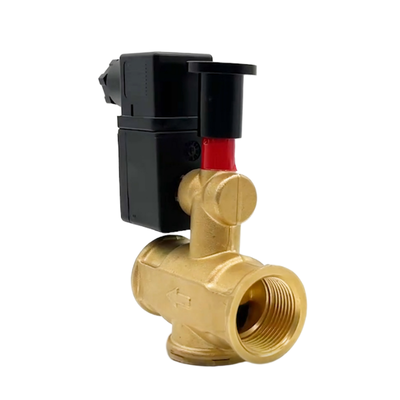

The 13EA Series is a two-way, normally open solenoid valve designed with a manual reset feature. It is specifically developed for safety shut-off functions within gas systems, ensuring secure operation when handling various gases.
This valve is suitable for use with natural gas, methane, LPG, carbon monoxide, and other similar gases. It is an excellent choice for integration with gas detectors, safety thermostats, and emergency shutdown mechanisms, enhancing the overall safety of gas installations.
One of the key safety features of the 13EA Series is its manual reset capability. The valve can only be reopened manually and exclusively when electrical power is not applied. This function provides an essential layer of safety by preventing automatic reactivation.
Constructed from a robust brass body, the valve is available with NBR or FKM seals, ensuring reliable and leak-tight operation. It comes in multiple port sizes, including 1/2", 3/4", and 1", and offers flow capacities with Cv values reaching up to 13.0.
Manufactured in Ningbo, China, the 13EA Series solenoid valve is highly regarded for its quality and dependability in critical gas safety applications around the world.
Features:
The valve features a normally open function, which means it remains open when de-energized, allowing continuous gas flow during regular operation. This design ensures uninterrupted gas supply under normal conditions.
It incorporates a manual reset operation that can only be activated manually and solely when the valve is electrically de-energized. This feature guarantees a safe and controlled restart following any trip event, enhancing operational safety.
Designed with safety in mind, this valve is ideal for integration with gas detectors, safety thermostats, and emergency signal systems. Its safety shut-off mechanism helps to prevent hazardous situations by instantly stopping gas flow when necessary.
The valve body is constructed from durable brass, providing excellent resistance to corrosion and maintaining strong structural integrity over time. This robust construction ensures long-lasting reliability even in demanding environments.
To accommodate a variety of gas media, the valve is available with multiple seal options, including NBR and FKM seals. These options provide compatibility and flexibility for different operational requirements.
Flexibility in system integration is further supported by the availability of a wide range of port sizes. Connections come in 1/2", 3/4", and 1" sizes, allowing easy adaptation to various piping configurations.
The valve supports multiple voltage options to suit diverse control systems, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC. This wide voltage range enables seamless integration into different electrical setups.
With an operational ambient temperature range from -15°C to +60°C, the valve functions reliably in a broad spectrum of environmental conditions, ensuring dependable performance year-round.
Backed by a high production capacity of 500,000 pieces annually and 10,000 pieces monthly, the manufacturing process ensures a steady and reliable supply, catering efficiently to bulk order demands.
Technical Parameters:
| Seal Material |
NBR, FKM |
| Working Medium |
Methane, Natural Gas, LPG, Carbon Monoxide |
| Voltage |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Body Material |
Brass |
| Working Pressure |
500 Mbar |
| Orifice Size |
15mm, 20mm |
| Function |
2 Way Normally Closed |
| Port Size |
1/2'', 3/4'' |
Applications:
Gas Detection Systems
Emergency shut-off mechanisms are activated by gas detectors designed to sense the presence of methane, LPG, carbon monoxide, and other similar gases. These systems ensure prompt response to hazardous gas leaks, enhancing safety in various environments.
Safety Thermostats
Safety thermostats are integrated to automatically trigger gas shut-off when overheating conditions are detected. This integration helps prevent accidents related to excessive temperature rise by cutting off the gas supply promptly.
Natural Gas Pipelines
In residential, commercial, and industrial settings, natural gas pipelines utilize safety isolation and shut-off systems to control gas flow. These safety measures are critical for preventing gas leaks and ensuring secure gas distribution.
LPG Systems
Liquefied petroleum gas (LPG) installations are equipped with emergency shut-off features. These systems are designed to quickly halt the flow of LPG in the event of a detected hazard, thereby reducing the risk of fire or explosion.
Industrial Burners
Gas-fired burners and heating equipment in industrial applications incorporate safety shut-off systems. These controls safeguard against unsafe operating conditions by interrupting gas supply whenever necessary.
Boiler Systems
Boilers are fitted with emergency gas shut-off mechanisms as part of their safety systems. This critical feature helps to prevent dangerous situations by stopping the gas flow in case of boiler malfunction or emergency.
Gas Metering Stations
Gas metering and regulation skids include safety isolation functions to maintain controlled and safe gas flow. These safety systems aid in preventing leaks and managing the pressure within metering stations effectively.
Support and Services:
Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including installation guides, operation manuals, and maintenance instructions to assist users in proper handling and application.
Technical support is available to address any inquiries related to product selection, system integration, troubleshooting, and performance optimization. Our team of experts is dedicated to helping customers resolve issues promptly and efficiently.
We also offer maintenance and repair services to extend the lifespan of your pneumatic solenoid valves. Regular maintenance programs and replacement parts are available to minimize downtime and maintain system reliability.
For customized solutions, we collaborate with customers to tailor pneumatic solenoid valves that meet specific operational requirements. Our engineering team works closely with you to design and implement modifications or special configurations.
To ensure continuous improvement, we welcome customer feedback and provide training sessions to enhance user knowledge and application expertise. Our goal is to support your operations with high-quality pneumatic control solutions and responsive service.
Packing and Shipping:
Product Packaging and Shipping
The Pneumatic Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is individually wrapped in anti-static material and placed in a sturdy, custom-designed box to prevent movement and damage during transit.
Multiple units are packed into a reinforced carton with adequate cushioning materials such as foam inserts or bubble wrap to provide additional protection.
All packages are clearly labeled with product information, handling instructions, and shipping details to facilitate smooth delivery and inventory management.
We offer various shipping options including standard, expedited, and freight services to meet customer requirements. Our logistics partners ensure timely and secure delivery worldwide.
For bulk orders, pallets are securely strapped and wrapped to maintain stability and safety throughout the shipping process.
Should you require special packaging or shipping arrangements, please contact our customer service team for assistance.
