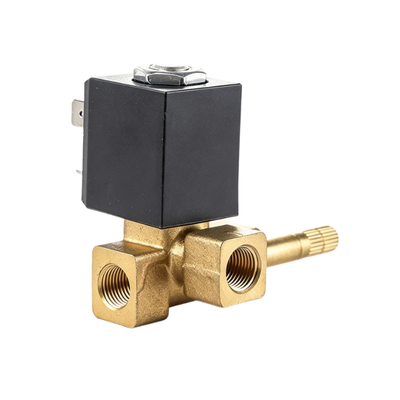

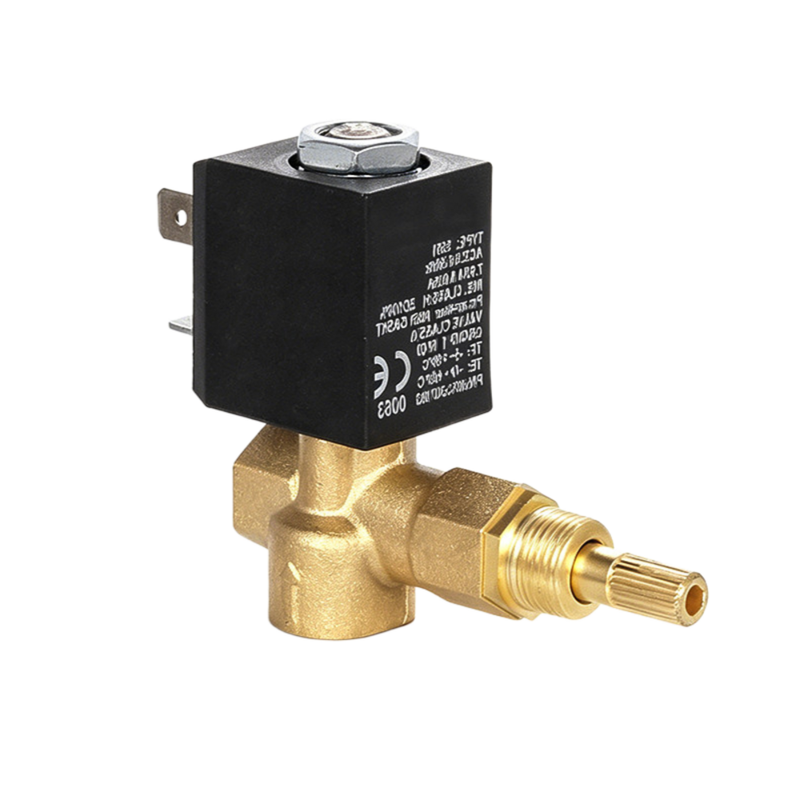

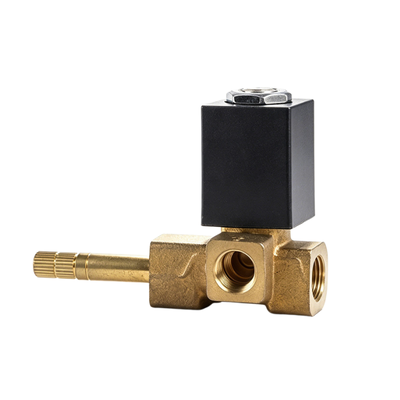

Product Description:
The 55CA Series is a 2/2-way normally closed direct-acting solenoid valve, expertly designed to provide dependable ON/OFF control for various gaseous media such as natural gas, LPG, and coalgas. Its construction focuses on reliability and efficiency, making it an excellent choice for gas control systems.
Crafted with a compact brass body, the valve is equipped with seals made from NBR, FKM, or EPDM materials. These options ensure outstanding leak-tight performance and enhanced durability, which are essential for maintaining safety and long-term operation in gas applications.
Thanks to its direct-acting mechanism, the 55CA Series valve can operate reliably even at zero differential pressure. This characteristic makes it particularly suitable for low-pressure environments and small-bore installations where precise control is crucial.
With a port size of 1/8" and an orifice diameter of 2.8mm, the valve offers accurate flow regulation while maintaining a compact design. Additionally, it is manufactured in Ningbo, China, and holds CE certification, underscoring its commitment to quality and reliability in gas appliance and industrial burner uses.
Features:
Direct Acting Operation
The valve features a spring-return mechanism that enables operation starting from zero pressure differential (0 Bar). This design guarantees dependable performance throughout the entire pressure range, ensuring consistent functionality in various applications.
2/2 Way Normally Closed Function
Equipped with a spring-return mechanism, the valve remains closed when de-energized. This fail-safe feature provides added safety by preventing unintended flow in case of power loss or system failure.
Compact Brass Body
Its compact size, characterized by a small 1/8" port, and lightweight brass construction make this valve ideal for installations where space is limited. This design facilitates easy integration into constrained environments without compromising performance.
Multiple Seal Options
To ensure compatibility with various gas media and temperature requirements, the valve is available with seals made from NBR, FKM, or EPDM. This flexibility allows the valve to be tailored to specific operational conditions.
Wide Temperature Range
The valve supports an operating temperature range from -30°C up to +150°C when equipped with FKM seals. This wide range accommodates demanding thermal environments and ensures reliable operation under varying temperature conditions.
Wide Pressure Range
Designed to operate under pressures ranging from 0 to 6 Bar (0–0.6 MPa), the valve meets a broad spectrum of system requirements, making it suitable for diverse industrial applications.
Multiple Voltage Options
The valve is available in various voltage configurations, including 12VDC, 24VDC, 24VAC, 110VAC, 120VAC, 220VAC, and 230VAC (50/60Hz). This range of options ensures compatibility with many different control systems worldwide.
Stainless Steel Internals
Internally, the armature tube, plunger, spring, and shading ring are made from stainless steel (SUS304, SUS430F). This construction provides excellent durability and resistance to corrosion, extending the valve's service life.
CE Certified
The valve complies with international safety and quality standards, as evidenced by its CE certification. This certification assures users of the product’s adherence to stringent regulatory requirements.
High Production Capacity
With a monthly production capacity of 50,000 units and a weekly output of 10,000 units, the manufacturer can reliably fulfill large volume orders, ensuring consistent supply for bulk purchasing needs.
Technical Parameters:
| Function |
2 Way Normally Closed |
| Port Size |
1/8'' |
| Operation |
Direct Acting |
| Orifice Size |
2.8mm |
| Diaphragm Material |
NBR, FKM, EPDM |
| Voltage |
DC12V, DC24V, AC24V, AC110V, AC220V |
| Body Material |
Brass |
| Working Pressure Range |
0.6 Mpa |
Applications:
Gas Ovens
This involves the ON/OFF regulation of natural gas, liquefied petroleum gas (LPG), and coal gas supplies used in commercial and industrial oven applications. Effective control ensures safe and efficient oven operation.
Industrial Burners
Gas flow management is critical for burners employed in various heating and processing equipment. Precise control of the gas supply helps maintain optimal combustion and energy efficiency in industrial settings.
Gas Detection Systems
These systems incorporate gas detectors to monitor potentially hazardous leaks and trigger emergency shut-off mechanisms. Integration with detection devices enhances safety by preventing accidents caused by gas emissions.
Boiler Systems
Gas control solutions are designed for small to medium-sized boiler installations, ensuring reliable and consistent fuel supply for heating purposes. Proper regulation contributes to energy savings and system longevity.
Gas Appliances
Control of gas flow extends to various appliances such as heaters, cooktops, and other gas-powered devices commonly used in residential and commercial environments. Efficient management promotes safety and performance.
Pilot Lines
Managing pilot gas lines is essential within larger gas systems, where a stable pilot flame is necessary for the safe ignition of main burners. Precise control ensures the pilot line functions correctly under varying conditions.
Laboratory Equipment
In laboratory settings, high precision gas control is crucial for analytical instruments and testing devices. Accurate gas regulation supports reliable measurements and consistent experimental results.
