Product Description:
The 55CA Series is a 2/2-way normally closed solenoid valve that operates with direct action. It is specifically designed to provide dependable ON/OFF control for various gaseous media such as natural gas, LPG, and coalgas. This valve is built to ensure reliable performance in numerous gas-related applications.
Featuring a compact brass body, the 55CA Series valve is available with seals made of NBR, FKM, or EPDM, which contribute to its outstanding leak-tightness and long-lasting durability within gas systems. The direct-acting mechanism allows the valve to function effectively even at zero differential pressure, making it especially suitable for low-pressure and small-bore scenarios.
This valve comes with a 1/8" port size and is equipped with a 2.8mm orifice, providing accurate flow control while maintaining a small and efficient footprint. Manufactured in Ningbo, China, the 55CA Series holds CE certification, underlining its quality and reliability. It is widely trusted for use in gas appliances and industrial burner applications.
Features:
Direct Acting Operation
This valve features a spring-return mechanism that enables operation starting from zero pressure differential (0 Bar). This design guarantees consistent and reliable performance throughout the entire pressure range.
2/2 Way Normally Closed Function
Equipped with a spring-return mechanism, the valve remains closed when de-energized. This fail-safe functionality ensures safe operation under all circumstances.

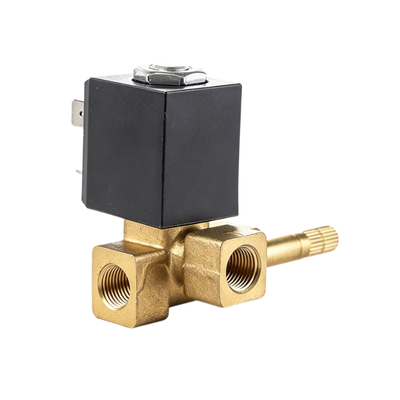

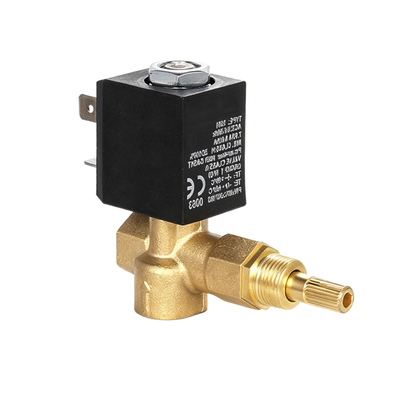

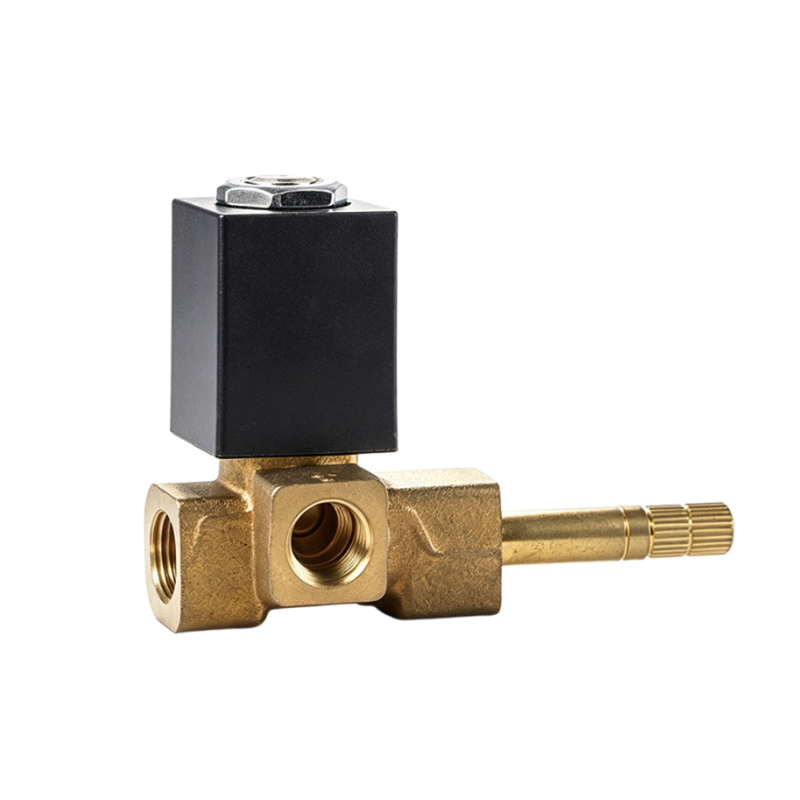

Compact Brass Body
The valve is constructed with a compact brass body featuring a small 1/8" port size. Its lightweight design makes it particularly suitable for installations where space is limited.
Multiple Seal Options
To accommodate different gas media and temperature demands, the valve is available with a selection of seals, including NBR, FKM, and EPDM.
Wide Temperature Range
With FKM seals, the valve can operate efficiently within a temperature range from -30°C to +150°C, making it well-suited for challenging thermal environments.
Wide Pressure Range
The valve supports operating pressures from 0 to 6 Bar (0–0.6 MPa), allowing it to meet a broad spectrum of system requirements.
Multiple Voltage Options
It is available in various voltage configurations including 12VDC, 24VDC, 24VAC, 110VAC, 120VAC, 220VAC, and 230VAC (50/60Hz), making it compatible with diverse control systems.
Stainless Steel Internals
The internal components such as the armature tube, plunger, spring, and shading ring are made from stainless steel (SUS304, SUS430F). This ensures outstanding durability and excellent resistance to corrosion.
CE Certified
The valve complies with international safety and quality standards, as evidenced by its CE certification.
High Production Capacity
With the ability to produce 50,000 units per month and 10,000 units per week, the manufacturer ensures a stable and reliable supply, even for large-volume orders.

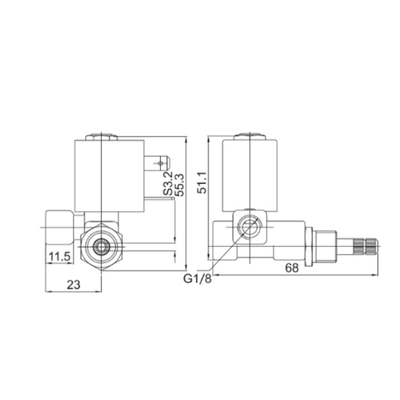

Technical Parameters:
| Port Size |
1/8'' |
| Working Pressure Range |
6 Bar |
| Diaphragm Material |
NBR, FKM, EPDM |
| Operation |
Direct Acting |
| Body Material |
Brass |
| Voltage |
DC12V, DC24V, AC24V, AC110V, AC220V |
| Function |
2 Way Normally Closed |
| Orifice Size |
2.0mm |
Applications:
Gas Ovens
The ON/OFF control mechanism is utilized for managing the supply of natural gas, LPG, and coalgas in both commercial and industrial ovens. This functionality ensures safe and efficient operation within various cooking and heating environments.
Industrial Burners
Precise gas flow control is essential for burners used in heating and processing equipment. These systems enable optimal combustion performance and contribute to maintaining consistent temperature levels in industrial applications.
Gas Detection Systems
Integration with gas detection technology allows for immediate emergency shut-off in the event of gas leaks or hazardous conditions. This safety feature is critical for protecting personnel and preventing accidents in gas-operated environments.
Boiler Systems
Gas control solutions cater to small and medium-sized boiler installations, ensuring efficient fuel usage and reliable operation. These controls help maintain stable combustion and contribute to the longevity of boiler equipment.
Gas Appliances
The regulation of gas flow is fundamental for various appliances such as heaters and cooktops. Effective control mechanisms guarantee safe and consistent performance in household and commercial gas-fired devices.
Pilot Lines
In larger gas systems, managing pilot gas lines is crucial for initiating and sustaining burner operation. Control of these pilot lines ensures reliable ignition and stable functionality across complex installations.
Laboratory Equipment
Analytical and testing instruments require precise gas control to achieve accurate results. Specialized gas management systems provide the necessary regulation for these high-precision laboratory applications.
