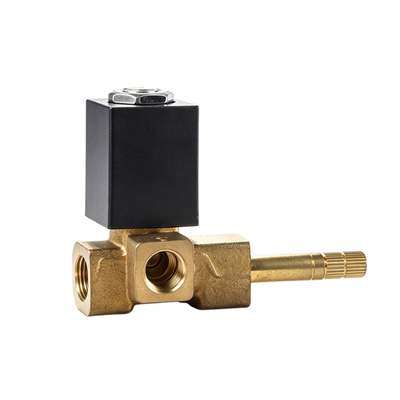

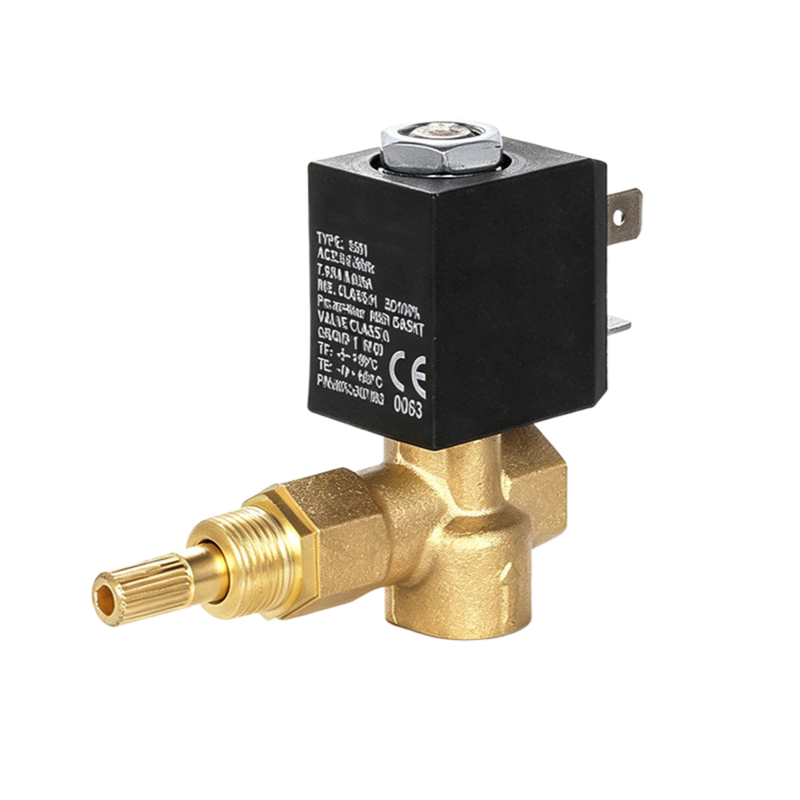

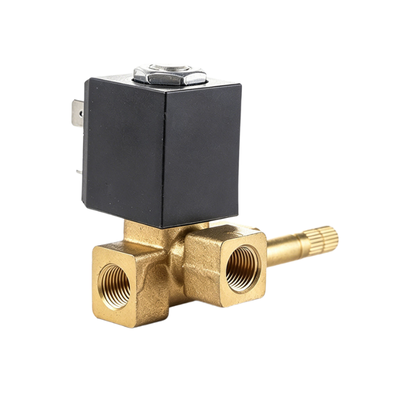

Product Description:
The 55CA Series is a 2/2-way normally closed direct-acting solenoid valve designed to provide dependable ON/OFF control for various gaseous media such as natural gas, LPG, and coalgas. Its primary function is to ensure efficient and secure operation within gas flow systems.
Constructed with a compact brass body, the valve is available with seals made from NBR, FKM, or EPDM materials. This combination guarantees excellent leak-tight performance and long-lasting durability, making it well-suited for demanding gas system environments.
Thanks to its direct-acting mechanism, the 55CA Series performs reliably even at zero differential pressure. This characteristic makes it an ideal choice for low-pressure setups and applications involving small-bore piping, where precise control is essential.
With a 1/8" port size and a 2.8mm orifice, this valve ensures accurate flow control while maintaining a small footprint. Manufactured in Ningbo, China, and holding CE certification, the 55CA Series is recognized for its quality and is commonly employed in gas appliance and industrial burner applications.
Features:
Direct Acting Operation
The valve features a spring-return mechanism that enables operation from zero pressure differential (0 Bar). This design ensures consistent and reliable performance throughout the entire pressure range.
2/2 Way Normally Closed Function
Equipped with a spring-return mechanism, the valve remains closed when de-energized, providing a fail-safe operation to enhance system safety and reliability.
Compact Brass Body
Its compact design includes a small 1/8" port size and lightweight construction, making it perfectly suited for installations with limited space.
Multiple Seal Options
The valve is available with various seal materials such as NBR, FKM, and EPDM. These options ensure compatibility with different gas media and temperature conditions.
Wide Temperature Range
Operating efficiently between -30°C and +150°C (when fitted with FKM seals), the valve is suitable for demanding thermal environments.
Wide Pressure Range
This valve can handle operating pressures from 0 to 6 Bar (0–0.6 MPa), catering to a diverse range of system requirements.
Multiple Voltage Options
To accommodate various control systems, the valve is available in multiple voltage options including 12VDC, 24VDC, 24VAC, 110VAC, 120VAC, 220VAC, and 230VAC (50/60Hz).
Stainless Steel Internals
The internal components such as the armature tube, plunger, spring, and shading ring are crafted from high-quality stainless steel (SUS304, SUS430F), ensuring exceptional durability and resistance to corrosion.
CE Certified
The valve complies with international safety and quality standards, holding CE certification.
High Production Capacity
Supported by a production capacity of 50,000 units per month and 10,000 units per week, the manufacturing process guarantees a reliable supply for large volume orders.

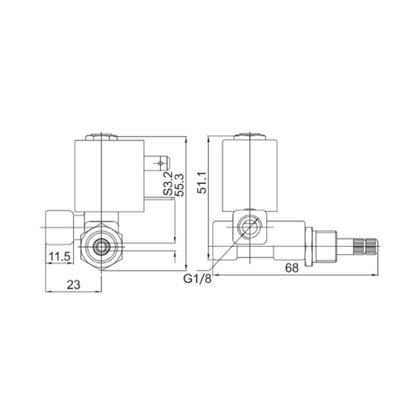

Technical Parameters:
| Voltage | DC12V, DC24V, AC24V, AC110V, AC220V |
| Body Material | Brass |
| Port Size | 1/8'' |
| Function | 2 Way Normally Closed |
| Working Pressure Range | 6 Bar |
| Diaphragm Material | NBR, FKM, EPDM |
| Orifice Size | 2.0mm |
| Operation | Direct Acting |
Applications:
Gas Ovens
These systems provide ON/OFF control for natural gas, liquefied petroleum gas (LPG), and coalgas supply specifically designed for use in commercial and industrial ovens. This ensures safe and efficient operation during cooking and baking processes.
Industrial Burners
Gas flow regulation is crucial for industrial burners used in heating and processing equipment. Proper control allows for optimal combustion, improving performance and reducing fuel consumption in various manufacturing applications.
Gas Detection Systems
Integration with gas detection systems allows for automatic emergency shut-off in the presence of gas leaks. This safety feature helps prevent accidents by promptly stopping the gas supply when hazardous conditions are detected.
Boiler Systems
Gas control technologies are applied to small and medium-sized boiler installations, ensuring precise management of fuel supply. This contributes to efficient heating and energy usage in industrial settings.
Gas Appliances
Control mechanisms are used to regulate gas flow in various appliances such as heaters, cooktops, and other devices powered by gas. This facilitates safe and reliable operation in both residential and commercial environments.
Pilot Lines
Managing pilot gas lines is essential in larger gas systems to maintain ignition sources and stable burner operation. These control solutions ensure continuous and safe pilot flame presence.
Laboratory Equipment
Precision gas control is key in analytical and testing instruments used in laboratories. Accurate regulation of gas flow supports reliable experimentation and measurement outcomes.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to provide reliable and efficient control of pneumatic systems in various industrial applications. To ensure optimal performance and longevity, we offer comprehensive technical support and services.
Technical support includes guidance on installation, operation, and maintenance of the valve. Our experts are available to assist with troubleshooting any issues, recommending suitable configurations, and providing detailed product specifications and documentation.
We also provide customized solutions tailored to specific application requirements, helping you select the right valve model and accessories. Regular maintenance services and replacement parts are available to keep your pneumatic systems running smoothly.
For best results, we recommend following the provided installation instructions carefully, using clean and dry compressed air, and performing routine inspections to detect wear or damage early. Our support team can offer advice on optimizing system performance and energy efficiency.
Whether you need technical advice, repair services, or product upgrades, our dedicated support ensures that your Pneumatic Solenoid Valve operates at peak efficiency, minimizing downtime and maximizing productivity.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in anti-static bubble wrap and placed inside a custom-fitted foam insert to prevent movement and damage. The wrapped product is then placed in a sturdy corrugated cardboard box with clear labeling indicating the product type, handling instructions, and quantity. For bulk orders, multiple units are securely packed within larger cartons, separated by dividers to avoid contact and abrasion.
Shipping:
We offer reliable and timely shipping options worldwide. All packages are shipped via trusted courier services with tracking available for every order. Depending on the destination, delivery times typically range from 3 to 10 business days. We ensure that all shipments comply with international shipping regulations and include the necessary documentation. For urgent orders, expedited shipping options are available upon request. Customers will be notified once their order has been dispatched, along with tracking information to monitor the shipment’s progress.
