Product Description:

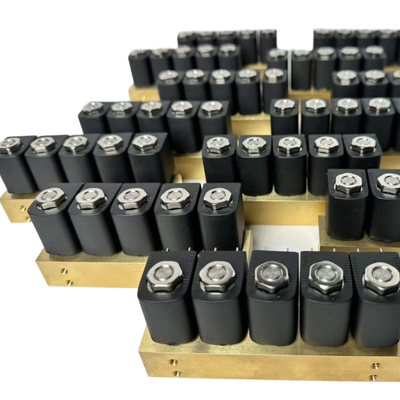

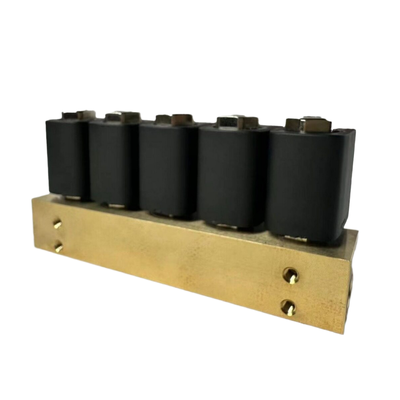

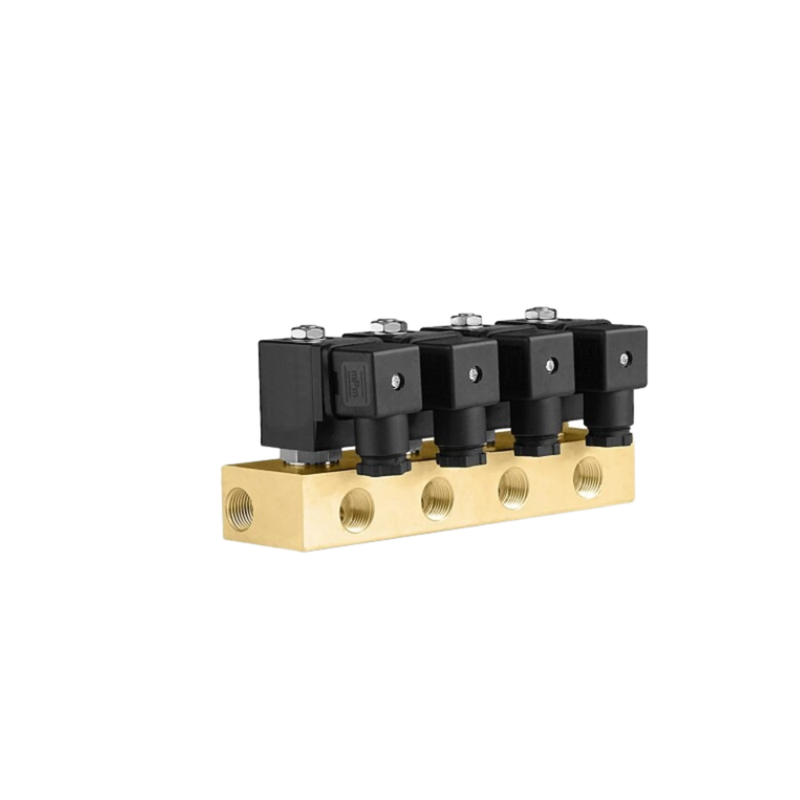

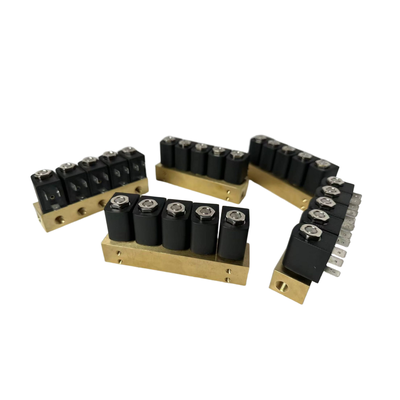

The Solenoid Valve Manifold is a highly adaptable 2/2-way direct-acting solenoid valve platform, specifically designed for seamless integration into multi-station fluid control systems. This versatile unit is engineered to provide dependable ON/OFF control for a variety of neutral fluids, including water, air, steam, and oil.
Offering exceptional flexibility, the manifold is available in both normally closed (model 1913BA) and normally open (model 1913BB) configurations. The direct-acting mechanism guarantees consistent and reliable operation even at zero differential pressure, making it an excellent choice for low-pressure environments and compact system designs.
Constructed primarily from a robust brass body, with optional materials such as stainless steel and aluminum alloy, this valve ensures long-lasting durability. It also supports multiple seal materials including NBR, EPDM, and FKM, which provide excellent compatibility with a wide range of media. The manifold is capable of operating efficiently across temperatures ranging from -30°C to +150°C.
Available port sizes include 1/8″ and 1/4″, accompanied by orifice sizes that vary between 1.6mm and 3.0mm. The 1913 series offers precise flow control, featuring Cv values up to 0.3, enabling optimal performance tailored to specific application requirements.
Manufactured in Ningbo, China, and backed by CE certification, this solenoid valve manifold is recognized for its superior quality and reliability. It is widely trusted in diverse industrial sectors for efficient and consistent fluid management solutions.
Features:
The product features a direct acting operation with a spring-return mechanism, enabling it to function effectively even from zero pressure differential (0 MPa). This design guarantees consistent and reliable performance throughout the entire pressure range.
It offers 2/2 way functionality and is available in two configurations: Normally Closed (1913BA) and Normally Open (1913BB). This flexibility supports a variety of system design requirements.
Customers can select from multiple body material options, including standard brass, stainless steel, and aluminum alloy. These choices allow the product to adapt to diverse application needs.
Additionally, there are several seal options available for optimal media compatibility. These include NBR with an operating temperature range of -10 to +80°C, EPDM ranging from -30 to +120°C, and FKM which functions between -30 and +150°C.
The product’s compact manifold design incorporates 1/8″ and 1/4″ port sizes, facilitating space-saving integration in multi-station setups.
Operating pressure reaches up to 1.6 MPa (16 Bar) for the normally closed models, making it suitable for a wide array of system pressure requirements.
To ensure precise flow control, multiple orifice sizes are offered, including 1.6mm, 2.5mm, and 3.0mm.
The product supports a wide range of voltage options, compatible with 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), thus fitting various electrical control systems.
Certified with CE marking, the product meets international safety and quality standards, ensuring dependable and safe operation.
With a high production capacity of 200,000 pieces per month and 40,000 pieces per week, the manufacturing process guarantees a reliable supply to meet bulk order demands.
Technical Parameters:
| Operation |
Direct Acting |
| Body Material |
Brass, Stainless Steel, Aluminum Alloy |
| Standard Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Function |
2/2 Way Normally Closed |
| Port Size |
1/8", 1/4" |
| Pressure |
0 To 1.6 MPa |
| Orifice Size |
1.6mm, 2.5mm, 3.0mm |
| Seal Material |
NBR, EPDM, FKM |
| 2 Way Normally Closed |
| Model |
Port Size |
Orifice Size |
Cv |
Min Pressure |
Max Pressure (AC) |
Max Pressure (DC) |
| 1913BA161 |
1/8" |
1.6mm |
0.11 |
0MPa |
1.6MPa |
1.6MPa |
| 1913BA251 |
2.5mm |
0.18 |
1.2MPa |
1.2MPa |
| 1913BA301 |
3.0mm |
0.3 |
1.0MPa |
1.0MPa |
| 1913BA252 |
1/4" |
2.5mm |
0.18 |
1.2MPa |
1.2MPa |
| 1913BA302 |
3.0mm |
0.3 |
1.0MPa |
1.0MPa |
|
|
|
|
|
|
|
| 2 Way Normally Open |
| Model |
Port Size |
Orifice Size |
Cv |
Min Pressure |
Max Pressure (AC) |
Max Pressure (DC) |
| 1913BB161 |
1/8" |
1.6mm |
0.11 |
0MPa |
1.0MPa |
1.0MPa |
| 1913BB251 |
2.5mm |
0.18 |
| 1913BB301 |
3.0mm |
0.3 |
| 1913BB252 |
1/4" |
2.5mm |
0.18 |
0.8MPa |
0.8MPa |
| 1913BB302 |
3.0mm |
0.3 |
0.6MPa |
0.6MPa |
Applications:
Industrial Automation
Multi-station fluid control plays a crucial role in the operation of pneumatic and hydraulic systems within industrial automation. This technology ensures efficient and reliable performance across various automated processes.
Water Treatment
ON/OFF control mechanisms are employed to manage water distribution and treatment processes effectively. These controls guarantee proper regulation to maintain water quality and supply.
Compressed Air Systems
In pneumatic tools and automation lines, controlling the airflow is essential. Compressed air systems rely on precise regulation to optimize tool performance and process automation.
Steam Systems
Steam control is vital for small-scale heating and sterilization equipment. Proper management ensures safety and efficiency within these steam-powered applications.
Oil Systems
In industrial lubrication and fuel systems, light oil control is implemented to maintain optimal operating conditions. This control helps in extending equipment life and improving fuel efficiency.
HVAC Systems
Heating, ventilation, and air conditioning systems depend on precise fluid control for the regulation of heating and cooling within building services, ensuring comfort and energy efficiency.
Packaging Machinery
Automated packaging equipment utilizes precise fluid control to achieve accurate and consistent packaging processes, thereby enhancing productivity and quality.
Medical Equipment
Sterile fluid and gas control are fundamental in diagnostic and treatment devices, maintaining hygiene standards and patient safety during medical procedures.
Laboratory Instruments
Precision fluid handling is critical in analytical and testing equipment. Accurate control contributes to reliable results and overall effectiveness of laboratory operations.
Support and Services:
Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, operation manuals, and troubleshooting documentation to assist users in proper setup and maintenance.
Our technical support team is available to offer expert advice on product selection, system integration, and configuration to meet your specific application requirements. Additionally, we offer training sessions and workshops to help your staff gain a thorough understanding of the product’s functionality and best practices.
For maintenance and repair needs, we provide authorized service centers equipped with skilled technicians and genuine replacement parts to minimize downtime and extend the product lifecycle. We also offer customization services to tailor the pneumatic solenoid valves to unique operational demands.
We are committed to continuous product improvement and customer feedback is highly valued to enhance our products and support services. Our goal is to ensure that your pneumatic solenoid valve operates reliably and efficiently throughout its service life.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and protection during transportation. Each valve is individually wrapped in anti-static bubble wrap and placed inside a sturdy cardboard box. The box is then cushioned with foam inserts to prevent movement and damage. Packaging materials are chosen to be environmentally friendly and recyclable where possible.
Shipping:
We offer reliable shipping options to deliver the Pneumatic Solenoid Valve promptly and securely. Products are shipped via trusted carriers with tracking information provided to the customer. Shipping methods include standard, expedited, and express services depending on the destination and customer preference. All shipments are inspected before dispatch to guarantee quality and accuracy.
