Product Description:

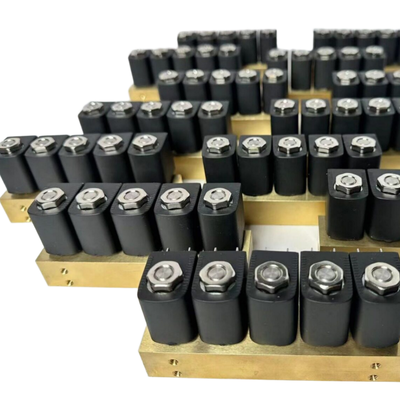

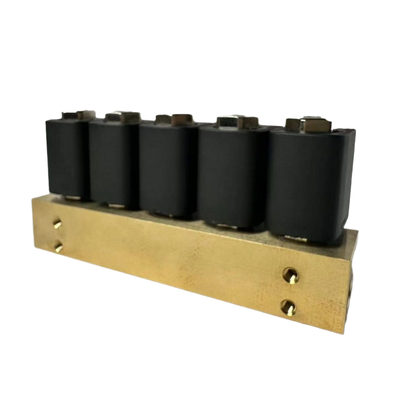

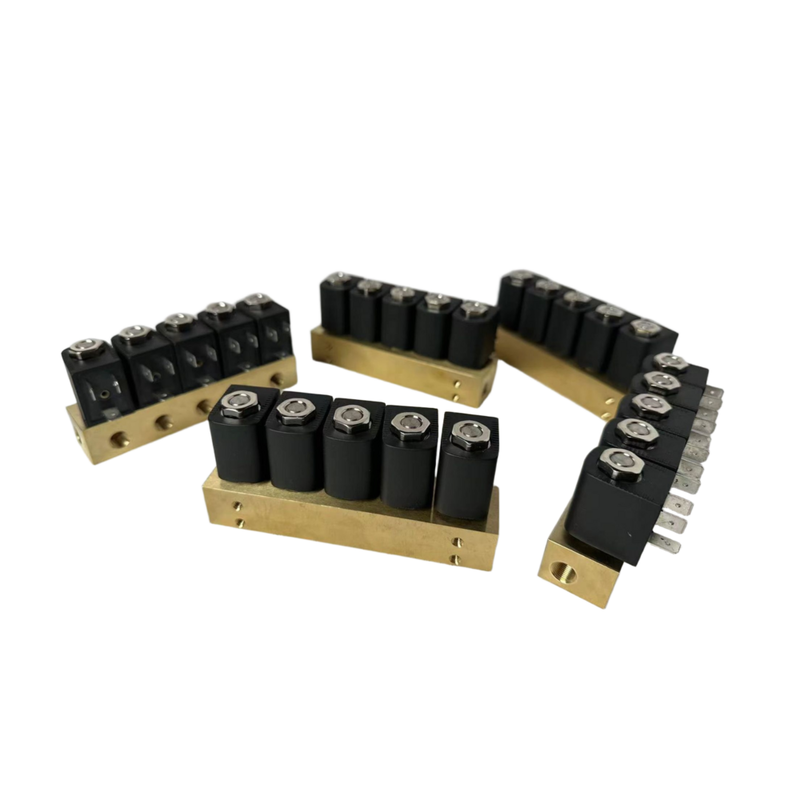

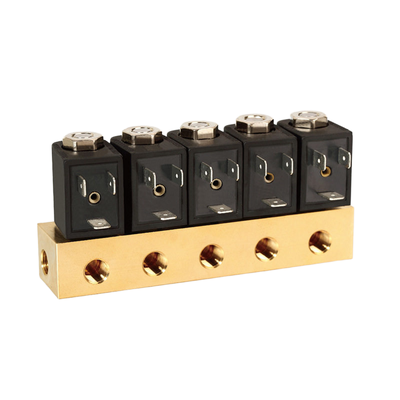

The Solenoid Valve Manifold is a highly adaptable 2/2-way direct-acting solenoid valve platform, specifically designed for multi-station integration within fluid control systems. It is engineered to provide dependable ON/OFF control of various media including water, air, steam, oil, and other neutral fluids.
This manifold system offers remarkable flexibility, featuring both normally closed (1913BA) and normally open (1913BB) configurations to suit different application needs. Its direct-acting operation guarantees reliable functioning even at zero differential pressure, making it an excellent choice for low-pressure environments and compact system setups.
Constructed with a robust brass body, the manifold also provides options for stainless steel and aluminum alloy materials. Additionally, it supports multiple seal material selections such as NBR, EPDM, and FKM, ensuring excellent compatibility with a broad range of media. The valve is capable of withstanding temperatures ranging from -30°C to +150°C.
The 1913 series is available with port sizes of 1/8″ and 1/4″ and offers orifice sizes between 1.6mm and 3.0mm. It achieves precise flow control with Cv values reaching up to 0.3. Manufactured in Ningbo, China, and carrying CE certification, this manifold is recognized for its high quality and reliability across numerous industrial applications.
Features:
The valve features a direct acting operation with a spring-return mechanism, enabling it to function from zero pressure differential (0 MPa). This design ensures consistent and reliable performance throughout the entire pressure range.
It offers 2/2 way functionality and is available in two configurations: Normally Closed (model 1913BA) and Normally Open (model 1913BB). This versatility allows for flexible integration into various system designs.
To cater to different application needs, the valve comes in multiple body materials including brass (standard), stainless steel, and aluminum alloy. This variety allows users to select the most suitable material for their specific environment.
For optimal media compatibility, several seal options are offered. These include NBR seals rated from -10 to +80°C, EPDM seals from -30 to +120°C, and FKM seals from -30 to +150°C, providing reliable sealing across a wide temperature range.
The compact manifold design supports 1/8″ and 1/4″ port sizes, making it ideal for space-saving multi-station setups. This feature enhances system efficiency without compromising on performance.
The valve supports a wide operating pressure range, with normally closed models capable of handling pressures up to 1.6 MPa (16 Bar), accommodating diverse system requirements comfortably.
Users can choose from multiple orifice sizes—1.6mm, 2.5mm, and 3.0mm—to achieve precise flow control tailored to their specific applications.
It is compatible with a variety of voltage options, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), ensuring easy integration with different control systems worldwide.
The product is CE certified, meeting international safety and quality standards, which guarantees reliability and compliance in global markets.
Supported by a high production capacity of 200,000 units per month and 40,000 units per week, the manufacturer ensures a dependable supply chain capable of fulfilling large volume orders efficiently.
Technical Parameters:
| Body Material |
Brass, Stainless Steel, Aluminum Alloy |
| Orifice Size |
1.6mm, 2.5mm, 3.0mm |
| Pressure |
0 To 1.6 MPa |
| Function |
2/2 Way Normally Closed (normally closed solenoid valve) |
| Port Size |
1/8", 1/4" |
| Standard Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Operation |
Direct Acting (pilot diaphragm solenoid valve) |
| Seal Material |
NBR, EPDM, FKM (pilot diaphragm solenoid valve) |
| 2 Way Normally Closed |
| Model |
Port Size |
Orifice Size |
Cv |
Min Pressure |
Max Pressure (AC) |
Max Pressure (DC) |
| 1913BA161 |
1/8" |
1.6mm |
0.11 |
0MPa |
1.6MPa |
1.6MPa |
| 1913BA251 |
2.5mm |
0.18 |
1.2MPa |
1.2MPa |
| 1913BA301 |
3.0mm |
0.3 |
1.0MPa |
1.0MPa |
| 1913BA252 |
1/4" |
2.5mm |
0.18 |
1.2MPa |
1.2MPa |
| 1913BA302 |
3.0mm |
0.3 |
1.0MPa |
1.0MPa |
|
|
|
|
|
|
|
| 2 Way Normally Open |
| Model |
Port Size |
Orifice Size |
Cv |
Min Pressure |
Max Pressure (AC) |
Max Pressure (DC) |
| 1913BB161 |
1/8" |
1.6mm |
0.11 |
0MPa |
1.0MPa |
1.0MPa |
| 1913BB251 |
2.5mm |
0.18 |
| 1913BB301 |
3.0mm |
0.3 |
| 1913BB252 |
1/4" |
2.5mm |
0.18 |
0.8MPa |
0.8MPa |
| 1913BB302 |
3.0mm |
0.3 |
0.6MPa |
0.6MPa |
Applications:
Applications of Fluid Control Systems
In the realm of industrial automation, fluid control plays a crucial role, especially in pneumatic and hydraulic systems. Multi-station fluid control solutions are designed to manage the precise distribution and regulation of fluids, ensuring efficient and reliable operation across various automated processes.
Water treatment facilities rely heavily on ON/OFF control mechanisms to manage water distribution and treatment processes effectively. These controls help maintain system integrity and ensure the consistent delivery of clean water.
Compressed air systems utilize fluid control to regulate air flow within pneumatic tools and automation lines. Proper control of air flow is essential for maintaining operational efficiency and prolonging the lifespan of equipment.
Small-scale steam systems benefit from specialized steam control techniques, which are applied in heating and sterilization equipment. These controls ensure precise temperature management, enhancing both safety and performance.
In industrial settings, oil systems require careful management of light oil circulation used for lubrication and fuel delivery. Fluid control in these systems helps optimize machinery performance and reduce wear and tear.
Heating, Ventilation, and Air Conditioning (HVAC) systems depend on accurate heating and cooling fluid control to maintain comfortable and energy-efficient environments within buildings.
Packaging machinery employs precise fluid control to facilitate automated packaging processes. This precision is critical to ensure product quality and operational speed.
Medical equipment incorporates sterile fluid and gas control to support diagnostic and treatment devices, where maintaining contamination-free environments is vital for patient safety.
Finally, laboratory instruments require precision fluid handling to perform accurate analytical and testing procedures. Reliable fluid control contributes significantly to the validity of experimental results.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in a wide range of industrial applications. To ensure optimal functionality and longevity, we provide comprehensive technical support and services.
Technical support includes assistance with product selection, installation guidance, troubleshooting, and maintenance advice. Our team of experts is available to help you understand the specifications and compatibility of the valve with your pneumatic system.
We offer detailed product manuals and datasheets to assist with proper setup and operation. In addition, we provide on-site support and training sessions to help your technical staff handle installation and routine maintenance effectively.
For maintenance, we recommend regular inspection of the valve components to prevent wear and tear, ensuring smooth operation. Replacement parts and repair services are available to minimize downtime and extend the service life of your equipment.
Our commitment is to provide prompt and efficient support to keep your pneumatic systems running smoothly and to maximize the value of your investment in our solenoid valve products.
Packing and Shipping:
Product Packaging: Each Pneumatic Solenoid Valve is carefully packaged in a sturdy, corrosion-resistant box to ensure protection during transit. The valve is wrapped in anti-static foam to prevent any mechanical damage and moisture exposure. Clear labeling with product specifications and handling instructions is included on the packaging for easy identification and safe handling.
Shipping: The Pneumatic Solenoid Valve is shipped via reliable courier services with tracking options to ensure timely and secure delivery. We offer multiple shipping methods including standard, expedited, and freight options to accommodate different customer needs. All shipments are insured and comply with international shipping regulations for pneumatic components.
