Product Description:

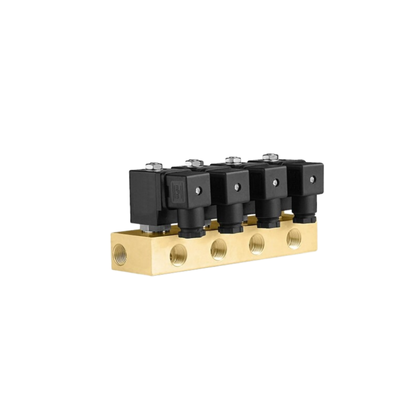

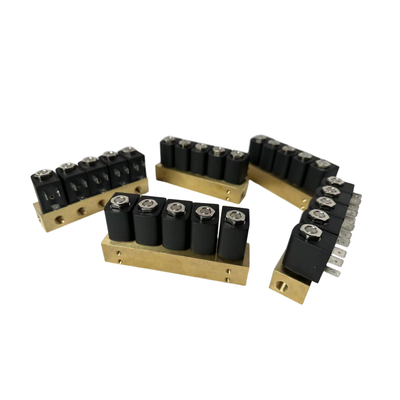

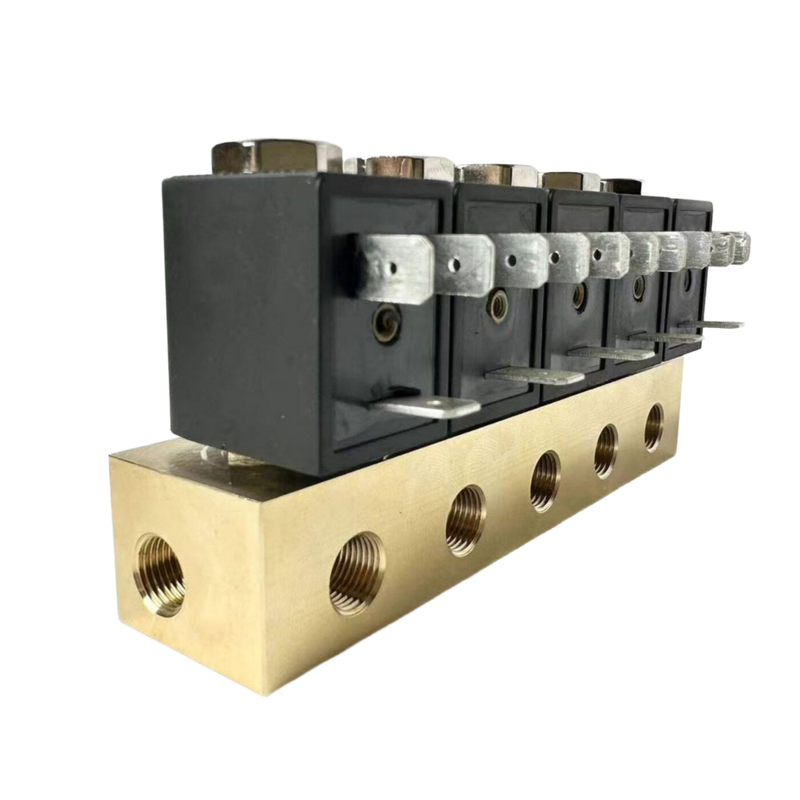

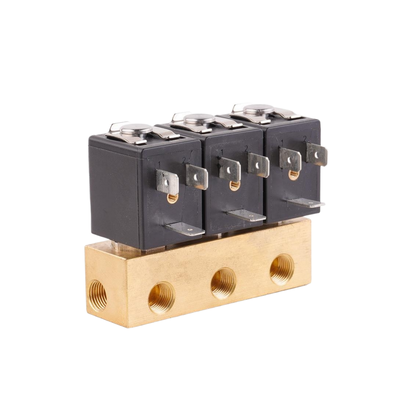

The Solenoid Valve Manifold is a highly adaptable 2/2-way direct-acting solenoid valve platform specifically designed for integration into multi-station fluid control systems. It provides dependable ON/OFF control for a variety of neutral fluids such as water, air, steam, and oil, making it a versatile choice for many applications.
This manifold system offers excellent flexibility by featuring both normally closed (1913BA) and normally open (1913BB) models. Its direct-acting mechanism guarantees reliable operation even at zero differential pressure, which makes it particularly suitable for low-pressure environments and compact system layouts.
Built with a robust brass body, the valve manifold also has alternatives made from stainless steel and aluminum alloy to meet different application needs. Users can select from multiple seal materials including NBR, EPDM, and FKM, ensuring compatibility with a wide range of media. The valve supports operation over a broad temperature span, from -30°C up to +150°C.
Available with port sizes of 1/8″ and 1/4″ and orifice dimensions ranging from 1.6mm to 3.0mm, the 1913 series delivers precise flow control capabilities with Cv values reaching 0.3. Produced in Ningbo, China, and holding CE certification, this solenoid valve manifold is recognized for its high quality and reliability across various industrial sectors.
Features:
The direct acting operation features a spring-return mechanism that enables the valve to function starting from zero pressure differential (0 MPa). This design guarantees dependable performance throughout the entire pressure range.
The valve offers 2/2 way functionality and is available in both Normally Closed (model 1913BA) and Normally Open (model 1913BB) configurations. This versatility allows for flexible system integration to meet different application needs.
Multiple body material options are provided to accommodate various operational environments. Customers can choose from brass as the standard option, stainless steel, or aluminum alloy, ensuring the valve suits specific application requirements.
For optimal media compatibility, several seal materials are available. These include NBR, which operates within a temperature range of -10 to +80°C, EPDM suitable for -30 to +120°C, and FKM capable of handling temperatures from -30 to +150°C.
The compact manifold design supports 1/8″ and 1/4″ port sizes, facilitating space-efficient multi-station integration. This feature is ideal for systems where space saving is a priority.
The valves can operate under a wide pressure range, with normally closed models rated up to 1.6 MPa (16 Bar). This capacity caters to diverse system requirements, ensuring robust performance.
Precision flow control is achieved through the availability of multiple orifice sizes, including 1.6mm, 2.5mm, and 3.0mm. This enables fine-tuning according to specific fluid control needs.
A wide selection of voltage options is supported to accommodate various control systems. Compatible voltages include 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC at both 50 and 60Hz frequencies.
The product carries CE certification, ensuring compliance with international safety and quality standards. This certification confirms the valve’s reliability and adherence to regulatory requirements.
Supported by a high production capacity of 200,000 pieces per month and 40,000 pieces per week, the manufacturer can reliably meet bulk order demands, ensuring consistent supply for large-scale projects.
Technical Parameters:
| Standard Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Operation |
Direct Acting |
| Seal Material |
NBR, EPDM, FKM |
| Port Size |
1/8", 1/4" |
| Function |
2/2 Way Normally Closed |
| Orifice Size |
1.6mm, 2.5mm, 3.0mm |
| Pressure |
0 to 1.6 MPa |
| Body Material |
Brass, Stainless Steel, Aluminum Alloy |
| 2 Way Normally Closed |
| Model |
Port Size |
Orifice Size |
Cv |
Min Pressure |
Max Pressure (AC) |
Max Pressure (DC) |
| 1913BA161 |
1/8" |
1.6mm |
0.11 |
0MPa |
1.6MPa |
1.6MPa |
| 1913BA251 |
2.5mm |
0.18 |
1.2MPa |
1.2MPa |
| 1913BA301 |
3.0mm |
0.3 |
1.0MPa |
1.0MPa |
| 1913BA252 |
1/4" |
2.5mm |
0.18 |
1.2MPa |
1.2MPa |
| 1913BA302 |
3.0mm |
0.3 |
1.0MPa |
1.0MPa |
|
|
|
|
|
|
|
| 2 Way Normally Open |
| Model |
Port Size |
Orifice Size |
Cv |
Min Pressure |
Max Pressure (AC) |
Max Pressure (DC) |
| 1913BB161 |
1/8" |
1.6mm |
0.11 |
0MPa |
1.0MPa |
1.0MPa |
| 1913BB251 |
2.5mm |
0.18 |
| 1913BB301 |
3.0mm |
0.3 |
| 1913BB252 |
1/4" |
2.5mm |
0.18 |
0.8MPa |
0.8MPa |
| 1913BB302 |
3.0mm |
0.3 |
0.6MPa |
0.6MPa |
Applications:
Industrial Automation
Multi-station fluid control plays a crucial role in both pneumatic and hydraulic systems within industrial automation. This technology ensures efficient coordination and operation across various stations.
Water Treatment
ON/OFF control methods are widely utilized in water distribution and treatment processes to manage the flow and quality of water effectively.
Compressed Air Systems
Controlling the airflow in pneumatic tools and automated production lines is essential for maintaining consistent performance and safety in compressed air systems.
Steam Systems
Steam regulation is critical in small-scale heating and sterilization equipment, ensuring precise temperature control and operational reliability.
Oil Systems
Managing light oil flow in industrial lubrication and fuel systems helps maintain equipment efficiency and reduces wear and tear.
HVAC Systems
Heating and cooling fluids are carefully controlled in building services to maintain comfortable and energy-efficient indoor environments.
Packaging Machinery
Automated packaging equipment relies on precise fluid control to achieve accurate and consistent product handling and packaging.
Medical Equipment
Sterile fluid and gas management is vital in diagnostic and treatment devices to ensure patient safety and device effectiveness.
Laboratory Instruments
Analytical and testing equipment require precision fluid handling for accurate and reliable results in various scientific applications.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial applications. To ensure optimal operation, please follow the installation and maintenance guidelines provided in the user manual.
For technical support, we offer comprehensive assistance including troubleshooting, repair advice, and replacement part information. Our support team is dedicated to helping you resolve any issues quickly to minimize downtime.
We also provide customized service plans tailored to your specific needs, including routine maintenance schedules and on-site service options. Regular maintenance helps extend the life of your pneumatic solenoid valve and ensures consistent performance.
Additionally, we offer training programs to help your staff understand the proper use and handling of the product, ensuring safety and efficiency in your operations.
For detailed product specifications, installation instructions, and troubleshooting guides, please refer to the documentation provided with your purchase or visit our official website.
Packing and Shipping:
Product Packaging: The Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. Each valve is individually wrapped in anti-static bubble wrap and placed inside a sturdy, corrugated cardboard box. The box is then securely sealed with tamper-evident tape. Additional cushioning materials such as foam inserts or air pillows are used to prevent movement and absorb shocks. All packaging materials are environmentally friendly and comply with international shipping standards.
Shipping: We offer worldwide shipping with reliable carriers to ensure timely delivery. The Pneumatic Solenoid Valve is shipped with tracking information provided to the customer. Depending on the destination, shipping options include standard, expedited, and express services. The product is handled with care throughout the shipping process to maintain its quality and functionality upon arrival. Customs documentation and necessary certifications are included for international shipments to facilitate smooth clearance.
