Product Description:

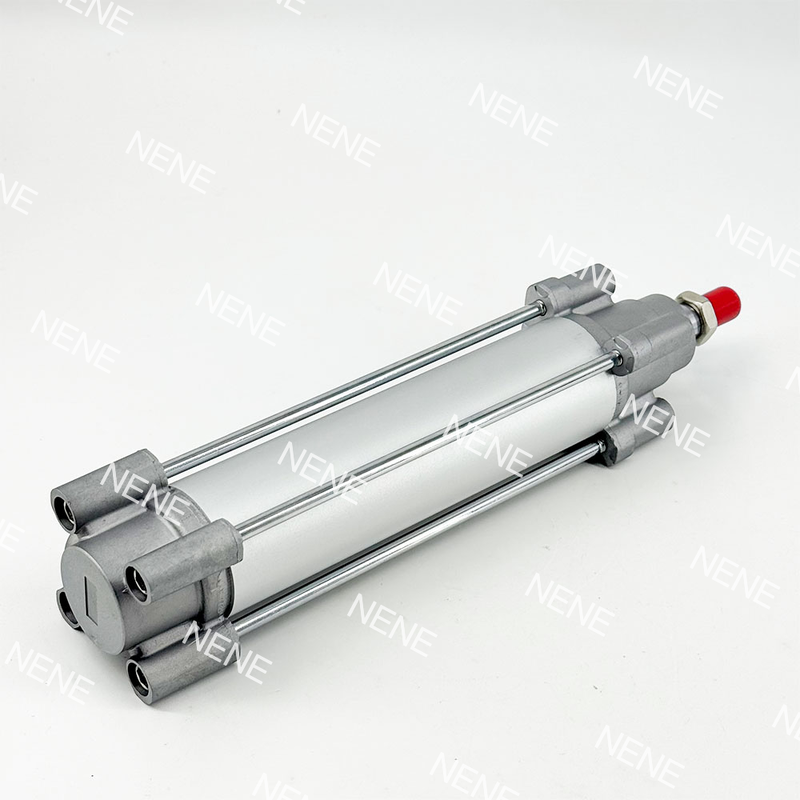

The RA/802080/M Series represents a high-performance, double-acting pneumatic cylinder designed according to the ISO 15552 standard. Proudly part of the esteemed ISOLine™ range, this cylinder features an 80mm bore diameter and is available in a wide variety of stroke lengths, ranging from 25mm to 1000mm. It is engineered to provide reliable and efficient linear motion, making it suitable for numerous industrial automation applications.
Central to this cylinder's functionality is the innovative Adaptive Cushioning System (ACS). This smart technology automatically modifies cushioning performance to adapt to varying loads, which eliminates the necessity for manual adjustment of cushion screws or specialized expertise. As a result, users benefit from smoother and safer operation, lower maintenance expenses, and an extended overall service life.
Constructed with a sturdy round barrel design and external tie rods, the RA/802080/M Series ensures enhanced durability and is ideal for use in more demanding and aggressive environments. Additionally, the cylinder includes a magnetic piston as a standard feature, allowing for straightforward position sensing using compatible reed or solid-state switches. Conforming to ISO 15552, VDMA 24562, and NFE 49-003-1 standards, this cylinder guarantees interchangeability and meets global compliance requirements.
Capable of operating at a maximum pressure of 16 bar within a temperature range from -10°C to +80°C, this pneumatic cylinder is versatile enough to undertake challenging industrial tasks while maintaining smooth and precise performance. The 80mm bore size provides considerable force output, with a theoretical thrust of 3016N at 6 bar, making the RA/802080/M Series especially suitable for heavy-duty operations.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System automatically modifies the cushioning based on varying loads. This feature eliminates the need for manual adjustments, ensuring smooth and safe operation. Additionally, it helps in reducing noise and vibration during use.
ISO 15552 Compliance
This product conforms to international standards including ISO 15552, VDMA 24562, and NFE 49-003-1. Such compliance guarantees global interchangeability and facilitates easy integration into existing setups.
Robust Construction
Featuring a round barrel design complemented by external tie rods, the construction offers exceptional durability. It is especially suited for demanding and aggressive industrial environments where reliability is crucial.
Magnetic Piston
The standard magnetic piston allows for straightforward position sensing. It is compatible with reed or solid-state switches, such as the M/50 series, enhancing operational control and monitoring.
Wide Operating Pressure Range
Operating effectively within a pressure range of 1 to 16 bar, this system is adaptable to a variety of applications. It can handle tasks ranging from light-duty to heavy-duty, providing versatile performance.
Versatile Stroke Selection
Stroke lengths are available in a broad spectrum, including both standard and non-standard options up to 1000mm. This versatility allows for customization to meet specific application requirements.
Low Maintenance
The use of PUR seals ensures low-friction operation which contributes to a long service life. Furthermore, the system is compatible with both lubricated and non-lubricated air, reducing maintenance demands.
Shock and Vibration Tested
The product has undergone rigorous testing compliant with EN 61373 Category 1, Class A + B standards. This makes it suitable for rail and transportation applications where shock and vibration resistance is essential.
High Force Output
At a theoretical thrust of 6 bar, the system delivers 3016 N on the outstroke and 2722 N on the instroke. This substantial force output ensures capability in handling demanding tasks efficiently.
Multiple Variants Available
There are various options available to tailor the system, including different piston rod materials, special wipers, low friction seals, and extended piston rods. These variants allow for enhanced customization and functionality.
Technical Parameters:
| Standard |
ISO 15552 |
| Operation |
Double Acting |
| Type |
Standard Cylinder |
| Series |
RA/802000 |
| Brand |
IMI Norgren |
| Cylinder Bore |
80 Mm |
Applications:
Industrial Automation
This sector encompasses general factory automation, including assembly lines and material handling equipment. It plays a crucial role in streamlining production processes and improving operational efficiency.
Packaging Machinery
Packaging machinery involves various operations such as product sorting, pushing, positioning, and conveying. These automated processes ensure accuracy and speed in packaging workflows.
Automotive Industry
In the automotive field, automation is applied in component assembly, welding fixtures, production line automation, and testing equipment. These technologies enhance precision and consistency in vehicle manufacturing.
Railway Applications
Railway equipment is designed to withstand shock and vibration, meeting the EN 61373 standard Category 1, Class A + B. This ensures durability and reliability for rail vehicle components under demanding conditions.
Food & Beverage
The food and beverage industry utilizes equipment compatible with filtered, lubricated, or non-lubricated compressed air, maintaining hygiene and operational effectiveness.
Mechanical Engineering
This area covers machine building, the development of special-purpose machinery, and general linear actuation systems essential for various mechanical processes.
Material Handling
Material handling includes operations such as lifting, pushing, stopping, and transferring within logistics systems, facilitating the smooth movement of goods.
Electronics Manufacturing
Precision positioning and component handling in clean environments are critical in electronics manufacturing, ensuring high-quality assembly and production standards.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial applications. To ensure optimal operation, it is essential to follow the recommended installation, maintenance, and troubleshooting guidelines provided in the product manual.
For technical support, please refer to the detailed documentation that accompanies the product, which includes specifications, wiring diagrams, and safety instructions. Regular inspection and maintenance of the cylinder, such as checking for air leaks, lubrication, and alignment, will extend its service life and maintain performance.
If any issues arise during the use of the Piston Pneumatic Cylinder, troubleshooting steps are outlined to help identify and resolve common problems. These steps include verifying air supply pressure, examining seals and piston rods for wear or damage, and ensuring proper mounting and connections.
Our technical support team is available to assist with any complex inquiries or assistance needed for integration and customization of the pneumatic cylinder within your systems. We are committed to providing prompt and effective solutions to minimize downtime and maximize productivity.
Additionally, we offer a range of maintenance services and replacement parts to support the long-term operation of your pneumatic systems. Regular consultation with our experts can help optimize performance and adapt to evolving operational requirements.
