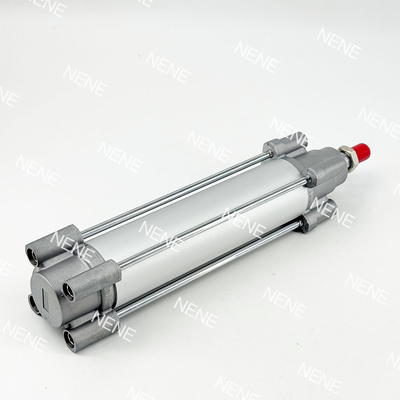

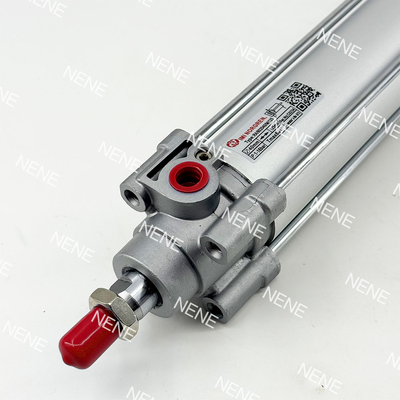

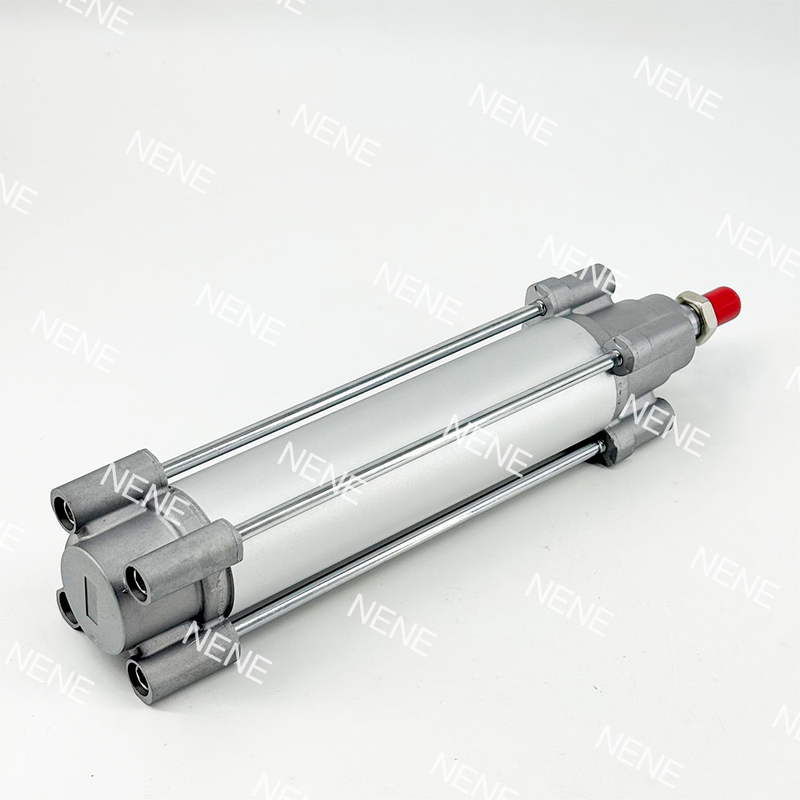

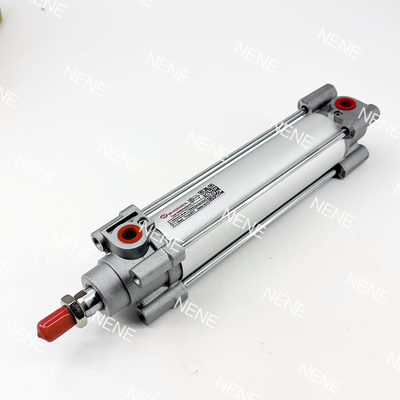

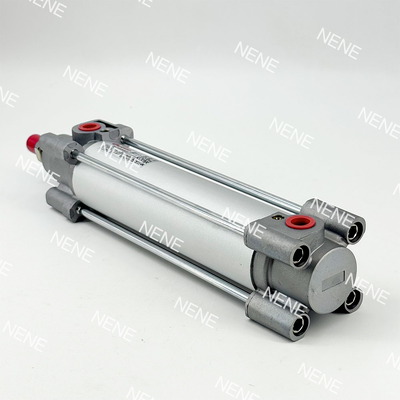

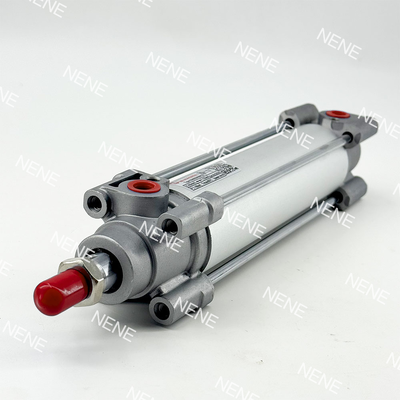

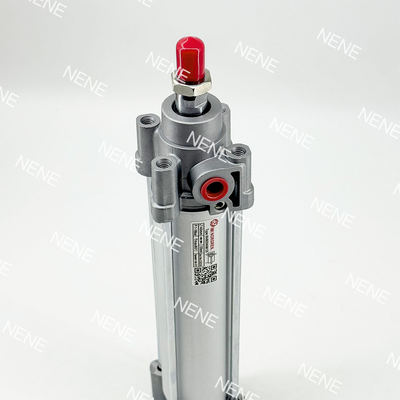

RA/802080/M/600 Heavy Duty Pneumatic Actuator by Norgren 600mm Stroke for Bulk Material Handling

Product Description:

The RA/802080/M Series is a high-performance double-acting pneumatic cylinder that complies with the ISO 15552 standard. Part of the esteemed ISOLine™ product range, this cylinder features an 80mm bore diameter and is available in a wide variety of stroke lengths, ranging from 25mm up to 1000mm. It is engineered to provide dependable and efficient linear motion, making it suitable for numerous industrial automation applications.

Central to the design of this cylinder is the innovative Adaptive Cushioning System (ACS). This smart technology automatically adjusts the cushioning effect according to varying load conditions, removing the need for manual adjustment of cushion screws or specialized expertise. This results in smoother and safer operations, lowers maintenance expenses, and extends the overall service life of the cylinder.

Constructed with a sturdy round barrel and reinforced with external tie rods, the RA/802080/M Series offers exceptional durability and is capable of performing reliably even in harsh environments. The cylinder includes a magnetic piston as a standard feature, which facilitates straightforward position sensing when paired with compatible reed or solid-state switches. It meets the ISO 15552, VDMA 24562, and NFE 49-003-1 standards, ensuring compatibility and compliance on a global scale.

Operating with a maximum pressure of 16 bar and within a temperature range of -10°C to +80°C, this pneumatic cylinder is versatile enough to handle challenging industrial tasks while maintaining smooth and precise performance. The 80mm bore generates a significant force output, offering a theoretical thrust of 3016N at 6 bar, making it an excellent choice for heavy-duty applications.

Features:

The Adaptive Cushioning System automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments and ensures smooth and safe operation while significantly reducing noise and vibration.

This product complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, guaranteeing global interchangeability. It can be easily integrated into existing systems without compatibility issues.

Featuring a round barrel design with external tie rods, the construction provides exceptional durability. This robustness makes it suitable for use in demanding and aggressive industrial environments.

The standard magnetic piston facilitates convenient position sensing by using reed or solid-state switches, such as those from the M/50 series.

Capable of operating between 1 and 16 bar, the product is versatile enough for a broad spectrum of applications, ranging from light-duty to heavy-duty tasks.

It is available in numerous standard and non-standard stroke lengths, with options extending up to 1000mm to suit specific application requirements.

Equipped with PUR seals, this system guarantees low-friction operation and extended service life. It is compatible with both lubricated and non-lubricated air systems, simplifying maintenance.

Tested according to EN 61373 Category 1, Class A + B standards, the product is well suited for rail and transportation applications where shock and vibration resistance is critical.

Delivering a theoretical thrust force at 6 bar of 3016 N during outstroke and 2722 N during instroke, it provides substantial power for demanding operational tasks.

The product supports various configurations, including different piston rod materials, special wipers, low friction seals, and extended piston rod options to meet diverse application needs.

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinder product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, maintenance manuals, and troubleshooting instructions to help you effectively use and maintain the cylinder.

Our technical support team is available to assist with any inquiries related to product specifications, compatibility, and application advice. We offer expert guidance to help you select the right cylinder model for your specific needs and ensure proper integration into your pneumatic systems.

In addition to support, we provide repair and replacement services to address any manufacturing defects or operational issues covered under the product warranty. Our commitment is to minimize downtime and maintain the efficiency of your pneumatic operations.

For custom requirements, we offer tailored solutions including bespoke cylinder designs and modifications to meet unique operational demands. Our engineering team works closely with customers to deliver products that align with their precise specifications.

We also provide training sessions and workshops to educate users on best practices for installation, operation, and safety when working with piston pneumatic cylinders. This helps in maximizing the lifespan and reliability of the product.

Regular updates and product improvements are communicated through our technical bulletins and newsletters, ensuring you stay informed about the latest advancements and recommended practices.
