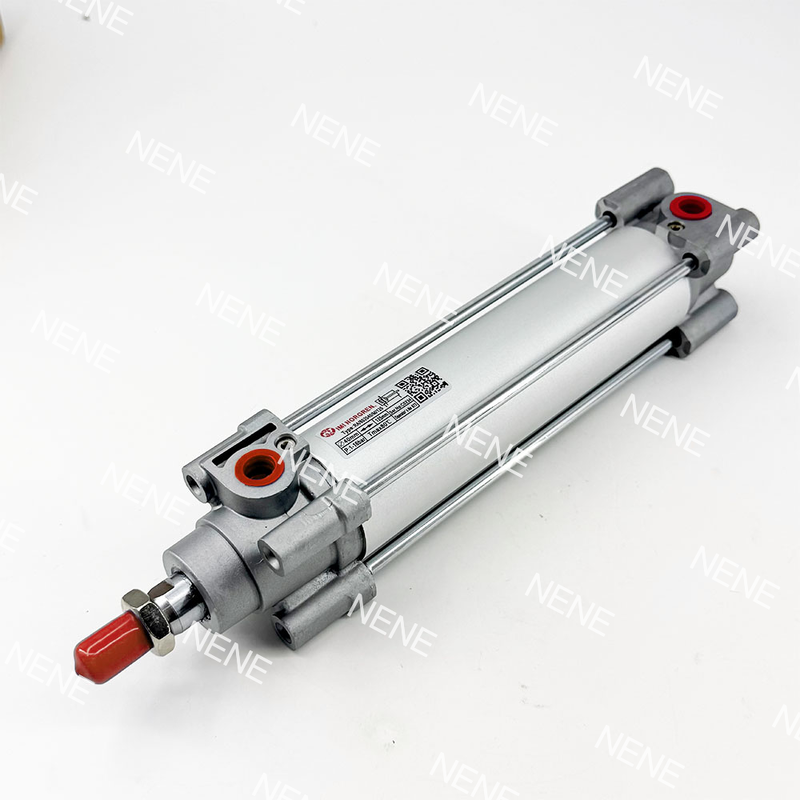

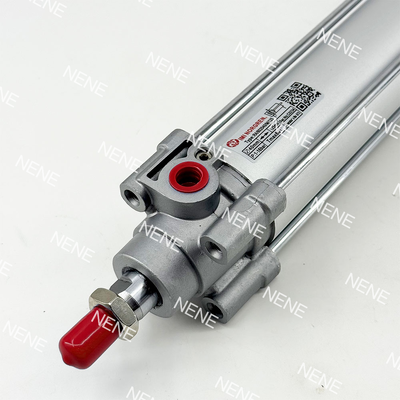

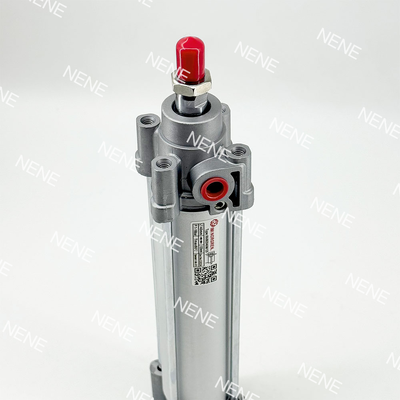

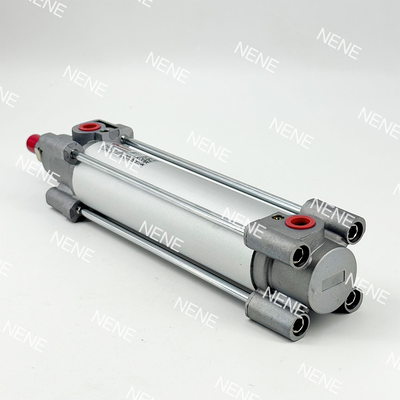

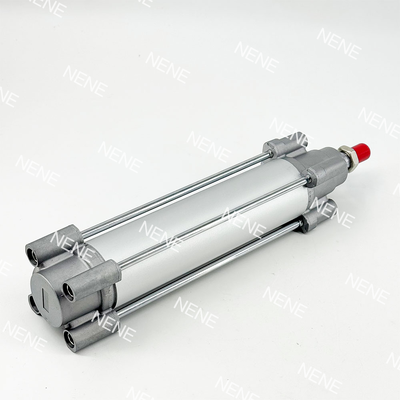

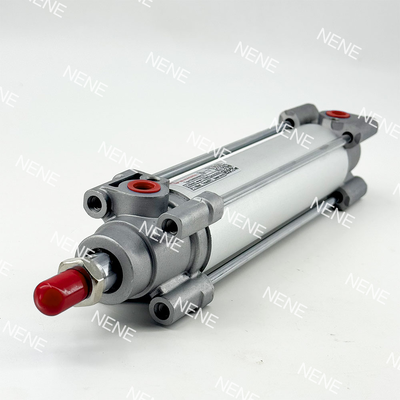

RA/802080/M/350 Heavy Duty Air Cylinder IMI Norgren 80mm Bore PUR Seals 350mm Stroke

Product Description:

The RA/802080/M Series is a high-performance pneumatic cylinder that complies with the ISO 15552 standard and belongs to the well-known ISOLine™ range. It features an 80mm bore diameter and is available in a wide range of stroke lengths, from 25mm up to 1000mm. This design ensures dependable and efficient linear motion, making it suitable for numerous industrial automation applications.

At the core of this advanced cylinder is the Adaptive Cushioning System (ACS), an innovative technology that automatically adapts cushioning performance based on varying load conditions. This eliminates the requirement for manual cushion screw adjustments or specialized expertise. As a result, the cylinder operates more smoothly and safely, while also reducing maintenance needs and extending its overall service life.

Constructed with a sturdy round barrel and external tie rods, the RA/802080/M Series provides exceptional durability and can withstand harsh operating environments. It is equipped with a magnetic piston as standard, allowing for easy position sensing when used with compatible reed or solid-state switches. Furthermore, this cylinder meets ISO 15552, VDMA 24562, and NFE 49-003-1 standards, ensuring interchangeability and adherence to global regulations.

Designed to operate at a maximum pressure of 16 bar and within a temperature range of -10°C to +80°C, this cylinder is versatile enough to manage demanding industrial tasks while maintaining smooth and precise performance. The 80mm bore size provides significant force output, delivering a theoretical thrust of 3016N at 6 bar pressure, making it an excellent choice for heavy-duty applications.

Features:

The Adaptive Cushioning System automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments, ensuring smooth and safe operation while significantly reducing noise and vibration.

This product meets the requirements of ISO 15552, VDMA 24562, and NFE 49-003-1 standards. Such compliance guarantees global interchangeability and facilitates easy integration into existing systems.

Featuring a round barrel design with external tie rods, the construction provides exceptional durability suitable for aggressive industrial environments.

Equipped with a standard magnetic piston, it allows for straightforward position sensing using reed or solid-state switches, such as the M/50 series.

The system operates efficiently within a pressure range of 1 to 16 bar, making it versatile enough to handle applications from light-duty to heavy-duty tasks.

Available in a broad spectrum of standard and custom stroke lengths, the product can accommodate strokes up to 1000mm to meet various application requirements.

Utilizing PUR seals ensures low-friction operation and longevity. The design is compatible with both lubricated and non-lubricated air, minimizing maintenance efforts.

This device has been rigorously tested to meet EN 61373 Category 1, Class A + B standards, making it reliable for rail and transportation applications.

At an operating pressure of 6 bar, the theoretical thrust output is 3016 N on the outstroke and 2722 N on the instroke, delivering substantial power for demanding use cases.

The product offers multiple configurations, including options for various piston rod materials, special wipers, low friction seals, and extended piston rods to suit specific needs.

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a wide range of industrial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, maintenance tips, and performance optimization to ensure your cylinder operates at peak efficiency.

We offer comprehensive services including product selection assistance, custom configuration, and replacement parts availability. Detailed manuals and technical documentation are provided to help you understand specifications, operational parameters, and safety precautions.

In case of any operational issues, our support services include diagnostic assistance to quickly identify and resolve problems, minimizing downtime. Regular maintenance services and inspection protocols are recommended to extend the lifespan of the pneumatic cylinders and maintain consistent performance.

For enhanced service, training sessions and technical workshops can be arranged to educate your team on best practices for using and maintaining the piston pneumatic cylinders effectively.

We are committed to providing ongoing support and continuous improvement to meet your evolving needs and ensure satisfaction with our pneumatic cylinder products.

Packing and Shipping:

Product Packaging: Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective plastic film to prevent moisture and dust exposure. It is then cushioned with foam inserts to absorb shocks and vibrations. The wrapped and cushioned product is placed inside a sturdy, double-walled corrugated cardboard box. The box is sealed securely with reinforced packing tape and labeled with handling instructions and product information for easy identification.

Shipping: Our Piston Pneumatic Cylinders are shipped using reliable carriers with tracking options available to ensure timely and safe delivery. We offer various shipping methods including standard, expedited, and freight services to accommodate different customer needs. Each shipment is carefully handled, and insurance is available upon request to protect against any potential loss or damage during transportation. Delivery times may vary depending on the destination and chosen shipping method.
