Product Description:

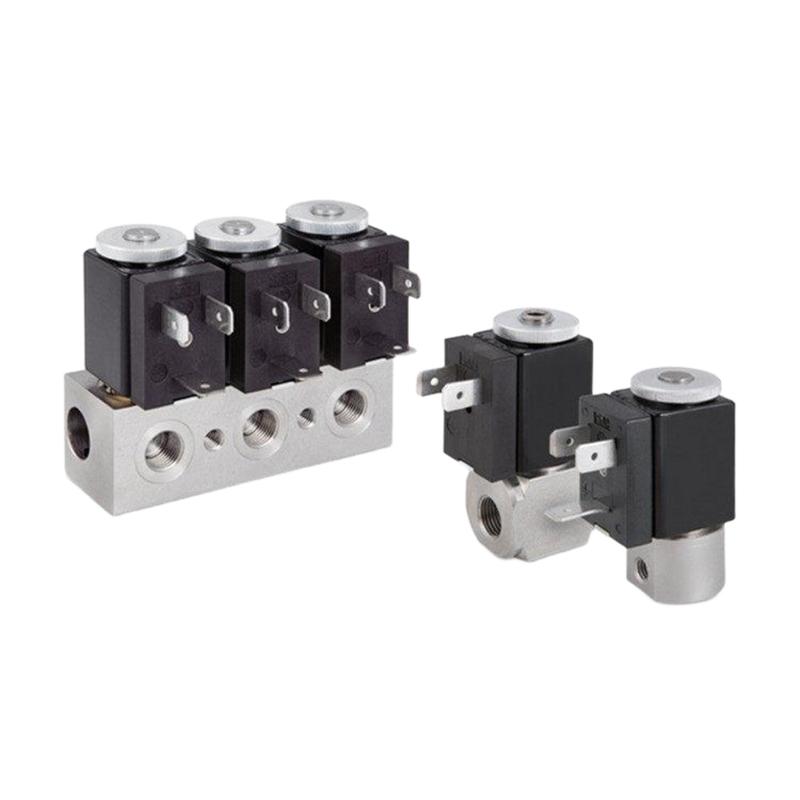

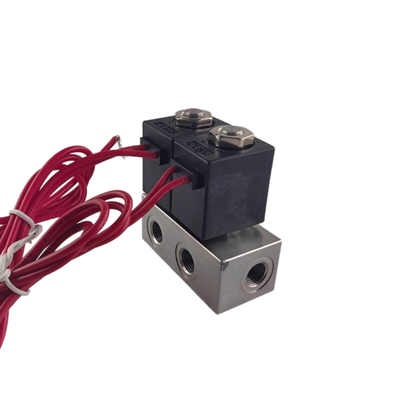

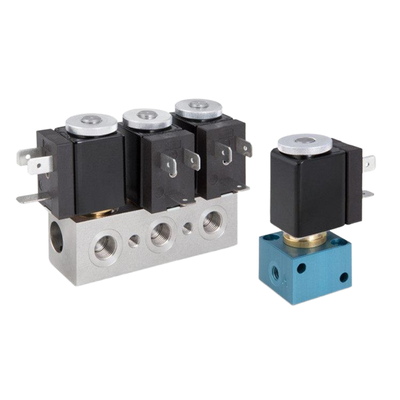

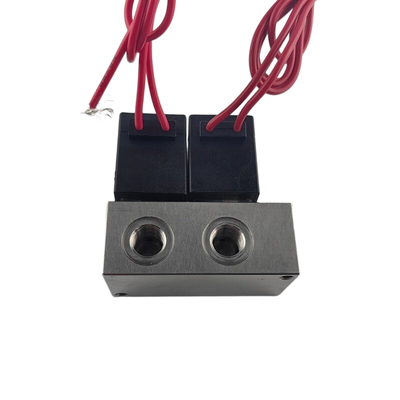

The Product Series described here is a 2/2-way normally closed direct-acting solenoid valve, specifically designed for easy manifold mount integration within fluid control systems. It provides reliable ON/OFF operation for various media, including air, water, steam, oil, and other neutral fluids, making it a versatile solution for many industrial applications.
Crafted from stainless steel, this solenoid valve exhibits exceptional durability and resistance to corrosion, which ensures long-lasting performance even in demanding industrial environments. Its direct-acting mechanism guarantees dependable function starting from zero differential pressure, making it especially suitable for low-pressure systems and compact setups.
The valve body is primarily constructed from stainless steel, with additional options available in brass and aluminum alloys. It also supports a variety of seal materials such as NBR, EPDM, and FKM, allowing for excellent compatibility with different media over a broad temperature range spanning from -30°C to +150°C.
Featuring port sizes of 1/8″ and 1/4″, along with orifice diameters ranging between 1.6mm and 3.0mm, the 1913BA series provides precise flow control capabilities with Cv values reaching up to 0.30. Produced in Ningbo, China, and holding CE certification, this valve manifold is recognized for its high quality and reliability in diverse industrial sectors.
Features:
The valve features a direct acting operation with a spring-return mechanism that enables it to function starting from zero pressure differential (0 MPa). This ensures consistent and reliable performance throughout the entire pressure range.
Designed as a 2/2 way normally closed valve, the spring-return mechanism keeps the valve securely closed when de-energized. This provides a fail-safe operation to enhance system safety.
Constructed from durable stainless steel, the valve body offers excellent corrosion resistance and robust structural integrity, making it ideal for long-term use in harsh and demanding environments. Additionally, options for brass and aluminum alloy bodies are also available.
To suit various media compatibility and temperature requirements, multiple seal options are offered. These include NBR seals suitable for temperatures from -10 to +80°C, EPDM seals from -30 to +120°C, and FKM seals that can withstand -30 to +150°C.
The compact manifold design, featuring 1/8″ and 1/4″ port sizes, allows for space-efficient integration into multi-station setups, saving valuable installation space.
With a wide operating pressure range of up to 1.6 MPa (16 Bar) for both AC and DC models, this valve caters to diverse system pressure requirements.
Various orifice sizes—including 1.6mm, 2.5mm, and 3.0mm—are available to provide precise flow control, with Cv values ranging from 0.11 to 0.30.
The valve supports a broad range of voltage options such as 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), allowing compatibility with many different control systems.
It is CE certified, ensuring compliance with international safety and quality standards.
Backed by a high production capacity of 200,000 units per month and 40,000 units per week, this valve guarantees a reliable supply even for large-scale orders.
Technical Parameters:
| Working Pressure | 0–16 Bar |
| Operation | Direct Acting |
| Diaphragm Material | NBR, EPDM, FKM |
| Media Compatibility | Air, Water, Steam, Oil |
| Standard Voltages | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Orifice Size | 1.6mm, 2.5mm, 3.0mm |
| Function | 2 Way Normally Closed |
| Port Size | 1/8'', 1/4'' |
Applications:
Applications of Fluid Control Systems
Industrial Automation: Fluid control is essential in multi-station pneumatic and hydraulic systems, enabling efficient and synchronized operation of automated machinery.
Water Treatment: ON/OFF control mechanisms play a critical role in managing water distribution and treatment processes, ensuring safe and reliable water supply.
Compressed Air Systems: Precise control of air flow is vital in pneumatic tools and automation lines to maintain performance and energy efficiency.
Steam Systems: Steam regulation is important for small-scale heating and sterilization equipment, providing consistent temperature control for various industrial applications.
Oil Systems: The management of light oil is crucial in industrial lubrication and fuel delivery systems, guaranteeing smooth operation and protection of machinery.
HVAC Systems: Controlling heating and cooling fluids in building services ensures comfortable indoor environments through efficient temperature management.
Packaging Machinery: Accurate fluid control is required in automated packaging equipment to maintain product quality and process consistency.
Medical Equipment: Sterile fluid and gas control is fundamental in diagnostic and treatment devices, ensuring patient safety and effective medical procedures.
Laboratory Instruments: Precision fluid handling supports analytical and testing equipment, enabling reliable and repeatable laboratory results.
Manifold Assemblies: These systems integrate multiple valves into manifold blocks for centralized and streamlined fluid control in complex applications.
Customization:
The DKE 1913BA-5-S pneumatic solenoid valve is a high-quality pilot diaphragm solenoid valve designed for reliable performance and versatility. Manufactured in China and CE certified, this normally closed solenoid valve features a 2-way function ensuring secure and efficient flow control.
With port sizes available in 1/8'' and 1/4'', and orifice sizes of 1.6mm, 2.5mm, and 3.0mm, this valve supports a variety of applications involving air, water, steam, and light oil valve media. It is compatible with standard voltages including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC, providing flexibility for different systems.
We offer a minimum order quantity of just one unit, with pricing available through negotiation. Packaging is carefully done in cartons to ensure safe delivery. Our supply ability is 5000 pieces per month, and delivery time is typically 1-7 work days after payment. Payment terms include T/T, Western Union, and Paypal for your convenience.
Choose the DKE 1913BA-5-S pneumatic solenoid valve for your needs and experience efficient and dependable operation in your pneumatic systems.
Packing and Shipping:
Product Packaging and Shipping
The Pneumatic Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. Each valve is individually packed in a protective plastic bag and then placed inside a sturdy cardboard box with adequate cushioning materials to prevent damage during transit.
For bulk orders, the valves are securely arranged in larger carton boxes, with additional padding to minimize movement and impact. All packaging materials are chosen to be environmentally friendly and recyclable.
Shipping is available via air, sea, or land freight, depending on the destination and customer preference. Each shipment is accompanied by proper documentation, including a packing list, invoice, and certificate of origin if required.
We take great care in handling and shipping to ensure timely delivery and customer satisfaction. Tracking information will be provided once the order has been dispatched.
