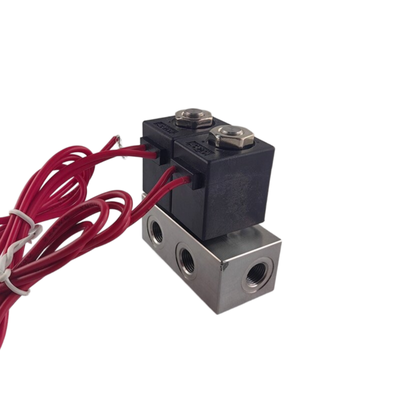

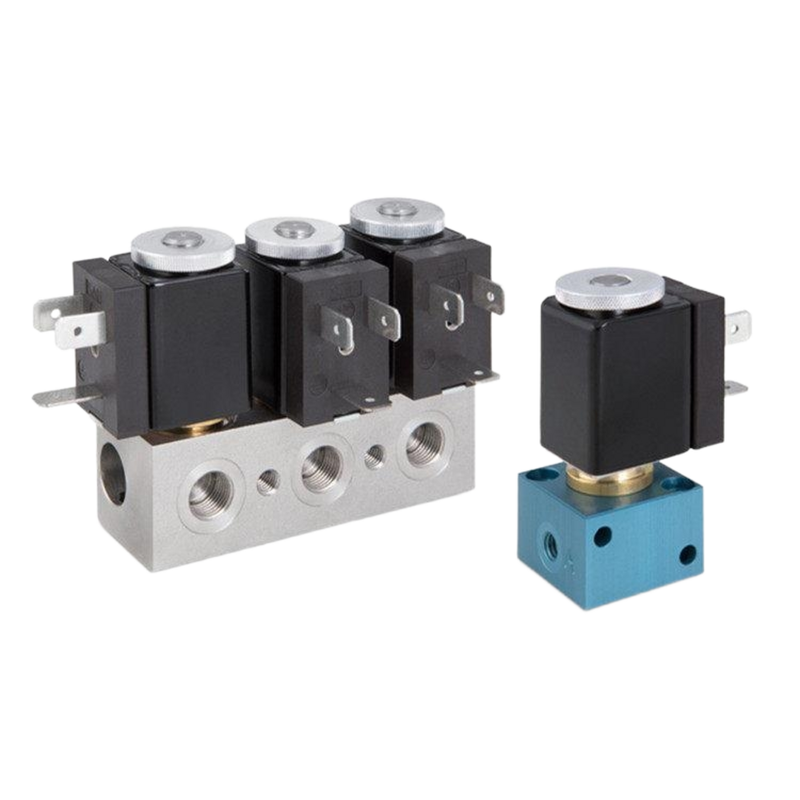

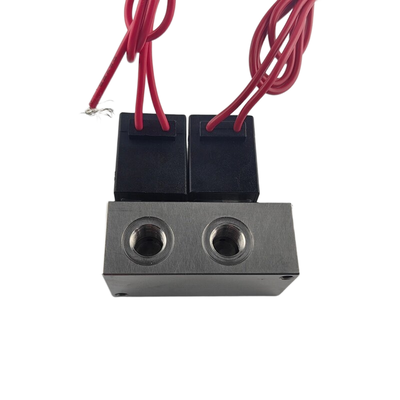

Product Description:
The Product Series features a 2/2-way normally closed direct-acting solenoid valve, specifically designed for manifold mount integration within fluid control systems. This valve is engineered to provide dependable ON/OFF control for various fluids including air, water, steam, oil, and other neutral substances.
Constructed from stainless steel, this solenoid valve ensures exceptional durability and excellent resistance to corrosion, making it well-suited for challenging industrial environments. Its direct-acting mechanism guarantees reliable operation starting from zero differential pressure, which is particularly beneficial for low-pressure applications and compact system configurations.
The valve body is primarily made of stainless steel, with alternative options available in brass and aluminum alloy. Additionally, it supports multiple seal materials such as NBR, EPDM, and FKM, enabling superior compatibility with different media. The valve can operate efficiently within a broad temperature range, spanning from -30°C to +150°C.
This series comes with port sizes of 1/8″ and 1/4″, and orifice diameters ranging between 1.6mm and 3.0mm, providing precise flow control capabilities with Cv values reaching up to 0.30. Manufactured in Ningbo, China, and holding CE certification, the 1913BA valve manifold is recognized for its quality and reliability across a wide spectrum of industrial applications.
Features:
The valve features a direct acting operation with a spring-return mechanism, enabling functionality even at zero pressure differential (0 MPa). This design guarantees consistent and reliable performance throughout the entire pressure range.
It operates as a 2/2 way normally closed valve, where the spring-return mechanism keeps the valve securely closed when de-energized. This ensures fail-safe operation, enhancing system safety.
Constructed with a durable stainless steel body, the valve offers exceptional corrosion resistance and robust structural integrity, making it suitable for long-term use in demanding environments. Additionally, options in brass and aluminum alloy are available to meet diverse application needs.
Multiple sealing options allow for optimal compatibility with various media and temperature ranges. Choices include NBR seals suitable for -10 to +80°C, EPDM for -30 to +120°C, and FKM for -30 to +150°C.
The compact manifold design supports 1/8″ and 1/4″ port sizes, providing space-saving integration for multi-station systems without compromising performance.
This valve supports a wide operating pressure range up to 1.6 MPa (16 Bar) for both AC and DC models, accommodating a variety of system requirements.
To achieve precise flow control, multiple orifice sizes are available including 1.6mm, 2.5mm, and 3.0mm. These options correspond to Cv values ranging from 0.11 to 0.30.
Wide voltage compatibility ensures the valve can be used with 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz) control systems, offering flexibility in different applications.
The valve is CE certified, confirming compliance with international safety and quality standards.
Supported by a high production capacity of 200,000 pieces per month and 40,000 pieces per week, the manufacturing process guarantees a reliable supply to meet bulk order demands.
Technical Parameters:
| Function |
2 Way Normally Closed |
| Media Compatibility |
Air, Water, Steam, Oil |
| Working Pressure |
0–16 Bar |
| Standard Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Operation |
Direct Acting |
| Diaphragm Material |
NBR, EPDM, FKM |
| Port Size |
1/8'', 1/4'' |
| Orifice Size |
1.6mm, 2.5mm, 3.0mm |
Applications:
Applications of Fluid Control Systems
In industrial automation, fluid control plays a crucial role in managing multi-station pneumatic and hydraulic systems. These systems enable efficient and precise operation in manufacturing and processing environments.
Water treatment processes benefit from ON/OFF control mechanisms that regulate water distribution and purification. This ensures the effective delivery and treatment of water across various facilities.
Compressed air systems require accurate control over airflow, especially in the operation of pneumatic tools and automated production lines. Proper management of compressed air improves system efficiency and reliability.
Steam systems, often utilized in small-scale heating and sterilization equipment, depend on fluid control for maintaining appropriate steam levels and ensuring safe operation.
In oil systems, especially those involved in industrial lubrication and fuel delivery, light oil control is vital for optimal performance and equipment longevity.
HVAC systems rely on precise heating and cooling fluid control to maintain comfortable and energy-efficient building environments.
Packaging machinery requires exact fluid control to operate automated packaging lines, ensuring product consistency and high-speed performance.
Medical equipment demands sterile fluid and gas control, which is essential in diagnostic and treatment devices to guarantee patient safety and operational accuracy.
Laboratory instruments use precision fluid handling techniques in analytical and testing equipment to support accurate scientific measurements and experiments.

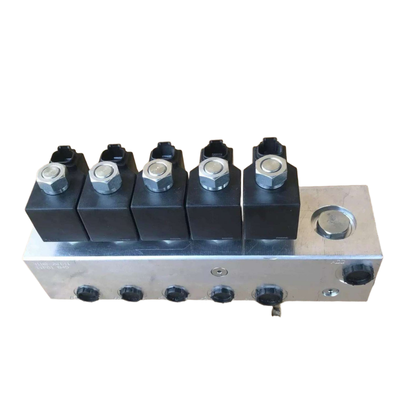

Finally, manifold assemblies facilitate the integration of multiple valves into centralized blocks, providing streamlined and centralized fluid control solutions for various industrial applications.
Customization:
Our DKE 1913BA-5-S pneumatic solenoid valve offers comprehensive product customization services to meet your specific requirements. Manufactured in China and CE certified, this normally closed solenoid valve is designed for reliable performance with media compatibility including air, water, steam, and oil, making it an ideal light oil valve solution.
We provide flexible options for standard voltages such as 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC to suit various applications. The port size can be customized between 1/8'' and 1/4'', while the working pressure range is 0–16 Bar to handle diverse operational demands.
With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, we ensure timely delivery within 1-7 work days after payment. Packaging is securely done in cartons to protect the solenoid valve during transit.
Our payment terms are flexible, accepting T/T, Western Union, and Paypal, with pricing available upon negotiation. Trust DKE to provide you with a high-quality, customizable pneumatic solenoid valve that fits your needs perfectly.
Packing and Shipping:
Product Packaging and Shipping
Each Pneumatic Solenoid Valve is carefully packaged to ensure maximum protection during transit. The valve is first wrapped in anti-static bubble wrap to prevent any damage from impact or static electricity. It is then placed inside a sturdy, custom-fitted cardboard box designed to minimize movement and absorb shocks.
The packaging also includes protective corner guards and desiccant packets to prevent moisture buildup. For bulk orders, individual boxes are securely packed into larger cartons with additional cushioning materials to safeguard the products during shipping.
All packages are clearly labeled with product information, handling instructions, and shipping details. We offer multiple shipping options including standard ground, expedited, and international delivery to meet your needs.
Our logistics partners ensure timely and safe delivery to your specified location. Tracking information will be provided once the order has been dispatched.
