Product Description:

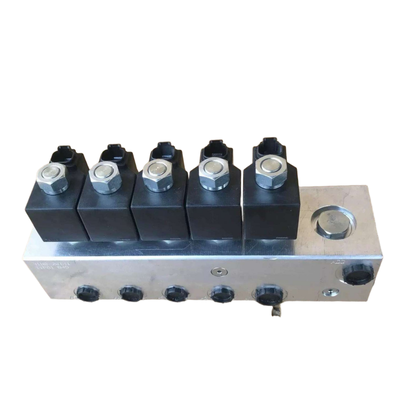

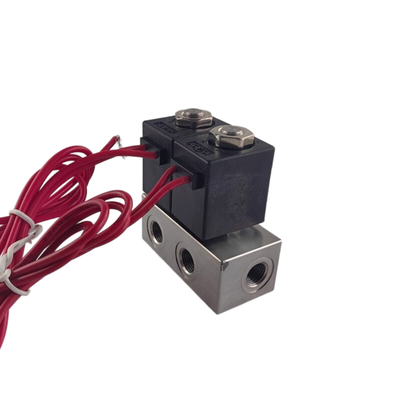

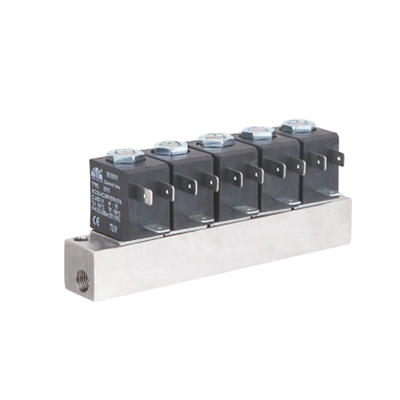

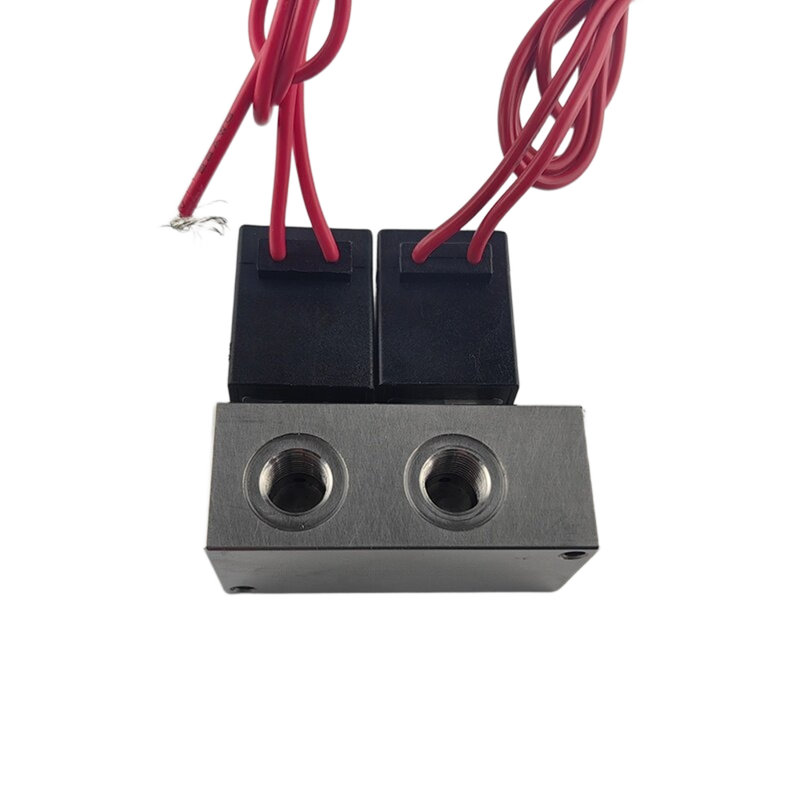

The Product Series features a 2/2-way normally closed direct-acting solenoid valve, specifically designed for manifold mount integration within fluid control systems. It provides dependable ON/OFF control for various media including air, water, steam, oil, and other neutral fluids.
Built with a stainless steel body, this solenoid valve ensures exceptional durability and resistance to corrosion, making it well-suited for harsh industrial environments. Its direct-acting mechanism guarantees reliable operation even at zero differential pressure, which makes it an excellent choice for low-pressure applications and compact system designs.
Additionally, the valve offers versatility with alternative body materials such as brass and aluminum alloy, as well as multiple seal options including NBR, EPDM, and FKM. This variety allows for broad media compatibility and the ability to operate across a temperature range of -30°C to +150°C.
Available in 1/8″ and 1/4″ port sizes with orifice sizes ranging from 1.6mm to 3.0mm, the 1913BA series delivers precise flow control, achieving Cv values up to 0.30. Manufactured in Ningbo, China, and holding CE certification, this valve manifold is recognized for its high quality and reliability across diverse industrial applications.
Features:
The valve features a direct acting operation with a spring-return mechanism, allowing it to function effectively starting from zero pressure differential (0 MPa). This design guarantees consistent and reliable performance throughout the entire pressure range.
It incorporates a 2/2 way normally closed function, where the spring-return mechanism keeps the valve securely closed when de-energized. This ensures fail-safe operation, making it dependable in various applications.
Constructed from durable stainless steel, the valve body offers excellent corrosion resistance and robust structural integrity. This makes it ideal for long-term use in demanding environments. For added flexibility, options in brass and aluminum alloy are also available.
Customers can select from multiple seal materials to best match their media compatibility and temperature requirements. The available seals include NBR (-10 to +80°C), EPDM (-30 to +120°C), and FKM (-30 to +150°C).
The compact manifold design supports 1/8″ and 1/4″ port sizes, enabling space-saving multi-station integration within various system configurations.
This valve supports a wide operating pressure range of up to 1.6 MPa (16 Bar) for both AC and DC models, making it adaptable to diverse system demands.
It is available with multiple orifice sizes, including 1.6mm, 2.5mm, and 3.0mm, allowing for precise flow control with Cv values ranging from 0.11 to 0.30.
Wide voltage compatibility is offered, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC at 50/60Hz, to ensure suitability across various control systems.
The product is CE certified, meeting international safety and quality standards for reliable operation and compliance.
Backed by a high production capacity of 200,000 pieces per month and 40,000 pieces per week, this valve ensures a steady and reliable supply, even for large-scale orders.
Technical Parameters:
| Standard Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Media Compatibility |
Air, Water, Steam, Oil |
| Diaphragm Material |
NBR, EPDM, FKM |
| Function |
2 Way Normally Closed |
| Port Size |
1/8'', 1/4'' |
| Operation |
Direct Acting |
| Orifice Size |
1.6mm, 2.5mm, 3.0mm |
| Working Pressure |
0–16 Bar |
This normally closed solenoid valve is an ideal air valve and water valve solution, suitable for various pneumatic applications.
Applications:
Applications of Fluid Control Systems
In the field of industrial automation, multi-station fluid control plays a critical role, particularly within pneumatic and hydraulic systems. These systems rely on precise management of fluids to ensure efficient and reliable operation across various manufacturing processes.
Water treatment processes benefit significantly from ON/OFF control mechanisms that regulate water distribution and purification. Such control systems ensure that water is treated and delivered effectively to meet quality standards and demand.
Compressed air systems utilize fluid control to manage airflow within pneumatic tools and automated production lines. This control is essential for maintaining consistent pressure and performance in diverse industrial applications.
In steam systems, fluid control is vital for small-scale heating applications and sterilization equipment. Accurate steam regulation ensures optimal operating conditions and safety in these systems.
Oil systems, including those involved in industrial lubrication and fuel supply, depend on light oil control for efficient operation. Managing oil flow prevents equipment wear and optimizes fuel consumption.
Heating, ventilation, and air conditioning (HVAC) systems require precise control of heating and cooling fluids to maintain comfort and energy efficiency within building environments.
Packaging machinery employs precise fluid control to automate packaging processes, improving speed, accuracy, and consistency in the handling of various products.
Medical equipment often integrates sterile fluid and gas control to ensure safety and reliability in diagnostic and therapeutic devices. Maintaining sterility and precise flow rates is essential in healthcare applications.
Laboratory instruments depend on precision fluid handling for accurate analysis and testing. This allows for reliable experimental results and high-quality research outcomes.
Manifold assemblies facilitate the integration of multiple valves into a single block, enabling centralized and streamlined fluid control across complex systems.
Customization:
The DKE 1913BA-5-S Pneumatic Solenoid Valve is a versatile and reliable product designed to meet diverse industrial needs. Manufactured in China and certified with CE, this valve ensures high quality and compliance with international standards.
With a minimum order quantity of just 1 piece, the valve is available for negotiation on price, making it accessible for both small and large scale applications. The product is carefully packaged in cartons to ensure safe delivery, with a supply ability of 5000 pieces per month.
The valve features port sizes of 1/8'' and 1/4'', and orifice sizes of 1.6mm, 2.5mm, and 3.0mm, allowing customization to fit specific system requirements. The diaphragm material can be chosen from NBR, EPDM, or FKM, providing options for different chemical compatibilities and durability.
Standard voltages offered include 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC, making the valve adaptable to various electrical setups. It operates efficiently under a working pressure range of 0 to 16 Bar.
The DKE 1913BA-5-S is suitable for use as a light oil valve, air valve, and water valve, ensuring broad applicability across different fluid control scenarios. Delivery time is prompt, typically within 1-7 work days after payment, with flexible payment terms including T/T, Western Union, and PayPal.
Packing and Shipping:
Product Packaging and Shipping
The Pneumatic Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. Each valve is individually wrapped with protective materials and placed in a sturdy, custom-designed box to prevent damage during transit. The packaging includes anti-static and moisture-resistant components to maintain product integrity.
For shipping, we use reliable carriers with tracking options to provide timely and secure delivery. Depending on your location and order quantity, we offer various shipping methods including standard, expedited, and express services. All shipments are accompanied by detailed documentation, including a packing list and user manual, to facilitate smooth handling and installation upon receipt.
We prioritize safe packaging and prompt shipping to guarantee customer satisfaction and product reliability.
